Carbon Capture and Removal: A Practical Reference

Amine scrubbing is the default way to pull CO2 out of a dilute exhaust stream, and it has been running in industry since the 1930s. Flue gas passes up a packed absorber against a falling aqueous amine solution, usually monoethanolamine at 20–30% strength. The amine binds CO2 chemically at around 40 °C. The loaded solvent then goes to a stripper where low-pressure steam at 100–120 °C breaks the bond and releases CO2 at better than 99% purity, and the regenerated amine returns to the absorber. Everything else in the plant is compression, cooling, and water management.

MEA works on genuinely dilute gas (3–15% CO2), it is chemically well understood, and vendors will guarantee 90%+ capture. Every other capture technology gets benchmarked against it. The weaknesses are all consequences of the chemistry. Breaking the amine-CO2 bond takes 3.0–3.5 GJ of heat per ton of CO2, which is steam a power plant would otherwise turn into electricity, so a retrofit gives up 20–30% of its net output. MEA also degrades when it meets oxygen, SOx, and NOx, so the flue gas needs cleanup first and the solvent needs replacing. Degradation products are corrosive, and amine emissions from the absorber are their own permitting question.

Pick amine scrubbing when you need capture on a dilute stream today, from a bankable vendor, with performance someone will underwrite. It is the right answer for a coal or gas plant retrofit, a cement kiln, or a refinery heater where the alternative is nothing. It is also the right baseline for any study, because if a new technology cannot beat MEA on levelized cost it does not matter how clever it is. Avoid it when cheap low-grade heat is unavailable, since the steam draw is what kills the economics, and avoid it when the CO2 is already concentrated. A process stream at 90%+ CO2 needs dehydration and a compressor, not an absorber. If you have the heat but want less of it, advanced solvents cut the regeneration duty by 20–40% at higher solvent cost.

Works on 3–15% CO2 flue gas · 85–95% capture rate typical · regeneration heat 3.0–3.5 GJ/t CO2 for MEA · 20–30% loss of net power output on a retrofit · captured CO2 above 99% purity · $60–100/t on a coal retrofit, falling toward $45/t at scale on a well-integrated site.

Boundary Dam Unit 3 in Saskatchewan, the first commercial coal power capture plant (2014, ~1 Mt/yr nameplate); Petra Nova in Texas (1.4 Mt/yr, mothballed 2020, restarted 2023); Norcem Brevik cement in Norway (0.4 Mt/yr, 2025); Technology Centre Mongstad, the open test facility most solvent vendors run through.

Capture cost splits roughly in half between capital and energy. That is why the same technology quotes $60–100/t on a coal retrofit and closer to $45/t on a purpose-built plant twice the size: fixed engineering spreads over more tons and integration cost drops when the steam system is designed for it rather than cut into. In the US the Section 45Q credit at $85/t for saline storage is above the low end of that range, which is why the pipeline of announced projects grew faster than the pipeline of built ones. Anything that lowers regeneration heat goes after the largest operating line item.

5 minHow Amine Sweetening Works (Absorption and Stripping)Carver Pump Company · 10k+ views

1 minIntroduction to Amine Plants WWW.TartanAcademy.comTartan Academy · 10k+ views

The New Economics of Carbon Capture: Lower Costs, More Revenue (Clean Air Task Force) · Cost estimation for possible next SaskPower CCS installation around one-third of Boundary Dam costs per tonne of CO2 (IFRF)

Advanced solvents keep the amine-scrubbing flowsheet and change what circulates through it. Three families matter. Hindered and blended amines such as piperazine-promoted formulations react faster and hold more CO2 per liter, so the same absorber handles more gas. Water-lean solvents replace most of the water with an organic diluent, which cuts the sensible heat wasted boiling water in the stripper. Phase-change solvents split into two liquid layers when loaded, so only the CO2-rich layer goes to regeneration. All three target the same line item: the 3.0–3.5 GJ/t that MEA spends on regeneration.

The good ones land at 2.0–2.6 GJ/t, degrade more slowly than MEA, and tolerate higher stripper temperatures, which lets the CO2 come off at pressure and saves compression work. Faster kinetics also shrink the absorber, and the absorber is the largest single vessel on site. The weaknesses: the solvents cost several times more per kilogram than MEA, so inventory losses hurt more; most are proprietary, so you are buying into one vendor's license and supply; and the field record behind the performance claims is usually a few thousand hours at pilot scale rather than a decade at full size. Viscosity is the recurring engineering problem with water-lean formulations, since thicker liquid means more pumping and worse mass transfer.

Choose an advanced solvent when steam is the binding constraint. If low-grade heat is scarce or expensive, or if the host plant sells every megawatt it makes, the 20–40% cut in regeneration duty is usually worth the license fee and the solvent price. They also suit gas turbine exhaust, where CO2 is only 4–5% and MEA needs an enormous absorber. Stay with plain MEA if you need an unlicensed, fully commoditized solvent, if the site has surplus low-pressure steam it cannot sell, or if the project has to be underwritten against decades of operating data rather than a pilot campaign.

Regeneration heat 2.0–2.6 GJ/t versus 3.0–3.5 for MEA · working capacity roughly 1.5–2x MEA per liter circulated · stripper pressure up to 5–8 bar on high-temperature formulations, cutting compression work · solvent cost several times MEA per kg · typical field record measured in thousands of pilot hours, not plant-years.

Piperazine-promoted solvents from the University of Texas advanced flash stripper work; Shell CANSOLV, used at Boundary Dam; Mitsubishi KM CDR and its KS-21 successor at Petra Nova and later projects; C-Capture's carbonate-based solvent trialed at Drax; PNNL and RTI water-lean formulations tested at the National Carbon Capture Center.

Solvent choice moves the operating cost, not the capital cost, and operating cost is roughly half of levelized capture cost. Dropping regeneration duty from 3.2 to 2.2 GJ/t saves about a third of the thermal energy, which on a site paying market prices for steam is $10–20/t of CO2. Against that, you pay a license, buy a costlier inventory, and accept single-vendor supply. The trade is clearly worth it when heat is expensive and clearly not when it is nearly free.

2 minCan solvent-based carbon capture work? CO2 reduction explained | GE VernovaGE Vernova · 1k+ views

4 minC-Capture: A new solvent for low energy CO2 CaptureLife Size · 1k+ views

Cost and Performance Baseline for Fossil Energy Plants Volume 1: Bituminous Coal and Natural Gas to Electricity (OSTI) · Global Status of CCS 2024 (Global CCS Institute)

The chilled ammonia process swaps amines for aqueous ammonium carbonate and runs the absorber cold, at 0–10 °C. CO2 reacts to form ammonium bicarbonate, which is much less soluble, so solids precipitate and the slurry carries far more CO2 per liter than a clear solution can. Regeneration happens at elevated pressure, so the CO2 leaves the stripper at 20–30 bar and skips most of the compression train. A water wash section on top of the absorber catches ammonia slip, which is the whole engineering problem in one sentence.

Ammonia is cheap, made at enormous scale, and does not degrade the way amines do when they meet oxygen or SOx, so solvent makeup is a small line item. The precipitating chemistry gives high loading, and high-pressure regeneration saves real compressor work. Against that, the flue gas has to be chilled, which costs refrigeration duty that partly cancels the lower regeneration heat, and everything about a slurry is harder than a liquid: erosion, plugging, and heat exchanger fouling all get worse. Ammonia slip is the operational risk that decides permits, so the wash system is large and the plant is judged on how well it works.

Consider chilled ammonia where the flue gas is already cool or a chilled water supply exists, where the exhaust is dirty enough that amine degradation would be expensive, and where CO2 has to reach pipeline pressure. Cement and steel are the usual candidates for the dirty-gas argument. Avoid it on hot flue gas with no cooling available, on sites where ammonia handling is a regulatory or community non-starter, and on small plants, since the wash and refrigeration systems add fixed complexity that only pays back at scale. If the case rests on lower regeneration heat alone, an advanced amine gets there with less new equipment.

Absorber runs at 0–10 °C · regeneration heat roughly 2.0–2.7 GJ/t · CO2 delivered at 20–30 bar, cutting compression duty · solvent is commodity ammonia rather than a licensed amine · ammonia slip controlled to single-digit ppm by the wash section · demonstrated at 100–200 kt/yr scale, not yet at multi-Mt.

Alstom's demonstrations at Mountaineer and Technology Centre Mongstad, which produced most of the public data; Baker Hughes now markets the process as Chilled Ammonia; Norwegian and Chinese cement pilots have run variants.

3 minCCS Chilled Ammonia ProcessVideos Powerday · under 1k views

4 minCCS_Chilled Ammonia Process for CO2 CaptureSravan kumar Pentamalla · 1k+ views

4 minCCS: Innovative CO2 Capture plant is taking shape at Technology Centre Mongstad, Norwaytcmdauser · 5k+ views

Technology Centre Mongstad (TCM)

Hot potassium carbonate, sold for decades as the Benfield and Catacarb processes, absorbs CO2 into a hot 25–35% potassium carbonate solution to make potassium bicarbonate. Absorption and regeneration both run near 100–120 °C, so the two columns sit at almost the same temperature and the solution can be regenerated by simply dropping pressure rather than by boiling it. Small amounts of a promoter, historically diethanolamine or vanadium-based corrosion inhibitors, speed up a reaction that is otherwise slow. Ammonia plants, hydrogen plants, and gas processing have used it at industrial scale for over sixty years.

The reason it survives is thermodynamics: because the absorber runs hot, most of the regeneration energy comes from flashing rather than from fresh steam, and the solvent is a cheap inorganic salt that does not degrade or need replacing. It also handles high-pressure feed gas well. The weaknesses show up on dilute streams. Reaction kinetics are slow enough that the absorber has to be tall, and the process wants a high CO2 partial pressure to work, which a 12% flue gas at atmospheric pressure does not provide. Carbonate solutions are corrosive without inhibitors, and the inhibitors have their own handling and disposal issues.

Use hot potassium carbonate where the gas arrives hot and at pressure with a high CO2 content, which is exactly the shifted syngas in an ammonia or hydrogen plant. In that duty it is cheaper to run than anything else and has an unmatched operating record. Do not reach for it on atmospheric flue gas from a boiler or turbine, where low partial pressure makes the column impractically large. Amine scrubbing is the answer there. Newer promoted-carbonate formulations are being pushed toward flue gas duty, and they are worth watching, but they are not yet the low-risk choice.

Absorbs at 70–120 °C, so absorber and regenerator sit close in temperature · works best above roughly 5–10 bar CO2 partial pressure · solvent is commodity potassium carbonate, essentially non-degrading · in service since the 1950s across hundreds of ammonia and hydrogen plants · handles tens of millions of tons of CO2 removal per year worldwide, most of it vented rather than stored.

Benfield units on nearly every large ammonia plant built between 1960 and 2000; Catacarb in refinery hydrogen service; UNO MK-3 and Capsol's precipitating potassium carbonate process, both adapting the chemistry to flue gas.

The economics are unusual because the CO2 removal already happened for process reasons. An ammonia plant strips CO2 whether or not anyone is paying for climate benefit, so the incremental cost of capture is dehydration and compression, not separation. That is why ammonia and hydrogen plants show up in nearly every low-cost capture study at $20–35/t, and it is the same argument that makes ethanol fermentation attractive.

3 minCO2 Removal Process: How It WorksScience and Engineering · 1k+ views

Special Report on Carbon Dioxide Capture and Storage (IPCC)

Solid sorbent capture replaces the liquid with a porous solid that CO2 sticks to, then releases when heated or when the pressure drops. The chemistry is usually an amine grafted onto silica, a metal-organic framework, or an activated carbon, and the engineering question is how to move heat in and out of a solid fast enough. Two answers dominate: fluidized or moving beds that circulate particles between an adsorber and a regenerator, and structured contactors, where the sorbent is coated onto a rotating laminate or a honeycomb so gas sees a short, low-pressure-drop path and cycles run in a minute rather than an hour.

A solid has no water to boil, so regeneration heat can drop to 1.5–2.5 GJ/t, and heating a solid to 80–120 °C needs lower-grade steam than a stripper does. There is nothing to evaporate, corrode, or emit as amine mist. The problems are mechanical. Sorbent attrites, and replacing it is a large operating cost if life is short; heat transfer into a packed solid is poor, which is why the good designs are all about geometry; and steam or moisture in real flue gas competes with CO2 for the same sites. Field records are measured in thousands of hours at pilot scale.

Consider solid sorbents when only low-grade heat is available, when amine emissions are a permitting problem, or when the site cannot accommodate the water treatment a liquid system implies. Rotary and structured-contactor designs are also physically small, which matters on congested industrial sites like a cement plant. Do not choose them for a project that has to be financed on operating history, and be skeptical of any economics that assume sorbent life beyond what has actually been demonstrated. Sorbent replacement is the line item that decides whether the technology beats amines.

Regeneration heat around 1.5–2.5 GJ/t · regeneration temperature 80–120 °C, so low-grade heat works · cycle times of about a minute on structured contactors versus tens of minutes in fixed beds · sorbent life is the dominant operating uncertainty · demonstrated at pilot to small-commercial scale, tens of kt/yr.

Svante's rotary filter-bed contactor, in cement and hydrogen applications; TDA Research and RTI sorbents tested at the National Carbon Capture Center; Nuada's MOF-based vacuum-swing system on cement flue gas; Kawasaki's solid sorbent trials in Japan.

1 minAbout Svante Technology for Carbon Capture and RemovalSvante Solutions · 10k+ views

4 minSvante's Solid Solvent, Innovative Carbon Capture Technology: A Game-Changer for High CO2 IndustriesHydrogen Standard · under 1k views

DOE's Carbon Capture and Storage (CCS) and Carbon Removal Programs (CRS)

A membrane separates CO2 by letting it through a polymer film faster than nitrogen. There is no solvent, no heat, and no moving part in the separation itself: the driving force is a pressure ratio, supplied by a blower on the feed side, a vacuum pump on the permeate side, or both. Because a single stage rarely gets both high purity and high recovery from a dilute gas, real systems stage two or three modules and recycle. The cleverest flowsheets use combustion air as a sweep gas on the permeate side, which recycles CO2 back into the boiler and raises the concentration the membranes have to work with.

Membranes are modular, compact, need no water, produce no emissions of their own, and scale down to small sources without the fixed cost of a column and a stripper. Load follows almost instantly. The weaknesses come from the physics of a pressure-driven separation on a dilute feed. Moving large volumes of atmospheric flue gas through a pressure ratio costs a lot of electricity, typically 200–350 kWh per ton of CO2, which is worse on a carbon basis than steam if the grid is dirty. Selectivity and permeability trade against each other, so higher purity means more area and more stages. Real flue gas also carries particulates, SOx, and water, all of which shorten membrane life.

Membranes make sense on streams that are already concentrated or already at pressure, where the pressure ratio is free. Natural gas sweetening and biogas upgrading are their strongest commercial markets for exactly that reason. On flue gas, choose them where electricity is cheap and clean, where there is no steam to spare, or where the site is too small to justify a solvent plant. Avoid them where you need 99%+ purity and 95% recovery from a 4% gas in one pass; that is a duty solvents handle far better. A hybrid, with membranes doing bulk removal and a small amine unit polishing, is often the honest answer.

Electricity 200–350 kWh/t CO2 on dilute flue gas · CO2/N2 selectivity of about 30–50 for the best commercial polymers · two or three stages needed for 90% capture at high purity · no steam, no water, no solvent inventory · demonstrated to 20 t/day pilots on coal flue gas and larger in gas processing.

Membrane Technology and Research's Polaris membrane, tested at 20 t/day at the National Carbon Capture Center and designed into a 140 t/day large pilot; UOP Separex and Air Liquide Medal in gas sweetening; hundreds of membrane skids upgrading biogas to pipeline methane.

1 minCO2 Separation - How It WorksV-ROC Studios · 50k+ views

15 minGas Separation Membranes Explained {Science Thursday Ep246}S2T · 1k+ views

Scale-up Testing of Advanced Polaris Membrane in CO2 Capture Technology (OSTI) · Large Pilot Testing of the MTR Membrane Post-Combustion CO2 Capture Process (NETL)

Cryogenic capture cools the gas until the CO2 changes phase and separates as a liquid or a solid while nitrogen stays gaseous. Two flowsheets exist. Compression and partial condensation works on concentrated streams, where cooling to about -50 °C at pressure drops out liquid CO2 that can be pumped straight into a pipeline. Anti-sublimation, the approach designed for dilute flue gas, cools to around -100 to -120 °C so CO2 desublimates as frost on a heat exchanger surface, which is then warmed to melt it off. Both need the incoming gas bone dry, since water freezes first and blocks everything.

The separation uses no solvent and no sorbent, so there is nothing to degrade, emit, or replace, and the CO2 comes out as a pumpable liquid at high purity, which removes most of the compression train. The cold also condenses out SOx, NOx, and mercury as a side benefit. The costs are electrical and mechanical: refrigerating dilute flue gas is energy-hungry, dehydration to sub-ppm moisture is mandatory and expensive, and handling solid CO2 in a heat exchanger without fouling it is the hard engineering problem that has kept anti-sublimation at pilot scale.

Cryogenic separation is the standard answer when the stream is already rich, which is why it is used on hydrogen plant offgas, gasification syngas, and biogas. Choose it where you want liquid CO2 anyway, for truck or ship transport, and where cheap electricity is available. On dilute flue gas, treat it as a technology to watch rather than a technology to buy, unless the co-removal of pollutants has value in its own right. If the gas is above about 40% CO2 and dry, cryogenic separation usually beats a solvent on total cost.

Partial condensation runs near -50 °C at pressure; anti-sublimation near -100 to -120 °C · needs feed gas dried to single-digit ppm water · CO2 recovered at 99.9%+ purity as a liquid · roughly 250–400 kWh/t on dilute streams, far less on concentrated ones · commercial at hydrogen and gas processing plants, pilot scale on flue gas.

Air Liquide's Cryocap, capturing CO2 from steam methane reformer offgas at Port-Jerome in France; Sustainable Energy Solutions' cryogenic carbon capture pilots, now part of Chart Industries; biogas upgrading skids that liquefy CO2 as a salable byproduct.

3 minCryocap Carbon Capture TechnologyAir Liquide Engineering & Technologies · 10k+ views

1 minCryogenic Carbon Capture ExplainedKAUST Clean Energy Research · 1k+ views

Carbon Capture and Sequestration (CCS) in the United States (CRS)

Pre-combustion capture takes the carbon out before anything burns. Fuel is gasified or reformed to syngas, a water-gas shift reactor converts the carbon monoxide to CO2 and more hydrogen, and the resulting gas is 30–40% CO2 at 20–70 bar. At that partial pressure a physical solvent works: CO2 dissolves in a solvent under pressure and comes back out when the pressure drops, with no chemical bond to break and therefore almost no regeneration heat. Selexol uses dimethyl ethers of polyethylene glycol at ambient temperature; Rectisol uses chilled methanol at around -40 to -60 °C and gets the gas cleaner. What leaves the unit is hydrogen.

Regeneration is mostly flashing rather than boiling, so the energy penalty is small compared with post-combustion scrubbing, and both solvents also strip H2S and other sulfur species in the same unit, which a gasifier needs anyway. Rectisol reaches sub-ppm contaminant levels that catalysts require. The weaknesses are upstream: the process only exists if you have built a gasifier or reformer plus a shift reactor, which is a large capital plant, and Rectisol's refrigeration is expensive to run. Physical solvents also dissolve some hydrogen, so recovery costs a little product.

Physical solvents are the right choice whenever the CO2 arrives concentrated and at pressure, which means ammonia, methanol, refinery hydrogen, gasification, and blue hydrogen with a shift reactor. Use Selexol when the duty is bulk CO2 and moderate sulfur removal, and Rectisol when downstream catalysts need very deep cleanup or the plant is already cold. They are the wrong tool at atmospheric pressure on a dilute flue gas, where there is no partial pressure to drive the absorption. If you are choosing between building a gasifier to enable pre-combustion capture and bolting an amine unit onto an existing boiler, the amine unit almost always wins on capital.

Feed typically 30–40% CO2 at 20–70 bar · regeneration mostly by pressure letdown, so heat duty is a fraction of amine scrubbing · Rectisol operates at -40 to -60 °C · both remove H2S along with CO2 · capture cost $20–40/t on syngas, the cheapest CO2 in industry after fermentation.

Selexol at the Great Plains Synfuels Plant in North Dakota, which has sent CO2 to Weyburn since 2000; Rectisol on most coal-to-chemicals plants in China; Quest and Air Products' Alberta hydrogen projects, capturing shifted syngas CO2 from steam methane reforming.

This is where capture is cheapest, and the reason is partial pressure rather than cleverness. Separating a 35% stream at 40 bar takes a small fraction of the work needed for a 12% stream at 1 bar. Any policy that pays a flat rate per ton will pull projects toward these streams first, which is exactly what 45Q and the European market have done. The corollary matters for planning: the cheap tons run out, and the next tons cost two to three times more.

15 minAcid gas removal unitCHEMICAL DIARY · 5k+ views

Physical solvents and techno-economic analysis for pre-combustion CO2 capture: A review (NETL / OSTI)

Oxy-fuel combustion removes the nitrogen instead of the CO2. An air separation unit makes 95–99% oxygen, the fuel burns in that oxygen diluted with recycled flue gas to keep flame temperature manageable, and the exhaust is mostly CO2 and water vapor. Condense the water and you are left with a stream that only needs cleanup and compression, so there is no absorber and no solvent anywhere in the plant. The cost moves upstream into the air separation unit, which is the single largest energy consumer in the design.

The flowsheet is simple and the CO2 leaves at 70–90% before purification, so separation is nearly free at the back end. Burning in oxygen also raises flame temperature and cuts flue gas volume, which shrinks downstream equipment, and NOx formation drops because there is little nitrogen to oxidize. The problem is that cryogenic air separation costs 160–250 kWh per ton of oxygen, which works out to roughly a quarter of a coal plant's gross output. Air leaking into the boiler dilutes the product and is hard to eliminate on a retrofit, and the CO2 purification unit that removes argon, oxygen, and nitrogen is a real plant of its own.

Oxy-fuel deserves a look where an air separation unit already exists or is needed anyway, and in industries whose process chemistry benefits from oxygen enrichment. Cement is the leading case: the calciner releases CO2 from limestone regardless of fuel, and oxy-fuel calcination raises exhaust concentration high enough that purification alone does the job. Avoid oxy-fuel for power retrofits, where the air separation penalty and the air-ingress problem have repeatedly beaten it on cost. If you want oxy-combustion economics in power, look at the Allam cycle instead, which redesigns the whole cycle around the pure CO2 stream rather than bolting it onto a steam plant.

Oxygen purity 95–99% · air separation consumes 160–250 kWh per ton of O2 · raw flue gas 70–90% CO2 before purification · net efficiency penalty roughly 8–12 percentage points on a coal plant · demonstrated at 30 MWth (Schwarze Pumpe) and 30 MWe (Callide), with no large commercial power unit built.

Vattenfall's Schwarze Pumpe pilot in Germany; the Callide Oxyfuel Project in Australia, which ran a 30 MWe unit on oxygen; several first-of-a-kind cement projects using oxyfuel calciners, including Heidelberg Materials at Slite and Buzzi's Vernasca line.

7 minOxy Fuel CombustionJason Diedjomahor · under 1k views

2 minOxy-fuel Combustion CyclesCMT-Clean Mobility & Thermofluids (UPV) · under 1k views

Oxyfuel Combustion of Pulverised Coal (IEAGHG)

The Allam-Fetvedt cycle is an oxy-fuel power cycle in which supercritical CO2, not steam, is the working fluid. Natural gas burns with oxygen inside a stream of hot high-pressure CO2 at around 300 bar. The mixture drives a turbine, gives up heat to a recuperator, and the water condenses out. Most of the CO2 then recirculates, and the small surplus made by combustion leaves at pipeline pressure. There is no stack, no scrubber, and no separation step, because the exhaust was never diluted with nitrogen in the first place.

Capture is inherent rather than added, so the plant does not pay an efficiency penalty for a stripper, and the CO2 comes out already compressed, which is normally 10–15% of a capture plant's parasitic load. Projected net efficiency is competitive with a combined cycle even counting the air separation unit, and the plant emits essentially no NOx. The weaknesses are commercial rather than thermodynamic. It needs a bespoke combustor and turbine that only exist in small numbers, it requires an air separation unit like any oxy-fuel design, and the whole plant has to be built new; there is no retrofit path. Every commercial cost number is still a projection.

Watch this one for greenfield gas generation where the buyer needs firm power with capture and has a CO2 offtake or storage site nearby. It is the strongest technical answer to "how do I build dispatchable gas capacity that is not emitting," which is why data center developers keep appearing in its customer announcements. Do not plan around it for a retrofit or for a site with no CO2 outlet, since a plant that cannot ship its CO2 has nowhere to put it. If the project needs proven technology on a fixed schedule, a combined cycle with post-combustion capture carries less delivery risk even at a worse heat rate.

Turbine inlet around 300 bar, combustion near 1,150 °C · CO2 delivered at 100–200 bar, no separate compression train · projected net efficiency in the high 50s including the air separation unit · 50 MWth demonstration plant at La Porte, Texas, first fire 2018, first grid power 2021 · first commercial-scale unit sized around 300 MWe.

NET Power's La Porte demonstration plant, which ran roughly 1,500 hours of testing and delivered power to the ERCOT grid in 2021; the Project Permian 300 MWe first commercial plant in west Texas; 8 Rivers, which developed the cycle, licensing variants for hydrogen and coal syngas.

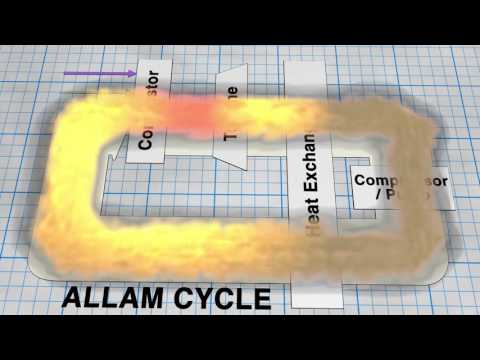

1 minWhat is the Allam Cycle?Low Emission Technology Australia · 5k+ views

13 minHow Ultra-Efficient CO2 Turbines Are The Future of EnergyZiroth · 500k+ views

2 minNET Power, LLC Allam Cycle Overviewgwilliambrownjr · 10k+ views

Breakthrough: NET Power's Allam Cycle Test Facility Delivers First Power to ERCOT Grid (POWER Magazine) · Oxy-combustion turbines (IEAGHG)

Calcium looping circulates lime between two fluidized beds. In the carbonator, at around 600–650 °C, CaO reacts with CO2 in the flue gas to form CaCO3. The solid then moves to a calciner at 900–950 °C, where it releases concentrated CO2 and regenerates CaO. Because the calciner has to be heated without diluting its own product, it is usually fired with oxygen, which means the process carries an air separation unit. The sorbent is limestone, and the heat coming off the carbonator is high-grade enough to raise steam, so a calcium looping unit is partly a power plant.

The sorbent is limestone at $10–30/t, which makes cheap makeup possible and is the whole economic argument. Working at high temperature also means the waste heat is worth something instead of being a parasitic loss, and spent sorbent is a raw material for cement rather than a disposal problem. That last point makes cement the natural host. Against it: sorbent activity decays fast, dropping toward 7–10% conversion after a few hundred cycles, so purge and makeup rates are high; the solids handling at 900 °C is demanding; and the oxy-fired calciner brings the same air separation penalty as oxy-fuel combustion.

Calcium looping fits best inside a cement plant, where limestone is already the feedstock, the purge stream feeds the kiln, and the process CO2 has nowhere else to go. It also suits sites with a use for large amounts of high-temperature heat. Skip it on small or clean flue gas streams, where the solids handling complexity is unjustified, and skip it where there is no outlet for spent sorbent, since disposing of hundreds of thousands of tons a year of deactivated lime is its own problem. If cement capture is the goal and the plant is willing to rebuild the calciner anyway, oxyfuel calcination is the simpler competing route.

Carbonator 600–650 °C, calciner 900–950 °C · sorbent is limestone at roughly $10–30/t · residual carrying capacity falls to about 7–10% after several hundred cycles · capture rates above 90% demonstrated, up to 98% in the CLEANKER carbonator · demonstrated at 1–4 MWth pilots and one industrial-scale demonstrator.

CLEANKER at the Buzzi Unicem cement plant in Vernasca, Italy, which ran nine campaigns on kiln flue gas; ITRI's HECLOT pilot in Taiwan; CaOling at La Pereda in Spain, a 1.7 MWth unit that produced most of the early cycle data.

5 minHigh-Efficiency Calcium Looping Technology (HECLOT) and Its ApplicationsITRI Taiwan · 1k+ views

3 minCLEANKER, CLEAN clinKER production by calcium looping processLEAP scarl · 1k+ views

CLEANKER's calcium looping progress and prospects (International Cement Review)

Chemical looping never lets fuel and air touch. A metal oxide carrier, usually iron, nickel, copper, or manganese based, circulates between two reactors. In the fuel reactor it gives up its oxygen to burn the fuel, producing only CO2 and water. In the air reactor it re-oxidizes in air, releasing heat and venting nitrogen. Condensing the water leaves nearly pure CO2 with no separation equipment at all. In effect the oxygen carrier does the job of an air separation unit, at the cost of moving hundreds of tons an hour of hot solids between two vessels.

Inherent separation with no air separation unit is the prize, and on paper it gives the lowest energy penalty of any capture route, in the range of a few percentage points rather than eight to twelve. Combustion in the absence of nitrogen also produces almost no thermal NOx. The obstacles are all in the solids. Carrier particles attrite and need replacing; nickel carriers perform well and are toxic and expensive; solid fuels leave ash that has to be separated from the carrier; and nobody has yet run a large pressurized unit for long enough to produce reliability data. Scale-up from a few megawatts to a few hundred is the unsolved step.

Treat chemical looping as a research and pilot technology rather than a purchase decision. It is worth funding or watching if you have a long-horizon interest in low-penalty capture on solid fuels or biomass, especially for BECCS, where the combination of negative emissions and a small energy penalty is attractive. Do not put it in a project plan that needs power before the mid-2030s. If you want the same inherent-separation idea with commercial hardware today, oxy-fuel or the Allam cycle gets you there with a known efficiency penalty.

Fuel reactor typically 900–1,000 °C · CO2 purity above 95% before cleanup, no separation unit needed · projected energy penalty of a few percentage points, against 8–12 for oxy-fuel · largest units run so far are in the 1–4 MWth range with 1,000 MWth the eventual target · carrier attrition and makeup are the dominant operating cost.

Chalmers University's 10 kW and 100 kW units, which produced much of the world's operating hours; the EU CHEERS project's 3 MWth demonstration in China; Ohio State's coal-direct chemical looping at 250 kWth; several Alstom and Total pilots in the 1 MWth class.

2 minWhat is chemical-looping combustion (CLC)?Cheers CLC · 5k+ views

5 minThe CHEERS project presents: How does Chemical Looping Combustion workCHEERS EU CLC · 5k+ views

5 minChemical Looping Combustion (CLC)SINTEF · 1k+ views

Chemical-Looping Combustion and Gasification of Coals and Oxygen Carrier Development: A Brief Review (OSTI)

Some industrial processes already produce a nearly pure CO2 stream because their chemistry demands it. Corn ethanol fermentation vents CO2 at 99%+ from the fermenter. Ammonia and hydrogen plants strip CO2 from shifted syngas to protect downstream catalysts. Natural gas processing removes CO2 to meet pipeline specification. Ethylene oxide and some fertilizer processes do the same. In all of these the separation is already paid for, so "capture" means dehydration, compression, and a pipeline connection.

This is the cheapest CO2 available anywhere: no absorber, no solvent, no steam, and no efficiency penalty on the host plant. Ethanol CO2 is also biogenic, so storing it counts as removal rather than avoided emissions, which is worth more in most accounting frameworks. The limits are size and location. Individual sources are small, typically 0.1–1 Mt/yr, and they sit where the corn or the gas field is, not where the pore space is, so transport can cost more than the capture. The total global pool of high-purity streams is a few hundred million tons a year, which is real but is not a climate solution on its own.

Go here first, always. If you are allocating a capture budget, a policy incentive, or a pipeline route, high-purity sources give the most tons per dollar and the shortest path to an operating project. They are also the right anchor tenant for a shared CO2 transport network, since their capture cost is low enough to absorb a longer haul. The one thing not to do is treat these tons as evidence that capture is cheap in general. A 12% flue gas costs two to four times as much per ton, and the announcements that follow a successful ethanol project often make that mistake.

Fermentation CO2 arrives at 99%+ purity · capture cost $20–35/t, nearly all of it compression and dehydration · a typical US ethanol plant vents 0.1–0.3 Mt/yr · global high-purity streams total roughly 200–300 Mt/yr across ethanol, ammonia, hydrogen, and gas processing · ethanol and fermentation CO2 is biogenic, so geologic storage of it is removal.

The Illinois Basin Decatur Project, which injected about 1 Mt of ADM ethanol CO2 into the Mt. Simon sandstone between 2011 and 2014 and then continued at commercial scale; Summit and Tallgrass midwest pipeline proposals built around ethanol plants; Shute Creek in Wyoming, the largest gas-processing capture facility in the world; Quest in Alberta on hydrogen plant syngas.

The dollars-per-ton figure is misleading unless you look at what it excludes. Separation is free because the host process paid for it, so the marginal cost is compression at roughly $10–15/t plus transport, which can run $10–30/t over a few hundred kilometers. That is why midwest ethanol capture lives or dies on pipeline permitting rather than on capture technology, and why several announced projects have been canceled at the right-of-way stage rather than the engineering stage.

3 minIllinois Industrial Carbon Capture and Storage ProjectNow Decatur · under 1k views

22 minCarbon capture: the hopes, challenges and controversies | FT FilmFinancial Times · 100k+ views

Illinois Basin Decatur Project (MIT Carbon Capture and Sequestration Technologies) · Global Status of CCS 2024 (Global CCS Institute)

Liquid solvent direct air capture pulls CO2 out of ambient air with a strong alkaline solution, then uses a calcium loop to get it back. Fans draw air through a contactor where potassium hydroxide solution absorbs CO2 to form potassium carbonate. That solution meets calcium hydroxide, which precipitates calcium carbonate pellets. The pellets go to a calciner at about 900 °C, which releases pure CO2 and leaves calcium oxide, and slaking the oxide with water regenerates the calcium hydroxide. The high-temperature calciner is what distinguishes this route: it needs a real industrial heat source, usually natural gas with its own capture.

The chemistry uses commodity inputs and equipment borrowed from pulp mills and cement plants, which is why proponents argue it scales to megaton units rather than modular boxes. Liquid handling avoids the sorbent-life question entirely. The weaknesses are energy and water. Air at 420 ppm means moving roughly 1.8 million cubic meters of air per ton of CO2, and the calciner needs high-temperature heat that a renewable grid cannot supply directly. Evaporative losses from an open contactor run into the hundreds of tons of water per ton of CO2 in dry climates. Capital intensity is high, and the first commercial plant has taken far longer than announced.

Liquid DAC is worth pursuing where you need removal at large single-site scale, have cheap natural gas or industrial heat plus a storage reservoir, and can tolerate a decade-long build. Its natural home is an oil and gas basin with both. If your goal is a small volume of high-quality removal credits soon, solid sorbent DAC delivers tons today at smaller unit size. And if you only need CO2 as a feedstock rather than removal, point-source capture will always be cheaper. Anyone modeling DAC costs should treat $100/t as a target rather than a number to plan against.

Ambient CO2 about 420 ppm, so roughly 1.8 million m3 of air per ton captured · calciner at about 900 °C · energy roughly 5.2–8.8 GJ/t depending on configuration · current cost $400–800/t, with published designs targeting $100–250/t at megaton scale · water loss up to several hundred tons per ton of CO2 in dry air.

Carbon Engineering's Squamish pilot in British Columbia, which produced the public engineering data; STRATOS in Ector County, Texas, developed by 1PointFive and designed for 500 kt/yr, the largest DAC plant attempted; the South Texas DAC hub, supported by DOE.

Cost is dominated by capital and by the energy of the calciner, which is why the design keeps gravitating toward places with cheap gas. Two things decide whether it works: the actual capacity factor of a first plant, which nobody outside the project knows yet, and whether the CO2 is stored or sold for enhanced oil recovery, because those have very different climate accounting and very different revenue. At $180/t of 45Q for DAC with saline storage, the credit covers a fraction of today's cost and roughly matches the target cost.

7 minCarbon Engineering | Direct Air Capture of CO2Carbon Engineering Ltd. · 500k+ views

12 minCarbon Engineering | Direct Air Capture TechnologyCarbon Engineering Ltd. · 50k+ views

3 minWhat is Direct Air Capture? A Technical Explainer1PointFive · 50k+ views

Direct Air Capture: 6 Things To Know (World Resources Institute) · Global Assessment of Direct Air Capture Costs (IEAGHG)

Solid sorbent DAC blows ambient air across an amine-functionalized porous solid that binds CO2 at room temperature, then closes the unit, pulls a vacuum, and heats it to 80–120 °C to release the CO2. That is a temperature-vacuum swing, and its appeal is that 100 °C heat can come from a geothermal well, a heat pump, or industrial waste heat rather than from a 900 °C calciner. Plants are built as identical collector modules, so capacity grows by adding boxes instead of by scaling up vessels. Every commercial DAC plant selling removal credits today works this way.

Low-temperature regeneration is the real advantage: it opens up heat sources that liquid DAC cannot use, and it makes carbon-free operation credible. Modularity means factory production and a shorter build. Sorbents also capture water, which is a nuisance in humid air and a benefit in dry air, since the plant produces water rather than consuming it. The weaknesses are cost and sorbent life. Amine sorbents degrade in the presence of oxygen at temperature, and replacement is a large operating expense that vendors do not publish. Modular design caps unit size, so cost reductions have to come from manufacturing volume rather than from engineering scale.

This is the route to buy from if you need durable removal credits now and can pay for them. It suits corporate buyers assembling a portfolio, and it suits sites with cheap low-grade heat, which is why Iceland hosts the flagship plants. It does not suit anyone whose budget assumes $100/t, and it does not suit a project that needs a million tons a year from one site. If you want cheaper durable removal today, look at biochar or enhanced weathering, and accept weaker measurement. If you want to pay less and can accept avoided emissions rather than removal, point-source capture is an order of magnitude cheaper.

Regeneration at 80–120 °C under vacuum · about 420 ppm feed, so fan power is a large share of the load · roughly 5.5–8 GJ/t of low-grade heat plus 200–500 kWh/t of electricity · current credit prices $400–1,000/t · Mammoth, the largest plant of this type, is designed for 36 kt/yr and has delivered well under that.

Climeworks Orca (4 kt/yr, 2021) and Mammoth (36 kt/yr nameplate, 2024) in Iceland, both storing CO2 through Carbfix; Global Thermostat; Sustaera and Avnos with alternative sorbent designs; Microsoft, Stripe, and the Frontier buyers' group as the anchor customers for most of the volume sold.

Sold prices of $400–1,000/t are the highest in the removal market, and the plants delivering at those prices are still small. Cost reduction depends on three things that have not yet been demonstrated together: cheaper sorbent with longer life, mass manufacturing of collector modules, and high capacity factor. The honest read is that solid sorbent DAC has proven the product and the accounting, not the cost curve. It is the removal type with the clearest measurement story and the worst dollars per ton.

9 minIntroducing Orca - the world's first largest direct air capture and storage plantClimeworks · 10k+ views

6 minInside the hidden carbon plant pulling CO2 from thin air | BBC NewsBBC News · 100k+ views

5 minClimeworks: Removing CO₂ from the airClimeworks · 10k+ views

State of Carbon Dioxide Removal (SoCDR) · Verification Confidence Levels for carbon dioxide removal (CarbonPlan)

Electrochemical DAC drives the capture and release cycle with electrons instead of heat. Two mechanisms dominate. In pH swing, an electrochemical cell makes a caustic solution that absorbs CO2 and then an acidic one that drives it back out, so the swing is in chemistry rather than temperature. In electro-swing adsorption, a quinone-coated electrode binds CO2 when reduced and releases it when oxidized, with no solution loop at all. Either way the plant runs entirely on electricity, which means it can follow a renewable supply and needs no thermal infrastructure.

Running on electricity alone is a genuine structural advantage: no boiler, no steam loop, no siting requirement for heat, and a clean carbon footprint wherever the grid is clean. The thermodynamic minimum for separating CO2 from air is small, and electrochemistry can in principle approach it more closely than a thermal swing. In practice the systems lose to parasitic reactions. Oxygen in air degrades most redox-active molecules, cell voltages sit well above the theoretical minimum, and electrode and membrane costs scale with area, which is unhelpful when you are processing air. Nearly everything published is bench scale.

Fund it, watch it, and do not plan a project around it before the 2030s. The case to keep watching is specific: if a redox chemistry turns up that tolerates oxygen and holds up over tens of thousands of cycles, an all-electric DAC plant sited on cheap curtailed renewables would beat both thermal routes. Until then, buy removal from solid sorbent DAC and treat electrochemical claims of sub-$100/t as projections resting on component costs that no one has yet manufactured. The same chemistry is closer to practical use in direct ocean capture, where the feed is 100 times more concentrated.

Runs on electricity alone, typically 1,000–2,500 kWh/t in demonstrated systems · thermodynamic minimum for air separation is roughly 500 kWh/t, so there is real headroom · oxygen sensitivity limits many redox chemistries to hundreds of cycles · nearly all published work is at gram-to-kilogram-per-day scale.

MIT's electro-swing adsorption using quinone electrodes; Harvard and MIT pH-swing cells based on phenazine derivatives; Verdox, commercializing electro-swing; Mission Zero Technologies, using electrodialysis with a liquid sorbent and operating early commercial units.

3 minElectrochemical device captures carbon dioxide at the flick of a switchRice University · 10k+ views

5 minDirect Air Capture: It's Literally Rocket Science!Sykom · 1k+ views

Low energy carbon capture via electrochemically induced pH swing with electrochemical rebalancing (PMC) · Electrochemical direct air capture of CO2 using neutral red as reversible redox-active material (PMC)

Passive mineral looping runs the calcium loop of liquid DAC without the liquid or the fans. Calcium oxide is spread in thin layers on stacked trays and left exposed to the air, where it takes up CO2 over about three days to become calcium carbonate. The trays go to a kiln, the carbonate calcines back to oxide and releases pure CO2, and the oxide returns to the racks. The contactor is a warehouse of shelves and a robot rather than a chemical plant, which changes the cost structure: capital moves into land and racking, and the energy is concentrated in the kiln.

Passive absorption means no fan power for air movement, which removes one of the two big loads in DAC. The sorbent is limestone-derived and cheap, it does not degrade the way an amine does, and the whole design is made of construction materials rather than specialty chemistry. It also pairs naturally with electric kilns, since the calcination step is the only place high-temperature heat is needed and electrifying one kiln is tractable. The weaknesses are footprint and time. Three-day cycles and passive contact mean large land area per ton, throughput is weather-dependent, and moving thousands of trays reliably is a materials-handling problem rather than a chemistry one.

Worth considering where land is cheap and abundant, where a clean electric grid can run the kiln, and where the CO2 has a mineralization outlet nearby. It fits well with concrete utilization, since both ends of the process involve carbonate chemistry. It fits badly on expensive land, in humid climates that slow the uptake, and anywhere the buyer needs a large single-site plant soon. Compared with solid sorbent DAC it trades sorbent cost for land and handling, which is a good trade in the desert and a bad one near a city.

Passive uptake over roughly three days per cycle · no fans for the contactor, so air-moving energy is near zero · calcination at about 900 °C, electrifiable as a single unit operation · sorbent is limestone-derived and non-degrading · demonstrated at roughly 1,000 t/yr, with a 17 kt/yr facility under construction.

Heirloom's Tracy, California plant, the first US DAC facility to sell removal credits, and its larger Louisiana project; Heirloom's partnership with CarbonCure to lock captured CO2 into concrete; Calix's Leilac electric calciner, which supplies the kiln technology for lime-based approaches.

1 minHow Heirloom's Direct Air Capture facilities remove carbon dioxide from our atmosphereHeirloom · 10k+ views

4 minMicrosoft-backed startup Heirloom uses limestone to capture CO2 from the atmosphereCNBC Television · 1k+ views

4 minLeilac and Heirloom partner to bring lime-based Direct Air Capture technology to marketCalix Limited · 5k+ views

Negative Emissions Technologies and Reliable Sequestration: A Research Agenda (National Academies)

Silicate rocks react with CO2 dissolved in rainwater and turn it into bicarbonate, which washes to the ocean and stays there for tens of thousands of years. The reaction happens naturally and sets the planet's slow carbon thermostat, but it takes geologic time because the surface area is small. Enhanced weathering speeds it up by crushing basalt to a few tens of microns and spreading 20–50 tons per hectare on farmland, where tilling, soil acids, and plant roots keep the reaction going. Farmers get a liming effect and trace nutrients, which is why the delivery channel is agriculture rather than a purpose-built site.

The permanence is excellent, the feedstock is an abundant waste or quarry product, and the deployment channel already exists in the form of agricultural spreading equipment. Co-benefits on acidic soils are real and give farmers a reason to participate. The problem is measurement. You cannot see the CO2, the signal has to be inferred from soil and porewater chemistry against a noisy background, and a fraction of the bicarbonate can degas before reaching the ocean. Field results have come in well below early laboratory projections, and one large multi-year trial reported far less removal than modeled. Grinding rock to fine sizes also costs energy that has to be netted off.

Worth buying from operators who publish their measurement methodology and discount for uncertainty, and worth deploying on warm, wet, acidic cropland near a basalt source, where the reaction is fastest and the co-benefits are largest. Avoid it on cold, dry, or already alkaline soils, where rates fall off sharply, and treat any offer priced far below $150/t as a signal to read the measurement protocol closely. If you need removal you can verify directly, DAC with geologic storage measures what it stores. Enhanced weathering is cheaper and, today, less certain.

Application rates typically 20–50 t of rock per hectare · theoretical yield about 0.2–0.3 t CO2 per ton of basalt, with field results often a fraction of that · grinding energy 50–150 kWh per ton of rock · sold at roughly $100–350/t · storage as ocean bicarbonate is durable for 10,000+ years.

UNDO Carbon in the UK, spreading basalt on grassland and cropland with published porewater studies; Terradot in Brazil; Lithos and Eion in US corn belt trials; a three-year Illinois trial using basalt and steel slag that reported a sustained weathering signal but limited net removal.

Cost is dominated by grinding and haulage, which means it works within a few hundred kilometers of a quarry and not much further. The price a buyer pays depends less on the rock than on how conservatively the seller quantifies removal: two projects with the same field operation can differ twofold in credits issued depending on the discount applied for uncertainty and degassing. That makes protocol choice, rather than geology, the main commercial variable right now.

3 minWhat is Enhanced Rock Weathering?UNDO Carbon · 10k+ views

5 minThe surprising way we can cool the planet - Elise CuttsTED-Ed · 100k+ views

4 minThe Co-benefits of Enhanced Rock WeatheringUNDO Carbon · 1k+ views

Quantifying potential carbon dioxide removal via enhanced weathering using porewater from a field trial in Scotland (Frontiers in Climate) · Enhanced rock weathering shows little climate benefit in large trial (Chemical & Engineering News)

Adding alkalinity to seawater shifts its carbonate chemistry so it holds more dissolved carbon and draws CO2 down from the atmosphere to rebalance. In practice that means dosing the surface ocean with an alkaline material: ground olivine or basalt on beaches and shelves, slaked lime or magnesium hydroxide from a ship or an outfall, or electrochemically generated hydroxide from a coastal plant. The ocean already holds about fifty times as much carbon as the atmosphere, so the leverage is enormous, and the storage is as durable as ocean chemistry itself.

Capacity is effectively unbounded, storage is measured in tens of thousands of years, and adding alkalinity locally counteracts ocean acidification, which is a genuine ecological benefit. Feedstocks are cheap minerals or industrial residues. The difficulties are verification and permission. CO2 uptake happens over weeks to months across a moving, mixing water body, so you cannot count tons at a meter; you infer them from models constrained by sparse measurements. Dosing too fast causes runaway precipitation that undoes the benefit. And research at sea sits inside a legal framework, the London Protocol among others, that was written to stop ocean dumping.

Support it as research and early deployment where a coastal outfall or an existing alkaline waste stream makes dosing cheap, and where a monitoring program can actually be run. Retrofitting alkalinity dosing to a desalination plant or a coastal power station outfall is the least contrived version. Do not buy large volumes of credits from it yet, since the measurement question is unsettled and buyers who move early on unverifiable tons tend to end up defending them later. If you want ocean-based removal with a countable meter, direct ocean capture strips CO2 as a gas and can be measured at the pipe.

Roughly 1.5–2.5 tons of alkaline mineral per ton of CO2, depending on the material · uptake takes weeks to months and is spread over a moving water mass · storage durable for 10,000+ years as bicarbonate · costs estimated at $50–300/t with almost no operating data · field trials so far are in the tens to low thousands of tons.

Planetary Technologies dosing magnesium hydroxide through a power station outfall in Nova Scotia; Vesta's coastal olivine sand projects; Ebb Carbon's electrochemical acid-base splitting on seawater; the Carbon to Sea Initiative and Woods Hole's field program, which fund most of the independent measurement work.

4 minOcean Alkalinity Enhancement (OAE) - a ClimateWorks productionOcean carbon dioxide removal · 10k+ views

4 minEnhancing the ocean’s natural alkalinityCSIRO · 1k+ views

2 minWhat is Ocean Alkalinity Enhancement (OAE)?Plymouth Marine Laboratory · under 1k views

Guide to Best Practices in Ocean Alkalinity Enhancement Research (State of the Planet, Copernicus) · Greenhouse Gas Removal (Royal Society)

Direct ocean capture strips dissolved inorganic carbon out of seawater and lets the degassed water reabsorb CO2 from the atmosphere when it returns to the surface. An electrochemical cell splits seawater into an acidic and a basic stream; acidifying the water converts bicarbonate to dissolved CO2, which comes out under vacuum or across a membrane as a gas; recombining the streams returns the water near its original pH. The attraction is concentration. Seawater holds roughly 100 times more carbon per unit volume than air, so you pump water instead of moving enormous volumes of air.

Pumping water is far less work than moving the equivalent air, the product is a countable gas stream at a pipe rather than an inferred flux, and the equipment is compact enough to sit inside an existing seawater intake. Co-locating with a desalination plant or a coastal power station gives free flow. The weaknesses are electrochemical: membranes foul and scale in seawater, cell stacks are expensive per unit of throughput, and the whole process runs on electricity at roughly 1,000–2,000 kWh per ton. The removal also depends on air-sea re-equilibration, which happens over months and is a modeled quantity rather than a measured one.

The natural fit is a site that already moves large volumes of seawater: desalination, once-through cooling, or an aquaculture facility. Combine that with cheap clean electricity and it becomes one of the more credible ocean routes, because at least the capture step is metered. Avoid it as a standalone plant with its own intake, where pumping and permitting costs swamp the advantage, and be careful with any claim that treats capture at the pipe as equal to removal from the atmosphere. If a project cannot describe how it accounts for re-equilibration, that is the number it is guessing.

Seawater holds roughly 100x the carbon per unit volume of air · about 1,000–2,000 kWh/t of electricity in demonstrated systems · capture measured directly as a gas stream, unlike alkalinity dosing · atmospheric removal completes over months as the water re-equilibrates · deployments so far are in the hundreds to low thousands of tons per year.

Captura's pilots in California and Hawaii using electrodialysis on a seawater slipstream; Equatic, spun out of UCLA, which combines seawater electrolysis with mineral and hydrogen coproduction; Ebb Carbon's acid-base splitting systems on the Washington coast.

5 minOcean carbon dioxide removal (CDR) via electrochemistry - A ClimateWorks productionOcean carbon dioxide removal · 10k+ views

5 minCaptura: a simple, streamlined process for Direct Ocean Capture of carbonCaptura · 1k+ views

2 minA New Method for Extracting CO2 from SeawaterVoice of America · 5k+ views

Carbon Dioxide Removal Primer (CDR Primer)

Ex-situ mineralization reacts CO2 with alkaline solids above ground to make stable carbonates. The feedstocks are magnesium and calcium silicates, mine tailings from nickel and platinum mining, steel slag, cement kiln dust, and fly ash. Some routes simply spread reactive tailings and let ambient air do the work over months; others react the material with concentrated CO2 in a reactor at elevated temperature and pressure to finish in hours. Either way the product is a solid carbonate that is thermodynamically stable, which is why this is the most permanent form of storage available.

Permanence is essentially absolute and needs no monitoring, no cap rock, and no injection permit, which removes the largest regulatory obstacle in the whole field. Mine tailings are free, already crushed, and sitting in engineered ponds next to industrial power. The catch is reaction rate. Magnesium silicates react slowly at ambient conditions, and speeding them up with heat, pressure, or pretreatment costs energy that erodes the net benefit. Mass ratios are also unforgiving: you need roughly two to three tons of mineral per ton of CO2, so the logistics only work where the rock already is.

The strong case is a mine that already produces reactive tailings, especially ultramafic nickel and diamond operations, where carbonating the waste is close to free and can offset the site's own emissions. Steel and cement plants with alkaline residues on site are the second case. Do not build a mineralization plant that has to quarry, crush, and haul fresh rock for the sole purpose of carbonating it, since the energy budget rarely closes. If the goal is durable storage of captured CO2 and there is porous basalt nearby, in-situ injection carbonates the same chemistry underground at far lower handling cost.

Roughly 2–3 tons of silicate mineral or slag per ton of CO2 · passive tailings carbonation takes months; reactor routes finish in hours at 100–185 °C and 20–150 bar · storage is permanent with no monitoring obligation · costs estimated at $60–200/t where feedstock is free · deployments today are tens of kt/yr at most.

Arca and the CarbMin Lab at UBC accelerating carbonation in nickel tailings at Mount Keith in Australia; Carbin Minerals; steel slag carbonation trials in Europe and Japan; Heirloom and CarbonCure moving captured CO2 into concrete, which is the same chemistry in a product rather than a waste pile.

2 minUsing ultramafic mine tailings to capture carbon dioxide from the air (CarbMin Lab, UBC)CarbMin Lab · 1k+ views

4 minCarbonate Mineralization - a SOLID Method for CO2 CaptureUTD GEOSCIENCE STUDIO · 10k+ views

2 minCapturing carbon from mine tailingsFaculty of Science at UBC · 1k+ views

Carbon Mineralization in Fractured Mafic and Ultramafic Rocks: A Review (PMC)

Basalt is rich in calcium, magnesium, and iron, and those elements react with dissolved CO2 to form solid carbonate minerals. In-situ mineralization takes advantage of that by dissolving CO2 into water first and injecting the carbonated water into basalt formations, where it reacts with the rock in place. Because the CO2 is dissolved before it goes down, it is not buoyant and cannot leak upward the way a supercritical plume can. Field measurements at two independent sites showed most of the injected carbon turning to rock within about two years, far faster than pre-2010 models predicted.

Storage becomes mineral rather than physical, which removes the long-term monitoring and cap-rock integrity questions that dominate saline storage. Basalt is common: flood basalt provinces cover large parts of India, the US Pacific Northwest, Iceland, and the ocean floor. The trade is water. Dissolving CO2 takes roughly 20–25 tons of water per ton of CO2, so the method needs abundant water or a seawater variant, and it needs the water back out or an aquifer that can accept it. Injection also has to avoid clogging pores with the very carbonate it is trying to make.

This is the right storage answer wherever basalt and water coexist, and it is the reason Iceland became the natural home for DAC plants selling permanence. It is a good fit for coastal and volcanic geographies without sedimentary basins, which otherwise have no storage option at all. It is a poor fit where fresh water is scarce, and it does not scale the way saline aquifers do, because per-well injection rates are lower. If your region has a thick sedimentary basin with a good seal, conventional saline storage costs less per ton and takes larger volumes.

Roughly 20–25 tons of water per ton of CO2 for the dissolution step · injection typically 400–800 m deep at Carbfix · about 95% mineralized within two years at the Iceland pilot, and around 60% within two years at Wallula · storage is permanent as carbonate mineral · costs around $25–35/t for the storage step alone at scale.

Carbfix in Iceland, which has injected CO2 since 2012 and now takes CO2 from Climeworks' Orca and Mammoth plants; the Wallula pilot in Washington State, which injected 1,000 tons into the Columbia River Basalt Group; Carbfix's Coda Terminal at Straumsvik, designed for imported CO2 by ship.

2 minFixing Climate in Iceland | The New York TimesThe New York Times · 5k+ views

2 minThis Startup Buries Carbon Dioxide in the GroundBloomberg News · 1k+ views

Review of CO2 Storage Basalts (IEAGHG) · Carbfix

Bioenergy with carbon capture and storage burns or ferments biomass for energy and captures the resulting CO2. Photosynthesis does the collection, so the plant is separating CO2 from an ordinary flue gas at 10–15% rather than from air at 0.042%. Combustion BECCS bolts amine capture onto a biomass power station or a pulp mill recovery boiler. Fermentation BECCS captures the near-pure CO2 from an ethanol plant. Gasification routes make hydrogen or fuels and capture the syngas CO2. In every version the removal claim depends entirely on the biomass being genuinely additional and sustainably sourced.

BECCS produces energy and removal at the same time, uses commercial capture equipment, and costs far less per ton than DAC. Where the CO2 stream is already pure, as in fermentation, it is the cheapest durable removal available. The hard part is the supply chain rather than the plant. Land use, harvest cycles, soil carbon, and transport emissions all sit inside the life-cycle accounting, and the same pellet supply can look strongly negative or roughly neutral depending on assumptions about counterfactual forest growth. Biomass availability is finite, and every study that scales BECCS to gigatons runs into competition for land.

Choose BECCS where the biomass is a residue with no better use and a short haul: bagasse at a sugar mill, black liquor at a pulp mill, corn stover near an ethanol plant, sawmill waste. Those cases avoid the land-use argument almost entirely. Be cautious wherever the fuel is purpose-harvested wood shipped across an ocean, since that is where the accounting fights happen and where policy risk is concentrated. If your objective is removal alone and the biomass supply is contested, biochar makes a similar claim with a simpler chain of custody, though it stores less carbon per ton of feedstock.

Flue gas at 10–15% CO2 for combustion routes, 99%+ for fermentation · roughly 1 ton CO2 captured per MWh from a biomass power plant with 90% capture · costs $100–200/t for power BECCS, $30–60/t for fermentation · energy penalty similar to any post-combustion retrofit, 20–30% of output · currently around 2 Mt/yr worldwide, most of it fermentation.

Drax in the UK, running capture pilots on wood pellet units with a full-scale project pending; Stockholm Exergi's biomass CHP project, the largest committed combustion BECCS plant in Europe; Ørsted's Asnaes and Avedore units in Denmark; midwest ethanol plants, which supply most of the tons actually delivered today.

Cost depends almost entirely on the concentration of the stream, which is why fermentation BECCS delivers at a third the price of power BECCS. The revenue side is unusual: these projects can stack energy sales, waste disposal fees, and removal credits, and the credits are worth more than avoided-emission credits because the carbon is biogenic. That stack is also the risk, since a change in how any one jurisdiction treats biomass accounting can move the whole business case.

1 minBECCS by Drax [with subtitles]Drax · 10k+ views

10 minDrax Virtual Tours - BECCS [Key Stage 3 - Part 1 of 8]Drax · 1k+ views

11 minThe BECCS Blueprint: Inside Drax’s Carbon Removal MethodologyCarbon Capture Magazine · under 1k views

BECCS at Drax can accelerate the UK's decarbonisation by delivering carbon removals (Drax) · Carbon Budget (Global Carbon Project)

Biochar is what is left when biomass is heated to 400–800 °C with almost no oxygen. Pyrolysis drives off volatiles as syngas and bio-oil, which are usually burned to run the process, and leaves a carbon-rich solid whose structure is largely aromatic rings. Those rings resist microbial attack, so carbon that would have returned to the atmosphere within a few years as the biomass decayed instead stays in the ground for centuries. The char is normally applied to soil, where it also holds water and nutrients, but the removal claim rests on the chemistry, not on the agronomy.

Biochar is the workhorse of the durable removal market today because it actually delivers: the technology is old, equipment is available at many scales, and a ton of char can be weighed. Feedstock is residue that otherwise rots or burns, and the process exports usable heat. The weaknesses are permanence and scale. Storage is centuries rather than millennia, and the fraction that persists depends on pyrolysis temperature, which is why protocols now grade char by its hydrogen-to-carbon ratio. Per-unit projects are small, so the market is made of hundreds of facilities rather than a few large ones, and feedstock competition with animal bedding and combustion is real.

Pick biochar when you want durable removal now, at a price a normal budget can absorb, with a simple physical chain of custody. It is a good fit for agricultural and forestry residues near the point of use, since hauling low-density biomass more than about 100 km erodes both the economics and the carbon balance. It is a poor fit when the buyer requires thousand-year permanence, since that is a genuine limitation and not a technicality. Compared with wood burial it stores less carbon per ton of feedstock but produces a salable product and useful heat, which is why it has a working market and burial does not.

Pyrolysis at 400–800 °C · roughly 25–35% of feedstock carbon ends up in char, the rest becomes energy · permanence typically 100–1,000 years, graded by H/C ratio below 0.7 · sold at roughly $100–250/t CO2 · accounts for the large majority of durable removal tons actually delivered to date.

Exomad Green in Bolivia, one of the largest single deliverers of biochar credits; Wakefield and Charm-adjacent US producers; Carbo Culture and Carbofex in Europe; the Puro.earth and Verra methodologies that set how permanence is graded and credits are issued.

Unit economics work because there are three revenue lines: the char itself as a soil amendment, the process heat, and the removal credit. Projects that depend on the credit alone are fragile; projects that would run anyway for the heat or the product treat the credit as margin. Cost scales with feedstock haul distance more than with plant size, which is why the industry looks like many small plants rather than a few big ones.

7 minEVERYTHING YOU ever WANTED to KNOW about BIOCHAR 🔥Porterhouse and Teal · 100k+ views

3 minWhat is Biochar?Carbon Gold · 100k+ views

10 minBiochar: What is it and is it worth the hype?Regenerative Farmers of America · 50k+ views

Biochar as a carbon dioxide removal strategy in integrated long-run mitigation scenarios (Environmental Research Letters) · International Biochar Initiative

Bio-oil injection turns biomass into a liquid and pumps it underground. Fast pyrolysis heats agricultural residue to around 500 °C in under two seconds and condenses the vapors into a dense, acidic, carbon-rich liquid. That liquid is trucked to a well and injected into a permitted disposal formation, where its low pH and high viscosity keep it immobile. The insight is logistical rather than chemical: a ton of corn stover is bulky and hard to move, and turning it into a liquid at the field edge makes it something the oil and gas industry already knows how to handle.

Storage permanence is geologic, and the whole downstream chain, from tanker trucks to Class I injection wells, exists and is regulated. Portable pyrolyzers let the conversion happen near the feedstock, which is where the transport savings come from. The weaknesses are cost and throughput. Bio-oil is corrosive and unstable, so handling equipment is more demanding than for crude; pyrolyzer capacity per unit is small, so scaling means building many machines; and only part of the feedstock carbon ends up in the oil, with the rest leaving as gas and char. Delivered prices remain among the highest in the removal market.

This is a route to buy from rather than build, and it suits buyers who want geologic permanence with a physically auditable chain: you can weigh the oil and meter the injection. It works where crop residue is abundant and disposal wells are nearby, which in practice means the US midwest and plains. It is a poor choice where no Class I well is permitted within trucking distance, and it is expensive enough that biochar will usually beat it on price if centuries of permanence are acceptable. Compare it directly with BECCS on the same feedstock, since both start from residue and only one produces energy.

Fast pyrolysis at about 500 °C with vapor residence under 2 seconds · roughly 50–60% of feedstock mass becomes bio-oil · injection into permitted Class I disposal wells · delivered credit prices around $400–600/t · cumulative deliveries measured in the tens of thousands of tons.

Charm Industrial, which has delivered bio-oil removal to Frontier, Stripe, Shopify, and Microsoft and operates its own pyrolyzer fleet; academic fast-pyrolysis work at Iowa State and NREL that established the oil chemistry.

13 minCarbon Removal: Putting Oil Underground with CharmAngelbeat Events · under 1k views

4 minCharm Industrial - From Oil & Gas to Carbon RemovalCharm Industrial · under 1k views

5 minMeet: Bio OilKlimate · under 1k views

Charm | Carbon removal technology (Charm Industrial) · Verification Confidence Levels for carbon dioxide removal (CarbonPlan)

Durable biomass storage skips conversion entirely: harvest or collect woody biomass, then put it somewhere it cannot decay. Wood vaulting buries logs in engineered pits sealed with low-permeability clay, which starves the decomposers of oxygen and moisture flow. Other variants sink biomass in anoxic deep water, store it in dry desert conditions, or press it into sealed bales. The physical evidence for the concept is archaeological. A log excavated from Quebec clay and dated to about 3,775 years old had lost under 5% of its carbon.

The technology is a backhoe and a liner, which makes it the cheapest durable route on paper and the easiest to deploy in places with no industrial base. Nothing has to be manufactured, powered, or catalyzed. The weaknesses are verification and feedstock ethics. Once the pit is closed you are relying on a model of an anoxic environment rather than a meter, and monitoring a buried mass over centuries is an unsolved commercial problem. Sourcing is the other question: burying residue that would otherwise rot is defensible, and harvesting standing trees to bury them is a much harder argument. Land take is significant, since wood is bulky.

Consider it where woody residue is abundant, cheap, and currently burned or left to rot, and where suitable clay-rich ground exists nearby. Post-wildfire thinning material and land-clearing waste are the cleanest sources. Be skeptical of projects that cannot show the site's hydrology, and require third-party monitoring in the contract. If the same feedstock could be pyrolyzed, biochar gives a measurable product and a working credit market at similar durability, which is why most residue currently goes that way instead.

A buried log measured at about 3,775 years old had lost under 5% of its carbon · roughly 0.9 t CO2 stored per dry ton of wood · published cost estimates of $30–100/t at scale, with delivered prices higher today · storage durability depends on burial conditions rather than on the material · deployments are in the thousands to tens of thousands of tons.

Carbon Lockdown's Wood Vault work at the University of Maryland, which set out the burial designs and the archaeological evidence; Mast Reforestation's wood burial projects on post-fire salvage material; Kodama Systems, which pairs forest thinning with burial in dry sites; Rewind, sinking biomass in the Black Sea's anoxic layer.

3 minBurying Trees to Lock Carbon UndergroundMast Reforestation · under 1k views

7 minBurying wood to fight climate changeUncensored Wisdom · under 1k views

4 minDiscovery of 3,775-year-old preserved log supports 'wood vaulting' as a climate solutionWONDER WORLD · under 1k views

Wood Vault: remove atmospheric CO2 with trees, store wood for carbon sequestration for now and as biomass, bioenergy and carbon reserve for the future (PMC)

Planting trees where there were none, or replanting where forest was cleared, moves carbon from the atmosphere into wood, roots, and soil. A young stand takes up carbon fastest between roughly 10 and 40 years after planting and slows as it matures. Projects are credited against a counterfactual of what the land would have done otherwise, so the accounting question is always the same: how much of this growth would have happened anyway. This is by far the largest source of carbon credits by volume and the one with the longest record of both success and controversy.

It is cheap, immediately deployable, and delivers benefits that have nothing to do with carbon: watershed protection, habitat, timber, and local income. No technology risk exists at all. The weaknesses are the ones that made forest credits contentious. Storage is reversible, since fire, drought, pests, or a change of owner can release decades of accumulation in a season; baselines are estimates and have repeatedly proven too generous; and carbon accrues slowly, so a ton bought today may be sequestered over the next 30 years. Monoculture plantations on unsuitable land can also lower soil carbon and biodiversity while claiming credit.

Fund it for the co-benefits and treat the carbon as an important secondary outcome, which is roughly how the better buyers now behave. Native-species restoration on genuinely degraded land, with long-term tenure and a real buffer pool, is the version that holds up. Do not use it as the durable half of a portfolio, since a reversible sink cannot offset a permanent emission on equal terms. If a buyer needs permanence, pair inexpensive forest credits for near-term volume with a small allocation to a geologic route, rather than pretending the two are the same product.

Uptake typically 2–10 t CO2 per hectare per year, depending on species and climate · fastest accumulation between about 10 and 40 years after planting · credit prices commonly $5–30/t · permanence contracts usually run 30–100 years, with a buffer pool of 10–20% held against reversal · the largest category of issued credits worldwide.

The Bonn Challenge and its national restoration pledges; Verra's VM0047 afforestation methodology and its predecessors; large corporate purchases from Latin American and East African restoration projects; the numerous investigations since 2021 that found over-crediting in forest projects, which reset how baselines are set.

Land, labor, and seedlings dominate cost, so prices track wages and land values more than anything about carbon. That is why supply concentrates in tropical countries with low land costs, and why the same project design costs five to ten times more in Europe or North America. The credit price also has to cover monitoring for decades and a buffer against reversal, and projects that skimp on either are the ones that later fail review.

3 minWhat is carbon sequestration? And what is the Amazon's important roleUSAID Peru · 10k+ views

13 minEconomics of increasing afforestation and reforestation as a climate change mitigation measureFood and Agriculture Organization of the United Nations · under 1k views

12 minThoughts on reforestation and afforestation carbon projects.Elias Ayrey · 1k+ views

Global Forest Resources Assessments (FAO) · Special Report on Climate Change and Land (IPCC)

Improved forest management credits a change in how an existing forest is managed rather than the creation of a new one. Typical interventions are extending the rotation before harvest, thinning less aggressively, converting from clear-cut to selective logging, or setting land aside entirely. Because the trees already exist, the credited quantity is the difference between the carbon under the new plan and the carbon under a baseline plan the owner says they would otherwise have followed. That baseline is a statement of intent, which is what makes this category both large and contested.

It is cheap per ton, it can be arranged quickly on land that already has an owner and an inventory, and postponing harvest keeps carbon in wood that is easy to measure with standard forestry methods. It also protects mature forest, which has real ecological value. The weaknesses are structural. The counterfactual cannot be observed, so over-crediting is easy and has been documented repeatedly; leakage is a genuine problem, because demand for timber does not vanish when one owner stops cutting; and the storage is as reversible as any forest. Fire risk in western North America has already reversed credited projects.

Use it where the baseline is externally constrained rather than self-declared, for example where a legal harvest right is being retired or a timberland is being bought outright, and where the fire and pest risk is low enough that a 100-year commitment is credible. Family forest aggregation programs that pay small owners to defer harvest are the most defensible version. Avoid buying it as durable removal, and read the buffer pool and reversal terms before the price. If the point of the purchase is durable storage, this is the category most likely to be revised downward later.

Credited volume is the difference against a modeled baseline, not a measured stock change · crediting periods typically 20–100 years · prices commonly $5–25/t · buffer pools of 10–20% held against fire and reversal · multiple large projects have been reassessed downward, some by more than half.

California's compliance forest offset protocol, the largest program of its type and the subject of the best-known over-crediting analyses; the American Forest Foundation and Nature Conservancy Family Forest Carbon Program; Verra's VM0012 and related methodologies; CarbonPlan's public reanalysis of California project baselines.

2 minExplained: FFCP’s Forest Carbon MethodologyAmerican Forest Foundation · 10k+ views

12 minCarbon Dioxide Removal: Forests | Climate Now Ep. 2.4Climate Now · 1k+ views

5 minThe Big Problem With Carbon OffsetsBloomberg Originals · 100k+ views

State of Carbon Dioxide Removal (SoCDR)

Farm management can raise the organic carbon content of soil. Cover cropping, reduced or no tillage, longer rotations, manure and compost application, and converting cropland to perennial grass all leave more residue in the ground and disturb it less, so organic matter accumulates. The gains are real but bounded: a given soil under a given climate approaches an equilibrium carbon content, and adding more inputs after that point stops adding carbon. Measuring the change means sampling a spatially variable medium for a small increment against a large background.

The practices improve water holding, fertility, and erosion resistance, so farmers often have reasons to adopt them without a carbon payment, and the land base is enormous. Cost per ton is the lowest of any approach here. The problems are measurement, saturation, and reversal. Detecting a 0.1% change in soil carbon requires dense sampling and careful stratification, saturation caps the total at far less than early estimates suggested, and a single season of plowing can release much of what a decade of no-till accumulated. Payments therefore have to continue indefinitely to keep the carbon in place.

Support soil carbon as an agronomic program that produces climate benefit, not as a removal credit you plan to retire against an emission. Where a buyer wants agricultural supply chain benefit, insetting within their own sourcing region is the honest structure. Require direct soil measurement rather than model-only quantification, and expect the quantified removal to come in well below the modeled potential. If durability matters, this is the least durable option on the sheet, and enhanced weathering applied to the same fields stores carbon for far longer at higher cost.

Typical gains of 0.1–0.5 t CO2 per hectare per year under improved management · soils approach saturation over roughly 20–40 years · global cropland technical potential estimated at 0.9–1.85 Gt C per year before accounting for saturation, which cuts the long-run contribution by half or more · credit prices commonly $10–40/t · reversal takes one tillage season.

Indigo Ag and Agoro Carbon programs paying US growers for practice change; the EU's carbon farming framework; the 4 per 1000 initiative, which set the political ambition; peer-reviewed reassessments of saturation that revised earlier global estimates sharply downward.

4 minKeeping Carbon in the SoilAg PhD · 10k+ views

9 minThe REAL Problem With Carbon Farming EXPLAINED..Down On The Farm · 1k+ views

1 minHow to increase soil carbonIFA · 10k+ views

Soil carbon sequestration potential in global croplands (PMC) · Dynamic Stability of Soil Carbon: Reassessing the "Permanence" of Soil Carbon Sequestration (Frontiers in Environmental Science)

Blue carbon is the carbon held by coastal vegetated ecosystems: mangroves, tidal salt marshes, and seagrass meadows. What makes them unusual is where the carbon goes. Most of it ends up in waterlogged sediment rather than in the plants, and because those sediments are anoxic, decomposition is slow and the deposits build up over centuries. Per hectare, burial rates run several times higher than tropical forest. Projects either protect existing habitat from conversion or restore lost habitat, and both are credited on avoided or renewed sediment accumulation as well as biomass.

Carbon density is the selling point, and the co-benefits are unusually concrete: storm surge protection, fish nurseries, and shoreline stabilization that coastal communities value regardless of carbon. Sediment storage is more durable than above-ground biomass. Against that, the total area is small compared with forests, so global potential is limited to a few hundred Mt CO2 a year. Restoration is technically hard, with seagrass replanting in particular having a poor survival record, and disturbing an existing seabed or draining a marsh releases centuries of stored carbon quickly. Sea level rise threatens the same habitats the projects depend on.

Fund blue carbon where protection of intact habitat is the intervention, since avoiding loss is far more reliable than restoring loss, and where a coastal community has a direct stake in the outcome. It fits a corporate portfolio that wants credible co-benefits and is honest about buying protection rather than durable removal. Do not scale a removal strategy on it, because the area available caps the volume. If the goal is durable ocean-based removal at volume, that is the ocean alkalinity and direct ocean capture story, not this one.

Mangroves and salt marshes bury carbon at roughly 6–8 t CO2 per hectare per year, several times a tropical forest · seagrass covers about 0.1% of the seafloor but holds an outsized share of buried marine organic carbon · sediment stores span centuries to millennia while intact · roughly 30–70% of historical mangrove, marsh, and seagrass extent has already been lost · credit prices commonly $15–60/t.

Mikoko Pamoja in Kenya, the first community mangrove carbon project; Delta Blue Carbon in Pakistan's Indus delta, the largest issued blue carbon project; Verra's VM0033 tidal wetland methodology; UNEP and IUCN assessments that set the global stock and loss numbers.

5 minBlue carbon | How seagrass is our ocean's wonder plant and their role in fighting climate changeEnvironmental Justice Foundation (EJF) · 10k+ views

Blue Carbon (NOAA Office for Coastal Management) · Blue carbon (IUCN)

Pipelines move CO2 as a dense supercritical fluid, compressed above 74 bar so it flows like a liquid at a gas-like viscosity. The US has about 5,000 miles of them, mostly built since the 1970s to feed enhanced oil recovery in the Permian Basin, so the engineering is settled: carbon steel line pipe, booster stations every 100–150 km, and tight moisture control, because water plus CO2 makes carbonic acid and carbonic acid eats pipe. Pipelines are the cheapest way to move large volumes over land, and cost per ton falls sharply with diameter.

Once built, a pipeline is the lowest-cost, highest-capacity transport available, with operating costs measured in single-digit dollars per ton over hundreds of kilometers. The problems are not technical. Right-of-way acquisition across many private landowners is slow and politically contested, and CO2's hazard profile is unusual: it is heavier than air, odorless, and asphyxiating, so a rupture in a valley can pool. The 2020 Satartia, Mississippi rupture, which hospitalized dozens and disabled combustion-engine vehicles in the plume, reshaped the US permitting debate and prompted new federal rulemaking.

Pipelines are the right answer above roughly 1 Mt/yr over a fixed route with a long contract, which is most industrial-cluster projects. They are also the only practical option for aggregating many mid-sized sources into one storage hub. Below that volume, or where the route crosses jurisdictions that will not grant eminent domain, trucking or shipping usually wins despite higher per-ton cost. Any project schedule that assumes a new multi-state CO2 pipeline will be permitted in under five years should be treated as optimistic, since several large midwest proposals have been canceled at exactly that stage.

Operates above 74 bar to keep CO2 dense · about 5,000 miles in service in the US, largely for enhanced oil recovery · booster stations every 100–150 km · transport cost roughly $2–10/t per 100 km, falling with diameter · moisture must be held to single-digit ppm to avoid carbonic acid corrosion.

Cortez Pipeline, 800 km from the McElmo Dome CO2 field to Denver City, Texas, operating since 1984; the Alberta Carbon Trunk Line; Denbury's Gulf Coast network; the canceled Navigator Heartland Greenway and scaled-back Summit projects in the midwest, both stopped by landowner opposition rather than engineering.

2 minCO2 pipeline explainedKELOLAND News · 5k+ views

4 minCO2 pipelines are safe...and we need a lot moreClearPath Action · 1k+ views

13 minSafety Guidelines for Working with Carbon DioxideMesser Americas · 1k+ views

Carbon Dioxide (CO2) Pipelines for Carbon Sequestration: Emerging Policy Issues (CRS) · Carbon Capture and Sequestration (CCS) in the United States (CRS)

Ships carry CO2 as a refrigerated liquid, the same way LPG carriers work. Three pressure regimes exist. Food-grade CO2 has moved for decades in small medium-pressure vessels at about 15 bar and -28 °C. Low-pressure designs at 6–9 bar and around -50 °C hold far more cargo per unit of tank weight and are the basis for the large carriers now entering service. High-pressure concepts near 35–45 bar avoid deep refrigeration at the cost of heavier tanks. Every route also needs liquefaction at the load port and a receiving terminal with storage and conditioning.

Shipping decouples the source from the sink, which is the whole point: an emitter with no local pore space can reach a reservoir a thousand kilometers away without negotiating a right of way across it. Routes are flexible and can be redirected as storage sites come online. The costs are the terminals and the phase change. Liquefaction consumes 90–120 kWh per ton, terminals are capital-intensive, and CO2's triple point at 5.2 bar means a pressure drop during handling can form dry ice and block equipment, which is why the low-pressure operating window is narrow and carefully specified.

Ship it when the source is coastal, the volume is under a few Mt/yr, and no pipeline route exists or can be permitted. That describes most of northern Europe's industrial capture projects, which is why the Norwegian model was built around ships rather than a trunk line. Shipping is also the right first move for a storage hub still proving itself, because you can add cargoes without committing to a fixed corridor. Once flow exceeds a few Mt/yr on a stable route, a pipeline is cheaper per ton and the ships become the flexible tail rather than the backbone.

Low-pressure carriers operate at 6–9 bar and about -50 °C; medium pressure at roughly 15 bar and -28 °C · triple point at 5.2 bar, below which dry ice forms · liquefaction takes 90–120 kWh/t · shipping cost roughly $15–35/t over 500–1,500 km including terminals · the first large-scale liquefied CO2 carriers entered service for Northern Lights in 2024.

Northern Lights in Norway, which receives CO2 by ship at Oygarden and injects it beneath the North Sea; the CETO joint industry project, which established that low-pressure transport has no technical showstoppers; small medium-pressure carriers that have served the food and beverage CO2 trade for decades.

2 minPioneering cross-border Carbon Capture and Storage (CCS) with liquefied CO2 shippingShell · 100k+ views

2 minNorthern Lights value chain animationNorthern Lights JV · 5k+ views

4 minCO2 transportation: pipelines vs shippinggasworld · under 1k views

What we do (Northern Lights)

Saline aquifer storage injects supercritical CO2 into deep porous rock whose pore water is too salty to drink, typically 1–3 km down and beneath an impermeable cap rock. Four mechanisms hold it there, and they take over from each other on different timescales: structural trapping under the seal from day one, residual trapping as bubbles get stuck in pore throats over years, dissolution into the brine over decades to centuries, and mineral trapping as carbonates over thousands of years. Security therefore increases with time, which is the opposite of most engineered storage.

Capacity is the reason this is the default plan. Estimates for the US and adjacent Canada run from 1,800 to over 20,000 Gt, hundreds to thousands of years of national emissions, and the injection technology is ordinary oilfield practice. Sleipner has injected roughly a megaton a year since 1996 with seismic monitoring the whole time. The costs and risks are site characterization and permitting: you have to prove the seal, model the plume, monitor for decades, and carry long-term liability. Injection also raises pressure across a wide area, which limits how much a formation accepts and creates induced seismicity risk in some settings.

This is the storage default whenever a suitable sedimentary basin is available, and it is the option that scales. Choose it for any project above a few hundred kilotons a year with a decade-plus life. The practical constraints are regulatory rather than geological in most jurisdictions: an EPA Class VI permit has historically taken several years, and states with primacy move faster. Where no sedimentary basin exists, basalt mineralization is the alternative and takes smaller volumes. Where a depleted field is nearby, its known geology and existing wells usually beat a greenfield saline site on characterization cost.

Injection typically 1–3 km deep, above 74 bar so CO2 stays supercritical · US and adjacent Canadian capacity estimated at 1,800 to over 20,000 Gt · Sleipner has stored about 1 Mt/yr since 1996 · storage cost roughly $7–20/t excluding transport · EPA Class VI permits have historically taken 2–6 years.

Sleipner in the Norwegian North Sea, the longest-running dedicated storage project; Snohvit, which required a mid-project change of injection zone after pressure rose faster than modeled; Quest in Alberta; the Illinois Basin Decatur Project; Northern Lights' Aurora reservoir, the first commercial storage-as-a-service site.

Storage is the cheapest link in the chain and the slowest to permit, which is the awkward combination that shapes project timelines. Drilling and monitoring are a small share of a full CCS project's cost, but characterization has to be paid before anyone knows whether the site works, and that money is at risk. Long-term liability transfer to the state after closure, which several jurisdictions now offer, is what makes the asset financeable at all.

4 minCO2 Sequestration at Sleipner FieldMrityunjay Singh · 1k+ views

8 minScience Bulletins: Storing CO2 to Protect the ClimateAmerican Museum of Natural History · 1k+ views

5 minFrom the Earth and Back Again: Alberta Saline Aquifer ProjectAlbertaSalineAquifer · 1k+ views

Geologic Sequestration of Carbon Dioxide in Deep Saline Formations: Report to Congress (US EPA) · Class VI Wells Used for Geologic Sequestration of Carbon Dioxide (US EPA)

Depleted oil and gas reservoirs make good storage sites for a simple reason: they held buoyant fluid for millions of years, so the seal is proven. Enhanced oil recovery goes further and puts the CO2 to work. Injected into a partly depleted field, CO2 becomes miscible with the remaining oil, swells it, cuts its viscosity, and frees perhaps another 5–15% of the original oil in place. The produced CO2 comes back with the oil, gets separated, and is reinjected, so a mature flood recycles most of its inventory and retains the purchased volume underground.

The geology is characterized, wells exist, and there is a customer paying for the CO2, which is why nearly all commercial capture built before 2020 sold into enhanced oil recovery. Storage in a depleted field is well understood and cheap to permit relative to a greenfield saline site. The complications are old wells and accounting. A field with hundreds of legacy penetrations has hundreds of potential leak paths, and plugging records from the 1950s are often poor. On the accounting side, the net climate effect depends on how much oil the CO2 produces and what happens to it, which is why enhanced oil recovery is credited differently from dedicated storage in most frameworks.

Use depleted fields as storage when the reservoir records are good, the well inventory is manageable, and monitoring under a dedicated storage permit is acceptable. Use enhanced oil recovery when there is no other buyer for the CO2 and the project would not otherwise be built, and be explicit about the accounting rather than presenting it as removal. In the US, 45Q pays $85/t for saline storage against $60/t for enhanced oil recovery, and that gap has already moved new projects toward dedicated storage.

Recovers an additional 5–15% of original oil in place · roughly 0.3–0.6 tons of CO2 purchased per barrel produced, most of the injected inventory recycled · US CO2-EOR has handled tens of Mt/yr for decades, mostly from natural CO2 domes rather than captured emissions · 45Q pays $60/t for CO2-EOR against $85/t for saline storage · legacy well integrity is the dominant site risk.

The Permian Basin floods supplied by the McElmo Dome and Cortez pipeline; Weyburn-Midale in Saskatchewan, which took CO2 from the Great Plains Synfuels Plant and hosted a long monitoring program; Petra Nova, built around an EOR offtake; the K12-B project in the Dutch North Sea, injecting into a depleted gas field.

4 minEnhanced Oil Recovery Co2 FloodingOil Technology Group · 10k+ views

2 minCO2 Enhanced Oil RecoverySCCS (Scottish Carbon Capture & Storage) · 10k+ views

6 min3. Enhanced Oil Recovery | Carbon DioxidePetro Proficient · 5k+ views

The Section 45Q Tax Credit for Carbon Sequestration (CRS) · Subpart RR - Geologic Sequestration of Carbon Dioxide (US EPA)

Carbon dioxide can be turned back into fuels and chemicals, but only by putting the energy back that combustion took out. Two routes dominate. Thermochemical synthesis reacts CO2 with hydrogen from electrolysis over a catalyst to make methanol, methane, or, through reverse water-gas shift and Fischer-Tropsch, synthetic kerosene and diesel. Electrochemical reduction skips the separate hydrogen step and reduces CO2 directly at a cathode to carbon monoxide, formate, ethylene, or ethanol. Established non-energy uses, urea and polycarbonates among them, are far larger today than either of these.

Making a drop-in fuel from CO2 solves a real problem in aviation and shipping, where batteries do not work and the existing fleet cannot be replaced quickly. The product has value, so the CO2 is a feedstock rather than a cost. The weakness is thermodynamic and permanent: reversing combustion costs more energy than combustion released, so the process is only climate-useful when the electricity is clean and abundant. And unless the product is a durable material, burning it puts the CO2 straight back, so this is emissions recycling rather than removal. Electrochemical routes additionally struggle with selectivity and electrode life at industrial current density.

Pursue CO2-to-fuels where the end use genuinely has no electrification path, chiefly aviation, and where very cheap clean electricity is available, since electricity is 60–80% of the cost. Chemicals are a better near-term target than fuels, because the product is worth more per ton of carbon and the volumes needed are smaller. Do not count synthetic fuel as carbon removal, and be careful with utilization claims generally: a use that returns the CO2 to the air within a year is worth much less than the same ton stored. If durable utilization is the goal, mineralization into concrete stores it for good.

Roughly 3 tons of CO2 and 0.5 tons of hydrogen per ton of methanol · about 10–15 MWh of electricity per ton of synthetic fuel, mostly for electrolysis · electricity is 60–80% of production cost, so power price sets everything · synthetic kerosene costs several times fossil jet fuel today · non-energy CO2 use, mainly urea, already consumes over 200 Mt/yr.

Norsk e-Fuel and Infinium producing synthetic kerosene from captured CO2 and green hydrogen; INERATEC's modular Fischer-Tropsch plants; Carbon Recycling International's methanol plant in Iceland, running since 2012; Twelve and Dioxycle developing CO2 electrolysis toward commercial current densities.

3 minHow we turn CO₂ into e-Fuel – This is how it worksINERATEC · 1k+ views

3 minHow to turn carbon dioxide into fuel | Carbon EngineeringCarbon Engineering Ltd. · 50k+ views

7 minArtificial photosynthesis turns CO2 into sustainable fuel | FreethinkFreethink · 500k+ views

Electrochemical CO2 Conversion Commercialization Pathways: A Concise Review on Experimental Frontiers and Technoeconomic Analysis (PMC) · Techno-economic and sustainability assessment of the power to MeOH processes (PMC)

Concrete can absorb CO2 and lock it up as calcium carbonate. Three approaches are in commercial use. Injecting a small dose of CO2 into fresh ready-mix during batching nucleates fine calcium carbonate that strengthens the mix, so the producer can cut cement content by a few percent. Curing precast units in a CO2-rich chamber carbonates them deliberately and much faster than air would. Carbonating recycled concrete fines or industrial residues makes a supplementary cementitious material out of waste. In all three the carbon ends up as a mineral inside a building.

Storage is permanent, requires no monitoring, and lands in a product with a $400 billion market, which is a distribution channel no other utilization route has. The cement saved is often worth more than the CO2 stored, so the business case can work without a carbon price. The honest limitation is quantity. Injection doses are small, on the order of a few kilograms of CO2 per cubic meter, so the direct storage per project is modest and most of the claimed benefit comes from the avoided cement rather than the stored gas. Carbonation curing stores much more per unit but only suits precast, not site-poured concrete.

Adopt injection where a ready-mix producer wants a cement reduction that does not change the spec, since the equipment is a retrofit and the concrete performs the same. Use carbonation curing where the product is precast and the plant can install a chamber, which is where the real tons per cubic meter are. Do not build a removal portfolio on concrete utilization, because the volume per project is too small; treat it as decarbonization of a material rather than as carbon storage. For a DAC operator, though, it is a useful outlet when no geologic storage exists nearby.

Injection doses of roughly 1–5 kg CO2 per cubic meter of concrete, enabling a few percent cement reduction · carbonation curing of precast fixes far more, commonly 5–15% of the binder mass · storage is permanent as calcium carbonate with no monitoring · natural carbonation over a structure's life already offsets a meaningful share of cement process emissions · commercial deployment across thousands of ready-mix plants.

CarbonCure, deployed at over a thousand ready-mix plants; Solidia's carbonation-cured precast system; CarbonBuilt and Fortera, both carbonating residues into cementitious material; Heirloom's demonstration of DAC-sourced CO2 mineralized into concrete.

2 minCarbonCure's Concrete Technology: How it WorksCarbonCure Technologies · 10k+ views

4 minStartups capture CO2 and store it in concreteReuters · 5k+ views

3 minCapturing and Recycling CO2 in Ready-Mixed ConcreteBLOOM Centre · 1k+ views

An industrial demonstration study on CO2 mineralization curing for concrete (PMC) · Fostering a Circular Economy and Carbon Sequestration for Construction Materials Workshop Report: A Focus on Concrete (NIST)
