Propulsion Systems: A Practical Reference

A high-bypass turbofan puts a large fan in front of a small gas-turbine core and sends most of the air around the core rather than through it. Bypass ratios on current engines run 9:1 to 12:1, so roughly 90% of the thrust comes from the fan moving a lot of air a little bit faster. That is the efficient way to make thrust at subsonic speed, because propulsive efficiency rises as you push more mass at less velocity change. The core exists mainly to turn the fan. Everything else about the engine — the multi-stage compressor, the annular combustor at 1,700 °C, the cooled single-crystal turbine blades — is there to extract more work per kilogram of air so the fan can be bigger.

It is the most fuel-efficient practical way to fly a subsonic aircraft, and 60 years of fleet experience have pushed reliability to roughly one in-flight shutdown per 200,000 engine-hours. Thrust-specific fuel consumption has fallen about 40% since the 1970s. The weaknesses are physical and commercial. Big fans mean big nacelles, and ground clearance under a low-wing airliner is now a real design constraint. The engine loses thrust and efficiency fast above Mach 0.9, so it is useless for supersonic flight. Development runs $1–3B and a decade, the hot section needs single-crystal castings and thermal-barrier coatings that only a handful of suppliers can make, and overhaul costs dominate the engine's life-cycle economics.

Pick a high-bypass turbofan for anything that flies subsonic for hours: airliners, freighters, tankers, maritime patrol, transports, and large HALE drones. If cruise is above roughly Mach 0.85, look at lower bypass ratios; if it is below Mach 0.5, a turboprop burns 20–40% less fuel. Avoid it where the airframe cannot fit the nacelle or where the mission is short enough that acquisition cost outweighs fuel burn — a cheap turbojet is better for a one-way vehicle. In defense programs the practical question is usually not which cycle but whether a commercial engine can be adapted, since a derivative of a certified civil engine skips most of the development cost and risk.

Bypass ratio 5:1–12:1 · thrust 100 kN to 500 kN per engine · TSFC roughly 0.5–0.55 lb/lbf/hr at cruise, equivalent to an Isp of about 6,500–7,000 s · thrust-to-weight around 5–6:1 · overhaul interval 15,000–25,000 hours on mature types.

CFM LEAP-1A/1B (A320neo, 737 MAX), Pratt & Whitney PW1100G geared turbofan, GE9X (777X), Rolls-Royce Trent XWB, CF6 and F138 on the C-5M, and the F117/PW2040 on the C-17.

Large turbofans are a duopoly-plus business: GE, Pratt & Whitney, Rolls-Royce, and CFM as a GE-Safran joint venture. Engines are frequently sold near or below cost and the money is made on spare parts and long-term service agreements over a 25-year life, so the installed base is the asset. That makes entry very hard — a new entrant needs certification, a global service network, and airline confidence, not just a good cycle. For defense buyers the same structure means sustainment, not acquisition, dominates the budget line.

5 minHow a High Bypass Turbofan WorksDfan 315 · 50k+ views

3 minHow Does a Turbofan Engine Work?MTU Aero Engines · 100k+ views

5 minHow Jet Engines WorkAnimagraffs · 5m+ views

Beginner's Guide to Propulsion (NASA Glenn Research Center) · Civil Aerospace (Rolls-Royce)

Fighter engines use bypass ratios of 0.3:1 to 1:1 — enough bypass air to cool the afterburner liner and improve subsonic cruise, but a small enough frontal area to work supersonically. The afterburner injects fuel into the mixed exhaust downstream of the turbine and burns it in the jet pipe, which raises thrust by 50–70% at roughly triple the fuel flow. That trade is what makes supersonic dash and high-g maneuvering possible from an engine sized for cruise. Some engines can hold supersonic flight without afterburner (supercruise) by combining high specific thrust with low drag, which the F119 in the F-22 demonstrated at about Mach 1.5.

It gives a very high thrust-to-weight ratio (around 9–11:1 dry) and an enormous on-demand thrust margin, and it is the only mature way to make a manned aircraft both efficient at cruise and violent in a fight. Against that, afterburner fuel flow is very high: an F-16 in full burner burns fuel roughly 3–4× faster than in military power, which is why fighter combat radius is measured in tens of minutes at high power. The hot section is life-limited and expensive, engines are export-controlled, and thermal management is now the binding constraint on new designs because directed-energy and radar loads all end up as heat in the fuel.

Pick it for any crewed combat aircraft or supersonic platform where thrust margin and maneuverability matter more than fuel burn. If the mission is a straight supersonic dash and the vehicle is expendable, a ramjet or a solid rocket is far cheaper. If the platform is a large uncrewed aircraft that never needs to accelerate hard, a high-bypass or medium-bypass engine without an afterburner will roughly double endurance. For collaborative combat aircraft the current argument is exactly this: how much of the fighter engine's thrust margin can you give up to buy range and unit cost, and most designs are landing on non-afterburning medium-bypass cores.

Bypass 0.3–1.0 · dry thrust 60–130 kN, augmented 90–190 kN · thrust-to-weight 9–11:1 · TSFC roughly 0.75 dry and 1.9–2.2 in full afterburner (lb/lbf/hr) · turbine inlet temperature above 1,900 K on the newest types.

Pratt & Whitney F135 (F-35, ~190 kN augmented), F119 (F-22), GE F110 and P&W F100 (F-15/F-16), Eurojet EJ200 (Typhoon), Snecma M88 (Rafale), Saturn AL-31/AL-41 (Su-27/Su-35), and the adaptive-cycle XA100/XA102 demonstrators.

Fighter engines cost roughly $10–15M each and are sold into single-customer programs with 40-year sustainment tails, so the business is a national-capability question as much as a commercial one. Only the US, UK, France, Russia, and (increasingly) China field domestic high-performance military turbofans; China's WS-15 program is the clearest illustration of how hard the hot section is to replicate. Export controls on engines are one of the more effective non-proliferation levers available, which is why aircraft deals frequently hinge on engine release rather than airframe release.

10 minHow an AFTERBURNER works - Explained by CAPTAIN JOECaptain Joe · 100k+ views

11 minExplained: AfterburnersJoshTheEngineer · 100k+ views

5 minThe Afterburner - Turbine Engines: A Closer LookAgentJayZ · 100k+ views

Turbofan Thrust (NASA Glenn Beginner's Guide to Propulsion) · Experimental Evaluation of a TF30-P-3 Turbofan Engine: Afterburner Performance (NASA Technical Reports Server)

An adaptive or variable-cycle engine adds a third airflow stream and variable geometry so the engine can change its own bypass ratio in flight. At cruise it opens the third stream, behaves like a medium-bypass engine, and burns 25–30% less fuel. In combat it closes down, behaves like a low-bypass fighter engine, and delivers about 10% more thrust. The third stream also carries cool air that can be used as a heat sink, which matters because thermal management, not thrust, limits how much radar and directed-energy power a modern fighter can carry. GE's XA100 and Pratt & Whitney's XA101 both completed ground testing under the Adaptive Engine Transition Program.

The fuel-burn gain is real and large — roughly a 30% range improvement on an F-35-class aircraft — and the extra cooling stream unlocks electrical and sensor growth that current engines cannot support. The problem is integration. Variable geometry in the hot section adds seals, actuators, and failure modes, the engine is physically bigger, and retrofitting an existing airframe means requalifying the whole propulsion system. The F-35 program considered and then deferred the adaptive engine for the F-35A in favor of an upgrade to the existing F135 core, mostly on cost and fleet-commonality grounds, which tells you the technology risk is now less of a barrier than the program economics.

Pick an adaptive cycle for a new sixth-generation design where range, thermal capacity, and growth margin are all binding, and where you can size the airframe around the engine from the start. If you are upgrading an existing fleet, an improved core in the current envelope will usually win on cost even though it delivers a fraction of the benefit. As an investor or program planner, the useful question is not whether adaptive cycles work — the demonstrators answered that — but whether a program exists that can absorb a new engine's qualification cost, since only a clean-sheet aircraft usually can.

Three-stream architecture · roughly 25% better fuel burn, 10% more thrust, and 2× the thermal management capacity versus a comparable fixed-cycle engine · thrust class 200 kN augmented · both AETP demonstrators ran full-envelope ground tests by 2022–2023.

GE Aerospace XA100 and XA102, Pratt & Whitney XA101 and XA103 under the Next Generation Adaptive Propulsion program, and the earlier ADVENT and AETD technology demonstrators. Variable-cycle ideas also appeared in the 1980s General Electric YF120, which lost the F-22 competition to the simpler F119.

Adaptive engines are funded almost entirely by the US Air Force and Navy through NGAP, at roughly $1B per contractor per phase. There is no commercial market — civil aviation has no use for variable bypass at subsonic cruise — so the whole business case rests on which sixth-generation programs actually enter production and in what numbers. That makes it a classic defense-only technology: high technical maturity, uncertain demand, and a supplier base of exactly two.

3 minGE's XA100 Adaptive Cycle EngineGE Aerospace · 100k+ views

3 minGE Adaptive Cycle EngineGE Aerospace · 100k+ views

4 minAFRL Adaptive Engine OverviewGaurav Singh · 10k+ views

Multipoint Variable Cycle Engine Design Using Gradient-Based Optimization (NASA Technical Reports Server) · Variable Cycle Engine Technology Program Planning and Definition Study (NASA Technical Reports Server)

A turbojet sends all of its air through the core: compressor, combustor, turbine, nozzle. There is no bypass. That gives high exhaust velocity and therefore high specific thrust, which is efficient when the aircraft is already moving fast and wasteful when it is not. Turbojets dominated aviation from the 1950s until turbofans displaced them for subsonic flight in the 1970s, and they survive today in two niches: high supersonic flight where exhaust velocity needs to exceed flight velocity by a wide margin, and cheap expendable vehicles where simplicity beats efficiency. The J58 in the SR-71 is the famous edge case, bleeding compressor air around the core above Mach 2 so that it progressively behaved like a ramjet.

Simplicity is the main advantage: fewer stages, smaller frontal area, no fan, and a straightforward installation. Specific thrust is high, so the engine is small for its thrust, which suits slender supersonic airframes. Efficiency is the problem. At subsonic speed a turbojet's propulsive efficiency is poor — it wastes energy in a fast, thin jet — so fuel burn is roughly double a comparable turbofan's. Turbojets are also loud, since jet noise scales with roughly the eighth power of exhaust velocity, which is why they are effectively banned from civil airports.

Pick a turbojet when the vehicle spends its life above Mach 1.5, when frontal area is the binding constraint, or when unit cost and simplicity matter more than fuel burn. That last case is the live one: subsonic cruise missiles and target drones use small turbojets because a $50k engine that runs once for 40 minutes beats a $500k turbofan that would run for 10,000 hours. Avoid turbojets for anything that cruises subsonic and needs range. If the mission is long-endurance subsonic loiter, a turbofan or turboprop is the answer and the fuel-burn difference will show up as hours of endurance.

Specific thrust 500–900 N·s/kg versus 200–400 for a high-bypass fan · TSFC roughly 0.8–1.1 lb/lbf/hr at subsonic cruise · practical envelope to about Mach 3 before turbine inlet temperature limits bite · small expendable units 0.5–5 kN, large military types to 80 kN.

Pratt & Whitney J58 (SR-71), General Electric J85 (T-38, F-5), Rolls-Royce Viper, Olympus 593 (Concorde), and the small turbojets in target drones and anti-ship missiles. Most Chinese and Russian legacy trainer and missile engines are turbojets.

The large-turbojet business is essentially closed — nothing new is being designed for crewed aircraft — but the small expendable turbojet market is growing quickly on the back of cruise-missile and attritable-drone demand. Prices there have fallen from several hundred thousand dollars to tens of thousands as suppliers like Kratos, TRS/Safran, PBS, and several Chinese and Iranian producers moved to casting-and-machining-light designs. If low-cost mass strike is a real doctrine shift, small turbojets and their supply chains are one of the direct beneficiaries.

20 minHow a TURBOJET Engine works - Explained by CAPTAIN JOECaptain Joe · 100k+ views

4 minTurbojet | How do Turbojet Engine worksKnowHow! · 10k+ views

6 minThe Mighty J58 - The SR-71's Secret PowerhouseTechLaboratories · 5m+ views

Turbojet Engines (NASA Glenn Beginner's Guide to Propulsion) · Propulsion Flight Research at NASA Dryden From 1967 to 1997 (NASA Technical Reports Server)

A small expendable turbojet is a 0.3–5 kN engine designed to run once, for 20 minutes to two hours, and then be destroyed with the vehicle. Design priorities invert everything the airline engine business optimizes for. Life is 5–50 hours instead of 25,000, so the turbine can run uncooled in a cast superalloy instead of a single crystal. Bearings can be simple, controls can be a single-channel FADEC or even a fixed schedule, and the whole engine can be machined from a handful of parts. The result is an engine that costs $10k–80k in quantity and lets a subsonic cruise missile or one-way attack drone fly 800–2,000 km.

Cost and producibility are the entire point, and the good designs prove that a turbine engine can be a consumable. They are also compact, start reliably from a cartridge or air spin, and tolerate a wide altitude band. The weaknesses follow directly from the cost target: fuel consumption is 30–60% worse than a comparable long-life engine, thrust degrades with hours in a way nobody bothers to correct, and there is no meaningful maintenance path. Production is also the choke point — several Western programs have found that the engine, not the airframe or the seeker, sets the maximum monthly missile output.

Pick a small expendable turbojet when the vehicle is one-way, the range requirement is a few hundred to a couple of thousand kilometers, and unit cost has a hard ceiling. Below roughly 300 km and 100 kg, a piston engine or an electric motor is cheaper still. Above about 2,000 km, a small turbofan's better fuel burn usually wins even at higher unit cost. If you are planning production, treat engine capacity as the program's real constraint and qualify a second source early — this is where most strike-munition scaling plans have actually broken.

Thrust 0.3–5 kN · engine mass 4–60 kg · design life 5–50 hours · unit cost $10k–80k at hundreds per year, less at thousands · TSFC roughly 1.1–1.4 lb/lbf/hr · typical vehicle range 800–2,000 km on internal fuel.

Williams F107 and F415 (Tomahawk, ALCM classes), Safran/Microturbo TRI 60 (Storm Shadow, Sea Eagle), PBS TJ150 and TJ200, Kratos and Technical Directions engines for attritable drones, and the Iranian Tolou-series engines derived from the Czech TJ100 that power Shahed-136 variants.

This is the fastest-moving segment in gas turbines, because the strike-munition inventories of every major military are being rebuilt at the same time. Cost per engine has roughly halved over the past decade with additive manufacturing of cases and integrally bladed rotors, and several startups are targeting sub-$20k units at thousands per year. The competitive question is not thermodynamic performance but manufacturing rate: whoever can hold tolerance on rotating parts at high volume with a non-aerospace supply chain wins the segment.

2 minPBS TJ150 | NEW turbojet engine for UAVs by PBS Velka BitesPBS · 10k+ views

2 minSmall But Powerful: The Pratt & Whitney TJ-150Pratt & Whitney · 10k+ views

10 minI built a small turbojet - for way less than you would expectAyden Wardell Aerospace · 10k+ views

Small, Low-Cost, Expendable Turbojet Engine: Design, Fabrication, and Preliminary Testing (NASA Technical Reports Server) · Small, Low-Cost, Expendable Turbojet Engine: Performance Characteristics (NASA Technical Reports Server)

A turboprop uses a gas-turbine core to drive a propeller through a reduction gearbox, typically cutting shaft speed by 10–20×. Nearly all the useful work leaves as shaft power rather than jet thrust; the exhaust contributes maybe 5–10%. Because a propeller moves a very large mass of air at a small velocity change, it is the most propulsively efficient option below about Mach 0.6. Above that, the propeller tips approach supersonic speed, efficiency collapses, and the turbofan takes over. That crossover is why turboprops own regional aviation, maritime patrol, tactical transport, and armed ISR aircraft, and nothing else.

Fuel burn is 20–40% below a turbofan at 250–350 knots, takeoff thrust is excellent, and field performance from short and rough strips is much better than a jet's. Turboprops also run on the same jet fuel, which matters for single-fuel logistics. The weaknesses: the gearbox is the least reliable and most expensive part of the engine, propellers are loud in the cabin and vulnerable on unprepared ground, and the speed ceiling around 350–400 knots is a hard limit rather than a soft one. Propellers also constrain aircraft layout, since ground clearance and blade-off containment drive wing and gear geometry.

Pick a turboprop when cruise sits below roughly 400 knots and the mission is long: maritime patrol, ISR, tactical airlift, crop and fire work, and armed overwatch. If the mission needs 450+ knots or high-altitude cruise, take the fuel-burn penalty and use a turbofan. If the aircraft is under about 1,500 kg, a piston engine or an electric motor is cheaper to buy and operate, since small turboprops do not scale down well — a 450 shp turboprop costs several times a comparable piston engine. For military buyers the turboprop is usually the right answer for anything that needs to loiter for eight hours over a target.

Power 400–11,000 shp · propulsive efficiency 0.8–0.85 below Mach 0.5 versus 0.6–0.7 for a turbofan · brake specific fuel consumption 0.4–0.5 lb/shp/hr · practical cruise ceiling around Mach 0.65 · gearbox overhaul typically drives the maintenance interval.

Pratt & Whitney Canada PT6 (the most-produced turboprop family, over 60,000 built), PW127 (ATR 72), Rolls-Royce AE 2100 (C-130J), Europrop TP400 (A400M), Honeywell TPE331 (MQ-9 Reaper), and Ivchenko-Progress AI-20 derivatives.

The turboprop market is more concentrated than the turbofan market: P&W Canada dominates the small and mid classes and has for 60 years, with GE's Catalyst as the first serious new entrant in decades. Because turboprop airframes are long-lived and low-volume, the aftermarket is even more dominant than in commercial jets. For defense buyers the relevant fact is that armed ISR aircraft built around a $1–2M turboprop can put ordnance on target for a few thousand dollars per flight hour, roughly a tenth of what a fast jet costs.

5 minHow TURBOPROP ENGINES Work (in 5 minutes)Linus3d · 100k+ views

13 minThe BEST TURBOPROP explanation video! By Captain Joe and PRATT & WHITNEYCaptain Joe · 1m+ views

3 minPW100 turboprop engine 3D animationmzo · 50k+ views

Turboprop Engine (NASA Glenn Beginner's Guide to Propulsion) · Advanced Turboprop Technology Development (NASA Technical Reports Server)

A turboshaft is a gas turbine optimized to deliver shaft power with almost no residual jet thrust, usually through a free power turbine that is aerodynamically coupled to the gas generator rather than mechanically linked to it. That decoupling matters for helicopters: the rotor must hold near-constant RPM while the engine varies power over a wide range, and a free turbine lets the gas generator spool up and down without dragging the rotor with it. Turboshafts also drive tanks, ships, and generators, where the same trait — very high power density at the cost of poor part-power fuel economy — applies.

Power-to-weight is the headline: a modern turboshaft delivers 5–8 kW/kg, roughly five times a diesel of the same output, which is why helicopters use them and trucks do not. They are also smooth, multi-fuel tolerant, and start quickly in cold weather. The penalties are fuel consumption at part power (a turbine at 30% load can be 50% worse than at rated power), sensitivity to ingested sand and salt, and the cost of the transmission. In a helicopter the gearbox is typically heavier and more maintenance-intensive than the engine, and it is the component that grounds the fleet.

Pick a turboshaft wherever high power in low mass justifies burning more fuel: helicopters, tiltrotors, hovercraft, fast ships, and mobile power generation. If the platform is a ground vehicle that idles for hours, use a diesel — the M1 Abrams' AGT1500 is the standing example of the fuel penalty in practice, burning roughly 10 gallons per hour at idle. If the aircraft is small, under about 500 kg, piston or electric drive will be cheaper and easier to support. Sand and salt ingestion protection is not optional in field use, and inlet particle separators cost 3–5% of power to run.

Power 300–15,000 shp · power-to-weight 5–8 kW/kg · specific fuel consumption 0.35–0.5 lb/shp/hr at rated power, much worse at part load · overhaul intervals 2,000–5,000 hours · a particle separator costs 3–5% of shaft power.

GE T700 (Black Hawk, Apache), Rolls-Royce/Honeywell T55 (Chinook), Safran Arriel and Arrius, Rolls-Royce AE 1107C (V-22), GE LM2500 marine turbine (a marinized CF6), and the Honeywell AGT1500 in the M1 Abrams.

Military helicopter engines are concentrated among GE, Safran, Rolls-Royce, and Klimov, with 40-year fielded lives and heavy sustainment revenue. The US Improved Turbine Engine Program (GE T901) is the first clean-sheet helicopter engine in decades and is intended to give 50% more power and 25% better fuel burn in the same envelope as the T700. Marine gas turbines are an even smaller club: the LM2500 alone powers a large share of Western warships, which is a single-point supply-chain concern that navies discuss more openly than they used to.

6 minUnderstanding Helicopter's Engine | TurboshaftSabin Civil Engineering · 5m+ views

5 minHow a Gas Turbine engine works Black Hawk helicopter GE T-700 seriesmsfirefighter662 · 100k+ views

3 minHow Does A Helicopter Engine Work? | Turboshaft And Jet Engine Explainedmrfabulousk · 100k+ views

Wide Speed Range Turboshaft Study (NASA Technical Reports Server) · Test Stand Performance of a Convertible Engine for Advanced V/STOL and Rotorcraft Propulsion (NASA Technical Reports Server)

An open rotor is a turbofan with the nacelle removed and the fan replaced by one or two rows of thin, swept, variable-pitch blades. Effectively it is a very high bypass ratio engine — 30:1 or more — that avoids the weight and drag penalty a duct would impose at that size. Blade sweep keeps the tips efficient near Mach 0.75, which is the trick that lets an open rotor cruise at jet speeds where a conventional propeller cannot. GE and Safran flight-tested counter-rotating designs in the 1980s under the GE36 program, and CFM's RISE program is testing a single-rotating open fan with a stationary outlet guide vane row.

The fuel-burn gain is the largest available from any airframe-compatible engine concept: 15–20% below the best current turbofans, on top of the gains already banked. That is a big enough number to matter for both airline economics and military range. Against it sit three hard problems. Noise is worse without a duct, and community noise rules have tightened since the 1980s. Blade-off containment is not solvable the usual way, because there is no case to contain it, so certification requires either much stronger blades or airframe shielding. And installation is awkward: the rotors are large, so they usually go on the rear fuselage or on top of the wing.

Consider an open rotor only for a clean-sheet subsonic aircraft where fuel burn dominates the business case and the airframe can be designed around the rotor from day one. For defense, the case is range on large transports and tankers, and it is real: a 15% fuel-burn gain on a strategic airlifter is worth a lot of tanker sorties. Do not plan on it for a re-engining, because the installation changes the aircraft. Treat certification of blade release, not aerodynamics, as the gating risk — that is where the 1980s programs stopped and where CFM RISE will be judged.

Effective bypass ratio 30:1 or higher · 15–20% fuel-burn improvement over a current-generation turbofan · cruise capability to about Mach 0.8 · fan diameter roughly 4 m at airliner thrust · CFM RISE targeting ground and flight tests through the second half of the 2020s.

GE36 UDF demonstrator (flown on a 727 and an MD-80 in 1986–88), Progress D-27 propfan on the An-70, and CFM RISE, which Airbus has agreed to flight-test on an A380 testbed.

Open rotors have been about ten years away since 1985. Fuel price collapses killed the 1980s programs, and the current revival is driven by decarbonization targets rather than fuel cost alone. The technology risk is now mostly certification and installation, which means the deciding factor is whether an airframer commits to a clean-sheet single-aisle around it. For investors, that makes it a bet on airframe program timing more than on propulsion technology.

4 minEP5: Open Rotor, discover a revolutionary concept engine 🇬🇧 | SafranSafran · 100k+ views

7 minGE36 Unducted FanMatthew G. Saroff · 100k+ views

2 minCFM RISE program Tech tourCFM International · 10k+ views

Acoustic Shielding for a Model Scale Counter-Rotation Open Rotor (NASA Technical Reports Server) · Open Rotor Development (NASA Technical Reports Server)

A ramjet has no moving parts in the flowpath. The inlet decelerates supersonic air to subsonic speed through a shock system, which compresses it by a factor of 10–30 at Mach 3, fuel burns in that subsonic stream, and a converging-diverging nozzle expands it back out. Because compression comes from the vehicle's own speed, a ramjet produces no static thrust at all — it has to be boosted to roughly Mach 2 before it will run. Above that it works well to about Mach 5, where the temperature after deceleration gets high enough that the air dissociates and further compression stops paying.

The advantages are simplicity and specific impulse. With no turbomachinery, a ramjet is cheap, light, and tolerant of high inlet temperatures, and its Isp of 1,000–2,000 s is roughly four times a solid rocket's, which translates into two to four times the range for the same propellant mass. The weaknesses are equally structural. It cannot start itself, so every ramjet vehicle carries a booster stage or an integrated booster grain. It works over a narrow Mach band, since the inlet is optimized for one flight condition. And thrust falls off sharply at altitude, so the flight profile is constrained in a way that rocket-powered missiles are not.

Pick a ramjet for a sustained Mach 3–5 vehicle where range matters and the launch platform can supply the initial boost: air-to-air missiles that need endgame energy at long range, anti-ship cruise missiles, and hypersonic first stages. If the flight is short and mostly ballistic, a solid rocket motor is simpler and cheaper. If the vehicle must take off from rest, you need a turbine or a combined cycle. The clearest current case is long-range air-to-air: a ramjet-powered missile still has thrust at the end of its flight, so its no-escape zone is much larger than an equivalent rocket's even at the same nominal range.

Operating band roughly Mach 2–5 · Isp 1,000–2,000 s · inlet pressure ratio 10–30 at Mach 3 · combustor entry temperature 600–900 K · typical missile-scale thrust 5–50 kN · engine cost well under $1M in production quantities.

MBDA Meteor (throttleable solid-fuel ducted ramjet), the Bomarc and Talos ramjet interceptors, the ASMP-A French nuclear standoff missile, the Indo-Russian BrahMos sustainer, and Russian 3M22 Zircon and Kh-32 propulsion.

Ramjet engines themselves are cheap; the cost sits in integration, boosters, and the thermal structure. The technology is old and widely held, so proliferation is limited more by fuel-control and materials know-how than by the cycle itself. The commercially interesting motion is in solid-fuel ducted ramjets, where throttling a solid fuel gas generator gives most of the range benefit at close to solid-rocket simplicity, and in reusable Mach 4–5 testbed vehicles from companies pursuing hypersonic flight test as a service.

8 minRamjet engines, How do they work?Sabin Civil Engineering · 5m+ views

6 minHow Does A Supersonic Jet Engine Inlet Work? - Advanced Compressible FlowVDEngineering · 10k+ views

6 minHow Supersonic Cruise Missile with Ramjet Works: BrahMos MissileLiteracy Corner Global · 100k+ views

Ramjet Propulsion (NASA Glenn Beginner's Guide to Propulsion) · Ramjet Propulsion for Single-Stage-to-Orbit Vehicles (NASA Technical Reports Server)

A ducted rocket, or solid-fuel ducted ramjet, burns a fuel-rich solid grain in a gas generator, then injects the resulting hot fuel-rich gas into a ram-compressed air stream where it finishes burning. It is a hybrid of a solid rocket motor and a ramjet, and it keeps most of both parents' advantages: the storability and simplicity of a cast solid grain, and roughly three times the specific impulse of a pure rocket. Throttling is done at the gas generator with a hot-gas valve, which gives the missile something a solid motor cannot offer — the ability to manage its own energy over the flight and arrive fast rather than arriving coasting.

Storability is the main practical win. Everything is solid, so the round can sit on an aircraft or in a magazine for 15 years without servicing, which liquid-fueled ramjets cannot match. Throttling gives a much larger no-escape zone at long range. The weaknesses are that the hot-gas throttle valve running at 2,000 K is one of the hardest components in the system, the fuel-rich grain has lower density than a conventional propellant, and integration is complex because the missile needs air inlets, which drives its aerodynamic shape and its carriage on the aircraft.

Pick a ducted ramjet for long-range air-to-air and air-to-surface missiles where endgame energy decides the engagement and the round must be storable and maintenance-free. If maximum range is under about 60 km, a dual-pulse solid motor achieves nearly the same effect for far less complexity and cost. If the vehicle needs to operate above Mach 5, the flowpath has to move toward a dual-mode or scramjet design. As a rule of thumb, if the requirement is written in terms of no-escape-zone rather than maximum range, ducted ramjets and dual-pulse motors are your two candidates.

Operating band Mach 2–4.5 · Isp roughly 1,000–1,500 s · throttle ratio typically 5:1 or better at the gas generator · storage life 15+ years with no servicing · Meteor-class ranges commonly cited above 100 km.

MBDA Meteor (the reference Western design), the Russian 9M317M and the ramjet-sustained variants of the R-77 family, the Chinese PL-21, and Japan's ramjet-powered AAM-4B derivatives.

Only a handful of organizations have fielded a working throttleable ducted ramjet, and the barrier is the hot-gas valve and the fuel chemistry rather than the aerodynamics. Meteor took roughly 20 years and six nations to field, which is a fair estimate of the difficulty. Unit costs run several times a conventional air-to-air missile — Meteor is usually quoted around $2M per round — so procurement quantities stay small and the missiles are reserved for high-value engagements.

5 minNAVAIR Air Talks: Solid Fuel RamjetNAVAIRSYSCOM · 1k+ views

4 minRamjet missile propulsion - the biggest invention since the introduction of the jet engineNammo Media · 100k+ views

5 minHow ramjets may change the role of artillery on the battlefieldNammo Media · 1m+ views

Analysis of Nonconstant Area Combustion and Mixing in Ramjet and Rocket-Ramjet Hybrid Engines (NASA Technical Reports Server) · Meteor (MBDA)

A scramjet is a ramjet that never slows its air to subsonic speed. Above roughly Mach 5, decelerating the flow to subsonic would raise the temperature past the point where combustion adds useful energy — the air dissociates instead of burning — so the scramjet burns fuel in a stream still moving at Mach 2–3. That is the hard part. The fuel has milliseconds to mix and burn in supersonic flow, which is often described as keeping a match lit in a hurricane. The engine has no moving parts, the whole underside of the vehicle acts as inlet and nozzle, and the airframe and engine cannot be designed separately.

Specific impulse of 1,000–1,500 s at Mach 6 is roughly three times a rocket's, so a scramjet vehicle can cruise at hypersonic speed at a fraction of the propellant. It also flies inside the atmosphere, which allows maneuvering that a ballistic trajectory does not. The weaknesses are severe. It cannot start below about Mach 4, so it needs a rocket or turbine booster. Heat loads are enormous, so hydrocarbon fuel is usually circulated as a coolant before combustion and the fuel's heat sink capacity becomes a design limit. Ground test facilities that reproduce true flight enthalpy are rare and expensive, and flight test is the only real proof.

Consider a scramjet only for sustained hypersonic cruise between roughly Mach 5 and 10, where the alternative is a boost-glide vehicle. If the mission is a one-off ballistic or glide trajectory, boost-glide is simpler, cheaper, and already fielded. Scramjets are worth their complexity when the vehicle needs to hold speed for hundreds of seconds and maneuver while doing it — long-range conventional strike being the standard case. For program planners the practical rule is to budget for flight test, not ground test: every scramjet program's schedule has been set by how many flight articles it could afford to lose.

Operating band roughly Mach 5–10 (X-43A reached Mach 9.6, X-51A held Mach 5.1 for 210 seconds) · Isp 1,000–1,500 s at Mach 6 · combustor residence time under 1 ms · flowpath wall heat flux above 1 MW/m² · fuel doubles as active structural coolant.

NASA X-43A (2004), Boeing X-51A Waverider (2010–13), the US–Australia HIFiRE series, the US HACM program with Raytheon and Northrop, Hypersonix and Hermeus commercial efforts, and India's HSTDV demonstrator.

Scramjets are almost entirely government-funded, with US, Chinese, Russian, Indian, and Australian programs all active. Costs sit in flight test — a single test article and range campaign can run tens of millions of dollars — and in materials qualification for hot structures. Cost per flight has been the binding constraint on progress, which is why several startups are selling hypersonic flight test as a service to lower the price of an experiment. Whether a fielded scramjet weapon beats a cheaper boost-glide vehicle on cost per target remains genuinely unsettled.

19 minScramjets - The Fastest Jet EnginesScott Manley · 500k+ views

10 minRamjets and Scramjets Explained - Mach 14Edwin Henry Blachford · 1m+ views

2 minPratt & Whitney Rocketdyne - X-51A Mission Animation & Scramjet Engine Operation [480p]arronlee33 · 50k+ views

Alleviation of Facility/Engine Interactions in an Open-Jet Scramjet Test Facility (NASA Technical Reports Server) · Hypersonic Weapons: Background and Issues for Congress (Congressional Research Service)

A turbine-based combined cycle uses a gas turbine from standstill to about Mach 3, then transitions to a ramjet or dual-mode ramjet flowpath for higher speeds. The point is to get horizontal takeoff and reusable operation from a runway without the boosters that ramjets and scramjets otherwise require. Architectures split into two families: over-under, where turbine and ram flowpaths sit in separate ducts with variable inlet and nozzle doors, and turbine-based designs that pre-cool or bypass the turbine so one flowpath serves both. The transition region around Mach 2.5–3.5, called the thrust gap, is where both cycles are weak and where these programs usually get into trouble.

Reusability and runway operation are the whole argument. A TBCC vehicle can take off, accelerate to hypersonic cruise, and land, which is what a reconnaissance or fast-response aircraft actually needs. It also avoids the cost and range constraints of expendable boosters. The problems are weight and the thrust gap. Carrying two propulsion systems, plus variable inlets, doors, and a thermal management system, eats most of the payload fraction. Turbine materials also limit inlet temperature, so either the turbine has to be exotic or the air has to be pre-cooled, which adds a heat exchanger with its own mass and failure modes.

Consider TBCC only for a reusable vehicle that must operate from a runway across the full Mach 0–6 range: high-speed reconnaissance, rapid-response strike aircraft, or the first stage of a two-stage-to-orbit system. If the vehicle is expendable, a rocket booster into a ramjet is far simpler and much cheaper. If the requirement stops at Mach 4, a modified turbojet with fuel pre-cooling can reach it without a second flowpath, which is the approach several Mach 4–5 aircraft programs are taking. Assume the thrust gap is the program's central technical risk and design the mission around a shallow acceleration through it.

Turbine operation to about Mach 2.5–3.5, ram operation from Mach 3 to 6+ · thrust gap centered near Mach 3 · SABRE's pre-cooler demonstrated cooling airflow from over 1,000 °C to ambient in under 0.05 seconds · no operational vehicle has yet flown a full TBCC transition.

The SR-71's J58 is the closest thing to an operational example, since it bypassed compressor air around the core to behave increasingly like a ramjet above Mach 2. Modern efforts include Reaction Engines' SABRE and its pre-cooler (the company entered administration in 2024), Hermeus Chimera, DARPA's Falcon and Mode Transition programs, and China's reported TRRE work.

TBCC has consumed a lot of money over 60 years and produced one operational aircraft. The economics only close if the vehicle flies often, because reusability is the entire justification, and no market for frequent hypersonic flights currently exists outside of test. That circularity — no vehicle without demand, no demand without a vehicle — has killed most programs. The current crop of startups is attacking it by fielding a Mach 4–5 aircraft first, where a modified turbojet suffices, and treating full TBCC as a later step.

17 minHow Britain's Air Breathing Rocket Engine Would Have Worked... If The Builder Hadn't Gone Bankrupt.Scott Manley · 100k+ views

3 minHypersonic Engine Test MilestoneHermeus · 100k+ views

4 minCompressor Development for Exoskeletal Turbine-Based Combined Cycle (TBCC) EngineLearn With NASA · 1k+ views

Overview of the Turbine Based Combined Cycle Discipline (NASA Technical Reports Server) · Hypersonics research (NASA Glenn Research Center)

A rocket-based combined cycle puts a rocket engine inside a ramjet duct. At low speed the rocket runs as an ejector, entraining and accelerating surrounding air to add thrust beyond what the rocket alone would produce. As the vehicle accelerates past Mach 2–3 the duct starts working as a ramjet and the rocket throttles back or shuts down. Past roughly Mach 6 the flowpath runs as a scramjet, and above the atmosphere the rocket relights in pure rocket mode. One duct, four modes. The appeal is a single-stage vehicle that never carries dead propulsion mass, since every component does something in every phase.

The theoretical payoff is a large improvement in effective Isp during atmospheric ascent, where a conventional rocket wastes most of its propellant carrying oxidizer through air that is full of oxygen. Ejector augmentation can add 15–30% thrust at takeoff. The weaknesses are that the engine is optimized for nothing in particular, structural mass fraction has never closed for single-stage-to-orbit, and the mode transitions each present their own combustion stability problems. Every RBCC study since the 1960s has concluded the concept works thermodynamically and fails on mass budget, and no flight vehicle has ever used one.

Treat RBCC as a research architecture rather than an engineering option today. It becomes interesting if a vehicle must accelerate continuously from sea level to orbital or near-orbital speed in one stage, and if structural mass fractions improve enough that the mass budget closes. For anything you would actually build now, staging — a rocket first stage, or a ramjet stage boosted by a separate motor — beats a combined cycle on cost and risk. For investors, the useful test is whether a company's claimed mass fraction is materially better than the historical record, because that is the number that has always killed the concept.

Four operating modes: ejector (Mach 0–2), ramjet (2–6), scramjet (6–10+), pure rocket (exoatmospheric) · ejector thrust augmentation 15–30% at static conditions · effective ascent Isp claimed at 500–1,000 s against roughly 350 s for a kerolox rocket · no flight article to date.

NASA's GTX and ISTAR concepts, the Aerojet Strutjet demonstrator, Japan's JAXA combined-cycle research, and Chinese academic and institute programs. The Marquardt ejector ramjet work of the 1960s is the origin of most of the modern architecture.

There is no market and no supplier base — this is a technology-readiness question funded through space agencies and defense research offices. It gets attention every time single-stage-to-orbit comes back into fashion, and it loses funding every time reusable staged rockets get cheaper. Falling launch costs from reusable two-stage vehicles have made the economic case harder, not easier, since the target that RBCC has to beat has moved by an order of magnitude in a decade.

9 minHigh Speed Flight Episode 2.2 | RBCC, Part 1Venus Aerospace · 1k+ views

10 minHigh Speed Flight Episode 2.2 | RBCC, Part 2Venus Aerospace · under 1k views

Rocket-Based Combined Cycle Engine Concept Development (NASA Technical Reports Server) · Hypersonics research (NASA Glenn Research Center)

A solid rocket motor is a case filled with a rubbery propellant grain that contains both fuel and oxidizer, plus an igniter and a nozzle. Modern composite propellant is typically ammonium perchlorate oxidizer and aluminum fuel in an HTPB binder, cast into the case and cured. The shape of the hollow core down the middle sets the burn area over time, and therefore the thrust curve — a star-shaped port gives roughly constant thrust, a cylindrical port gives rising thrust. Once lit it burns to completion. There is no throttle and, except for thrust-termination ports, no shutdown.

Storability and simplicity are unmatched: a sealed motor sits in a magazine for 15–20 years and fires on command with no servicing, and there are no pumps, valves, or tanks. Thrust density is very high, so solids are the standard choice for boosters and for anything launched from a tube. The weaknesses are equally clear. Isp of 240–270 s is the worst of any practical chemical rocket, you cannot throttle or restart, and the propellant is an explosive that has to be manufactured, transported, and stored under strict rules. Grain cracking during storage or thermal cycling is a real failure mode, and non-destructive inspection of a cast grain is difficult.

Pick a solid motor for boosters, tactical missiles, ejection seats, launch escape systems, and anything that must sit ready for years and then work. If the mission needs throttling, restart, or maximum Isp, use a liquid engine. If the vehicle is a long-range strike weapon where range per kilogram matters, a ramjet gives three to four times the Isp. Note the practical constraint that dominates current Western programs: solid propellant production capacity, especially ammonium perchlorate and large-case casting, is the choke point on missile output, and it takes roughly three to five years to add.

Isp 240–270 s vacuum · propellant mass fraction 0.85–0.92 · burn times 1–130 s · thrust from 100 N tactical motors to 16 MN for a Space Shuttle SRB · storage life 15–20 years · roughly 5–10× the thrust density of a liquid engine of the same mass.

Space Shuttle and SLS boosters, Ariane 6 P120C, Minuteman III and Trident II stages, and essentially every tactical missile: AMRAAM, Javelin, Stinger, HIMARS/GMLRS, and the Patriot family.

Solid propulsion is a concentrated defense-industrial business. In the US, Northrop Grumman and L3Harris (through Aerojet Rocketdyne) are the two primary sources, and the Pentagon has repeatedly flagged single-source risk on specific motor classes. Ammonium perchlorate has essentially one US producer. Costs per motor range from a few thousand dollars for small tactical units to tens of millions for large boosters. Since 2022, capacity expansion rather than technology has been the dominant topic, with multi-year procurement contracts used explicitly to justify supplier investment.

16 minThe Amazing Engineering Behind Solid Rocket BoostersScott Manley · 1m+ views

4 minGEM Solid Rocket Motor ManufacturingNorthrop Grumman · 10k+ views

21 minHow To Design A Solid Rocket Motor - Simplex Ep 1BPS.space · 100k+ views

Solid Rocket Engine (NASA Glenn Beginner's Guide to Aeronautics) · Status of the 260-Inch Diameter Solid Rocket Motor Program (NASA Technical Reports Server)

A kerolox engine burns refined kerosene (RP-1) with liquid oxygen, usually fed by turbopumps driven by a gas generator or a staged-combustion preburner. Kerosene is dense, liquid at room temperature, and easy to handle, so tanks are small and the vehicle is compact. Only the oxygen is cryogenic. The combination has powered most of the world's first stages since the 1950s, from the F-1 on Saturn V to the Merlin on Falcon 9, and it remains the default for boosters where density and handling matter more than the last few percent of specific impulse.

High propellant density means smaller, lighter tanks and lower drag, which is worth more on a first stage than hydrogen's higher Isp. Kerosene is cheap, safe to store, and needs no insulation. Engines are well understood and can be built at high thrust. The main weakness is coking: kerosene decomposes on hot surfaces and leaves carbon deposits in cooling channels and injectors, which historically made reuse hard and still limits how many flights an engine gets between inspections. Isp of 300–340 s is also 100 s below hydrolox, which costs performance on upper stages, and soot makes the exhaust dirty enough to matter for some payloads.

Pick kerolox for first stages and boosters where thrust density and cost dominate, and for any vehicle that needs to be handled by ordinary ground crews. If the stage is an upper stage where every second of Isp buys payload, hydrolox or methalox is usually better. If the vehicle is meant for rapid reuse, methalox avoids the coking problem for a small density penalty, which is why most new reusable designs have moved to methane. A reasonable rule of thumb: kerolox if you are optimizing a first stage for cost per launch today, methalox if you are optimizing for turnaround time in five years.

Isp 300–311 s sea level, 330–348 s vacuum · chamber pressure 70 bar (gas generator) to 250 bar (staged combustion) · RP-1 density 810 kg/m³ against 71 for liquid hydrogen · Merlin 1D thrust 845 kN sea level, thrust-to-weight above 180:1.

SpaceX Merlin (Falcon 9), Rocketdyne F-1 (Saturn V), NPO Energomash RD-180 and RD-181, RD-170/171 (Zenit, Soyuz-5), Rutherford (Electron, electric-pump-fed), and the Soyuz RD-107/108 family that has flown since 1957.

Kerolox has the cheapest propellant of any liquid system — RP-1 and LOX together run roughly $1–2 per kilogram — so propellant is a rounding error against engine and operations cost. The RD-180 export relationship, and its termination, is the standard example of how engine supply becomes a geopolitical exposure. Reusability economics on kerolox have been proven by Falcon 9 at over 20 flights per booster, though the engines require more inspection between flights than a methalox design would.

9 minHow To Start The Massive F-1 Rocket Engine - Explaining "Ignition Sequence Start"Scott Manley · 1m+ views

2 minSaturn V F-1 Engine Gas Generator TestingNASA's Marshall Space Flight Center · 100k+ views

9 minWhy Some 21st Century US Rockets Still Use Soviet Era EnginesScott Manley · 100k+ views

Liquid Rocket Engine (NASA Glenn Beginner's Guide to Aeronautics) · Experimental Research and Design Planning in the Field of Liquid-Propellant Rocket Engines (NASA Technical Reports Server)

A methalox engine burns liquid methane with liquid oxygen. Both propellants are cryogenic but at similar temperatures (−162 °C and −183 °C), which simplifies tank and plumbing design compared with hydrogen. Methane's key property for engine designers is that it burns clean: no coking, so cooling channels and injectors stay clear and the engine can fly again with much less inspection. It also has better density than hydrogen and better Isp than kerosene, landing in a middle position that turns out to suit reusable vehicles well. Nearly every new large launch vehicle designed since 2015 uses it.

Clean combustion is the decisive advantage for reuse, and the two propellants' similar temperatures allow common bulkheads and shared insulation. Methane can also in principle be made on Mars from atmospheric CO₂ and subsurface water, which is why SpaceX chose it. Isp of 330–380 s is a genuine improvement on kerolox. The weaknesses are that both propellants boil off, so long-duration missions need active thermal control; the density is about 30% below RP-1, so tanks are larger; and the engine base is younger, so flight-proven reliability data is thinner than for kerolox or hydrolox.

Pick methalox for a new reusable launch vehicle, and for any stage where you want good Isp without hydrogen's tank volume and boil-off problems. If you are building an expendable booster and want the lowest possible cost today from a mature supply chain, kerolox is still reasonable. If the mission is a high-energy upper stage where payload is everything and reuse is not planned, hydrolox still wins on Isp. For in-space storage beyond a few weeks, storable hypergolics or electric propulsion avoid the boil-off management that methalox requires.

Isp 330–356 s sea level, 350–380 s vacuum · methane density 423 kg/m³ · chamber pressure to about 300 bar on full-flow staged combustion designs · Raptor 3 thrust roughly 2.6 MN sea level · propellant cost well under $1/kg for LNG-derived methane.

SpaceX Raptor (Starship, full-flow staged combustion), Blue Origin BE-4 (New Glenn, Vulcan), Rocket Lab Archimedes (Neutron), Relativity Aeon R, ULA/Blue's Vulcan first stage, LandSpace Zhuque-2 (first methalox vehicle to orbit, 2023), and Ariane's Prometheus demonstrator.

Methalox became the industry default in under a decade, which is unusually fast for propulsion. The reason is reuse economics: if an engine can fly ten times with light inspection, engine cost per flight falls by an order of magnitude, and methane is what makes that practical. Propellant itself is cheap and available from industrial LNG infrastructure. The competitive question now is manufacturing rate — Raptor and BE-4 production rates, not their performance, are what gate their respective vehicles.

17 minWhy SpaceX is Using a New FuelReal Engineering · 1m+ views

19 minRocket Science: How the Raptor Rocket Engine Works and Full Flow Staged CombustionTerran Space Academy · 10k+ views

3 minThis is BE-4.Blue Origin · 50k+ views

Liquid Oxygen/Liquid Methane Propulsion and Cryogenic Advanced Development (NASA Technical Reports Server) · Liquid Oxygen/Liquid Methane Integrated Propulsion System Test Bed (NASA Technical Reports Server)

A hydrolox engine burns liquid hydrogen with liquid oxygen and produces the highest specific impulse of any practical chemical rocket, 440–465 s in vacuum. Hydrogen's low molecular weight is the reason: exhaust velocity scales with the square root of chamber temperature over molecular weight, and water vapor from hydrogen combustion is light. The cost of that is hydrogen's density, 71 kg/m³, which is a fourteenth of kerosene. Tanks are enormous and must be insulated against a 20 K propellant, and hydrogen leaks through seals that hold every other fluid.

Isp is the whole case, and on an upper stage it is decisive — a hydrolox upper stage delivers substantially more payload to high-energy orbits than any other chemical option. Combustion products are just water, which matters for some payload contamination cases. Against that: tanks are large and heavy, insulation adds mass, boil-off makes long coast phases hard, hydrogen embrittles metals, and ground infrastructure is expensive. The Space Shuttle and SLS hydrogen leak scrubs are the standard illustration. Hydrolox engines also have poor thrust-to-weight, so they are weak first-stage engines and usually need solid boosters alongside them.

Pick hydrolox for upper stages and for high-energy missions to geostationary transfer, escape, or the Moon, where Isp translates directly into payload. Avoid it for first stages unless the vehicle is designed around solid boosters, and avoid it for anything that must sit fueled or coast for days without active cooling. If the mission is a reusable booster, methalox is the better answer on every axis except Isp. As a rule of thumb: hydrogen wins where the mission's delta-v is large and the stage is used once, and loses where turnaround time, tank volume, or ground handling cost dominates.

Isp 440–465 s vacuum · hydrogen density 71 kg/m³ · storage at 20 K · RS-25 thrust 1.86 MN vacuum at 206 bar chamber pressure, thrust-to-weight about 73:1 · boil-off of 1–4% per day without active cooling on typical upper stages.

Aerojet Rocketdyne RS-25 (Shuttle, SLS), RL10 (Centaur, DCSS — flying since 1963), Blue Origin BE-3U, Ariane 6 Vulcain 2.1 and Vinci, Japan's LE-9 (H3), and India's CE-20 on GSLV Mk III.

Hydrolox engines are the most expensive class in production. RS-25 units cost roughly $100M each on SLS even after a restart program aimed at cutting price, and RL10s have historically run $10–25M. Hydrogen itself is not the cost driver; qualification, low production rates, and ground infrastructure are. Green hydrogen investment may reduce propellant costs but does nothing about the engine economics. Where reuse is the goal, the industry has voted with its designs and moved to methane.

12 minHow The Space Shuttle Started Its Engines And LaunchedScott Manley · 1m+ views

8 minRL-10 Rocket EngineNASA Glenn Research and Technology · 100k+ views

2 minVulcain® 2.1 and Vinci® EnginesArianeGroup · 5k+ views

Experimental Performance of Liquid Hydrogen and Liquid Fluorine in Regeneratively Cooled Rocket Engines (NASA Technical Reports Server) · Liquid-Hydrogen Rocket Engine Development at Aerojet, 1944–1950 (NASA Technical Reports Server)

Hypergolic propellants ignite on contact with each other, so the engine needs no igniter and can restart as many times as it has propellant. The standard pair is monomethylhydrazine or unsymmetrical dimethylhydrazine with nitrogen tetroxide. Both are liquid at room temperature and can be loaded and left for years, which is why hypergolics dominate spacecraft main propulsion, orbital maneuvering, planetary landers, and older ballistic missiles. Ignition reliability is essentially a chemical property rather than a system function, which is the single most valuable trait a propulsion system can have when a restart failure ends the mission.

Restart reliability, storability, and simplicity are the advantages: no ignition system, no cryogenics, no boil-off, and pressure-fed designs need no turbomachinery. Isp of 300–340 s is respectable. The problem is toxicity. Hydrazine derivatives are carcinogenic and acutely toxic, nitrogen tetroxide is a severe inhalation hazard, and fueling requires personnel in self-contained suits with a large exclusion zone. That drives handling cost, adds days to launch campaigns, and has put hydrazine repeatedly under European REACH review. Propellant cost is also high, in the range of $50–100 per kilogram.

Pick hypergolics when the propulsion system must work after months or years dormant and must restart on command: spacecraft main engines, landers, upper stages with long coasts, and reaction control. If the mission is short and ground-handling cost matters, a green monopropellant or a cold gas system is far cheaper to operate. If continuous thrust is not needed and the timeline is long, electric propulsion gives five to ten times the Isp. For crewed vehicles, the ignition reliability argument still wins often enough that hypergolics remain standard on abort and service-module systems.

Isp 300–340 s vacuum · storable indefinitely at room temperature · thousands of restarts demonstrated on flight systems · propellant cost roughly $50–100/kg · fueling requires SCAPE suits and typically adds 1–3 days to a launch campaign.

Apollo Service Propulsion System and Lunar Module descent and ascent engines, Space Shuttle OMS and RCS, Aerojet R-4D used across dozens of spacecraft, Ariane 5 EPS upper stage, most GEO satellite apogee engines, and Titan II and the Russian Proton launcher's first stages.

The market is mature, small, and slowly shrinking as green monopropellants and electric propulsion displace hydrazine on new spacecraft. Regulatory pressure in Europe is the main forcing function. Handling infrastructure — fueling facilities, trained crews, exclusion zones — is a fixed cost that spaceports carry, which gives an operational cost advantage to any vehicle that can avoid it. For deep-space and crewed missions where restart reliability is worth almost any price, hypergolics are likely to persist for decades.

6 minHypergolic Fuels – The Chemistry of a Rocket LaunchThe Royal Institution · 100k+ views

12 minWhat are Hypergolic Rocket Fuels? (Other than Explosive, Corrosive, Toxic, Carcinogenic and Orange)Scott Manley · 100k+ views

4 minHypergolic Reaction - Periodic VideosPeriodic Videos · 100k+ views

Planetary Mission Applications for Space Storable Propulsion (NASA Technical Reports Server) · Advanced Propulsion Systems for Unmanned Spacecraft (NASA Technical Reports Server)

A monopropellant thruster passes hydrazine over a catalyst bed — usually iridium on alumina, the Shell 405 family — where it decomposes exothermically into ammonia, nitrogen, and hydrogen at roughly 900 °C. The hot gas expands through a nozzle. There is only one fluid, one valve, and no ignition or mixture-ratio control, which makes the system about as simple as a rocket can be. Thrust ranges from 0.5 N attitude-control units to 500 N landing engines, and the same thruster can fire in pulses of a few milliseconds hundreds of thousands of times over a spacecraft's life.

Simplicity and pulse performance are the advantages: minimum impulse bits of a few millinewton-seconds make precise attitude control possible, and the hardware is flight-proven across thousands of spacecraft. Against it, Isp of 220–235 s is poor, the catalyst bed degrades over thousands of cold starts and usually needs a heater, and hydrazine's toxicity carries the same handling burden as hypergolic bipropellants. For a small satellite, the ground handling requirements can cost more than the propulsion system, which is exactly the gap that green monopropellants were developed to fill.

Pick hydrazine monopropellant for attitude control and small orbital adjustments on spacecraft where the flight heritage and pulse precision are worth the handling cost, particularly on large or crewed programs. If the spacecraft is a smallsat, a green monopropellant or an electric thruster is now usually the better choice on total cost. If the mission needs large delta-v, use a bipropellant or electric system — hydrazine's Isp makes it expensive in propellant mass for anything beyond station-keeping. Always check whether the launch provider or rideshare host imposes constraints on hydrazine, since several now do.

Isp 220–235 s · catalyst bed operating temperature about 900 °C, preheated to roughly 315 °C before firing · minimum impulse bit 5–50 mN·s · thrust 0.5–500 N · demonstrated on-orbit lives beyond 15 years and hundreds of thousands of pulses.

Aerojet Rocketdyne MR-103 and MR-107 series (Voyager, Cassini, New Horizons), the Curiosity and Perseverance sky crane descent engines, ArianeGroup and Moog attitude-control thrusters, and the reaction control systems on most large GEO communications satellites.

Hydrazine thrusters are cheap hardware — tens of thousands of dollars for small units — sold into a mature market with a handful of suppliers. Cost has shifted from the thruster to the handling: European REACH authorization requirements have made hydrazine progressively more expensive and administratively burdensome to use, and that regulatory trajectory is the main reason green monopropellants got funded. Expect a slow substitution on new small spacecraft and long persistence on large heritage platforms.

5 minWhat is Monopropellant?Black Square Photography · 10k+ views

8 minESPA and Monopropellant Engine from MoogEdison Tech Center · 1k+ views

22 minToxic Propellant HazardsUS National Archives · 100k+ views

Long Life Monopropellant Hydrazine Thruster Evaluation (NASA Technical Reports Server) · In-Space Propulsion: State of the Art of Small Spacecraft Technology (NASA)

Green monopropellants are ionic-liquid blends built around hydroxylammonium nitrate or ammonium dinitramide, designed to replace hydrazine without its toxicity. The two fielded formulations are ASCENT (formerly AF-M315E, HAN-based) and LMP-103S (ADN-based). Both are denser than hydrazine and deliver 6–13% more Isp, and the combination of higher density and higher Isp gives roughly 30–50% more delta-v from the same tank. They decompose over a catalyst like hydrazine does, but at much higher temperature, which is the main engineering difficulty: the catalyst bed and chamber run at 1,600–1,900 °C and need iridium-rhenium or similar refractory hardware.

The operational advantage is handling. These propellants can be loaded by technicians in ordinary personal protective equipment rather than full suits, which removes days from a launch campaign and lets small satellites fuel at a rideshare integration facility. Density-impulse is better than hydrazine's. The weaknesses are heat and heritage: the high chamber temperature shortens thruster life and drives exotic materials, cold-start preheat power is higher, and total flight hours across the industry are still measured in a handful of missions rather than thousands. LMP-103S also needs a small amount of pre-heating and has its own storage requirements.

Pick a green monopropellant for smallsats and rideshare payloads where hydrazine's handling requirements are the real cost driver, and for any new program in Europe where REACH exposure on hydrazine is a program risk. If the spacecraft is a large heritage platform with an existing hydrazine system and qualified suppliers, switching rarely pays. If the mission needs high delta-v rather than precise pulses, electric propulsion is a better use of the mass budget. As a rule of thumb, if fueling logistics show up in your schedule risk register, this is the substitution to look at.

ASCENT Isp about 231–250 s, LMP-103S about 235–250 s, against 220–235 for hydrazine · density-impulse roughly 30–50% better than hydrazine · chamber temperature 1,600–1,900 °C · thrust 0.1–22 N in fielded units · propellant handled with standard PPE.

NASA's Green Propellant Infusion Mission (2019, ASCENT), Sweden's PRISMA mission and the Skysat constellation (LMP-103S from ECAPS/Bradford), Aerojet Rocketdyne's GPIM thruster line, and Dawn Aerospace and Benchmark Space Systems units on commercial smallsats.

The market is small but growing with the smallsat propulsion segment. Propellant costs more per kilogram than hydrazine, but total mission cost usually falls because ground handling, range safety, and schedule costs drop more. Suppliers are a mix of primes and startups, and the segment is one of the few in space propulsion where new entrants have won flight heritage quickly. European regulatory pressure on hydrazine is the strongest tailwind, and it is a policy variable rather than a technical one.

9 minGreen Rocket Fuels - Safer & Better Than Hydrazine (as if that's hard)Scott Manley · 100k+ views

7 minASCENT Propellant on the GPIM MissionAFResearchLab · 1k+ views

3 minBenefits of Green PropellantNASA's Marshall Space Flight Center · 1k+ views

Green Propellant Infusion Mission Program Development and Technology Maturation (NASA Technical Reports Server) · In-Space Propulsion: State of the Art of Small Spacecraft Technology (NASA)

A cold gas thruster is a tank, a regulator, a valve, and a nozzle. Stored gas — nitrogen, argon, or increasingly a liquefied propellant like R-236fa or butane — expands through the nozzle and produces thrust. There is no combustion, no catalyst, and no heat. Isp is 50–75 s, which is terrible, but the system is the simplest and safest in spaceflight, it produces no contamination, and it can deliver very small, very repeatable impulse bits. That last property is what keeps it in service on precision-pointing spacecraft long after better options existed.

Simplicity, safety, and precision are the advantages. There is essentially nothing to fail beyond a valve, the propellant is inert, and impulse bits down to micronewton-seconds are achievable, which is what missions like gravitational-wave observatories need. It is also the cheapest propulsion you can fly. The weakness is performance: Isp of 50–75 s means the delta-v available from a reasonable tank is a few tens of meters per second. High-pressure gas storage also carries a mass penalty and a pressure-vessel qualification burden, though liquefied propellants that self-pressurize avoid most of it.

Pick cold gas when total delta-v is small, safety and simplicity matter, or pointing precision is the requirement: cubesat detumbling, formation-flying fine control, drag makeup on very low orbits, and astronaut maneuvering units. If the mission needs more than roughly 50 m/s, move to a monopropellant or electric system. If the spacecraft is a cubesat with tight volume, liquefied cold gas (butane or a refrigerant) roughly triples the stored propellant mass for the same tank volume compared with high-pressure nitrogen, and it is usually the right variant.

Isp 50–75 s (nitrogen about 70 s, butane about 60–70 s warm) · thrust 10 µN to 10 N · minimum impulse bits below 1 µN·s on precision systems · typical cubesat system delivers 10–50 m/s · system cost from a few thousand dollars.

Manned Maneuvering Unit and SAFER astronaut jetpacks, LISA Pathfinder's micronewton thrusters, Planet's Dove satellites, Falcon 9's nitrogen attitude thrusters used for booster reorientation, and a large share of cubesat propulsion modules from VACCO, Marotta, and similar suppliers.

Cold gas is a commodity. Components are simple enough that several suppliers sell integrated cubesat modules for under $50k, and the technology has no meaningful moat. Its persistence is a good illustration of a general rule in space hardware: the simplest adequate system usually beats the best-performing one when the mission's requirement is small, because qualification and integration cost dominate. Growth tracks the smallsat market rather than any technology trend.

14 minModel Rocket RCS Thruster UpdateBPS.space · 100k+ views

2 minCold Gas Thruster Propulsion TestRice Hyperloop · 5k+ views

In-Space Propulsion: State of the Art of Small Spacecraft Technology (NASA) · Thruster Options for Microspacecraft: A Review and Evaluation (NASA Technical Reports Server)

A hybrid rocket stores fuel as a solid grain and oxidizer as a liquid or gas, usually HTPB rubber or paraffin with nitrous oxide or liquid oxygen. Because the two are separated until the oxidizer valve opens, the motor throttles, shuts down, and restarts, and neither component alone is an explosive. Combustion happens in a boundary-layer diffusion flame along the fuel surface, and that is also the concept's central limitation: regression rate is low, so a simple cylindrical port gives too little thrust and designers resort to multi-port grains or high-regression paraffin fuels.

Safety and controllability are the selling points. Hybrids can be shipped and handled without explosive classification, they throttle and shut down, and a failure mode that destroys a solid motor usually just extinguishes a hybrid. Cost is low. The weaknesses have kept them niche: combustion efficiency is 90–96% rather than 98%+, the oxidizer-to-fuel ratio shifts as the port opens up, which moves Isp during the burn, and multi-port grains leave unburned slivers that cut mass fraction. Nitrous oxide is also less benign than its reputation, as the 2007 Scaled Composites accident showed.

Pick a hybrid when safety, throttling, and low cost matter more than performance: sounding rockets, target vehicles, student and small commercial launchers, and suborbital passenger vehicles. If maximum performance or mass fraction is the requirement, use a solid motor for simplicity or a liquid for performance. If the vehicle needs many restarts and precise total impulse, a liquid bipropellant is more predictable. A useful rule of thumb: hybrids win where the customer's insurance and range-safety paperwork is a bigger obstacle than the last 10% of Isp.

Isp 250–300 s vacuum with N₂O/HTPB, up to about 320 s with LOX and paraffin · combustion efficiency 90–96% · throttle range typically 3:1 or better · paraffin fuels regress roughly 3–4× faster than HTPB · thrust 1–300 kN in fielded designs.

SpaceShipOne and SpaceShipTwo (HTPB and later nylon with N₂O), Gilmour Space's Eris launcher, HyImpulse's paraffin-fueled vehicles, Nammo's hybrid sounding rockets, and a long line of university and amateur programs where the safety case is the deciding factor.

Hybrids are the cheapest route to a working rocket for a small team, which is why they dominate the student and startup end of the market and keep reappearing in commercial launch attempts. They have never displaced solids or liquids at scale because the performance gap costs payload, and payload is what customers pay for. The realistic commercial niche is suborbital and small-launch applications where handling cost and range approval dominate the business model.

3 minHYBRID ROCKET ENGINE/hybrid propellant rocket engine /3D animation/LEARN FROM THE BASELearn from the base · 100k+ views

13 minWhat is a Hybrid Rocket Engine and How Do They WorkCanadian Student Space Initiative · 5k+ views

19 minHot Fire Testing one of the biggest student hybrid rockets in the world!ASTRA Bremen · 10k+ views

Hybrid Rocket Propulsion for Sounding Rocket Applications (NASA Technical Reports Server) · Stanford Plasma Physics Laboratory (Stanford University)

A gridded ion thruster ionizes a propellant, usually xenon, in a discharge chamber, then accelerates the ions through a pair of closely spaced perforated grids held at a potential difference of 1,000–2,000 volts. A neutralizer cathode sprays electrons into the exiting beam so the spacecraft does not charge up. Because the accelerating field is set by grid voltage rather than by combustion chemistry, exhaust velocity is 30–50 km/s, which is ten times a chemical rocket's. The price is thrust: space-charge limits how many ions fit between the grids, so a large thruster produces about a quarter of a newton.

Specific impulse of 3,000–4,500 s is the highest of any flight-proven propulsion system, and it converts directly into propellant mass saved. A GEO satellite that switches from chemical to electric orbit raising can cut propellant mass by roughly 40% and use it for payload or extra years of service. Total impulse per kilogram of hardware is excellent, and operation over tens of thousands of hours is demonstrated. The weaknesses: thrust is tiny, so transfers take months instead of hours; the thruster needs kilowatts of solar power and a power processing unit that often costs more than the thruster; and grid erosion by charge-exchange ions sets the life limit.

Pick gridded ion propulsion when the mission has a large delta-v budget and plenty of time: GEO station-keeping and orbit raising, deep-space cruise, and precise drag-free control. If the maneuver has to happen quickly — a lander, an abort, an intercept — chemical propulsion is the only option, since a quarter-newton engine cannot change a trajectory in minutes. If the spacecraft's power budget is under about 1 kW, look at Hall thrusters or electrospray instead, which run efficiently at lower power. In practice the choice between ion and Hall is a trade of Isp against thrust density at a given power level.

Isp 3,000–4,500 s · thrust 20–250 mN · efficiency 60–80% · power 0.5–7 kW · demonstrated life above 50,000 hours (NEXT ran over 51,000 hours on the ground) · xenon propellant historically $1,000–3,000/kg with volatile pricing.

NASA's NSTAR on Deep Space 1 and Dawn, NEXT-C on DART, Hughes/Boeing XIPS on 702 series satellites, the ESA-JAXA BepiColombo T6 thrusters from QinetiQ, and Japan's Hayabusa microwave-discharge ion engines.

Electric propulsion changed satellite economics more than any other propulsion technology of the past 30 years, because it converts propellant mass into payload or launch-cost savings. All-electric GEO platforms launch at roughly half the wet mass of chemical equivalents. Xenon supply is a real constraint — it is a byproduct of air separation, produced in small quantities, and prices have spiked when demand rose — which has pushed several operators toward krypton at a modest performance penalty. Thruster cost is modest; the power processing unit and solar array are where the money goes.

4 minCrazy Engineering: Ion Propulsion and the Dawn MissionNASA Jet Propulsion Laboratory · 100k+ views

1 minNASA’s Evolutionary Xenon Thruster (NEXT) | Gridded Ion ThrusterNASA Glenn Research Center · 100k+ views

4 minHow Gridded Ion Thrusters REALLY Work (The World's Most Efficient Space Engines)Science Workshop · 10k+ views

Electric propulsion research (NASA Glenn Research Center) · Development Status and Performance Metrics of the Advanced NEXT Ion Propulsion System (NASA Technical Reports Server)

A Hall thruster traps electrons in a radial magnetic field inside an annular channel, where they spiral in an azimuthal Hall current. Neutral propellant entering the channel gets ionized by those electrons and is then accelerated out by the axial electric field. Because the electrons neutralize the ion space charge locally, there is no grid limit on beam current, so a Hall thruster produces roughly five to ten times the thrust density of an ion engine at the same power. The trade is exhaust velocity: 15–20 km/s rather than 30–50, giving Isp of 1,500–2,000 s.

Thrust per kilowatt is the reason Hall thrusters have taken over most of the electric propulsion market. They are also simpler than gridded engines, tolerate a range of propellants including krypton and argon, and scale from 100 W cubesat units to 50 kW demonstrators. Weaknesses: channel wall erosion by ion bombardment historically limited life to a few thousand hours, though magnetically shielded designs have pushed that past 10,000; the plume is wider than an ion engine's, which constrains where you can point it relative to solar arrays; and efficiency drops off at low power, so sub-200 W units perform poorly.

Pick a Hall thruster as the default electric propulsion choice for satellites and orbital transfer vehicles that need meaningful thrust at 0.2–10 kW: constellation station-keeping and deorbit, GEO orbit raising, and space tugs. If the mission's delta-v is very large and time is abundant, gridded ion propulsion's higher Isp saves more propellant. If available power is under about 100 W, electrospray or cold gas is a better fit. Check propellant choice explicitly — krypton costs a fraction of xenon and gives roughly 10% less Isp, and at constellation scale that trade usually favors krypton.

Isp 1,500–2,000 s (up to 2,700 s in high-Isp modes) · thrust 5–1,000 mN · efficiency 45–60% · power 0.1–50 kW · magnetically shielded designs demonstrate 10,000+ hours · SpaceX Starlink units run on krypton and later argon.

Starlink's krypton and argon thrusters (the largest fleet ever flown), Busek and Safran units on commercial GEO platforms, the SPT-100 family from Fakel that established the technology, NASA's AEPS 12.5 kW thruster for Gateway, and ExoTrail and Orbion units on smallsats.

Hall thrusters are the workhorse of the industry and the segment where startups have most successfully entered, because the physics is well published and the hardware is not extraordinarily complex. Prices for small units have fallen to the low hundreds of thousands of dollars, and constellation-scale in-house production, as at SpaceX, has driven them lower still. The strategic story is propellant: the move from xenon to krypton and argon was driven by supply and cost, and it demonstrates how quickly the industry will trade performance for supply-chain resilience.

5 minHow Hall thrusters work (and why we can't simulate them)UMich PEPL · 50k+ views

3 minHow Hall Effect Thrusters REALLY Work (Step-by-Step)Science Workshop · 10k+ views

17 minWhy Are There Two Different Types Of Electric Space Engines, And How Do They Work?Scott Manley · 100k+ views

Electric propulsion research (NASA Glenn Research Center) · 12.5 kW Advanced Electric Propulsion System Thruster Development Testing (NASA Technical Reports Server)

An electrospray thruster extracts charged droplets or individual ions directly from the surface of a conductive liquid — usually an ionic liquid salt — using a strong electric field at a sharp emitter tip. There is no plasma discharge and no ionization chamber; the field does the work. Because emitters are microfabricated, a thruster is an array of hundreds or thousands of tips on a chip, and thrust scales by adding tips. The related field-emission electric propulsion approach does the same thing with liquid metal, typically indium. Thrust per unit is measured in micronewtons, and control resolution is correspondingly fine.

The advantages are precision, scalability, and packaging. A complete electrospray system can fit in a cubesat unit with no pressurized tank, since ionic liquids have negligible vapor pressure and can be stored in a wick. Isp of 800–3,000 s is very good, and thrust can be commanded smoothly down to sub-micronewton resolution, which is what drag-free and formation-flying missions need. The weaknesses are lifetime and current maturity: emitter tips degrade, propellant can wet and short the extractor grid, and total impulse per thruster is modest. Flight heritage is growing but still thin compared with Hall and ion engines.

Pick electrospray for very small spacecraft and for precision pointing where impulse resolution matters more than total delta-v: cubesat constellations, formation flying, drag-free science payloads, and fine attitude control on larger platforms. If the mission needs more than roughly 100 m/s on a spacecraft above 50 kg, a small Hall thruster will do it with far more heritage. If the requirement is simply detumbling and coarse control, cold gas is cheaper. Confirm lifetime testing carefully, since this is the parameter where the technology is still maturing fastest.

Isp 800–3,000 s depending on propellant and mode · thrust 1 µN to a few mN per module · power 1–50 W · no pressurized tank required · LISA Pathfinder's colloid thrusters demonstrated sub-micronewton control precision over months.

Busek colloid thrusters on NASA's ST7 payload aboard LISA Pathfinder, Accion Systems' TILE modules on commercial cubesats, Enpulsion's indium FEEP thrusters flown on well over a hundred smallsats, and MIT's ion electrospray research that seeded much of the field.

This is a startup-heavy segment aimed at the smallsat market, where the competition is not other electric thrusters but doing without propulsion at all. Unit prices in the tens of thousands of dollars make propulsion viable on spacecraft that previously flew ballistic. The commercial risk is that Hall thrusters keep scaling down: sub-100 W Hall units have improved, and if they reach acceptable efficiency they will take much of the addressable market on heritage alone.

5 minA New Way to Move Tiny Spacecraft | Electrospray PropulsionSciShow Space · 100k+ views

14 minMIT's electric thruster can allow us to explore deep space | Hard ResetFreethink · 100k+ views

4 minAll you need to know about ENPULSION's FEEP Technology and ThrustersENPULSION · 10k+ views

NASA Glenn Electrospray Activities Overview (NASA Technical Reports Server) · LISA Pathfinder (NASA Science)

A pulsed plasma thruster discharges a capacitor across the face of a solid propellant bar, usually PTFE (Teflon). The arc ablates a thin layer of the surface, ionizes it, and the resulting current sheet is accelerated out by its own magnetic field through the Lorentz force. Each pulse lasts microseconds and produces a tiny, very repeatable impulse bit. The propellant is a solid bar pushed forward by a spring, so there are no tanks, valves, or feed systems of any kind, which makes the whole thruster about as robust as electric propulsion gets.

Simplicity and impulse precision are the advantages. With solid propellant and no fluid system, the thruster survives long dormant periods and there is nothing to leak. Impulse bits of 10–100 µN·s allow very fine control, and the design scales down to a few watts. Weaknesses are efficiency and thrust. Overall efficiency is typically 5–15%, far worse than any other electric option, because much of the discharge energy goes into heating and into ejecting neutral material that never gets accelerated. Average thrust is on the order of micronewtons, so total delta-v accumulates very slowly.

Pick a pulsed plasma thruster for small spacecraft that need precise, occasional impulses with minimal system complexity, particularly where a fluid system would be a reliability or contamination concern. If the mission needs efficiency or meaningful delta-v, almost any other electric thruster is better. In practice PPTs have been displaced on most new missions by electrospray and small Hall thrusters, and they persist mainly where their extreme simplicity and long dormancy tolerance matter, or on very low-power spacecraft that cannot support a discharge-based thruster continuously.

Isp 500–1,500 s · impulse bit 10–100 µN·s · average thrust 1–100 µN · efficiency 5–15% · power 1–100 W · flight-demonstrated since LES-6 in 1968, one of the first electric propulsion systems ever flown operationally.

LES-6 and LES-8/9 (1968 onward), NASA's EO-1 mission, the Air Force's TechSat 21 work, Japan's microsatellite PPTs, and a number of university cubesats that chose PPTs for their lack of pressurized components.

PPTs are cheap and largely commoditized, with no significant commercial supply base because demand is small. Their real value now is historical and pedagogical — they were the first electric propulsion in orbit and they demonstrate that low efficiency can be acceptable when system simplicity is worth more. Expect continued niche use rather than growth, since the smallsat propulsion market has consolidated around electrospray and miniature Hall thrusters.

6 minThrusters That Eat Teflon! | Pulsed Plasma ThrustersSciShow Space · 100k+ views

20 minHow not to make a Pulsed Plasma ThrusterFuzzy Droid · 5k+ views

2 minMicro Pulsed Plasma Thruster 8-ChannelPaul Kocyla · 1k+ views

Overview of NASA's Pulsed Plasma Thruster Development Program (NASA Technical Reports Server) · In-Space Propulsion: State of the Art of Small Spacecraft Technology (NASA)

A magnetoplasmadynamic thruster runs a very high current — thousands of amperes — between a central cathode and an annular anode through an ionized propellant. The current's own magnetic field crosses the current itself, producing a Lorentz force that accelerates the plasma out at 15–60 km/s. Because the accelerating force scales with the square of the current, an MPD thruster gets more efficient as it gets more powerful, which is the opposite of most electric propulsion. That property makes it the natural choice for the megawatt-class systems that nuclear electric propulsion would enable, and irrelevant for anything smaller.

Thrust density is far higher than any other electric thruster: tens of newtons rather than fractions of one, at high Isp. The hardware is also simple, with no grids and no precise magnetic circuit in the self-field version. The problems are power and electrodes. Efficient operation needs hundreds of kilowatts to megawatts, and no spacecraft has ever had that; at the 100 kW levels that have been tested, efficiency sits around 30–40%. Cathode erosion at kiloampere currents limits life to hundreds of hours in most tests. Ground testing is also hard, because vacuum facilities struggle to handle the gas load.

Treat MPD as a technology that waits on power. It becomes the right choice if a spacecraft ever carries a megawatt-class reactor and needs to move substantial mass — crewed Mars transfer stages and large cargo tugs are the standing examples. For anything powered by solar arrays at today's scale, Hall and ion thrusters are better matched. If you are evaluating a program that proposes MPD, the questions that matter are the power source and the cathode life demonstration, not the thruster physics, which has been understood since the 1960s.

Isp 2,000–5,000 s · thrust 1–100 N at multi-hundred-kilowatt power · efficiency 30–50% at high power, poor below about 100 kW · discharge currents 1,000–20,000 A · demonstrated ground runs generally under 1,000 hours before electrode wear.

Princeton's long-running MPD research program, NASA Lewis and JPL testing through the 1980s and 90s, Japan's MS-T4 and Space Flyer Unit experiments, Russian and Chinese institute work, and lithium-fed applied-field designs that improved efficiency at the cost of a condensable propellant.

There is no market. MPD is a research technology whose commercial timeline is tied entirely to space nuclear power, which itself has been perpetually a decade out. Renewed interest in fission surface power and nuclear electric propulsion has brought some funding back through NASA and DARPA programs. For anyone assessing it, the honest framing is that the thruster is not the hard part and never was — the reactor, the power conversion, and the radiators are.

4 minTaking Man To Mars! | How MPD (MagnetoPlasmaDynamic) Thrusters WorkScience Workshop · 50k+ views

18 minA Basic Overview of MPD Magnetoplasmadynamics Thrusters for the laymanDrew Stannard-Stockton · 1k+ views

2 min100 KW Class Applied-field Magnetoplasmadynamic Thruster | Protocol PreviewJoVE (Journal of Visualized Experiments) · 1k+ views

MPD Thruster Technology (NASA Technical Reports Server) · Electric propulsion research (NASA Glenn Research Center)

Electrodeless thrusters heat and accelerate plasma using radio-frequency or microwave fields coupled through a dielectric wall, so no electrode ever touches the plasma. Removing electrodes removes the dominant life limit in most electric propulsion. VASIMR is the best-known example: a helicon source ionizes argon, an ion-cyclotron-resonance stage heats it further, and a magnetic nozzle expands it. Because the two stages can be balanced against each other, the thruster can trade thrust for specific impulse in flight — high thrust for a departure burn, high Isp for cruise — which no chemical or conventional electric system can do.

Variable specific impulse and the absence of erodible electrodes are the genuine advantages, and superconducting magnets have let VASIMR run 100 kW for 88 hours continuously in vacuum testing. The weaknesses are power, mass, and efficiency. These thrusters only make sense at 50 kW and above, which no spacecraft power system currently provides outside of concept studies; the magnets and RF hardware are heavy, so system-level thrust-to-weight is poor; and measured efficiency at high Isp has been below early projections. Magnetic nozzle detachment — getting the plasma to actually leave the field lines — remains an area of active argument.

Consider electrodeless RF plasma propulsion only in the same context as MPD: high-power, nuclear or very large solar-powered vehicles moving substantial mass, where throttling between thrust and Isp is worth real system complexity. For any near-term mission, Hall and ion thrusters do the job with two decades of flight data. If you are evaluating claims, check demonstrated thruster efficiency at the advertised Isp and the assumed power source separately, because the historical pattern in this field is optimistic system studies attached to power that does not exist.

Isp 2,000–12,000 s, variable in flight · thrust roughly 5 N at 200 kW in VASIMR projections · demonstrated 100 kW for 88 hours in vacuum (2021) · efficiency 50–70% claimed at high Isp, lower measured · requires cryocooled superconducting magnets in current designs.

Ad Astra Rocket Company's VX-200SS VASIMR, helicon double-layer thrusters from ANU and ONERA, ECR thrusters from CNES and ThrustMe, and Japanese and Australian magnetic-nozzle research programs. Smaller electrodeless designs at 10–50 W are reaching cubesat flight.

Funding comes from space agencies and a small number of private investors, and the field has a long history of schedule slip against ambitious mission concepts. The near-term commercial activity is at the opposite end of the power scale: small ECR and helicon thrusters for cubesats, where electrodeless operation gives long life in a package that does not need cathode heaters or high voltages. That segment is real and shipping; the megawatt-class vision remains contingent on space nuclear power.

6 minThe VASIMR Engine: How to Get to Mars in 40 DaysSciShow Space · 1m+ views

3 minDeveloping the VASIMR Engineadastrarocket · 10k+ views

10 minThe Physics of Helicon ThrustersESA's Advanced Concepts Team · 1k+ views

Recent Progress on the VASIMR (NASA Technical Reports Server) · Electric propulsion research (NASA Glenn Research Center)

Electrothermal thrusters heat propellant electrically and expand it through a conventional nozzle, so they are chemical rockets with an electric heater instead of a flame. A resistojet passes propellant over a resistively heated element and typically doubles the Isp of a cold gas system. An arcjet strikes an electric arc directly in the flow, reaching much higher temperatures and roughly doubling a monopropellant's Isp. Both are simple, both accept a wide range of propellants including hydrazine decomposition products, ammonia, and water, and both sit between chemical and true electric propulsion in every dimension.

Simplicity, propellant flexibility, and thrust are the advantages: an arcjet produces around 0.2–0.5 N, which is more than most electric thrusters, and the hardware is uncomplicated. Water-fed resistojets are attractive for smallsats because water is safe, dense, and easy to launch as a rideshare payload. The weaknesses are modest Isp — 300 s for a resistojet, 500–800 s for an arcjet, well below Hall and ion thrusters — and heat losses, since a lot of electrical energy ends up warming the thruster rather than the propellant. Arcjet electrodes also erode.

Pick a resistojet when you want a meaningful improvement over cold gas without adding a plasma system, or when propellant safety is the driving requirement — water resistojets on cubesats are the clearest example. Pick an arcjet when you have a hydrazine system and want to double its Isp cheaply, which is exactly why GEO satellites used them for north-south station-keeping through the 1990s. If the mission's delta-v is large and power is available, a Hall thruster gives three to four times the Isp and will save far more propellant mass.

Resistojet Isp 150–350 s at 0.5–1 kW · arcjet Isp 500–800 s at 0.3–2 kW · thrust 0.1–0.5 N · efficiency 30–40% for resistojets, 30–40% for arcjets · water and ammonia both usable, unlike most electric options.

Aerojet MR-501 and MR-510 arcjets on Lockheed Martin A2100 and other GEO buses, Intelsat V resistojets, the augmented hydrazine thrusters on Iridium's first constellation, and modern water-resistojet cubesat modules from Bradford, Pale Blue, and similar suppliers.

Electrothermal propulsion is old, cheap, and quietly persistent. GEO arcjets were largely displaced by Hall and ion thrusters once power budgets grew, but the water resistojet has found a genuinely new market in smallsats, where the ability to launch a propulsion system full of tap water as a secondary payload removes a large regulatory and handling cost. That is a good illustration of a recurring pattern: an old technology becomes relevant again when a new constraint, in this case rideshare safety rules, changes what matters.

19 minLightning In a Bottle? The Science Of Electro-Thermal Rocket EnginesScott Manley · 100k+ views

13 minSpacecraft Propulsion: ElectroThermal Engine SystemsTerran Space Academy · 10k+ views

2 minArc Jet Thruster | Electric Propulsion | Basics of Arcjet Thrusters | Vyadh AerospaceVyadh Aerospace · 1k+ views

Benefits of Low-Power Electrothermal Propulsion (NASA Technical Reports Server) · In-Space Propulsion: State of the Art of Small Spacecraft Technology (NASA)

A nuclear thermal rocket pumps liquid hydrogen through a fission reactor core, heats it to 2,500–3,000 K, and expands it through a nozzle. There is no combustion, so the propellant can be pure hydrogen with a molecular weight of 2, and that is where the performance comes from — roughly 900 s of specific impulse, double any chemical rocket, at thrust levels comparable to a chemical upper stage. The US ran 23 reactor tests under Project Rover and NERVA between 1955 and 1972 and demonstrated the technology at up to 1.1 GW thermal, then canceled it when Mars missions were shelved.

Isp of about 900 s at newton-per-kilogram thrust levels is a combination nothing else offers: electric propulsion has higher Isp but a thousandth of the thrust, chemical rockets have the thrust but half the Isp. For crewed Mars transfer that combination shortens trip time and reduces radiation exposure. The weaknesses are hydrogen, heat, and politics. Liquid hydrogen boils off, so a months-long mission needs active cryocooling. The reactor must be tested somewhere, and open-air testing is no longer acceptable. Highly enriched fuel raises proliferation concerns, which is why current programs work with high-assay low-enriched uranium at a performance cost.

Consider nuclear thermal propulsion for crewed Mars transfer and for high-delta-v maneuvering in cislunar space where transit time matters. If the payload is uncrewed and time is flexible, solar electric propulsion delivers the mission for far less money and no regulatory burden. If the burn is short and near Earth, chemical stages remain simpler and cheaper. For a program planner, the deciding questions are the ground test facility, the fuel enrichment policy, and hydrogen storage — all three are program risks larger than the reactor physics.

Isp 850–950 s with hydrogen · thrust 25–350 kN in tested and designed engines · core outlet temperature 2,500–3,000 K · NERVA NRX and Phoebus tested to 1.1 GW thermal in the 1960s · DRACO targeted a flight demonstration with HALEU fuel around 2027 before program restructuring.

Project Rover and NERVA (Kiwi, Phoebus, NRX, XE-Prime), the DARPA/NASA DRACO demonstrator with Lockheed Martin and BWXT, NASA's earlier Nuclear Cryogenic Propulsion Stage studies, and Soviet RD-0410 testing.

This is a government technology with no commercial market. Costs are dominated by nuclear qualification, ground test infrastructure, and fuel supply rather than by propulsion engineering. The HALEU fuel supply chain is itself a constraint, since domestic production capacity in the US is only now being rebuilt. As with most space nuclear work, the honest assessment is that the physics was demonstrated 55 years ago and everything since has been about test facilities, funding continuity, and regulatory approval.

3 minNuclear Thermal Propulsion (NTP)NASA Video · 50k+ views

6 minCrazy Nuclear Rocket Engines 1 - NERVAEager Space · 10k+ views

22 minWhy Nuclear Rockets Are Going To Change SpaceflightScott Manley · 1m+ views

6 Things You Should Know About Nuclear Thermal Propulsion (US Department of Energy) · Regulatory Approach for Nuclear Thermal Propulsion (NASA Technical Reports Server)

Nuclear electric propulsion uses a fission reactor to generate electricity, then feeds that electricity to ion, Hall, or MPD thrusters. The reactor replaces solar arrays, which matters beyond Mars where sunlight is weak, and at power levels above roughly 100 kW where arrays become impractically large. The system is really four problems stacked: a reactor, a power conversion cycle (Brayton or Stirling), radiators to reject the two-thirds of thermal power that conversion cannot use, and the thrusters. The radiators are usually the largest and heaviest part of the vehicle, which surprises people who expect the reactor to dominate.

It combines the Isp of electric propulsion with a power source independent of distance from the Sun, which makes outer-planet missions and continuous high-delta-v maneuvering possible. Power is also available for payloads, which is valuable for radar and communications. The weaknesses are specific mass and heat rejection: current designs land around 20–30 kg per kilowatt of electric power, and the target for genuinely useful missions is under 10. Radiators scale with the fourth power of temperature, so improvements are slow. Launch approval for a reactor and the reliability of a system that must run for years unattended are both hard.

Consider NEP for outer-planet missions, for very high delta-v cargo transfer, and for military space applications that need continuous maneuvering plus onboard power. If the mission stays inside Mars orbit and needs under about 100 kW, solar electric propulsion is far cheaper and already routine. If trip time for a crew is the requirement, nuclear thermal gives the thrust that NEP cannot. The realistic near-term application is fission surface power on the Moon rather than propulsion, since a lunar reactor solves the 14-day night problem without needing to close the specific-mass problem.

System specific mass currently 20–30 kg/kWe, with under 10 needed for competitive missions · reactor electric output in study designs 100 kW to 1 MW · conversion efficiency 20–30% Brayton · radiator area typically the dominant vehicle dimension · Kilopower/KRUSTY demonstrated a 1 kWe class reactor in 2018.

NASA's Kilopower and KRUSTY test, the Fission Surface Power program with Lockheed Martin, Westinghouse, and IX teams, the earlier Project Prometheus and JIMO study, the Soviet TOPAZ and BUK reactors actually flown on RORSAT satellites, and Russia's Nuklon transport module concept.

Entirely government-funded, with a supplier base drawn from the naval and commercial nuclear industries rather than from aerospace. The renewed interest since 2020 is driven by lunar surface power needs and by military interest in maneuverable space assets. As with nuclear thermal, the cost drivers are qualification, testing, and launch approval rather than component manufacture. Fission surface power is the nearer-term budget line and is likely to fund the reactor and conversion technology that any future NEP vehicle would use.

19 minNuclear Space Power and PropulsionIllinois EnergyProf · 50k+ views

5 minDr. Kurt Polzin: Nuclear Power Applications for Spacecraft PropulsionElectrical and Computer Engineering at Michigan · 1k+ views

2 minPowering a Habitat on Mars with KilopowerLos Alamos National Lab · 100k+ views

Fission Surface Power (NASA) · Electric Propulsion Options for Mars Cargo Missions (NASA Technical Reports Server)

Nuclear pulse propulsion detonates small nuclear devices behind a vehicle and absorbs the impulse through a massive pusher plate and shock absorbers. Project Orion studied it seriously from 1958 to 1963 and concluded it worked: specific impulse in the range of 3,000–10,000 s with thrust measured in meganewtons, which is the only propulsion concept ever proposed that offers both at once. Chemical-explosive scale tests of the pusher-plate mechanics flew successfully. The program ended with the 1963 Partial Test Ban Treaty, which prohibited nuclear detonations in the atmosphere and in space, and no work has been legal since.

The performance is extraordinary and remains unmatched on paper — Orion studies described crewed missions to Saturn on timescales that no other propulsion makes possible, with payload fractions that improve as the vehicle gets larger. The weaknesses are that it is illegal under treaty, it produces fallout if used within the atmosphere or magnetosphere, and the pusher plate and shock absorber system has never been tested at nuclear scale. Ablation of the plate under repeated detonations was studied but not resolved. Politically the concept is dead, and has been for 60 years.

There is no engineering circumstance under which you would select this today. It is worth knowing for two reasons. First, it sets the upper bound on what fission propulsion could do, which is useful context when evaluating claims about other advanced concepts. Second, it is the standing example of a technology stopped by treaty rather than by physics or economics, which is a category worth recognizing when assessing any dual-use propulsion work. Inertial-confinement fusion pulse concepts inherit some of the same architecture without the treaty problem, and those remain research topics.

Isp 3,000–10,000 s in study designs · thrust in the meganewton range · Orion reference vehicles from 880 tonnes to over 8 million tonnes · pusher-plate mechanics validated with chemical explosives in 1959 · prohibited by the 1963 Partial Test Ban Treaty and the 1967 Outer Space Treaty.

Project Orion (General Atomics, Freeman Dyson and Ted Taylor), Project Daedalus (British Interplanetary Society, inertial-confinement fusion rather than fission), Project Longshot, and the Medusa sail-based variant.

No market, no supplier base, no legal path. The concept's practical relevance today is as a reference point in propulsion trade studies and as a case study in how arms-control agreements shape technology. Fusion-based pulse concepts are occasionally proposed by startups; the honest evaluation there is that they depend on inertial-confinement fusion gain that has only recently been demonstrated at all, in a laboratory, at a scale and repetition rate far from what propulsion would need.

11 minSpaceflight By Nuking Yourself | The Orion Drive EXPLAINEDSpacedock · 100k+ views

4 minProject Orion: The Spaceship Propelled By Nuclear BombsSciShow Space · 100k+ views

4 minProject Orion Nuclear Propulsion - 1950s Tests | Unclassified VideoVideoFromSpace · 100k+ views

Nuclear Pulse Propulsion: Orion and Beyond (NASA Technical Reports Server) · Limited Test Ban Treaty (US Department of State archive)

A solar sail reflects sunlight off a large, very thin membrane and uses the momentum of the photons to accelerate. Sunlight delivers about 9 µN of force per square meter at Earth's distance with a perfect reflector, so a 100 m² sail produces roughly a millinewton. That is minuscule, but it never stops and it consumes nothing, so a sail can accumulate large velocity changes over months and years, and its total delta-v is unbounded. Steering comes from tilting the sail, which changes the direction of the reflected photons. Performance scales with the ratio of sail area to total spacecraft mass.

Unlimited total impulse with no propellant is the unique property, and it enables mission classes nothing else can do: sustained non-Keplerian orbits, station-keeping at artificial Lagrange points for solar storm warning, and slow but endless spiral transfers. Hardware is cheap. The weaknesses are thrust and deployment. Acceleration is on the order of 0.1–1 mm/s², so maneuvers take months. Deployment of a large membrane from a small stowed volume is the dominant failure mode, and several missions have failed there. Thrust also falls with the square of distance from the Sun, so sails are useless in the outer system.

Pick a solar sail when the mission needs continuous small thrust for years and has no schedule urgency: sub-L1 space-weather monitoring, pole-sitter orbits, deorbit devices, and slow interplanetary cruise on small spacecraft. If the mission needs to arrive by a date, use anything else. If the target is beyond Jupiter, sunlight is too weak and you need a nuclear or beamed source. For deorbit specifically, a drag sail in low Earth orbit is a cheap and increasingly common way to meet 25-year and 5-year disposal rules without carrying propulsion.

Solar radiation pressure about 9 µN/m² at 1 AU with a perfect reflector · characteristic acceleration 0.05–1 mm/s² on flown and planned sails · membrane thickness 2–7 µm · IKAROS sail 196 m², LightSail 2 32 m², NASA's ACS3 about 80 m² · thrust falls as the inverse square of solar distance.

JAXA's IKAROS (2010, the first successful interplanetary solar sail), The Planetary Society's LightSail 2, NASA's NEA Scout and Advanced Composite Solar Sail System, and drag-sail deorbit devices from several smallsat suppliers.

Sails are cheap to build and expensive to prove, since the risk is concentrated in a deployment event that is hard to test in 1 g. Costs run in the low millions for a demonstration mission. The near-term commercial application is passive deorbit, driven by tightening space-debris regulations, which is a real and growing market with a clear regulatory driver. Beamed-propulsion concepts like Breakthrough Starshot use the same physics with a laser instead of the Sun and are at a much earlier stage.

12 minHow to Sail on StarlightReal Engineering · 500k+ views

3 minHow do solar sails work? Bill Nye explains.The Planetary Society · 10k+ views

2 minNASA's Next-Generation Solar Sail MissionNASA's Ames Research Center · 100k+ views

Advanced Composite Solar Sail System (NASA) · Solar Sail Propulsion for Interplanetary Small Spacecraft (NASA Technical Reports Server)

Beamed thermal propulsion puts the energy source on the ground and sends power to the vehicle as a laser or microwave beam. The vehicle carries only propellant — usually hydrogen — and a heat exchanger or absorption chamber, so it avoids carrying either a combustion oxidizer or a reactor. Heating hydrogen to 2,500–3,000 K with beamed energy gives roughly the same 700–1,000 s specific impulse as a nuclear thermal rocket, but the expensive, heavy, regulated part stays on the ground where it can be maintained and reused. Solar thermal propulsion uses the same idea with concentrated sunlight instead of a beam.

Moving the power source off the vehicle is a real architectural advantage: the vehicle becomes simple and cheap, and the ground infrastructure amortizes over many launches. Isp roughly doubles chemical performance. The weaknesses are the beam. Atmospheric absorption and thermal blooming degrade laser power on the way up, pointing and tracking a vehicle accelerating through the atmosphere at multi-megawatt beam power is unsolved at scale, and the ground facility costs hundreds of millions before the first flight. Beam power on the order of 100 MW is needed for meaningful launch payloads, which is far beyond any existing directed-energy system.

Treat this as research. It becomes interesting if high-power lasers get an order of magnitude cheaper per watt, which fiber laser development has been slowly delivering, and if a market exists for frequent small launches that could amortize a ground facility. Solar thermal propulsion — the same concept with a concentrator instead of a beam — is closer to practical for in-space upper stages and has been studied repeatedly for orbit raising. For anything you would build now, chemical or electric propulsion is the answer.

Isp 700–1,000 s with hydrogen heated to 2,500–3,000 K · beam power required for launch roughly 1 MW per kilogram of vehicle · demonstrated lightcraft flights reached about 70 m altitude on 10 kW pulsed lasers in the early 2000s · ground facility cost dominated by laser capital cost per watt.

Leik Myrabo's Lightcraft experiments with the US Air Force, NASA's beamed-energy propulsion studies, Escape Dynamics' microwave launch work (ended 2015), solar thermal upper-stage concepts from the Air Force Research Laboratory, and Breakthrough Starshot's laser sail program, which uses photon pressure rather than thermal heating.

No commercial activity of significance. The economics are all about the cost per watt of high-power lasers and the utilization rate of a ground facility, and neither number currently works. Directed-energy weapons investment is indirectly relevant, since it funds the same fiber-laser and beam-control technology; if 100 kW-class weapon lasers become cheap and common, the input costs for this concept fall accordingly. That is a slow, indirect path rather than a near-term one.

4 minLightCraft Launch Oct 2000 - laserbeam powered propulsionroidroid · 10k+ views

7 minLaser Pumped Flying Saucer SpacecraftSpaceRip · 1m+ views

3 minRPI Prof Leik Myrabo Lightcraft ResearchMullamComm · 10k+ views

Beamed Energy Propulsion (NASA Technical Reports Server) · Beamed-Energy Propulsion (BEP) Study (NASA Technical Reports Server)

A rotating detonation engine sustains one or more detonation waves traveling continuously around an annular combustion chamber at 1,500–2,500 m/s. Fresh propellant is injected axially at the closed end, the wave passes through it, and the burned gas exhausts. Detonation raises pressure across the wave instead of dropping it, so the cycle approximates constant-volume rather than constant-pressure combustion, which is thermodynamically more efficient. The theoretical gain over a conventional engine is 5–15% in specific impulse, and because the pressure rise happens in the combustor, the feed system can run at lower pressure for the same chamber conditions. Almost all the hardware built so far runs as a rocket carrying its own oxidizer, so an RDE's specific impulse is quoted in the hundreds of seconds rather than the thousands an air-breathing engine reports.

Pressure gain combustion is a genuine efficiency improvement and it also shortens the combustor, which cuts engine length and mass. Lower required feed pressure means lighter pumps and tanks. The problems are practical. The chamber sees enormous oscillating heat flux and structural loading at kilohertz frequencies, injector design has to prevent the wave from propagating back upstream, and measured performance in most tests has fallen short of the theoretical gain. Integrating an RDE with a turbine is harder still, because turbines dislike the unsteady flow, and that is where most of the aviation payoff would come from.

Consider an RDE where the 5–15% Isp gain and shorter combustor matter more than development risk: upper stages, in-space engines, and hypersonic vehicles where chamber length is a real constraint. If you need to fly soon, use a conventional engine — no RDE has flown operationally. Japan's 2021 sounding-rocket flight demonstrated an RDE producing thrust in space, which is the current high-water mark. For program planning, treat the thermal management of the chamber and the injector durability as the critical path, not the detonation physics, which is well characterized.

Detonation wave speed 1,500–2,500 m/s, circulating at 1–20 kHz · theoretical Isp gain 5–15% over constant-pressure combustion · combustor length roughly one-third of a conventional chamber · JAXA flew an RDE on the S-520-31 sounding rocket in 2021 · NASA has ground-tested a 3D-printed RDRE at over 26 kN.

NASA Marshall's Rotating Detonation Rocket Engine testing with GRCop-42 additive chambers, JAXA's 2021 flight demonstration, the Air Force Research Laboratory and DARPA Gambit programs, Venus Aerospace's RDRE flight test, and academic programs at UW, Purdue, and AFIT.

RDEs are the most-funded advanced combustion concept at the moment, with money from defense research offices, NASA, and a handful of startups. Additive manufacturing is what made the current wave possible, since printed chambers with integral cooling channels made iteration cheap enough to actually run experiments. The commercial question is whether a 5–15% gain justifies replacing a qualified engine, and the honest answer is that it usually does not on its own; the concept needs a mission where combustor length or feed pressure is the binding constraint.

11 minWhat Is A Rotating Detonation Engine - And Why Are They Better Than Regular EnginesScott Manley · 1m+ views

18 minHow NASA Reinvented the Rocket EngineReal Engineering · 1m+ views

5 minRotating Detonation Rocket Engine passes long duration testSciNews · 50k+ views

NASA Validates Revolutionary Propulsion Design for Deep Space Missions (NASA Marshall) · Rotating Detonation Rocket Engine Concept Development (NASA Technical Reports Server)

A pulse detonation engine fills a tube with a fuel-air mixture, ignites it, transitions the resulting deflagration into a detonation, and lets the wave exit before repeating the cycle at 10–100 Hz. Like the rotating detonation engine it exploits constant-volume combustion, but intermittently and in a straight tube rather than continuously in an annulus. That makes the hardware very simple — valves, a tube, an igniter — and it means the engine can in principle run from static conditions to high supersonic speed. A PDE flew on a modified Rutan Long-EZ in 2008, the only manned aircraft flight of a detonation engine.

Simplicity and a wide operating range are the advantages. There is no turbomachinery, the engine works statically unlike a ramjet, and thermodynamic efficiency exceeds a conventional constant-pressure cycle. It burns atmospheric oxygen, so its specific impulse is quoted in the thousands of seconds like a turbojet's, not in the hundreds like the rocket-mode rotating detonation engine's. The weaknesses have kept it in the lab for 70 years. Deflagration-to-detonation transition needs either a long tube or obstacles that cost pressure, valve life at 100 Hz is a serious materials problem, noise is extreme, and the intermittent thrust produces vibration that airframes and turbines dislike. Cycle-averaged performance also drops because the tube spends much of each cycle refilling and purging rather than producing thrust.

Treat PDEs as a research option with narrow practical appeal. They are most attractive where a simple, wide-envelope engine matters more than efficiency or noise — expendable high-speed vehicles, and afterburner or augmentor replacement in hybrid cycles. If you want pressure-gain combustion for a real program today, the rotating detonation engine has more momentum, better steady-flow behavior, and more funding. If you need a simple cheap thruster for an expendable subsonic vehicle, a small turbojet or even a pulsejet is far more practical and much quieter.

Operating frequency 10–100 Hz per tube · detonation wave speed 1,800–2,000 m/s in hydrocarbon-air · theoretical cycle efficiency gain 10–20% over Brayton · Long-EZ flight demonstration in 2008 reached about 100 knots · valve durability at high frequency is the usual test-stand life limit.

The Air Force Research Laboratory and Innovative Scientific Solutions Long-EZ flight (2008), Pratt & Whitney and GE hybrid PDE-turbine studies, NASA Glenn's pulse detonation research rigs, and a long line of university test programs at UT Arlington, Princeton, and Tsukuba.

Funding has largely shifted from pulse to rotating detonation over the past decade, because continuous operation integrates better with turbomachinery and nozzles. PDE work continues at a lower level, mostly as a research tool for detonation physics and as a candidate for expendable applications where noise and vibration do not matter. There is no commercial supply base and no near-term product.

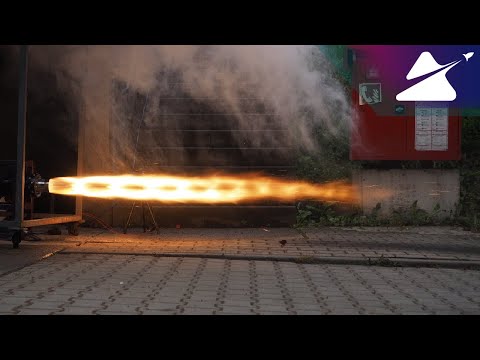

13 minPULSED DETONATION ENGINEIntegza · 1m+ views

2 min2-D Pulse Detonation Engine simulation.Asena1970 · 100k+ views

1 minInside the Pulsed Detonation Engine labGE Research · 1k+ views

Pulse Detonation Engine Test Bed Developed (NASA Technical Reports Server) · Research and technology (NASA Glenn Research Center)

A pulsejet burns fuel intermittently in a tube. In the valved version, spring-steel reed valves at the inlet snap shut when combustion raises chamber pressure, the exhaust leaves through the tailpipe, and the resulting low pressure pulls the valves open again to admit fresh air. In the valveless version there are no moving parts at all — the geometry alone maintains the cycle. Operating frequency is set by tube acoustics, typically 40–250 Hz. The V-1 flying bomb used an Argus As 014 pulsejet in 1944, and the engine is still the cheapest way to make a few hundred newtons of thrust.

Cost and simplicity are absolute: a valveless pulsejet is a welded sheet-metal tube with a fuel injector, and it can be built for a few hundred dollars. It produces static thrust, unlike a ramjet, and it tolerates crude fuel systems. The weaknesses are why it disappeared. Fuel consumption is roughly three to four times a small turbojet's, the noise is extraordinary and effectively unmuffleable, vibration destroys airframes and payloads, and reed valves last only hours. Thrust per unit frontal area is also poor, so drag eats much of the benefit at higher speeds.

Pick a pulsejet only when unit cost is the overwhelming constraint and endurance, noise, and vibration genuinely do not matter: cheap target drones, sound-generation applications, and hobby aircraft. In any modern military role a small expendable turbojet is a better answer, because its 3× better fuel burn buys range that matters and the cost gap has narrowed to a factor of a few. The one place the argument still gets made is very cheap mass-produced attack drones, where a $2,000 engine that flies 200 km may beat a $20,000 engine that flies 800 km on a cost-per-target basis.

Operating frequency 40–250 Hz · TSFC roughly 3–4 lb/lbf/hr, three to four times a small turbojet's · thrust 100 N to 5 kN in built examples · Argus As 014 produced about 2.9 kN · valve life measured in tens of hours; valveless designs have no such limit · noise commonly above 140 dB near the engine.

Argus As 014 on the V-1, the SNECMA Escopette on early French target drones, Lockwood-Hiller valveless designs, and a long tail of amateur and hobby engines. Contemporary interest is mostly in very low-cost one-way attack drones and in academic work on valveless combustor acoustics.

There is no industry, only a technology that keeps reappearing whenever someone needs propulsion at the absolute bottom of the cost curve. The relevant modern question is whether a cost-per-effect calculation ever favors a pulsejet over a cheap turbojet in mass-produced strike drones. So far the answer has generally been no, because range and payload matter and noise makes the vehicle easy to detect, but the calculation is worth redoing whenever turbojet prices move.

3 minPulsejet Engine Working ExplainedMechanical Engineering Concepts · 100k+ views

23 minAnd I Can Prove It! Because Valveless Pulsejets Are Engines With Zero Moving Partsdriving 4 answers · 500k+ views

2 minPulse Jet engine from a V1 Flying Bomb.Tony Stolz · 1m+ views

Ejector Enhanced Pulsejet Based Pressure Gain Combustors (NASA Technical Reports Server) · The Effect of a Low-Loss Air Valve on Performance of a 22-Inch-Diameter Pulse-Jet Engine (NASA Technical Reports Server)

Battery-electric aircraft propulsion is a lithium battery, a motor controller, a permanent-magnet motor, and a propeller or ducted fan. Efficiency from stored energy to shaft power is 85–93%, roughly double a piston engine's and well above a small turbine's, and the motor works equally well at any altitude because it does not depend on air for combustion. The constraint is energy density. Current aviation-grade lithium cells store 250–300 Wh/kg at pack level, against about 12,000 Wh/kg for jet fuel, and even after accounting for efficiency the gap is a factor of roughly 15.

Electric propulsion is quiet, has very few moving parts, responds in milliseconds, needs almost no maintenance, and scales down efficiently, which is why every small drone uses it. Distributing many small motors across a wing is practical in a way that distributing turbines is not, and that enables configurations like eVTOL lift-plus-cruise. The weakness is energy. A useful rule of thumb is that a battery-electric aircraft gets roughly 20–45 minutes of endurance plus a reserve, regardless of size, because battery mass fraction and cruise power scale together. Cold weather, cell aging, and reserve requirements all cut into that further.

Pick battery-electric for anything flying under about an hour: small drones, trainers, short-hop air taxis, and any application where noise or emissions rule out combustion. If endurance beyond roughly 90 minutes matters, a hydrogen fuel cell roughly doubles it and a small combustion engine triples it or more. If the aircraft is above about 2 tonnes and needs range, electric propulsion is not currently viable and improving cells at 3–5% per year will not change that within a decade. For military ISR drones the practical break point is around one hour of endurance, and above it hybrid or combustion designs take over.

Pack-level specific energy 250–300 Wh/kg today, improving 3–5% per year · motor efficiency 92–96%, system 85–93% · power density of aviation motors 5–10 kW/kg, with 20 kW/kg demonstrated · typical small drone endurance 20–45 minutes · charge cycles 500–1,500 at aviation depth of discharge.

Nearly all quadcopters and small fixed-wing drones, Pipistrel Velis Electro (the first certified electric aircraft, 2020), Joby and Archer eVTOL aircraft, magniX retrofit powertrains, and NASA's X-57 Maxwell distributed-electric demonstrator.

Electric aircraft propulsion rides the automotive battery and motor supply chain, which is the single most important fact about its economics: aviation is a rounding error in cell demand, so it inherits cost curves it does not drive. Cells have fallen roughly 90% in price since 2010. That means the technology gets cheaper regardless of aviation adoption, but it also means aviation-specific requirements — cycle life at high discharge, certification, thermal runaway containment — carry a cost premium that the automotive curve does not remove.

10 minAre Electric Planes Possible?Real Engineering · 1m+ views

7 minFlying Pipistrel's Electric AirplaneAVweb · 500k+ views

16 minBrushless Motor - How they work BLDC ESC PWMThe Engineering Mindset · 5m+ views

Electrified Aircraft Propulsion (NASA Glenn Research Center) · X-57 Maxwell (NASA)

A fuel-cell powertrain runs hydrogen through a proton-exchange membrane stack to produce electricity, which drives the same motors and propellers as a battery-electric aircraft. The only exhaust is water. System specific energy lands at 800–1,500 Wh/kg including tank, stack, and balance of plant, which is roughly three to five times a lithium battery and still about a tenth of jet fuel. Hydrogen can be stored as 350–700 bar compressed gas, which is simple but bulky, or as liquid at 20 K, which roughly doubles usable energy density at the cost of insulation and boil-off.

Endurance is the advantage: a fuel-cell drone flies three to five times longer than the same airframe on batteries, and refuelling takes minutes instead of hours. The powertrain stays quiet and low-vibration, and the thermal signature is much lower than a combustion engine's, which matters for military ISR. The weaknesses are volume, cooling, and infrastructure. Even liquid hydrogen needs about four times the tank volume of jet fuel for the same energy, so the airframe grows. Fuel cells reject most of their waste heat at low temperature, so radiators are large. And hydrogen supply at an airfield is a genuine logistics problem, not a detail.

Pick a hydrogen fuel cell when endurance of 2–10 hours matters on a platform under a few tonnes and low noise or thermal signature is valuable: long-endurance ISR drones, cargo drones, and regional demonstrator aircraft. If the mission is under an hour, batteries are simpler and cheaper. If the aircraft is large or must fly far, hydrogen's volume penalty and infrastructure requirements usually make a conventional or hybrid powertrain the better answer. For military use the deciding question is usually whether hydrogen can be produced or delivered where the unit operates, since that logistics tail can outweigh the endurance gain.

System specific energy 800–1,500 Wh/kg with compressed gas, up to about 2,000 with liquid hydrogen · stack efficiency 50–60% · refuel in 5–15 minutes · liquid hydrogen needs roughly 4× the volume of jet fuel per unit energy · demonstrated drone endurance 6–13 hours on platforms that manage 1–2 hours on batteries.

Intelligent Energy and Doosan fuel-cell modules on ISR drones, ZeroAvia's ZA600 retrofit of a Dornier 228, Universal Hydrogen's flight testing, H2FLY's liquid-hydrogen demonstrator, and the US Navy's Ion Tiger long-endurance UAV.

Fuel-cell stacks have fallen sharply in cost on the back of automotive programs, though those programs have slowed, which removes some of the volume that aviation was counting on. The near-term commercial case is strongest in drones, where the endurance gain is decisive and the infrastructure problem is small because a single gas cylinder serves a unit. For crewed regional aircraft, the binding constraints are certification of hydrogen systems and airport infrastructure, both of which are 10-year problems rather than technology problems.

2 minPEM Fuel Cell: How it worksPragma Industries · 100k+ views

8 minZeroAvia Technology Deep Dive - ZA600 Fuel Cell Power GenerationZeroAvia · 5k+ views

3 minFlying 523 Miles, Emissions-Free: Joby's Hydrogen-Electric DemonstratorJoby Aviation · 50k+ views

Electrified Aircraft Propulsion (NASA Glenn Research Center) · Fuel Cell-Based Hydrogen Aircraft Architecture (NASA Technical Reports Server)

A hybrid-electric powertrain uses a combustion engine — usually a small turbine or a piston engine — to drive a generator, and the electricity drives motors that turn propellers or fans. In a series hybrid there is no mechanical connection from engine to propeller at all, so the engine can run continuously at its most efficient point while the motors handle every transient. A battery buffers peaks, allowing the engine to be sized for cruise rather than for takeoff, which typically lets it shrink by 30–50%. Parallel hybrids keep the mechanical link and add electric boost.

The gains come from decoupling. Running a turbine at a fixed optimal point avoids the severe part-load fuel penalty that makes small turbines inefficient, and sizing it for cruise instead of takeoff saves both weight and fuel. Distributed electric fans then become possible on a vehicle with liquid-fuel endurance. The weaknesses are conversion losses and mass. Every step — engine to generator to power electronics to motor — costs a few percent, so a series hybrid loses 10–15% of the engine's output before the propeller sees it, and the electrical machines and cooling add weight that a direct-drive system does not carry.

Pick a hybrid when the mission needs both long endurance and either hover capability or distributed propulsion: VTOL drones that must then cruise for hours, eVTOL aircraft that want range beyond battery limits, and military ISR platforms that benefit from a quiet electric-only mode. If the aircraft is conventional and cruises steadily, a direct-drive engine is lighter and more efficient, and the hybrid adds complexity for nothing. As a rule of thumb, hybrids pay when the ratio of peak power to cruise power is above roughly 3:1, which is exactly the case for anything that hovers.

Series conversion losses 10–15% engine-to-propeller · engine downsizing 30–50% versus a takeoff-sized engine · generator and motor power density 5–10 kW/kg at aviation grade · typical hybrid VTOL drone endurance 4–12 hours against 30–60 minutes on batteries alone · battery sized for minutes of peak, not hours of cruise.

Hybrid VTOL drones from Quantum Systems, Skyfront, and Harris Aerial, the Ampaire Eco Caravan and Electric EEL, VoltAero's Cassio, Rolls-Royce and Siemens' E-Fan X program (canceled 2020), and turbogenerator products from Turbotech and PBS.

Hybrid powertrains are the pragmatic middle of electrified aviation and the segment where products are actually shipping, mostly in drones. The business is assembly-oriented: engines, generators, inverters, and batteries all come from existing supply chains, and the value is in integration and control software. That keeps barriers to entry low and margins thin. For military buyers the appeal is concrete — endurance of a combustion aircraft with an electric-only quiet mode over the target — and that requirement is driving most of the current procurement.

3 minRolls-Royce | A new gas turbine for hybrid-electric flightRolls-Royce · 5k+ views

3 minGE Aerospace’s industry-leading hybrid electric propulsion technology developmentGE Aerospace · 5k+ views

4 minTurbo Electric Hybrid Aircraft Power System Test Bench First RunElectroTechnics · 10k+ views

Electrified Aircraft Propulsion (NASA Glenn Research Center) · Visions of the Future: Hybrid Electric Aircraft Propulsion (NASA Technical Reports Server)

A hydrogen combustion turbine is a conventional gas turbine with a combustor redesigned to burn hydrogen instead of kerosene. The core, compressor, and turbine barely change. Hydrogen burns hotter and faster than jet fuel and has much wider flammability limits, so the combustor needs new injectors and staging to control flame position and to keep NOx down, and the fuel system has to handle either 700 bar gas or 20 K liquid. Per kilogram, hydrogen carries 2.8 times the energy of kerosene, so fuel mass drops sharply. Per liter it carries a quarter as much, so tank volume rises just as sharply.

It eliminates carbon emissions at the engine and reuses almost all of the existing turbine engineering base, which makes it the least technically radical route to zero-carbon flight. Thrust and power density stay in the same class as today's engines, unlike batteries or fuel cells. The weaknesses are the aircraft, not the engine. Liquid hydrogen tanks are large, cylindrical, and cannot go in a thin wing, so the fuselage has to grow and the aircraft loses payload volume. Contrail and water-vapor effects at altitude are still being studied and may offset part of the climate benefit. NOx does not disappear, since it comes from nitrogen in the air.

Consider hydrogen combustion for large aircraft where fuel cells cannot supply the power and batteries cannot supply the energy — roughly regional aircraft and above. If the aircraft is under about 20 seats, a fuel cell is more efficient and simpler. If the timeframe is short, sustainable aviation fuel drops into existing engines and infrastructure with no aircraft redesign, which is why most near-term decarbonization plans lead with it. For military applications the logistics of liquid hydrogen at forward bases is usually disqualifying, so this is a civil technology first.

Hydrogen 120 MJ/kg against 43 for jet fuel, but 8 MJ/L liquid against 35 · combustion temperature roughly 200 K higher than kerosene at the same equivalence ratio · liquid storage at 20 K with 0.5–2% daily boil-off on aircraft-scale tanks · NOx can be cut substantially with lean staged combustion but not eliminated.

Rolls-Royce and easyJet's ground tests of an AE 2100 and later a Pearl 15 on hydrogen, Airbus ZEROe concept aircraft and its hydrogen demonstrator program, the Soviet Tu-155 which flew on liquid hydrogen in 1988, and CFM's RISE-derived hydrogen combustion work with Airbus.

Costs sit in the aircraft and the airport, not the engine. Airbus's ZEROe schedule has already slipped, which is the clearest signal available about how the industry currently rates the readiness of hydrogen infrastructure. Green hydrogen production cost is the other variable: at $5–6/kg it is uncompetitive with jet fuel, and forecasts of $1–2/kg by the 2030s carry wide error bars. Sustainable aviation fuel is the pragmatic competitor precisely because it requires no new aircraft, no new engines, and no new airports.

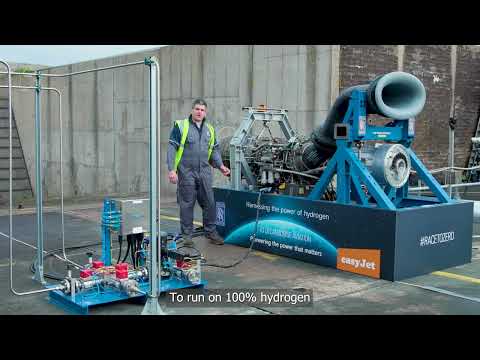

3 minRolls-Royce | Rolls-Royce Hydrogen video from Boscombe DownRolls-Royce · 10k+ views

5 minA tour of the Airbus A380 hydrogen engine test aircraftAerospace Testing International Magazine · 100k+ views

4 minCountdown to #ZEROe: Episode 1 - TanksAirbus · 10k+ views

New Potentials for Conventional Aircraft When Powered by Hydrogen-Enriched Gasoline (NASA Technical Reports Server) · ZEROe hydrogen aircraft programme (Airbus)
