Mining and Mineral Processing: A Practical Reference

An open pit removes everything above and around the orebody and works downward in benches, each typically 10–15 m high, connected by a spiral ramp wide enough for haul trucks. Drill-and-blast fragments each bench, shovels or excavators load, and trucks carry ore to the crusher and waste to a dump. The controlling number is the strip ratio: tons of waste moved per ton of ore. As the pit deepens the ratio worsens, because the walls must be laid back at a safe angle, and eventually that is what ends the mine.

Nothing else moves material this cheaply per ton or at this scale, which is why almost every low-grade deposit near surface is mined this way. Equipment is large, standardized, and increasingly automated, recovery is essentially complete within the pit shell, and the working environment is far safer than underground. The costs are the footprint and the geometry. A large pit disturbs thousands of hectares, the waste dump is bigger than the pit, and slope angle sets both safety and economics: one degree flatter can add tens of millions of tons of waste over a mine life.

Open-pit is the default whenever the orebody is within roughly 300–500 m of surface and the strip ratio stays economic, which for base metals usually means under about 4:1 and for gold can be far higher. Compare against underground on the same orebody using the full life-of-mine cost including waste haulage. Where a pit is nearing its economic limit, block caving underneath it is the usual successor, and planning that transition early is what avoids leaving ore stranded.

Bench heights typically 10–15 m · haul trucks of 100–400 tons · large pits move 100,000 to over 500,000 tons per day of ore plus waste · strip ratios of 1:1 to over 10:1 depending on commodity and grade · practical depth limit around 300–1,000 m, set by wall angle and haulage cost.

Bingham Canyon in Utah, the deepest open pit in the world at over 1.2 km; Chuquicamata in Chile, which has transitioned to underground block caving after a century as a pit; Escondida, the largest copper mine by output; Australia's iron ore pits in the Pilbara.

Cost per ton moved is the metric that matters, and it falls with equipment size, which is why haul trucks kept growing until tire supply and road width limited them. Diesel is typically 10–20% of operating cost, which is what drives interest in trolley assist and battery haulage. The strip ratio is the number to interrogate in any plan: a mine life extension that doubles the strip ratio can turn a profitable operation into a marginal one without any change in metal price.

12 minVisiting The World’s Deepest Open Pit Mine - Kennecott Copper MineBuildWitt · 500k+ views

8 minHow Copper Is Mined And ProcessedExtreme Force · 50k+ views

4 minThe Largest Excavation in Human History | Generation Earth | BBC Earth ScienceBBC Earth Science · 100k+ views

Mineral Commodity Summaries (USGS) · Copper Statistics and Information (USGS)

Strip mining works flat-lying tabular deposits, mainly coal and some oil sands and phosphate. A dragline or a large shovel removes the overburden from one long strip, exposing the seam; the seam is mined out; then the next strip's overburden is cast directly into the void just emptied. Because spoil goes straight into the previous cut rather than to a distant dump, haulage almost disappears, which is what makes the method so cheap.

Cost per ton is the lowest in mining, and a walking dragline with a 100 m boom moves overburden for a fraction of what trucks cost. Reclamation can follow immediately behind the working face, since the land is being rebuilt strip by strip. The limits are geometric and political. The seam must be flat, shallow, and continuous; a dragline is a decade-long capital commitment that cannot be resold or moved; and the method disturbs a wide corridor, which in Appalachia produced mountaintop removal and the regulatory fight that followed.

Use strip mining for shallow, flat, laterally continuous seams where the deposit is large enough to justify a dragline and long enough to keep it working for decades. Where the seam dips, thins, or is faulted, truck-and-shovel or underground methods handle the variability better. Where public acceptance of a wide disturbance corridor is doubtful, plan the reclamation and the bond before the permit rather than after, since concurrent reclamation is the strongest argument the method has.

Draglines with buckets of 60–130 cubic meters and booms up to about 100 m · overburden depths typically under 50 m, occasionally to 60 · cost per ton of overburden a fraction of truck-and-shovel · concurrent reclamation follows a few strips behind the face · a dragline is a 10–15 year capital commitment tied to one deposit.

Powder River Basin coal mines in Wyoming, the largest strip operations in the world; Saskatchewan lignite mines; Florida phosphate; the Appalachian surface mines whose spoil handling drove US mountaintop removal regulation.

19 minCoal Mining Explained | Inside Saskatchewan's Largest Coal Mines!Earthmovers Media · 100k+ views

15 minMonster Mining Machines — How Draglines WorkBuildWitt · 1m+ views

4 minDragline/Surface MiningATEEC · under 1k views

Our Work (ICMM)

Aggregate quarrying produces crushed stone, sand, and gravel: by tonnage the largest mining activity on earth, and the one nobody thinks of as mining. Rock is blasted from a face, crushed in stages, screened into size fractions, sometimes washed, and stockpiled. There is no concentration step because the rock itself is the product, so the flowsheet is short and the plant is mostly crushers, screens, and conveyors. Roughly half the material in a concrete structure by mass is aggregate.

The process is simple, the capital is modest, and demand is steady because construction always needs it. Specification is about size distribution, shape, and cleanliness rather than chemistry, so quality control is straightforward. The weakness is economic geography. Aggregate is worth $10–20 a ton at the quarry and haulage costs roughly $0.10–0.20 per ton-kilometer, so the product prices itself out of the market within about 50 km. That makes a quarry's value almost entirely about location, and it is why permitting near cities is contested and why urban quarries are worth far more than remote ones.

This is not a choice so much as a constraint: if you need aggregate, you need a source within about 50 km of the job, and if there is not one, the project economics change. For a producer, the decisions are about reserve life near growing markets and about whether recycled concrete aggregate can substitute for part of the demand. Manufactured sand from crushing has become important where natural sand is restricted, and it changes concrete mix design because crushed particles are angular rather than rounded.

Value of $10–20 per ton at the quarry gate · haulage roughly $0.10–0.20 per ton-km, giving an economic radius near 50 km · aggregates are about half of concrete by mass · a typical quarry produces 0.5–5 million tons a year · specification is size, shape, and cleanliness rather than chemistry.

Vulcan Materials and Martin Marietta, whose business is essentially a portfolio of quarries near growing cities; manufactured sand plants in India and China where river sand extraction is restricted; recycled concrete aggregate operations in dense urban markets.

Aggregates are a transport business with a mine attached. Reserves near a city are the asset, and a permitted quarry inside an urban area can be worth many times an identical one an hour further out. That is also why consolidation in the sector is about land position rather than technology, and why recycled aggregate competes well: it is already in the city.

3 minCardinal Aggregate Quarry & Processing OperationCardinal Aggregates · 100k+ views

15 minHow Does a Rock Get From a Quarry to a Construction Site?Ashville · 100k+ views

3 minHow construction Aggregate is produced | AggregateHow it Works? · 10k+ views

Mineral Commodity Summaries (USGS)

Placer deposits are minerals already liberated and concentrated by nature: gold, tin, platinum, diamonds, and heavy mineral sands accumulated in river gravels, beaches, and old channels. Because the valuable grains are loose and dense, no blasting or grinding is needed. Material is excavated or dredged, screened to remove oversize, and run through sluices, jigs, or spirals that separate on density. A floating dredge does all of it on a pontoon, digging ahead and discharging tailings behind.

Skipping comminution removes the largest energy cost in mining, so operating costs per ton are very low and small operators can be viable. Equipment is simple and capital is modest. The problems are environmental and social. Dredging suspends sediment and destroys river habitat, artisanal placer gold mining is the largest source of mercury pollution worldwide, and the deposits sit in rivers and beaches that other people also use. Grades are erratic, so sampling a placer well enough to finance it is genuinely difficult.

Use placer methods where nature has already done the liberation and concentration: alluvial gold and tin, mineral sands, and offshore diamond gravels. It is often the right first stage before a hard-rock operation, since it needs little capital. Do not assume a bulk sample represents the deposit, because placer grade distributions are notoriously skewed. And take the water and sediment permitting seriously from the start, since that, rather than geology, is what stops most placer projects.

No blasting or grinding needed, removing the largest energy cost in the flowsheet · recovery relies on density contrast, typically 3:1 or better against quartz · water use is high but largely recirculated in modern operations · artisanal gold mining is the largest global source of mercury emissions · grade estimation error is the main financial risk.

Yukon and Alaskan alluvial gold operations; Namibian and South African offshore diamond dredging; Australian and Indian mineral sands producing titanium and zircon; Indonesian and Brazilian artisanal operations, where the mercury problem is concentrated.

24 minYukon Placer Mining 101KPMA101 · 1k+ views

3 minWhere to find gold along stream & river bends - 'Placer Gold in a storm' chp 4 of 8Prospector Jess (PJ) · 100k+ views

Mineral Processing Engineering (911 Metallurgist)

Room-and-pillar mining drives a grid of openings through a flat-lying deposit and leaves regularly spaced blocks of ore standing as pillars to hold the roof. Continuous miners or drill-and-blast cut the rooms; the pillars stay. Recovery is whatever fraction is not left in pillars, typically 50–75%, and can be raised at the end of a panel by retreating and taking the pillars in a controlled sequence, letting the roof collapse behind.

It is simple, flexible, and productive in the right ground, with low capital compared with caving methods and the ability to start producing quickly. Multiple faces can work at once. The costs are recovery and roof. A quarter to a half of the resource stays underground, which for a high-value ore is a large amount of money left behind, and stability depends on pillar design that has to be right the first time. Long-term pillar failure has caused surface subsidence decades after mining, which is why old workings under towns are a recurring civil engineering problem.

Use room-and-pillar for flat-lying deposits in competent rock at moderate depth where the ore is low enough in value that leaving pillars is acceptable: coal, potash, salt, limestone, and some base metal beds. As depth increases, pillars must be larger and recovery falls, which is what pushes deep deposits toward longwall or caving. Where the surface above cannot be allowed to subside, room-and-pillar with permanent pillars is often the only method permitted.

Recovery typically 50–75%, rising with pillar extraction on retreat · works best in flat deposits under about 600 m, where pillar size stays reasonable · pillar design governs both safety and recovery, and is unforgiving of error · rooms commonly 6–10 m wide · productivity per worker is high in mechanized coal and potash operations.

Potash mines in Saskatchewan and New Mexico; limestone mines under Kansas City, whose worked-out rooms became warehouse space; coal mines using continuous miners across Appalachia; the abandoned workings that produce periodic subsidence events in old mining districts.

3 minRoom and pillar mining method - EpirocEpiroc Underground Mining and Tunneling · 100k+ views

2 minRoom & Pillar Mining Processsunrisecoalvideos · 10k+ views

2 minRoom and Pillar MiningMineralsEd · 5k+ views

Our Work (ICMM)

Longwall mining takes a coal seam in one continuous pass. A shearer runs back and forth along a face 200–400 m wide, cutting a slice a meter deep, while hydraulic shields hold the roof over the machine and the conveyor. After each pass the whole assembly advances and the shields are lowered and reset, allowing the roof behind to collapse into the void. Nothing is left as pillars, so recovery within the panel approaches complete, and the surface above subsides in a predictable way.

Productivity is the highest in underground mining, with a single face producing 20,000–45,000 tons a day and small crews. Recovery is near total within the panel. The costs are capital and inflexibility. A longwall set costs $50–100 million and takes months to install and move, so the geology has to be right over a panel kilometers long: a fault or a thinning seam can strand the equipment. Subsidence is planned rather than avoided, which limits the method where structures or water bodies sit above.

Use longwall for thick, flat, laterally continuous coal seams where a panel can run for kilometers without geological interruption and where surface subsidence is acceptable. It is the reason modern coal mining employs so few people per ton. Where the seam is faulted, variable, or under sensitive surface, room-and-pillar handles the variability and can leave permanent support. Drilling out the geology thoroughly before committing to a longwall is the step that pays for itself.

Faces 200–400 m wide, panels up to several kilometers long · output of 20,000–45,000 tons per day from one face · recovery near total within the panel · equipment set costs $50–100 million and takes weeks to months to relocate · surface subsidence of roughly 60–70% of seam thickness is planned into the design.

Bailey Mine in Pennsylvania, among the highest-output underground coal mines in the US; Australian longwalls in the Bowen and Hunter basins; Chinese longwall operations, which account for most of the world's underground coal; longwall top coal caving, a variant that recovers thick seams in one pass.

2 minLongwall Mining Operation - F.T.I. Pty LtdF.T.I. Pty Ltd - Future Training Initiatives · 100k+ views

4 minFully Mechanized Longwall Coal ProductionMining Videos · 100k+ views

3 minPrinciples of Longwall Mininggertunc Lectures · 1k+ views

Mineral Commodity Summaries (USGS)

Sublevel stoping mines steeply dipping orebodies in competent rock by drilling long blastholes from horizontal sublevels driven at intervals through the ore. Blasting a ring of holes drops ore into a void, and it flows under gravity to a drawpoint at the bottom where loaders collect it. The resulting stope is a large open void, which is then either left, filled with waste rock, or filled with cemented paste so that neighboring stopes can be mined safely.

It is highly productive for an underground method because the drilling is done from safe development headings rather than at the face, and gravity does the ore handling. Costs per ton are among the lowest underground. The requirements are strict. Rock on both walls and back must stand unsupported over a large span, the orebody has to be steep enough for ore to flow, and the boundaries need to be regular, because dilution from waste rock caving off the walls goes straight into the mill. Cut-and-fill handles irregular or weak ground instead, at higher cost.

Choose sublevel stoping for steeply dipping, regular orebodies in strong rock, which describes many base and precious metal veins and lenses. Use paste backfill where stopes are adjacent, since it allows near-complete extraction of a pillar-free sequence and disposes of tailings underground at the same time. Move to cut-and-fill where the ore is narrow, irregular, or in weak ground, and accept lower productivity for better selectivity and control of dilution.

Sublevels typically 20–40 m apart with blastholes up to 30 m long · orebody dip needs to exceed roughly 55 degrees for gravity flow · dilution of 5–15% is normal and goes directly to the mill · paste backfill allows adjacent stopes and disposes of tailings underground · productivity is among the highest of selective underground methods.

Kidd Creek in Ontario, one of the deepest base metal mines; Australian and Canadian zinc and gold mines using long-hole open stoping with paste fill; Swedish iron mines using sublevel caving, the closely related method for weaker ground.

3 minSublevel stoping mining method - EpirocEpiroc Underground Mining and Tunneling · 100k+ views

3 minCut and fill mining method - EpirocEpiroc Underground Mining and Tunneling · 100k+ views

6 minSublevel Shrinkage (SLS) Mining Method – Underground Mine EngineeringiMakerXR · 1k+ views

Tailings Backfill (911 Metallurgist)

Block caving undercuts a large block of ore so that it collapses under its own weight, then draws the broken rock off through a grid of drawpoints beneath. Fragmentation is done by gravity and stress rather than by explosives, so once the cave is propagating the mine is essentially a materials-handling operation. Development is enormous and comes first: kilometers of drawpoint tunnels, an undercut level, and a haulage system, all built years before the first ton is sold.

It is the only underground method with open-pit-like cost per ton, which is what makes low-grade deep orebodies mineable at all, and it is the standard successor when a large pit reaches its limit. Output of 30,000–160,000 tons a day is achievable. The risks are front-loaded and hard to reverse. Capital runs into billions and precedes revenue by five to ten years, the cave must be induced to propagate correctly or it stalls, and the surface subsides over the footprint. Once a block is caving, the method offers almost no selectivity.

Use block caving for large, low-grade, deep orebodies in rock that will cave, where the tonnage justifies a decade of development. It is the natural continuation under an exhausted open pit, and the planning for it should start while the pit is still running. Do not choose it for irregular or high-value orebodies where selectivity matters, and treat the geotechnical cavability study as the project's central risk rather than a supporting document.

Production of 30,000–160,000 tons per day from a single cave · capital typically in the billions, spent five to ten years before first production · drawpoint spacing and undercut design govern whether the cave propagates · surface subsidence over the footprint is unavoidable · almost no selectivity once caving begins.

El Teniente in Chile, the largest underground mine in the world; Grasberg's block cave in Indonesia, the successor to its open pit; Resolution Copper in Arizona and Oyu Tolgoi in Mongolia, both multi-billion-dollar cave developments; Chuquicamata's transition from pit to underground cave.

3 minBlock caving mining method - EpirocEpiroc Underground Mining and Tunneling · 100k+ views

3 minBlock Caving ExplainedResolution Copper · 10k+ views

2 minWhat is block-cave mining and why are mines transitioning to it?CBC British Columbia · 1k+ views

Copper Statistics and Information (USGS)

In-situ recovery dissolves the metal underground and pumps the solution to surface, leaving the rock where it is. A pattern of injection and recovery wells circulates a lixiviant, oxygenated carbonate solution for uranium in sandstone, acid for copper oxides, through the permeable ore zone. The pregnant solution goes to an ion exchange or solvent extraction plant, the barren solution is refortified and reinjected. There is no pit, no waste dump, and no tailings facility, because nothing is excavated.

Capital and operating costs are a fraction of conventional mining, the surface footprint is a well field and a small plant, and there is no tailings dam to manage for a century. That combination has made ISR the dominant uranium mining method worldwide. The requirements are narrow and non-negotiable. The ore must sit in permeable rock confined above and below by impermeable layers, and the groundwater must already be unusable, because the technique deliberately contaminates it. Restoring the aquifer afterward is slow, expensive, and the main regulatory issue.

Use ISR where the deposit is in permeable, confined, saturated ground and the chemistry works, which is mainly roll-front uranium in sandstone and some oxide copper. It is also the only economic route for deposits too low-grade or too deep to mine conventionally. Do not consider it where the aquifer is a drinking water source or where confinement is uncertain, since excursion monitoring and aquifer restoration are what regulators focus on and what determines whether a permit is granted.

Capital and operating cost a fraction of conventional mining, with no pit, dump, or tailings facility · requires permeable ore confined between impermeable layers and below the water table · uranium recovery typically 60–80% of in-place resource · groundwater restoration after mining takes years and is the main regulatory obligation · accounts for most global uranium production.

Kazakh uranium operations, which made Kazakhstan the largest producer in the world; Wyoming and Texas ISR uranium fields; Australian ISR at Beverley and Honeymoon; in-situ copper leaching trials at Florence in Arizona, where permitting has been the long pole.

3 minUnderstanding In-Situ Recovery (ISR)Thor Energy PLC · 1k+ views

2 minIn Situ Recovery Process DemonstrationMining Illustrated · 1k+ views

6 minIn-Situ Recovery (ISR): How Modern Uranium Mining WorksLaw & Business · under 1k views

In-Situ Leach Mining of Uranium (World Nuclear Association)

Lithium brine production pumps salty groundwater from beneath a salar into a sequence of shallow ponds and lets the sun evaporate the water. As concentration rises, salts drop out in order: halite first, then potassium salts, then magnesium, leaving a lithium-rich liquor that is trucked to a plant and finished into carbonate or hydroxide. The process takes 12–24 months from wellhead to product, which means today's output reflects a decision made two years ago.

Solar evaporation costs almost nothing to run, which is why brine lithium has been the lowest-cost source in the world. Capital is ponds and pipework rather than mills and furnaces. The weaknesses are time, chemistry, and water. The lag makes production nearly impossible to ramp on demand, recovery is typically only 40–60% because lithium is lost in the salts that precipitate, magnesium-rich brines are much harder and more expensive to treat, and evaporating brine in the driest deserts on earth has made water use a central political issue in Chile, Argentina, and Bolivia.

Brine evaporation suits high-grade, low-magnesium brines in high, dry, sunny basins, which is essentially the Lithium Triangle and parts of China and Tibet. It is the right answer where those conditions hold and the community relationship can be managed. Where the brine is dilute, magnesium-rich, or in a wetter climate, or where the two-year lag is commercially unacceptable, direct lithium extraction is the alternative being developed specifically to address those cases.

Evaporation cycle of 12–24 months from pumping to product · lithium recovery typically 40–60%, with the rest lost in precipitated salts · magnesium to lithium ratio is the key quality metric, and high ratios raise cost sharply · pond areas measured in tens of square kilometers · operating cost among the lowest of any lithium source.

The Salar de Atacama in Chile, worked by SQM and Albemarle; Argentine salares in Jujuy and Catamarca; Chinese brine operations in Qinghai and Tibet, which have high magnesium ratios; the water-use disputes with indigenous communities that shape permitting across the region.

10 minLithium Brine Extraction: The Race to Power Tomorrow's WorldThe Deep Dive · 10k+ views

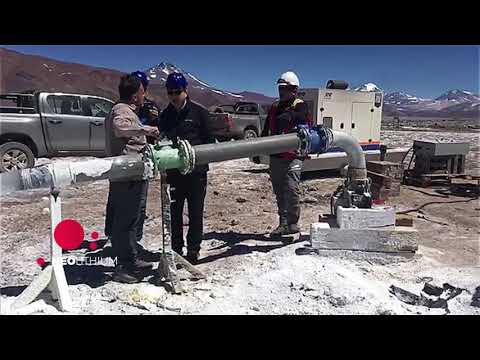

5 minGabriel Pindar, Neo Lithium COO explains the future Pond System at 3Q project_Oct 2020Neo Lithium Corp. · 1k+ views

16 minThe True Cost of Lithium Mining | True Cost | Business InsiderBusiness Insider · 1m+ views

Mineral Commodity Summaries (USGS)

Direct lithium extraction pulls lithium selectively out of brine with a sorbent, an ion exchange resin, or a membrane, and returns the depleted brine to the aquifer. Adsorption using aluminum or manganese-based materials is the most commercially advanced route. Instead of waiting a year for the sun, the process runs in hours, and instead of concentrating everything and separating later, it takes lithium first and leaves the rest behind, which is why it works on brines evaporation cannot handle.

Recovery of 70–90% against 40–60% for ponds, a process time of hours rather than years, a small footprint, and the ability to reinject most of the water are the advantages, and together they open geothermal and oilfield brines that were never mineable. Production can also follow demand. The costs are energy, reagents, and proof. DLE needs power and often fresh water for washing and elution, sorbent life determines operating cost and is the number least often published, and no plant has yet run at commercial scale for long on a difficult brine.

Consider DLE where brine is dilute, magnesium-rich, in a wet climate, or produced as a byproduct of geothermal or oil operations, which is exactly where evaporation fails. It also suits any project that cannot accept a two-year production lag. Judge proposals on demonstrated recovery from the actual brine over thousands of hours, on sorbent life, and on where the fresh water and power come from, since those three decide whether a pilot becomes a plant.

Lithium recovery of 70–90% against 40–60% for evaporation ponds · process time of hours rather than 12–24 months · most of the brine is reinjected rather than evaporated · requires power and often fresh water for elution and washing · no long-run commercial plant on a difficult brine yet, which is the central uncertainty.

Livent's long-running adsorption operation in Argentina, the oldest commercial DLE; ExxonMobil and Standard Lithium's Smackover projects on oilfield brine in Arkansas; Controlled Thermal Resources at the Salton Sea, extracting from geothermal brine; several Chinese plants treating high-magnesium Qinghai brines.

4 minDirect lithium extraction (DLE) explainedStockhead · 1k+ views

4 minDirect Lithium Extraction | ExxonMobil Low Carbon SolutionsExxonMobil · 10k+ views

3 minSummit's Approach to Direct Lithium Extraction (DLE)Summit Lithium Technologies · 1k+ views

Home (International Mining)

Solution mining dissolves a soluble mineral in place and pumps the resulting solution to surface. Two wells, or one well with concentric tubing, circulate water into a salt or potash bed; the water dissolves the mineral and returns as saturated brine; evaporation or crystallization at surface recovers the solid. The cavern that results is engineered deliberately, and for salt those caverns become valuable in their own right as storage for natural gas, hydrogen, and compressed air.

Nobody goes underground, capital is modest compared with a shaft mine, and the method reaches beds far deeper than conventional mining can. For potash it works at depths where a conventional mine would face unmanageable ground pressure. The costs are energy and selectivity. Recovering solid from brine means evaporating water, which is the dominant energy cost, recovery of the resource in place is often only 30–50%, and cavern shape has to be controlled or the roof collapses and causes surface subsidence.

Use solution mining for salt, potash, trona, and other soluble minerals, especially where the bed is too deep for a conventional mine or where a shaft is impractical. It is also the method of choice when the cavern itself has value, since a salt cavern is the cheapest large-scale gas storage available and is central to most hydrogen storage plans. Where the mineral is not soluble or the bed is shallow and thick, conventional room-and-pillar recovers far more of the resource.

Reaches depths well beyond conventional mining, over 1,500 m in some potash operations · resource recovery typically 30–50% in place · evaporation and crystallization dominate energy use · cavern geometry must be controlled by managing the injection interface · salt caverns from solution mining are the standard store for strategic gas and hydrogen.

K+S Bethune in Saskatchewan, a large greenfield solution potash mine; Gulf Coast salt caverns holding the US Strategic Petroleum Reserve; Teesside and Texas caverns proposed for hydrogen storage; trona solution mining in Wyoming for soda ash.

2 minK+S’s Bethune Mine – How does solution mining work?K+S Agrar · 10k+ views

10 minSolution Mining Lesson 1 - Dissolving PotashSaskatchewan Mining Association · 1k+ views

5 minPotash Mining VideoNutrients4Life · 50k+ views

Mineral Commodity Summaries (USGS)

Blasting is the first and cheapest stage of size reduction. Holes are drilled on a pattern, loaded with bulk explosive, usually ammonium nitrate and fuel oil, and fired in a millisecond-delayed sequence so that each hole breaks toward a free face created by the one before it. The energy fractures the rock and throws it into a loose muckpile. How finely it breaks is a design choice, set by hole spacing and powder factor, and that choice propagates through every downstream stage.

Explosive energy costs a fraction of a cent per megajoule against several cents for grinding electricity, so breaking rock finer in the blast is the cheapest size reduction available. Modern electronic detonators time each hole individually, which improves fragmentation and cuts vibration. The costs are the neighbors and the wall. Ground vibration, airblast, and flyrock constrain what can be done near communities, over-energetic blasting damages the pit wall and forces flatter slopes, and nitrate residues in runoff are a water quality issue.

Blasting is not optional in hard rock, so the decision is how much of the size reduction to do here. Mine-to-mill optimization deliberately over-blasts, spending more on explosive to deliver finer feed, because the mill saves more than the blast costs. That trade almost always favors more blasting energy up to the point where wall damage or vibration limits bite. Where the rock is soft enough, surface miners and continuous excavators avoid blasting entirely and remove the vibration problem.

Powder factor typically 0.2–0.8 kg of explosive per ton of rock · explosive energy costs a fraction of a cent per megajoule against several cents for grinding electricity · electronic detonators time individual holes to the millisecond · blast fragmentation propagates through crushing and grinding, which is the basis of mine-to-mill optimization · vibration and flyrock limits constrain design near communities.

Mine-to-mill programs at large copper operations that raised powder factor and cut total comminution cost; electronic initiation systems from Orica and Dyno Nobel; surface miners used in bauxite and limestone where the rock is soft enough to cut; blast vibration monitoring networks around pits near towns.

4 minDrilling and Blasting IntroductionBenHiggins28 · 100k+ views

3 minUnderground Drilling and Blasting Training Video - ACGAustralian Centre for Geomechanics · 1m+ views

5 min💥 How to do a Blast 💥 Step-by-StepHoltmeier Construction, Inc. · 10k+ views

Mineral Processing Engineering (911 Metallurgist)

Crushing takes blasted rock from a meter down to a centimeter or two in stages, because no single machine spans that range efficiently. A jaw or gyratory crusher does primary duty, squeezing rock between a moving and a fixed surface at reduction ratios of about 6:1. Cone crushers handle secondary and tertiary stages. Between stages, screens return oversize and let undersize bypass, so nothing is crushed that is already fine enough. Everything is done dry, which matters where water is scarce.

Crushing is far more energy-efficient than grinding for the same size reduction, because compression against rock is a better way to break it than tumbling steel balls. Machines are robust and well understood, and the circuit is dry. The limit is the product size: below roughly 10 mm, crushing efficiency collapses and grinding takes over. Crushers are also unforgiving of tramp metal and of wet sticky feed, which is why a jaw jammed by a shovel tooth is the classic plant stoppage.

Crush as far as the machinery sensibly allows before handing over to grinding, because every millimeter taken here costs less than the same millimeter taken in a mill. Three-stage crushing feeding ball mills is the classic circuit and remains right where the ore is competent and the plant is dry. Single-stage crushing feeding a SAG mill trades capital for flexibility and is common in large modern plants. If the product is aggregate rather than mill feed, crushing and screening are the whole flowsheet.

Reduction ratio about 6:1 per stage, so three stages take a meter to roughly 10 mm · gyratory primaries handle up to 1.5 m feed at thousands of tons per hour · specific energy far below grinding for the same reduction · circuits run dry, which suits water-scarce sites · liner wear is the dominant maintenance cost.

Gyratory primary crushers at every large open-pit mine; in-pit crushing and conveying systems that replace truck haulage on long uphill routes; three-stage crushing plants feeding ball mills in older concentrators; the crushing and screening plant that constitutes an entire aggregate operation.

2 minHow A Jaw Crusher WorksMcLanahan Corporation · 100k+ views

4 minWhat is a crusher? Everything you need to know to from jaw crushers to cone crushersMachinery Partner · 10k+ views

8 minJaw Crusher, Cone Crusher (Road Base - How It's Made) (4K) - Episode 27Discover Wilderness · 100k+ views

Mineral Processing Engineering (911 Metallurgist)

Grinding reduces crushed ore to the size at which valuable mineral grains are separated from the rock around them, typically 50–150 microns. A semi-autogenous mill is a rotating drum where the ore grinds itself with help from a partial charge of steel balls; a ball mill downstream finishes the job with a full charge. Both are fed as a slurry and both work by tumbling, which means most of the energy goes into noise, heat, and steel wear rather than into breaking rock.

Grinding is what makes flotation and leaching possible, since neither works on rock that has not been liberated. The equipment is enormous, reliable, and understood in detail. The cost is energy: comminution consumes roughly 3–4% of global electricity, grinding is most of that, and energy efficiency in a tumbling mill is measured in single-digit percent. Steel media and liner consumption is the second-largest operating cost. Grind finer than liberation requires and you spend energy for nothing; grind coarser and recovery falls, which is the trade every concentrator manages daily.

Grinding is unavoidable when the valuable mineral is locked in rock, so the questions are how fine and by what route. Determine the liberation size from mineralogy rather than by trial, because both errors are expensive. Consider HPGR ahead of ball milling for hard competent ores, and stirred mills for regrinding below about 30 microns, where tumbling mills become badly inefficient. Ore sorting or coarse flotation, which reject waste before grinding, attack the problem from the other direction and are usually worth evaluating first.

Product size typically 50–150 microns · comminution is roughly 3–4% of global electricity, and grinding is most of it · specific energy commonly 10–25 kWh per ton, rising sharply with ore hardness · steel media and liner wear is the second-largest operating cost after power · SAG mills up to 12 m diameter with 20+ MW drives.

Large SAG and ball mill circuits at every major copper concentrator; stirred mills such as the IsaMill and Vertimill for fine regrinding; the Bond work index test, still the standard way of predicting how much energy an ore will demand; high-competency ores that forced circuit redesigns after start-up.

Grinding is where the electricity bill lives, so a percentage point of energy efficiency is worth more than it sounds and a hard ore variant that was not in the design sample can cut plant throughput permanently. That is why geometallurgy, mapping hardness and liberation across the orebody before design, has become standard practice: the mill is sized once and lives for forty years.

7 minHow Ball Mills Work (Engineering and Mining)saVRee · 100k+ views

1 minPAI SAG Mill TrainingPerformance Associates International · 10k+ views

3 minBall Mill Workflow 3D Animation-Zoneding MachineZoneding Machine · 50k+ views

SAG Mill Animation (911 Metallurgist)

An HPGR presses ore between two counter-rotating rolls at 50–150 bar, so the particles break against each other in a compressed bed rather than by impact. Compression is a far more efficient way to break rock than tumbling, so the machine uses 15–30% less energy than a tumbling mill for the same reduction. It also leaves micro-cracks through the product, which makes downstream grinding easier and leaching faster. It runs dry, which is why it appears in every water-constrained flowsheet.

Energy savings, dry operation, and micro-cracking that improves downstream recovery are a strong combination, and the machine has a smaller footprint than the mill it replaces. The costs are wear and feed discipline. Roll surfaces are studded with tungsten carbide and are expensive to replace, the machine is intolerant of tramp metal and of variable feed moisture, and the product needs screening and recirculation, which adds materials handling. Capital per ton is higher than a ball mill, so the case rests on the energy and water savings.

Use HPGR for hard competent ores where grinding energy dominates cost, in arid districts where dry comminution matters, and ahead of heap leaching, where the micro-cracks measurably raise recovery. It is now standard in diamond and iron ore and increasingly common in copper and gold. Stay with conventional SAG and ball milling for softer, more variable ores where the wear cost and feed sensitivity outweigh the saving, and run a proper test on the actual ore, since HPGR performance is more ore-specific than a mill's.

Operating pressure 50–150 bar between the rolls · energy saving of 15–30% against a tumbling mill for equivalent reduction · runs dry, unlike SAG and ball milling · micro-cracking raises heap leach recovery measurably · studded roll surfaces are a major consumable cost.

The world's largest HPGR installation at Morenci in Arizona; standard practice in diamond liberation, where the gentle breakage preserves stones; iron ore pellet feed grinding; several recent copper projects choosing HPGR circuits specifically to cut water and power.

3 minHPGR Pro | High Pressure Grinding RollsFLSmidth · 500k+ views

3 minWeir's Enduron High Pressure Grinding Rolls - An Overview with Peter LempensWeir · 1k+ views

22 minHigh Pressure Grinding Rolls (HPGRs): The world’s largest HPGR , The Morenci Mine (Arizona, USA)Mauricio Gomez · under 1k views

Home (International Mining)

Classification decides what has been ground finely enough and what goes back for more. Screens do it mechanically, by aperture, and work down to a few hundred microns. Below that, hydrocyclones do it hydraulically: slurry enters tangentially at the top of a cone, spins, and coarse dense particles report to the underflow while fine light ones leave through the overflow. A cyclone separates by settling velocity rather than by size alone, which means dense minerals report coarse and light gangue reports fine.

Cyclones are cheap, have no moving parts, occupy little space, and handle enormous throughput, which is why nearly every grinding circuit uses them. The weakness is exactly the property that makes them convenient. Because they classify by settling velocity, heavy valuable minerals are sent back to the mill even when already fine enough, so they get ground again and over-ground, producing slimes that flotation recovers poorly. Fine screens avoid this by separating on size alone, at higher capital cost and larger footprint.

Use cyclones as the default in grinding circuits, since the economics are hard to beat. Move to fine screening where the ore has a large density contrast and over-grinding of the valuable mineral is costing recovery, which is common in iron ore, tin, tungsten, and some gold circuits. The tell is a size-by-size assay showing value concentrated in the finest fractions of the mill product. Screening also suits dry circuits and aggregate plants, where sizing rather than classification is the actual requirement.

Screens practical down to a few hundred microns; cyclones handle finer separations · cyclones classify by settling velocity, so dense minerals report coarser than their size implies · a cyclone has no moving parts and handles thousands of cubic meters per hour · over-grinding produces slimes that flotation recovers poorly · fine screens cost more in capital and footprint but separate on size alone.

Cyclone clusters on every ball mill circuit; Derrick fine screens replacing cyclones in iron ore and gold circuits to reduce over-grinding; dry screening in aggregate and coal plants; size-by-size assays used to diagnose whether a circuit is over-grinding its value.

2 minHydrocyclone operationGravity Mining Ltd · 1k+ views

1 minHow a Hydrocyclone Works: 3D Animation Explains Advanced Fluid SeparationAlessandro Chessa · 10k+ views

4 minWhy Derrick Fine Screens Outperform Hydrocyclones in Grinding CircuitsDerrick Corp · under 1k views

Hydrocyclones (911 Metallurgist)

Flotation separates minerals by making some of them water-repellent and floating them out on bubbles. Ground ore is slurried with reagents: a collector that adsorbs onto the target mineral and gives it a hydrophobic surface, a frother that stabilizes the bubbles, and modifiers that adjust pH and suppress unwanted minerals. Air is blown into agitated cells, hydrophobic particles attach to bubbles and rise into a froth that overflows, and the rest goes to tailings. It is the most important separation process in mining.

Flotation is what makes low-grade sulfide ores economic. A 0.5% copper ore becomes a 25–30% concentrate in one continuous process, and reagent chemistry can be tuned to separate copper from molybdenum, or lead from zinc, in the same plant. The costs are water, chemistry, and particle size. Cells need a lot of water and are usually the largest consumer on site, reagent regimes are ore-specific and drift as the orebody changes, and flotation works well only between roughly 10 and 150 microns: too coarse and the bubble cannot lift the particle, too fine and it does not collide with one.

Flotation is the default for sulfide minerals and for many industrial minerals, and there is rarely a real alternative for fine-grained sulfides. Its limits define where other methods belong: coarse liberated material suits gravity or dense medium separation, oxide copper suits leaching, and very fine particles need either regrinding plus specialized cells or a different flowsheet entirely. Where water is scarce, coarse particle flotation and pre-concentration reduce how much material has to be floated at all.

Effective particle size roughly 10–150 microns · upgrades a 0.5% copper ore to a 25–30% concentrate · recovery typically 85–95% for well-liberated sulfides · reagent cost of a few dollars per ton of ore · flotation and its associated water circuit is usually the largest water consumer on a mine site.

Every porphyry copper concentrator in the world; differential flotation separating lead, zinc, and copper concentrates at polymetallic mines; spodumene flotation for lithium; coarse particle flotation cells now being installed to cut grinding energy and water use.

Recovery is worth more than almost anything else in a concentrator: one percentage point on a 100,000 ton per day copper operation is worth tens of millions of dollars a year, which is why reagent optimization and control systems get so much attention. The counterweight is that reagent regimes are ore-specific, so a change in the orebody's mineralogy can cost recovery long before anyone changes a setting.

2 minThe Flotation Process | Sepro LabsSepro Systems · 50k+ views

4 minThe Science of Froth Flotation in Mineral ProcessingMJ SCHOOL OF MINING AND GEOLOGY · 10k+ views

1 minAnimation of froth flotation and mineral separation process for Rio Tinto Innovation by Aarons CGIAARONS CGI · 50k+ views

Froth Flotation Process (911 Metallurgist)

Gravity separation exploits density difference in a moving fluid. Jigs pulse water up through a bed so dense particles work downward. Spirals let slurry flow down a helical trough, where centrifugal and frictional forces sort particles across the channel. Shaking tables move a riffled deck under a film of water and fan the feed into density bands. Centrifugal concentrators multiply the effective gravity by tens or hundreds so that fine dense particles can be recovered at all. It is the oldest concentration method and still the cheapest.

No reagents, low energy, simple machines, and immediate visual feedback: an operator can see whether a table is working. For free gold, tin, tungsten, and mineral sands it is often the only method needed. The limitation is the density ratio and the particle size. A useful separation needs a concentration criterion above roughly 1.5, so gravity separates gold from quartz easily and cannot separate chalcopyrite from pyrite at all, and efficiency falls away below about 75 microns because viscous forces overwhelm the density difference.

Use gravity separation wherever the density contrast is large: free gold, cassiterite, wolframite, chromite, mineral sands, and coal washing. Put a gravity circuit inside a grinding loop to recover free gold before it can be over-ground, which is standard practice in gold plants. Use centrifugal concentrators to extend the range down to a few tens of microns. Where the density contrast is small or the minerals are finely intergrown, flotation is the answer and gravity will not work regardless of the equipment.

Needs a concentration criterion above roughly 1.5 to separate reliably · effective down to about 75 microns for conventional units, and to tens of microns with centrifugal concentrators · no reagents and very low energy per ton · water use is high but recirculated · gravity circuits inside grinding loops routinely recover 20–40% of the gold in a plant.

Knelson and Falcon centrifugal concentrators in nearly every gold plant; spiral banks in mineral sands and iron ore; jigs in coal washing and alluvial tin; shaking tables still used for final cleaning and for gravity testwork.

3 minJig machine(Gravity separation) + shaking table(concentrate separation) video in gold oreDesen Mining Equipment · 5k+ views

1 minGemini Shaking Table Gravity Separation Working SiteJXSC Mine Machinery Factory · 1k+ views

2 minThe Jig Machine Gets Manganese Concentrate By Gravity Separation MethodJXSC · under 1k views

Mineral Processing Engineering (911 Metallurgist)

Dense medium separation floats or sinks whole particles in a fluid of controlled density. The medium is a suspension of finely ground magnetite or ferrosilicon in water, mixed to a specific gravity between that of the valuable mineral and the waste, so one floats and the other sinks. Baths handle coarse material and cyclones handle finer sizes by adding centrifugal force. The medium is recovered magnetically from both products and recirculated, which is why the dense solid is always magnetic.

It is a sharp, high-capacity separation on coarse particles, and it rejects waste before grinding, which is where the real money is: every ton of barren rock removed at 25 mm is a ton that never consumes grinding energy or plant capacity. Coal washing and diamond recovery depend on it. The requirements are a genuine density difference between liberated particles and a reliable medium recovery circuit, since ferrosilicon losses are a significant operating cost. It cannot separate minerals that are finely intergrown, because a composite particle has an intermediate density.

Use dense medium separation to pre-concentrate coarse feed wherever waste can be liberated at a coarse size: coal, diamonds, iron ore, chromite, and increasingly base metals where a barren host can be rejected early. It pairs naturally with ore sorting, which does the same job with sensors instead of fluid. Check liberation at the intended size first, because the method works on whole particles and a composite grain will report to the wrong product no matter how well the circuit is run.

Medium density adjustable between roughly 1.3 and 3.5 using magnetite or ferrosilicon · sharp separation, with cut points controllable to within about 0.02 specific gravity in a cyclone · typical feed size 1–100 mm, coarser in baths · rejecting waste before grinding is where most of the value comes from · ferrosilicon consumption is the main operating cost.

Coal preparation plants worldwide, the largest application by tonnage; diamond recovery, where dense medium cyclones concentrate before final sorting; iron ore beneficiation; base metal projects using dense medium pre-concentration to raise mill head grade.

3 minDense Media Separation Testwork | Sepro LabsSepro Systems · 10k+ views

14 minIntroduction into the use of dense medium separation in mineral processing.North Digital Minerals Engineer · 10k+ views

2 minAd Rem Dense Medium Separation explainer videoAD REM N.V. · 1k+ views

Mineral Processing Engineering (911 Metallurgist)

Magnetic separation exploits differences in magnetic susceptibility. Low-intensity drum separators pull out strongly magnetic magnetite and tramp iron; high-intensity and high-gradient units, using rare-earth magnets or wound coils with a steel matrix, capture weakly paramagnetic minerals such as hematite, ilmenite, and garnet. Electrostatic separation works on conductivity instead: charged particles on a rotating drum either lift away or stick depending on how fast they lose their charge, which separates conductive rutile from insulating zircon.

Both methods run dry, need no reagents, use little energy, and give a clean separation when the property difference is real. Magnetic separation is also the workhorse that recovers medium in dense medium circuits and removes tramp steel before crushers. The limits are the property and the particle size. Only some minerals differ usefully in susceptibility or conductivity, electrostatic separation requires a dry, dust-free, humidity-controlled feed in a narrow size range, and both struggle with composite particles that carry a mixture of properties.

Use low-intensity magnetic separation for magnetite iron ore and for medium recovery in any dense medium plant. Use high-gradient units for hematite, ilmenite, and for removing iron-bearing contaminants from industrial minerals, where a tenth of a percent of iron can be the whole specification. Use electrostatic separation in mineral sands, where the classic flowsheet is gravity, then magnetic, then electrostatic in sequence. In all cases confirm the property difference on liberated material rather than assuming it from the mineral name.

Low-intensity separators run below about 0.3 tesla; high-gradient units reach 1–2 tesla · both run dry with no reagents and low energy · electrostatic separation needs dry feed in a narrow size range and controlled humidity · magnetic separation recovers the ferrosilicon or magnetite medium in every dense medium plant · used to remove iron contamination where specifications are measured in tenths of a percent.

Magnetite iron ore concentrators in Sweden, Australia, and the US; mineral sands plants in Australia and Africa running gravity, magnetic, and electrostatic stages in sequence; high-gradient separators purifying kaolin and silica sand; drum separators in every dense medium circuit.

2 minHow Magnetic Separators WorkEdison Tech Center · 50k+ views

3 minMAGNETIC SEPARATION7activestudio · 100k+ views

8 minMagnetic Separation in Mineral Processing | Principles, Types & ApplicationsBrain Waves · under 1k views

Magnetic Separation of Fine Mineral Sulphides (911 Metallurgist)

Sensor-based ore sorting looks at individual rocks on a conveyor and blows the barren ones aside with a burst of compressed air. X-ray transmission sensors see through the particle and measure density, which distinguishes sulfides from silicates. Other sensors use X-ray fluorescence, near-infrared, laser, or color. Because the decision is made per particle at 20–100 mm, sorting rejects waste before it reaches the mill, which is the most valuable place in the whole flowsheet to remove it.

Every ton rejected at the sorter is a ton that never consumes grinding energy, water, reagents, or tailings capacity, so a modest rejection rate can lift plant capacity and cut unit costs sharply. The equipment is dry and modular. The requirements are strict. The valuable mineral must be liberated at coarse size, which many disseminated orebodies never achieve, the sensor must actually distinguish ore from waste on this specific rock, and throughput per machine is limited, so a large operation needs many units. Fine material bypasses sorting entirely.

Test ore sorting whenever waste can be liberated coarsely, which is common in vein-hosted, contact-style, and coarsely disseminated deposits and unusual in fine porphyries. It is especially valuable in water-scarce and power-constrained sites and for underground mines, where sorting underground avoids hoisting waste. Run a sorting test on real drill core early, since the answer is ore-specific and the whole flowsheet changes if it works. Where liberation is fine, dense medium separation and flotation remain the answer.

Sorts individual particles typically 20–100 mm · X-ray transmission distinguishes by density through the particle rather than by surface appearance · rejecting waste before grinding saves energy, water, reagents, and tailings volume together · throughput per machine of roughly 100–300 tons per hour, so large plants need several · fines below the sorting size bypass the process.

TOMRA X-ray transmission sorters in tungsten, tin, and base metal operations; diamond recovery, where sorting has been standard for decades; underground sorting installations that avoid hoisting waste to surface; lithium pegmatite projects using sorting to upgrade coarse spodumene feed.

2 minTOMRA Mining COM XRT 2.0 Process AnimationTOMRA · 10k+ views

2 minTOMRA Mining: Sensor-based sorting for essential resourcesTOMRA · 1k+ views

3 minSRC Sensor-Based Sorting for Mining OperationsSaskatchewan Research Council · under 1k views

Home (International Mining)

Heap leaching stacks crushed ore on a lined pad and trickles a solution through it. Dilute cyanide dissolves gold and silver; dilute sulfuric acid dissolves oxide copper. The pregnant solution drains to a pond and goes to recovery, by carbon adsorption for gold or solvent extraction for copper, and the barren solution is refortified and returned to the top of the heap. Leach cycles run months to years, and the heap is simply left in place when it is finished.

Capital and operating costs are a fraction of a mill, which is what makes low-grade ore economic: material at 0.3 g/t gold that could never justify grinding can be heap leached profitably. There is no grinding, no flotation, and no tailings dam. The trade is recovery and time. Heaps recover 50–80% against 90%+ in a mill, because solution cannot reach every grain in a coarse rock, and the leach takes months, so metal is locked up in inventory. Liner integrity and cyanide management are the environmental issues that decide permitting.

Heap leach when the ore is low grade, the mineralogy is amenable, and the climate suits: oxide gold, oxide copper, and some uranium. It is the standard way to treat the low-grade half of an orebody while milling the high-grade half. Do not heap leach refractory or clay-rich ores, where solution will not percolate or the gold is locked in sulfide, and check permeability with column tests before committing, since a heap that ponds and channels recovers a fraction of what the test predicted.

Recovery typically 50–80% against 90%+ for milling · leach cycles of 60 days to several years depending on commodity and crush size · capital and operating cost a fraction of a mill · works on grades a mill cannot justify, down to about 0.3 g/t gold · double liners and leak detection are standard and are the main permitting issue.

Nevada's low-grade oxide gold heaps, which built the modern industry; Chilean oxide copper heaps feeding solvent extraction and electrowinning; the Eagle Gold heap leach in Yukon and its 2024 failure, which sharpened regulatory attention on heap stability; agglomeration with cement to keep clay-rich ores permeable.

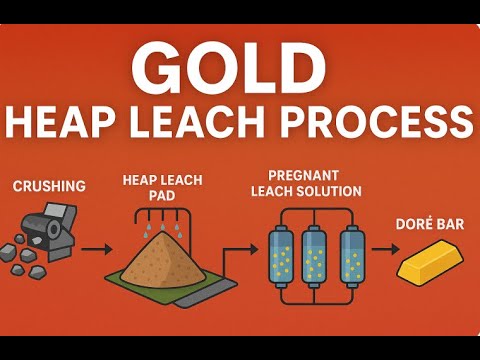

6 minHow Gold is Extracted from Ore | Heap Leaching Explained Step-by-StepCommodityGuy · 10k+ views

7 minOre to Pure Copper ⚙️ | The Leaching Revolution ExplainedCommodityGuy · 5k+ views

2 minEagle Gold Mine Construction – Heap Leach FacilityVictoriaGoldCorp · 10k+ views

Heap Leaching (911 Metallurgist)

Some gold is locked inside sulfide minerals where cyanide cannot reach it, and such ore is called refractory. Pressure oxidation destroys the host: ore or concentrate goes into an autoclave at 200–230 °C and 20–35 bar with oxygen injected, and the sulfides oxidize to sulfate, releasing the gold for conventional cyanide leaching afterward. The same chemistry, at similar conditions, dissolves nickel and cobalt directly from laterite ore in high-pressure acid leaching.

It turns unrecoverable ore into recoverable ore, lifting gold recovery from perhaps 30% to over 90%, which is the entire justification. The reaction is autothermal once started, so it needs little external heat. The costs are capital and materials. An autoclave is a titanium-lined pressure vessel that costs hundreds of millions of dollars, the conditions are aggressive enough that materials selection dominates the engineering, and the process consumes oxygen and produces an acidic residue that needs neutralizing, usually with limestone.

Use pressure oxidation for refractory sulfide gold ores where a diagnostic leach shows recovery is locked in sulfides and the deposit is large enough to justify the capital. Compare against roasting, which is cheaper but produces sulfur dioxide and arsenic requiring capture, and against bio-oxidation, which is far cheaper in capital and much slower. For nickel laterites, high-pressure acid leach is the established route to battery-grade product and has a long history of projects costing far more than budgeted.

Operates at 200–230 °C and 20–35 bar with oxygen injection · raises refractory gold recovery from roughly 30% to above 90% · autoclaves are titanium-lined and cost in the hundreds of millions · the reaction is autothermal once running · residue is acidic and needs neutralization, typically with limestone.

Barrick's Goldstrike autoclaves in Nevada, the reference installation; Pueblo Viejo in the Dominican Republic; high-pressure acid leach plants for nickel laterite in the Philippines, Papua New Guinea, and Indonesia, several of which ran far over budget; Nevada roasters treating the arsenic-bearing ores autoclaves handle poorly.

5 minOutotec® Gold Processing SolutionsOutotecOyj · 10k+ views

13 minEpisode 107: Unlocking Gold - tackling refractory ores. Fresh Thinking PodcastSnowden Optiro · under 1k views

5 minMetso Gold Processing SolutionsMetso · 10k+ views

Mineral Processing Engineering (911 Metallurgist)

Bioleaching uses bacteria to do the oxidation that an autoclave does with heat and pressure. Acidophilic organisms such as Acidithiobacillus ferrooxidans oxidize ferrous iron to ferric and sulfur to sulfate, and the ferric iron then attacks sulfide minerals chemically. The bacteria are catalysts that regenerate the oxidant continuously. In heaps this happens slowly over months in stacked ore; in stirred tanks it happens in days on a concentrate, at higher cost and better control.

Capital and energy are a small fraction of pressure oxidation, the organisms are already present in most sulfide orebodies, and the process runs near ambient temperature. For low-grade material it is often the only economic route. The weaknesses are time and control. Heap bioleaching takes months to years, the bacteria need oxygen, a workable pH, and temperatures they tolerate, and a heap that goes anoxic or too hot simply stops. Some minerals, chalcopyrite in particular, resist bioleaching and have absorbed decades of research without a general commercial solution.

Use bio-oxidation on refractory gold concentrates where capital is constrained and time is available, and heap bioleaching for low-grade secondary copper sulfides where a mill cannot be justified. It suits remote sites, since it needs little energy and no exotic materials. Do not plan a chalcopyrite bioleach without site-specific testwork showing it works on that ore, and be honest about the timeline, since bioleach ramp-up is measured in seasons.

Runs near ambient temperature and pressure, against 200 °C and 30 bar for an autoclave · heap cycles of months to years; tank bio-oxidation in days · capital a small fraction of pressure oxidation · needs oxygen, controlled pH, and temperatures the organisms tolerate · chalcopyrite remains resistant and is the field's long-standing unsolved problem.

BIOX tank plants treating refractory gold concentrate in Africa, Australia, and Asia; Chilean copper heap bioleaching, which produces a meaningful share of the country's cathode; Finnish Talvivaara, whose bioheap and water problems became a cautionary case; long-running research into chalcopyrite bioleaching.

3 minBioleaching: let's see how it worksbrgmTV · 50k+ views

4 minExtraction Methods - Bioleaching & Phytomining | Environmental Chemistry | Chemistry | FuseSchoolFuseSchool - Global Education · 100k+ views

4 minGCSE Chemistry – Using Bioleaching to Extract CopperKayScience · 10k+ views

Copper Statistics and Information (USGS)

Leaching produces a dilute, dirty solution, and SX-EW turns it into pure metal in two steps. In solvent extraction, the aqueous solution is mixed with an organic phase containing a reagent that binds copper selectively; the phases separate; the loaded organic is then stripped with strong acid, transferring the copper into a small volume of clean, concentrated electrolyte. In electrowinning, current passed through that electrolyte plates copper onto cathodes at better than 99.99% purity, ready for market without any smelting.

It produces refined metal at the mine site from ore too low-grade to concentrate, with no smelter, no concentrate shipping, and no sulfur dioxide. Cathode from an SX-EW plant is the same product a refinery sells. The costs are electricity and chemistry. Electrowinning consumes roughly 2,000 kWh per ton of copper, which makes power price a first-order variable, organic reagent losses and entrainment are a persistent operating expense, and the route works on oxide and secondary sulfide copper but not on the chalcopyrite that dominates primary deposits.

Use SX-EW wherever leaching produces a pregnant solution: oxide copper heaps, ISR uranium, and increasingly lithium and cobalt refining circuits. It is the reason a low-grade oxide cap can be mined ahead of the sulfide beneath it. Do not plan it for primary chalcopyrite ore without a proven leach, since that is the constraint rather than the SX-EW step. And site it where power is cheap and reliable, because electrowinning is one of the more electricity-intensive steps in metals production.

Electrowinning uses roughly 2,000 kWh per ton of copper cathode · produces cathode at 99.99%+ purity without smelting · works on oxide and secondary sulfide copper, not on chalcopyrite · organic reagent loss and entrainment are a continuing operating cost · about 15–20% of world copper is produced this way.

Chilean and Peruvian oxide copper operations, where SX-EW built the modern cathode business; Kazakh uranium ISR plants using ion exchange and solvent extraction; cobalt and lithium refineries adopting the same unit operations; Escondida's oxide plant alongside its sulfide concentrator.

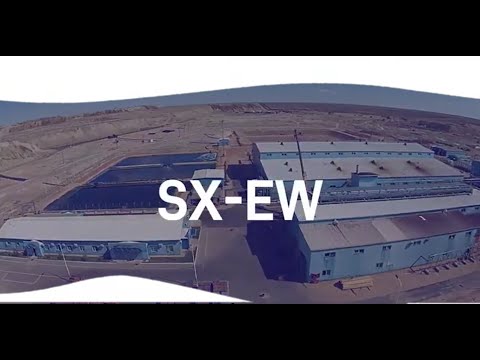

1 minCentral Asia Metals - Focus on the SX-EW process 2021CentralAsiaMetals · 10k+ views

3 minTBT SX/EW Track RecordTenova Advanced Technologies · 1k+ views

2 minNewmont's Phoenix Mine Copper ProcessElkoDaily · 1k+ views

Copper Statistics and Information (USGS)

Smelting uses heat and chemistry to separate metal from the rest of the concentrate. In flash smelting, dried copper concentrate is blown with oxygen-enriched air into a hot reaction shaft where the sulfides oxidize and release enough heat to sustain the process, producing a molten matte of copper and iron sulfides beneath a slag of oxidized iron and silica. Converting then blows air through the matte to remove the remaining iron and sulfur, giving blister copper at around 98–99%, which goes to refining.

Smelting is the only route that handles primary sulfide concentrate at scale, it recovers precious metals that report with the copper, and modern autogenous smelting needs little added fuel because the sulfides are the fuel. The costs are capital, scale, and sulfur. A smelter is a multi-billion-dollar plant that must run continuously and needs a large concentrate supply, and it produces sulfur dioxide that has to be captured, which is why every modern smelter has a sulfuric acid plant attached and why its economics are partly an acid business.

Smelting is the necessary route for primary sulfide concentrates, which is where most of the world's copper, nickel, lead, and zinc comes from. The commercial questions are location and terms: smelting capacity is concentrated in China, and the treatment and refining charges a miner pays are set by how tight that capacity is. Where the ore is oxide or secondary sulfide, leaching and SX-EW avoid the smelter entirely. Where sulfur dioxide capture is not feasible, smelting is simply not permittable.

Flash smelting is autogenous, with sulfide oxidation supplying the heat · matte at 60–70% copper, blister at 98–99% · smelter capital in the billions, and it must run continuously · sulfur dioxide capture produces sulfuric acid as a co-product · treatment and refining charges paid by miners move with global smelting capacity utilization.

Outotec flash smelting, the dominant copper technology worldwide; Kennecott's Utah smelter, among the highest sulfur capture rates anywhere; Chinese smelting capacity, which sets global treatment charges; Glencore and Aurubis in Europe, where energy cost has squeezed margins.

9 minInside America's Super SmelterAtomic Frontier · 100k+ views

2 minOutotec® Flash SmeltingOutotecOyj · 10k+ views

5 minMetso Flash SmeltingMetso · 10k+ views

Copper Statistics and Information (USGS)

Electrorefining turns impure metal into pure metal by dissolving and replating it. Blister copper is cast into anodes and hung in a cell of acidic copper sulfate opposite thin cathode starter sheets. Current dissolves copper from the anode and deposits it on the cathode, while impurities either stay in solution or fall to the bottom as anode slime. Because that slime contains the gold, silver, selenium, and platinum group metals that traveled with the copper, it is a valuable product in its own right.

It delivers 99.99% copper, the grade the wire industry requires, and recovers precious metals that would otherwise be lost. The chemistry is well understood and the plants run for decades. The costs are energy, time, and inventory. Refining consumes 300–400 kWh per ton, an anode takes three to four weeks to dissolve, and a refinery holds a very large quantity of metal in process, which is working capital. Anode passivation and short circuits between electrodes are the operational problems that limit current density.

Electrorefining is required whenever smelted metal has to meet electrical-grade specification, which for copper means essentially all of it. It is also how precious metal credits are captured from base metal ores, and for many mines those credits are a large share of revenue. Where metal is produced hydrometallurgically by electrowinning from a pure solution, no refining step is needed because the impurities were removed in solvent extraction, which is one of the structural advantages of the SX-EW route.

Produces 99.99%+ copper cathode, the grade required for electrical conductors · consumes 300–400 kWh per ton, well below electrowinning's 2,000 · anode dissolution takes three to four weeks · anode slimes carry the gold, silver, selenium, and platinum group metals · large in-process metal inventory ties up working capital.

Glencore's CCR refinery in Montreal; Aurubis in Hamburg, Europe's largest copper refinery; precious metal refineries that treat anode slimes from copper refining worldwide; electrolytic zinc plants, which use electrowinning rather than refining because the feed is already a purified solution.

10 minWCLN - ElectrorefiningWCLN · 50k+ views

5 minPurifying Copper | Reactions | Chemistry | FuseSchoolFuseSchool - Global Education · 100k+ views

Mineral Commodity Summaries (USGS)

Almost everything that enters a concentrator leaves as tailings: fine ground rock in water, typically 97–99.5% of the feed. Conventional practice pumps that slurry to an impoundment behind an embankment. Upstream dams raise the crest by building each new lift on top of previously deposited tailings, which is the cheapest method and the one implicated in the worst failures. Downstream and centerline construction build outward or vertically onto compacted fill, cost more, and are far more stable, particularly in earthquakes.

Slurry impoundment is cheap, simple, and handles enormous volumes, and the pond recycles water back to the plant. The weakness is that the facility is a permanent structure holding a saturated mass that can liquefy, and it has to remain stable forever, long after the mine has closed and the company may exist. Brumadinho in 2019 killed 270 people when an upstream dam liquefied without warning. Failures are rare per dam-year and catastrophic when they happen, which is exactly the risk profile that organizations manage badly.

Conventional slurry storage remains appropriate where volumes are very large, water is available, and the site allows a stable downstream or centerline embankment on competent foundations. Upstream construction is now banned in Brazil and Chile and is difficult to permit anywhere. Where seismic risk is real or the consequence of failure is high, filtered dry stacking removes the liquefaction mechanism entirely at higher cost. Whatever the choice, design against the Global Industry Standard on Tailings Management, since that is now what insurers, lenders, and communities expect.

Tailings are typically 97–99.5% of concentrator feed by mass · upstream construction is the cheapest and least stable, and is banned in Brazil and Chile · Brumadinho in 2019 killed 270 people; Mount Polley in 2014 released 25 million cubic meters · the facility must remain stable indefinitely after closure · the Global Industry Standard on Tailings Management is the current benchmark.

The Brumadinho and Mount Polley failures, which reshaped global practice; the Global Tailings Review convened after Brumadinho; Chilean and Brazilian regulations banning upstream dams; the ongoing inventory of legacy facilities with no responsible owner.

2 minWhat is the tailing and what is the tailings dams?SERNAGEOMIN · 10k+ views

8 minTailings Dams: Why Do Failures Keep Happening? | Highgrade Talks with Dirk Van ZylHighgrade · 5k+ views

17 minEpisode 1 - Introduction to Tailings Dams – Understanding the BasicsThe Tailings Podcast · 1k+ views

Global Industry Standard on Tailings Management (Global Tailings Review) · Tailings Backfill (911 Metallurgist)

Every mine runs a water balance: what falls as rain, what is pumped from the pit or the workings, what the plant consumes, what evaporates, and what must be discharged. The chemistry is the hard part. When sulfide minerals in waste rock and tailings meet air and water they oxidize and generate sulfuric acid, which then mobilizes metals, and the result is acid mine drainage. Once started it can continue for centuries, which makes it the longest-lived liability in the industry.

Good water management is what lets a mine operate in a wet climate or a dry one, and modern practice can recycle most process water, which is what makes operations in Chile's Atacama possible. Active treatment plants reliably meet discharge limits. The problem is duration and cost. Active lime treatment costs real money every year forever, passive systems such as constructed wetlands are cheaper but need land and work only within limits, and the obligation outlasts the mine, the company, and often the regulator's institutional memory.

Design for water from the start rather than after: characterize the acid generation potential of every waste rock type before the pit is designed, so that potentially acid-generating material can be encapsulated or submerged rather than dumped. Use active treatment where discharge quality must be guaranteed, and passive systems for long-term low-load sites after closure. Where water is scarce, invest in recycling and dry stacking. And be realistic about perpetual treatment, because a plan that assumes it can be turned off at closure is usually wrong.

Acid generation continues for decades to centuries once established · sulfide oxidation is exponential with temperature and needs both air and water, so encapsulation or saturation stops it · active lime treatment is reliable and costs money every year indefinitely · modern arid-climate mines recycle 80%+ of process water · acid rock drainage from historic mines affects thousands of kilometers of streams in the US alone.

The EPA's abandoned mine drainage program addressing legacy Appalachian sites; Iron Mountain in California, one of the most acidic waters measured anywhere; Chilean operations desalinating seawater and pumping it thousands of meters uphill; constructed wetlands treating low-flow drainage after closure.

4 minAcid Mine Drainage: An Overview and SustainabilityBoat of Knowledge Ohio University · 10k+ views

8 minWest Virginia University Turns Acid Mine Drainage into Clean Water and Rare Earth ElementsRockwell Automation · 1k+ views

5 minAcid Mine Drainage and the Vitasoft ProcessWater Research Commission · under 1k views

Abandoned Mine Drainage (US EPA)

Filtered or dry-stacked tailings remove most of the water before disposal. Slurry is thickened, then dewatered in vacuum or pressure filters to a moisture content of 15–20%, at which point the material is a damp cake rather than a fluid. It is conveyed or trucked to a stack and compacted in lifts like an engineered fill. Because the mass is unsaturated and compacted, it cannot liquefy, which removes the failure mechanism behind the worst tailings disasters.

No water-retaining dam and no liquefaction potential is a categorical improvement in risk, not an incremental one, and recovering 80–90% of the process water matters enormously in arid districts. The stack can be reclaimed progressively. The costs are energy, capital, and throughput. Filtration is power-intensive and the filter plant is a significant capital item, throughput per filter is limited so very large operations need many, and clay-rich tailings filter slowly or not at all. Above roughly 30,000–50,000 tons per day the economics get difficult.

Choose filtered tailings for small and mid-size operations, in arid regions, in seismically active areas, and anywhere the consequence of a dam failure is unacceptable. It is increasingly the default for new projects in Chile and Peru. For very high tonnage operations, evaluate thickened or paste tailings as a middle option, which recovers much of the water and reduces but does not eliminate the impoundment. Run filtration testwork on real tailings early, because clay content determines whether the method works at all.

Filtered cake at 15–20% moisture, unsaturated and non-liquefiable · recovers 80–90% of process water against 50–70% for conventional thickening · practical up to roughly 30,000–50,000 tons per day, above which filter count becomes difficult · filtration is power-intensive and adds significant capital · clay-rich tailings filter poorly and can rule the method out.

Eldorado Gold's Skouries project in Greece, permitted around dry stacking; Chilean and Peruvian projects adopting filtered tailings after regulatory change; Canadian and Nevada operations in cold or arid climates where water recovery pays; paste and thickened tailings as the intermediate option at larger operations.

4 minDry-stack Tailings at SkouriesEldorado Gold · 1k+ views

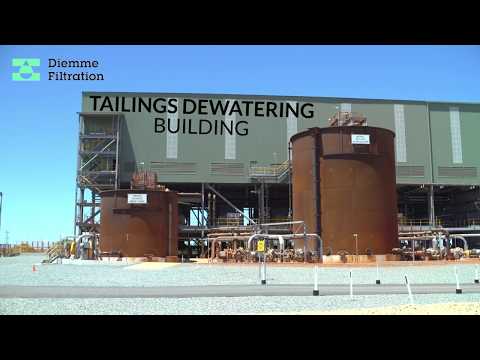

3 minThe Future of Mining Tailings Management - Diemme FiltrationDiemme Filtration · 10k+ views

2 minDry Tailings Disposal through FiltrationENPROTEC · 1k+ views

Global Industry Standard on Tailings Management (Global Tailings Review)

Closure is what happens after the ore runs out: dismantling plant, capping and revegetating waste dumps and tailings, stabilizing or backfilling openings, managing water, and demonstrating to a regulator that the site will remain safe without ongoing intervention. Modern practice designs for closure from the start, so that dumps are built at final angles and rehabilitation happens progressively during operation rather than as one large project at the end when revenue has stopped.

Progressive rehabilitation spreads cost across the producing years, produces better outcomes because vegetation gets decades to establish, and gives the community visible evidence during operations rather than promises. Where it is done well, closed sites become grazing land, forest, solar farms, or recreation. The difficulty is money and duration. Closure costs are incurred when income has stopped, financial assurance is often set decades before the actual cost is known, and long-term water treatment can outlast any corporate entity. Historic sites with no solvent owner are a public liability measured in tens of billions.

Closure planning belongs in the feasibility study, not in the final years, and the closure cost estimate should be updated as the mine plan changes rather than left as an original number. Regulators increasingly require bonding that reflects the real cost, which is a good discipline. Where perpetual water treatment is likely, be explicit about it and fund it as an endowment rather than an operating expense, because the honest version of that plan is a trust fund, not a promise.

Closure cost commonly 5–15% of a mine's total capital, and much more where water treatment continues · progressive rehabilitation during operation spreads that cost and improves outcomes · financial assurance is typically set decades before closure and is frequently under-estimated · post-closure water treatment can be required indefinitely · abandoned mine liabilities in the US and Canada run to tens of billions of dollars.

The ICMM integrated mine closure guidance, now the reference document; Teck and Rio Tinto progressive rehabilitation programs; closed mines converted to solar generation and pumped storage; the US abandoned hardrock mine inventory, where responsible parties often no longer exist.

2 minEp 3: What happens to a mine AFTER it is closed?Mining2Me · 10k+ views

2 minIntegrated mine closure good practiceICMM · 5k+ views

3 minOur approach to responsible mine closureTeck Resources Limited · 1k+ views

Our Work (ICMM) · Abandoned Mine Drainage (US EPA)
