Construction Technology: A Practical Reference

Cast-in-place concrete is poured wet into forms built on the job and cures in position, so the part and the mold that shapes it are made in the same place at the same time. A crew erects formwork and the falsework holding it up, ties reinforcing bar inside it, and places ready-mixed concrete of typically 3,000–6,000 psi design strength; the forms carry the weight until the concrete can hold itself, usually 3–7 days depending on temperature and mix. The common building system is a flat plate, a solid slab bearing directly on columns with no beams, which in ordinary reinforced concrete needs a thickness of roughly span/30, so a 25 ft bay takes an 8 in slab. Post-tensioning improves that ratio to about span/40–45 by squeezing the slab with high-strength strand stressed after the concrete gains strength, which is why most US residential towers use post-tensioned flat plates. With no beams under the slab, floor-to-floor on a concrete residential tower is typically about 9 ft for an 8 ft 6 in ceiling, where a steel-framed office needs 13–15 ft to deliver a comparable clear height once beams, deck and ductwork are stacked up. The work repeats floor by floor on a formwork cycle, and that cycle, not the concrete, is what sets the schedule.

The frame comes out monolithic, so the structure, the lateral system, the fire rating and the acoustic separation between apartments are all the same pour, and concrete needs no applied fireproofing the way steel does. Materials are commodities available from any ready-mix plant, the trades exist in every market, and the capital to start is a set of forms and a crew, which is why this is the default almost everywhere. The weakness is the formwork: a study of 22 completed buildings put formwork at 30% of the finished concrete structure cost on average, ranging from 16% to 41%, against an older rule of thumb of 40%. Formwork also governs the schedule, because nothing above a floor starts until the forms below have been stripped and moved up, and cold weather slows curing so the cycle stretches unless the crew heats and blankets the pour. The other weakness is that mistakes are not reversible. A misplaced embed or an out-of-tolerance slab is fixed with a demolition hammer, not a wrench.

Use cast-in-place when the same floor plate repeats many times, when the structure also has to serve as the fire rating and the sound separation, and when floor-to-floor height is tight — residential towers, hotels, parking and anything where the ceiling is the underside of the slab. If your bays are under about 30 ft and the plan repeats, a post-tensioned flat plate is usually the cheapest structure available in the US, and you should make the alternatives prove otherwise. Avoid it where schedule is the binding constraint and the site is cold or cramped, because form cycles are the thing you are buying and you cannot buy them faster in bad weather; steel or precast will beat it there. If the geometry is one of a kind so the formwork has to be bespoke, price the formwork before you price the concrete, since that is where the money actually is. The usual alternatives are structural steel when spans run long or the schedule is tight, and precast when the same element repeats hundreds of times.

Ready-mix typically 3,000–6,000 psi design strength · reinforced flat plate roughly span/30, post-tensioned about span/40–45 · 25 ft bay on an 8 in reinforced slab · residential floor-to-floor about 9 ft against 11–13 ft for steel · forms stripped after roughly 3–7 days · formwork averaged 30% of finished structure cost across 22 buildings, range 16–41% · post-tensioned flat slab frame and floors £540/m² on a City of London office, Q4 2023, about $62 per square foot.

Post-tensioned flat plate residential towers throughout Miami, Toronto and Sydney; slipformed and jumpformed cores on most tall buildings; the aluminum gang-form, flying-table and self-climbing systems sold by Doka, PERI and EFCO that most US high-rise concrete crews work with; industrial slabs and data center pads, where the flatness tolerance rather than the strength drives the price.

The material is the cheap part. Ready-mix, rebar and placing labor are commodity purchases in every market, and the money concentrates in the temporary works: the 22-building study put formwork at 30% of the finished structure cost on average, with a spread of 16–41%. Formwork is usually rented rather than owned, so its cost scales with how long each set is tied up on the job, which converts schedule directly into a line item and gives the concrete subcontractor a reason to shorten the cycle. That is why nearly all the innovation in cast-in-place has been in forms — aluminum gang forms, flying tables, self-climbing systems — and almost none in the concrete itself. Comparative cost plans for a City of London office in Q4 2023 put a post-tensioned concrete flat slab frame and upper floors at £540/m² of gross internal floor area against £556/m² for a steel cellular composite frame, so the two frames were within 3% of each other; £540/m² works out to about £50 per square foot, roughly $62 at 2023 exchange rates, and that conversion is arithmetic done here rather than a published US figure. The steel option came out lower on total building cost anyway, because the shorter program cut site preliminaries. Note who pays and who benefits: faster cycles save the developer construction interest, while the investment in better forms sits with the concrete subcontractor, which is the ordinary reason good formwork systems spread slowly on low-bid work.

4 minHigh Rise Concrete ConstructionConcrete Forms · 500k+ views

11 minHigh Rise Building - Core Rebar & Post Tension SlabsNewton Energy · 5m+ views

Formwork (The Concrete Centre) · Examination of the cost ratio of the formwork (Acta Technica Jaurinensis)

Precast concrete is cast in a factory into reusable steel forms, cured indoors, trucked to the job and set with a crane. Most structural precast is also prestressed: high-strength strand is pulled tight along a casting bed 300–600 ft long, concrete is placed around it, and once the concrete gains strength the strand is cut, which squeezes the member and lets it span much farther for its depth than an ordinary reinforced section. The standard products are hollowcore planks, usually 4 ft wide and 6–16 in deep spanning roughly 20–50 ft, and double tees 8–15 ft wide and 24–36 in deep spanning 60–80 ft, which is what makes a parking deck work because one tee crosses a parking bay and its aisle with no columns in the way. Architectural wall panels, columns, beams, stairs and elevator shafts come out of the same plants, finished, so the crew that sets them is also installing the exterior. A beds-and-forms plant runs a daily cycle: strip in the morning, clean and reset forms, place strand and rebar, cast, cure overnight under heat. On site a crew of five to eight plus a crane sets roughly 20–40 pieces a shift, which is why a precast parking structure goes up in weeks.

Everything good about precast comes from casting indoors: consistent mixes, steam curing, dimensional control to a few millimeters, inspection of the whole run in one place, and no weather delay. The schedule benefit is real and it compounds, because erection can start while the foundations for the next phase are still going in and the pieces arrive with their finish already on. The weaknesses are connections and freight. A precast frame is an assembly of discrete pieces, so the joints have to do by design what a monolithic pour does for free, and diaphragm action through a floor made of separate planks is the hard part: precast parking structures failed in the 1994 Northridge earthquake, including one at California State University, Northridge, and that failure drove two decades of research and eventually a NIST design guide. Freight sets the market radius, since a truckload of concrete is heavy and low value, and beyond roughly 150–300 miles the haul eats the factory saving. Changes are also expensive once a piece is cast, so precast needs the design frozen far earlier than site-built work does.

Use precast when the same element repeats hundreds of times and a plant is within about 200 miles — parking structures, warehouses, stadium risers, prisons, and multifamily where hollowcore planks sit on masonry or precast walls. If your project is a parking deck, precast double tees should be the base case and anything else has to justify itself on cost per space. Choose it when winter would otherwise stop site concrete work, because the plant does not care about the weather and the crane does. Avoid it when the design is still moving, when the site has no crane access or lay-down room for trailers, or when the plan is one of a kind, since every unique piece needs its own form and the form is the expensive part. In high seismic zones, price the connection and diaphragm engineering explicitly rather than assuming a cast-in-place detail translates; that assumption is what the NIST guide exists to correct.

Casting beds 300–600 ft long, roughly one cycle per day · hollowcore planks 4 ft wide, 6–16 in deep, spans about 20–50 ft · double tees 8–15 ft wide, 24–36 in deep, spans 60–80 ft · erection crew of five to eight plus a crane, 20–40 pieces per shift · economic haul radius roughly 150–300 miles · hollowcore composite floor with topping £137–193/m² against £90–140/m² for composite metal deck, UK Q3 2025 · US precast industry revenue $25.8 billion in 2022.

Precast double-tee parking structures on almost every US hospital and airport campus; hollowcore plank floors on load-bearing masonry in mid-rise apartments; architectural precast facades on commercial towers; tilt-up wall panels for warehouses, which are precast cast flat on the building's own slab rather than in a plant; NIST GCR 17-917-47, the diaphragm design guide written after Northridge.

The plant is the business, and it is the reason precast is a capital-intensive way to build. Beds, forms, batching, steam curing, overhead cranes and a storage yard run into the tens of millions of dollars, all of it fixed, so the number that decides whether a precaster makes money is utilization rather than price per piece. That fixed cost also explains the geography: with hauling economic to roughly 150–300 miles, each plant serves a fixed territory and cannot chase demand elsewhere when its own market goes quiet, which is the same failure mode that has closed modular factories. The National Precast Concrete Association put US industry revenue at $25.8 billion in 2022, spread across a large number of regional plants rather than a few national ones. On unit cost, precast is not automatically cheaper: UK Q3 2025 rates put a hollowcore composite floor with topping at £137–193/m² of floor area against £90–140/m² for a composite metal deck, and on a Q4 2023 cost plan for a Merseyside secondary school a steel and precast hollowcore frame came to £379/m² against £321/m² for an in-situ concrete flat slab. What the owner buys for that premium is schedule and predictability, so precast makes sense when the developer is paying enough in construction interest or lost rent for weeks of schedule to be worth more than the extra structure cost.

9 minHollow Concrete Floor Manufacturing Process. Prestressed Hollow Core Slab Factory in KoreaFactory Monster · 1m+ views

5 minAUTOMATED Precast Concrete Factory Tour | The Process of Making Precast Hollow Core ConcreteElematic · 10k+ views

Offsite concrete construction (The Concrete Centre) · Seismic Design of Precast Concrete Diaphragms: A Guide for Practicing Engineers (NIST GCR 17-917-47)

A structural steel frame is hot-rolled wide-flange beams and columns cut, drilled and welded into finished pieces in a fabricator's shop, trucked to the job, and bolted together by ironworkers working off a crane. The floor is normally composite: corrugated steel deck spans 10–12 ft between beams, 3–3.25 in of concrete is placed over 2–3 in of deck, and headed studs welded through the deck lock the slab and the beam together so they bend as one member. Typical office bays run 30 ft by 30 ft up to 45 ft by 30 ft, and a composite beam is roughly span/22 deep, so a 40 ft span uses an 18–21 in beam with ductwork run under or through it. That stack of beam, deck and services is why a steel office building usually needs 13–15 ft floor to floor where a concrete flat plate gets by on 9–11 ft. Frame weights in UK cost data run about 55 kg/m² of floor area for a low-rise building on a short repetitive grid, 90 kg/m² for a high-rise on long spans, and 110 kg/m² where the grid is irregular and the connections are complex. Steel loses most of its strength above roughly 550 °C, so a rated frame also carries sprayed fire-resistive material or intumescent paint, which is a separate trade and a separate schedule item.

Steel spans farther per pound than anything else in ordinary building use, so it buys column-free floor plates that tenants can lay out however they like, and the frame is light enough to cut foundation cost. Almost all the work happens in a shop under cover, so tolerances are tight, the pieces bolt rather than cure, and erection is fast and largely weather-independent. It is also the easiest frame to change later, because a bolted connection can be undone and a beam can be reinforced, and the material has real scrap value at the end. The weaknesses are fireproofing, floor depth and price volatility. Fire protection adds a trade and a few weeks, the deeper floor sandwich costs building height and therefore cladding, and mill prices and fabricator lead times move enough through the cycle that a budget set at design can be well off at buyout. Long-span steel floors are also usually governed by deflection and vibration rather than strength, so you end up buying stiffness you do not need for load.

Pick steel when spans run past about 30–40 ft, when the tenant needs column-free space, when the schedule is the binding constraint, or when the building will be changed later — offices, hospitals, labs, arenas and industrial buildings. For a single-story warehouse or distribution shed, a steel portal frame is close to automatic; UK Q4 2023 cost plans put a portal frame at £127/m² of total frame cost against £189/m² for glulam beams on concrete columns. If the building is a repetitive residential plate on bays under 30 ft, concrete usually costs less and saves floor-to-floor height, so make steel justify itself there. Avoid steel where a hard height limit makes every extra inch of floor sandwich expensive, and check fabricator capacity in your market before committing, since a shop with a full book is a schedule risk that no design decision fixes. If the frame is unusual, expect to pay for it: complex connections and non-standard sections raise the rate per ton well above benchmark, and tall-building rates can run 15–20% above the top of the standard range.

Office bays 30 ft by 30 ft up to 45 ft by 30 ft · composite beam roughly span/22 deep · deck 2–3 in with 3–3.25 in topping, spanning 10–12 ft between beams · frame weight about 55 kg/m² low-rise short span, 90 kg/m² high-rise long span, 110 kg/m² complex · floor-to-floor 13–15 ft against 9–11 ft for a concrete flat plate · steel loses most of its strength above roughly 550 °C · low-rise frame plus composite floor plus 60-minute fire protection about £324/m² of floor area, UK Q3 2025 · material 30–40% of frame cost, fabrication 30–40%, erection 10–15%.

The Wilshire Grand in Los Angeles, whose steel superstructure went up over a concrete core; steel portal-frame distribution warehouses, which are most of the square footage built in steel each year; AISC-certified fabricator shops, where the certification is what lets an engineer accept shop welds without inspecting every one; cellular beams with service holes cut in the web, used to claw back floor-to-floor height on offices.

The mill price everyone watches is only part of the bill. On a typical multi-story commercial frame, raw material is 30–40% of total frame cost, fabrication is another 30–40%, and putting it up is 10–15%, which means a design that minimizes tonnage but multiplies connections usually costs more than a heavier, simpler one. The frame itself is roughly 10% of total building cost for a multi-story building, so the decisions that matter most are the ones that ripple outward into foundations, cladding area and schedule rather than the ones that shave pounds of steel. That shows up cleanly in a Q4 2023 cost plan for a City of London office: the steel cellular composite option was 3% more expensive than post-tensioned concrete on frame and upper floors, and 2% cheaper on the total building, because a lighter frame cut the foundations and faster erection cut the site preliminaries. Fabrication capacity is the real supply constraint, and it is medium-capital rather than high: a fabricator's shop is beams, saws, drill lines, welders and a yard, not a plant. Steel holds about 65% of the UK multi-story non-domestic market, and the reason is mostly that the general contractor and the developer both capture the schedule saving directly, which is unusual in construction and is why this innovation stuck when others did not.

5 minSteel Erection 101: A Beginner’s Guide Part 1Worker Efficiency · 10k+ views

18 minIron Workers 416 Building the Wilshire GrandKelly Candaele · 100k+ views

Cost of Structural Steelwork: Key Drivers & Ranges (SteelConstruction.info) · Steel Erection - Overview (US Occupational Safety and Health Administration)

Mass timber is small pieces of lumber glued or fastened into structural elements big enough to hold up a building. Cross-laminated timber is the headline product: layers of ordinary dimension lumber stacked crosswise and pressed with adhesive into panels of 3, 5 or 7 plies, roughly 3–12 in thick and up to about 10 ft wide by 40–60 ft long, used as floor plates, roofs and shear walls. Glued-laminated timber does the same thing in one direction to make beams and columns, and the two are usually combined into a post-and-beam frame with CLT decking. Panels are CNC-machined in the plant with their openings, notches and connection hardware already cut, so they arrive numbered and a crew of five to eight plus one crane assembles them like a kit; published erection rates run 3–4 days per story, and buildings up to nine stories have topped out in 3–4 months against as much as 28 days a story for site-cast concrete. Spans are the constraint: CLT floor panels typically go 15–25 ft in a single span and glulam beams 20–40 ft, so a mass timber grid is closer to a concrete grid than a steel one. The 2021 International Building Code is what made tall wood legal in the US, adding construction Types IV-A, IV-B and IV-C above the old heavy-timber type.

The code change is the biggest single thing that happened to this material. For a sprinklered Group R-2 residential building, Type IV-A now reaches 18 stories and 270 ft with up to 184,500 sq ft per story, Type IV-B 12 stories and 180 ft, and Type IV-C 8 stories and 85 ft, against 5 stories for the old Type IV-HT heavy timber and 4 stories for Type V-A light wood frame. The trade is explicit and it is about how much wood you get to see: IV-A requires every mass timber surface covered in noncombustible protection, three layers of 5/8 in Type X gypsum where a 3-hour rating applies, while IV-C lets the timber stay exposed at a 2-hour rating and costs you nine stories for it. A mass timber floor weighs a fraction of a concrete one, which shrinks foundations and seismic mass, and an exposed soffit doubles as the finished ceiling, so a floor-to-floor of 10–11 ft can deliver the ceiling height a concrete building needs 11–12 ft for. The weaknesses are cost, moisture and supply. Panels have to be kept dry during erection and detailed so they stay dry afterwards, since wet CLT delaminates and stains; long spans are usually governed by vibration rather than strength; and the panels come from a short list of plants, so a project far from one pays freight on a lot of volume.

Use mass timber when the building is 5–12 stories of repetitive residential, office or academic space, when exposed wood is worth something to the tenant or the owner's brand, and when a plant is within reasonable trucking distance. If schedule is the reason you are looking at it, check that the site is crane-served and the design can be frozen early, because the schedule saving comes entirely from cutting panels in a factory and that requires final dimensions months ahead. If you want the wood visible, design to Type IV-C from the start and accept the story limit, rather than reaching for height and then discovering the gypsum encasement erased the thing you were paying for. Avoid it where spans exceed about 40 ft, where the floor plate is one of a kind, or where the pro forma has no room for a structure premium, since it usually costs more than concrete or steel per square foot. The honest default is still concrete for repetitive residential and steel for long spans; mass timber is worth choosing when the schedule, the ceiling height, the lighter foundations and the marketing together cover the premium.

CLT panels 3–12 in thick, up to about 10 ft by 40–60 ft, in 3, 5 or 7 plies · CLT floor spans typically 15–25 ft, glulam beams 20–40 ft · erection 3–4 days per story, up to nine stories in 3–4 months, against as much as 28 days a story for site-cast concrete · sprinklered R-2 limits of 18 stories and 270 ft for Type IV-A, 12 and 180 ft for IV-B, 8 and 85 ft for IV-C · Type IV-A needs three layers of 5/8 in Type X gypsum over the timber for a 3-hour rating · median cradle-to-gate global warming potential across 81 verified EPDs of 0.26 kg CO2e/kg for CLT and 0.24 for glulam · front-end construction cost roughly 6% to 26% above comparable reinforced concrete.

Ascent in Milwaukee, 25 stories and the tallest mass timber building in the world when it finished in 2022; Brock Commons Tallwood House at the University of British Columbia, 18 stories of CLT and glulam on concrete cores, erected in 2017; Mjøstårnet in Brumunddal, Norway, 18 stories of glulam at 85 m; Carbon12 in Portland, Oregon, an eight-story CLT and glulam building finished before the code caught up; Mercer Mass Timber's Spokane plant, one of the largest CLT and glulam facilities in the US.

Mass timber usually costs more per square foot than the concrete or steel it replaces, and the honest case for it is what the owner gets back elsewhere. Reviewed studies put front-end construction cost about 6% above a comparable concrete building in one 2021 analysis and 26% above in a 2020 one, and UK Q4 2023 cost plans show the same direction on simpler buildings: a glulam frame on a distribution warehouse came to £189/m² of frame cost against £127/m² for a steel portal, and £234/m² against £184/m² on a supermarket. The payback is schedule, floor-to-floor height, smaller foundations, and rent or sale premiums that developers report but nobody has published a clean number for, which is why the business case tends to be made building by building. On carbon the gain is real but smaller than the marketing suggests: a comparative assessment of a 12-story mass timber building in Portland found an 18% reduction in global warming potential against a similar concrete building, and median cradle-to-gate figures across 81 verified EPDs are 0.26 kg CO2e/kg for CLT and 0.24 for glulam. Stored carbon is the part that makes the material distinctive — CLT at roughly 480 kg/m³ that is about half carbon by dry mass holds around 240 kg of carbon, or 880 kg of CO2, per cubic meter, which is arithmetic done here rather than a published figure, and it sits against roughly 125 kg CO2e/m³ of manufacturing emissions at the EPD median. The supply side is the risk a developer should watch: the WoodWorks project database counted 347 CLT projects in the US as of 2024, about half of them in the West, while northwestern CLT capacity of 212,000 m³ already runs 20% above projected 2030 regional demand and one Oregon plant has already closed. Capacity ahead of demand is good for panel prices and bad for the panel makers, and it means a buyer should check that a supplier will still be there at delivery.

5 minWhat is Cross Laminated Timber (CLT)?The B1M · 100k+ views

12 minHow to build a wood skyscraperVox · 500k+ views

Tall Wood Buildings in the 2021 IBC – Up to 18 Stories of Mass Timber (WoodWorks) · Landscape of Cross-Laminated Timber in the United States (National Renewable Energy Laboratory)

This is how almost all American housing actually gets built. Platform framing stands 2x4 or 2x6 studs at 16 or 24 in on center on a sole plate, sheathes the wall in plywood or OSB so it can take wind and seismic shear, and builds each story as a platform on top of the one below; floors are dimension lumber, engineered I-joists or open-web trusses spanning roughly 12–30 ft, and the roof is pre-engineered trusses at 24 in on center spanning 24–40 ft. Nothing needs a crane, the tools cost a few thousand dollars, and a crew of four to six frames a typical house in one to two weeks. Light-gauge or cold-formed steel framing is the same geometry in galvanized sheet: C-shaped studs roll-formed from steel roughly 33 to 97 mil thick (about 20 to 12 gauge), screwed together instead of nailed, and noncombustible, which is the whole point, because it is permitted in construction types where wood is not. The Census Bureau's Characteristics of New Housing found 96% of owner-built single-family homes completed in 2025 were wood framed and 2% concrete, out of 1,005,000 single-family completions; in multifamily the split is more mixed, with 73% of Western units built for rent in wood and 16% in steel.

Light framing is the cheapest structure per square foot available in the US, and the reason is that the labor pool, the supply chain and the code are all built around it: any lumberyard stocks the parts, any market has crews, and a mistake is fixed with a saw. It is also completely field-adjustable, which absorbs the survey errors, soil surprises and late owner changes that a factory-built system cannot. The weaknesses come from the material being combustible and organic. Code caps a sprinklered Group R-2 building at 4 stories and 70 ft in Type V-A and 3 stories in V-B, which is why the standard American apartment building is five stories of wood over a concrete podium in Type III. Wood also shrinks and moves as it dries, so a five-story wood building settles an inch or more and every detail has to allow for it, and lumber is a traded commodity whose price has moved by a factor of three inside a single year. Cold-formed steel fixes the fire, shrinkage, rot and termite problems and costs more per stud, and its own failure mode is thermal: a steel stud conducts heat straight through the wall, so a cold-climate assembly needs continuous exterior insulation or the nominal R-value is a fiction.

For single-family houses and anything up to 4 stories of residential, wood platform framing is the default and the burden of proof sits on whatever you would use instead. For 5–6 stories, use wood over a concrete or masonry podium in Type III construction, which is the standard American apartment building for a reason. Reach for cold-formed steel when the construction type requires noncombustible framing, when the building runs past what wood can carry, in wildfire and termite country, and for interior partitions in commercial work, where most cold-formed steel actually goes. If you are in a cold climate, do not specify steel studs without continuous exterior insulation, because the thermal bridging through the studs will cost more in energy than the framing saved. And if you are evaluating a technology that speeds up framing, size the prize first: framing is 16.6% of the construction cost of a new US home, so halving it saves 8% of construction cost and about 5% of the sale price.

Studs 2x4 or 2x6 at 16 or 24 in on center, roof trusses spanning 24–40 ft · cold-formed steel studs roughly 33–97 mil · crew of four to six frames a house in one to two weeks · 96% of owner-built single-family homes completed in 2025 were wood framed, out of 1,005,000 completions · framing $70,982 of a $428,215 total construction cost on a 2,647 sq ft home in 2024, roughly $27 per square foot of the $162 total, both derived here · construction is 64.4% of a $665,298 average sale price, finished lot 13.7%, builder profit 11.0% · sprinklered Group R-2 capped at 4 stories in Type V-A and 3 in Type V-B.

The 5-over-1 and 5-over-2 podium apartment buildings that make up most new US multifamily; pre-engineered roof trusses, which moved roof framing into a factory decades before anyone used the word prefab; cold-formed steel load-bearing framing on mid-rise apartments and hotels, where it competes directly with the wood podium building; steel stud interior partitions in essentially every US office and hospital.

The NAHB Construction Cost Survey is the clearest picture of where the money goes in a US house, and it says the structure is not where it is. On a 2,647 sq ft home in 2024, total construction cost was $428,215, of which framing was $70,982 and foundations $44,748, while interior finishes took 24.1% and mechanical, electrical and plumbing rough-ins took 19.2%. Dividing that out gives about $162 per square foot of construction cost and about $27 per square foot of framing, both arithmetic done here rather than published rates. Construction is 64.4% of the $665,298 average sale price, the finished lot is 13.7%, and the builder's profit is 11.0%, so a builder working on an 11% margin has limited appetite to underwrite a new method that might not work. Material price risk sits mostly with the builder and gets passed to the buyer with a lag, which is why a lumber spike shows up as thinner builder margins for a couple of quarters before it shows up in prices. The economics of cold-formed steel turn on avoided cost rather than material cost: the studs cost more, but a noncombustible frame can unlock stories, cut insurance premiums and remove the shrinkage detailing, and those savings land with the developer and the insurer rather than with the framing subcontractor who has to retool for screws. That split, where the party paying is not the party benefiting, is the ordinary reason light-gauge steel has stayed a niche in US housing while dominating commercial partitions.

17 minHouse Rough Framing EXPLAINED In 17 Minutes!MattBangsWood · 500k+ views

4 min8-Story Apartment Building with Structural Cold Formed Steel Stud FramingWall-tech · 500k+ views

Cost of Constructing a Home in 2024 (NAHB Eye On Housing) · Cold-Formed Steel (CFS) Framing 101: A Practical Guide for Designers, Builders and Owners (BuildSteel.org)

Volumetric modular means building the rooms themselves in a factory. A steel or wood-framed box the size of a room or a whole apartment moves down a line of 20 to 24 stations picking up framing, wiring, plumbing, insulation, drywall, cabinets, fixtures and paint, and leaves the plant with its interior finishes in place and a weather barrier on the outside. One module takes 10 to 15 days start to finish and roughly 600 to 700 labor hours, and a line running machine-assisted manual assembly completes two to three modules a day. Foundations, podium and utilities are built on site during those same weeks, so the two halves of the job run in parallel instead of in sequence. The modules are trucked in, craned onto the podium and stitched together, and the corridors, risers, roof and facade are finished conventionally. A 200-unit apartment building runs to roughly 160 modules, and the factory scope is typically 40 to 60 percent of construction cost. The US permanent modular market was $20.5 billion in 2025, about 5.1 percent of construction activity in the segments it competes in.

The schedule saving is real and it comes from parallelism, not from anyone working faster: across seven US multifamily manufacturers surveyed in 2024, site schedules ran 7 to 15 months and averaged 11, roughly 30 percent faster than site-built. Quality is more consistent because the same jig, the same crew and indoor conditions produce the same box 160 times over, and the state inspects the factory instead of each unit. The cost saving is smaller and far less dependable: that same survey put total project cost 5 to 10 percent below site-built, with a range running from 20 percent below to 10 percent above. Modules also use more material, because every box carries its own floor, ceiling and four walls, and the double assemblies at each joint add roughly 8 to 10 percent more lumber than stick framing. The design has to be frozen early (materials are ordered four to six weeks ahead of production, and production can start six months ahead of the first delivery), so a late change means running modules back down the line. The largest weakness is not structural at all: the modules are paid for months before the building exists, and a construction lender's draw schedule is tied to work in place on the site.

Use volumetric modular when the same room repeats a hundred times or more and there is a factory within a few hundred miles: hotels, student housing, barracks, and apartment buildings with two to four unit types. If the building has fewer than about 100 repeating units, or more than half a dozen unit types, the line spends its time changing over, and panelized systems or site framing will usually beat it. Settle the money before the design: a 5 percent deposit at letter of intent and a 25 percent material deposit fall due three to six months before production, normally before the construction loan funds, so that cash has to come from equity. Settle the route and the crane position before the unit plan is fixed, because highway width sets the room width and the crane's capacity at full reach sets the module weight. If the schedule saving is worth nothing to you, because there is no rent to capture and no interest clock running, there is not much left in it.

US permanent modular market $20.5 billion in 2025, about 5.1% of construction activity in its segments · module cost $100–180/sq ft, $130 average · 200-unit building ≈ 160 modules, factory scope 40–60% of construction cost · site schedule 11 months average (7–15), roughly 30% faster than site-built · total cost 5–10% below site-built, range 20% below to 10% above · 8–10% more lumber than stick framing · 600–700 labor hours and 10–15 days per module

461 Dean Street in Brooklyn, 32 stories and about 930 modules, which finished roughly three years late and ended in litigation between the developer and its contractor; Singapore's Clement Canopy, two 40-story residential towers built as prefabricated prefinished volumetric construction; US plants including Autovol in Nampa, Idaho, Factory OS in Vallejo, California, and Rise Modular in Minnesota, whose 200-unit Minneapolis apartment building used 160 modules on a $45 million budget.

A module sells for $100 to $180 per square foot, $130 on average, and materials are about 60 percent of what it costs to produce. Because the factory scope is 40 to 60 percent of construction cost, most of the project's money now moves on a manufacturing payment schedule rather than a construction one: 5 percent at letter of intent, 25 percent for materials, then fees of 30 to 35 percent at each module start and again at each module completion, billed every 15 to 30 days. Lenders treat the off-site portion as unsecured on many deals, since a half-built box in someone else's factory is poor collateral, so loan-to-cost runs 5 to 10 points lower and the gap is filled with equity. In a 2024 case study of a $45 million, 200-unit Minneapolis building, the developer needed about $18.2 million of equity against $13.6 million for the equivalent site-built project, roughly 30 percent more, and $8.1 million of it went out three to six months before construction started. Interest carry came to $2.4 million, the same as the site-built case, because the shorter schedule was offset by the money leaving earlier. The developer captures the six months of earlier rent; the manufacturer holds a thin factory margin; the site trades lose scope. That split is why the method spreads through developers who build the same product repeatedly and stalls everywhere else.

5 minThe World's Tallest Modular HotelThe B1M · 100k+ views

21 minThis Modular Housing Company is Building a 180-Unit Detroit Apartment Complex in a FactoryFlux City · 10k+ views

Modular Building Industry | Modular Construction Market Statistics (Modular Building Institute) · Offsite Construction for Housing: Research Roadmap (HUD Office of Policy Development and Research)

Panelized construction ships the building as flat pieces rather than as boxes. There are three levels of it. Open panels are studs and sheathing only, cut and nailed on a factory table and stood up on site for the trades to work in. Closed panels arrive with insulation, wiring chases, a weather barrier and often the windows already fitted, so the wall is finished on the outside before it leaves the plant. Structural insulated panels go further and replace the studs entirely with a rigid foam core bonded between two sheets of oriented strand board, which carries the load and insulates in one piece with nothing bridging the assembly. Roof and floor trusses are the oldest form of the same idea and are ordinary practice in US housing. All of it ships flat on a normal flatbed inside the 102-inch federal width limit, so no oversize permits, no escorts, and several times more floor area per truck than a volumetric module.

The capital is modest. A panel line is a saw, a bridge or nailing table, a jig and a shed, not the 22-station line, spray booth and outdoor module yard a volumetric plant needs, so break-even volume is far lower and the plant survives a downturn instead of closing. Shipping flat also means the market radius is set by ordinary freight rather than by 50 separate state permit regimes. The weakness is that far less work moves indoors. Framing was 16.6 percent of the construction cost of a US single-family home in 2024, and interior finishes (24.1 percent) and mechanical, electrical and plumbing rough-ins (19.2 percent) stay on site whatever you do to the walls. Panels are also unforgiving about the foundation: a wall cut to the millimeter has to land on concrete poured to the inch, and shimming a panelized wall to a crooked slab gives back the saving in rework. For structural insulated panels specifically, the trade sequence changes, since electricians pull through pre-formed chases instead of drilling wherever they like, and a badly sealed panel joint is a condensation path inside the panel where nobody can see it.

If the building repeats but the units do not, or the nearest factory is more than a few hundred miles away, use panels rather than modules. If you already buy roof trusses, wall panels are the next increment and they need no new financing structure, no oversize permits and no crane day. If the goal is envelope performance rather than cost, choose closed panels or structural insulated panels, because a factory-set joint is the cheapest route to a tight building. If the goal is total cost, keep expectations proportionate: framing is about a sixth of construction cost, so even a large cut in framing labor moves the project a few percent. And budget for a slow first job, because a crew that has never set panels will be slower than it would have been framing on site.

Framing 16.6% of US single-family construction cost, interior finishes 24.1%, mechanical, electrical and plumbing rough-ins 19.2% · panels ship inside the 102-inch federal width limit, so no oversize permit · SIPA cites a BASF time-motion study finding 55% less jobsite labor with structural insulated panels · structural insulated panels claimed roughly 50% more energy-efficient than conventional timber framing · halving framing labor works out to roughly 4% of construction cost, derived here

Roof and floor trusses, which are close to universal in US single-family construction and are the panelized system nobody thinks of as one; Bensonwood and Unity Homes in New Hampshire, which build closed-panel wall and roof cassettes with services already run; Sweden's closed-panel timber housing industry, which supplies most of the country's single-family homes; Veev, a panelized housing startup that filed for bankruptcy in 2023 and had its assets bought by Lennar.

A panel plant costs on the order of a piece of production equipment plus a building, so the fixed cost to cover each year is a fraction of a volumetric factory's and the plant does not have to be full to survive. The supplier sells at a materials-plus-fabrication margin and the builder buys back framing labor and cycle time. Work the size of the prize before buying: framing is 16.6 percent of construction cost, roughly half of that is labor, so cutting framing labor in half is about 4 percent of the job (that arithmetic is derived here, not a published figure). Panelizing also pulls a week or two out of the framing stage, which matters more than the labor line when interest is running. The split of who pays and who benefits is the usual construction problem in miniature: the builder captures the cycle time, and the framing subcontractor loses billable hours, which is why framers often price a panelized job as though they were framing it anyway. Truss plants are the proof that the economics work at this scale, because they are ordinary regional manufacturing businesses that have been profitable for decades on a few hundred miles of catchment.

6 minCarpentry Contractors Prefab Wall & Floor Panel FramingCarpentry Contractors Company · 50k+ views

13 minFactory Framing Passive House Walls - "Build Original Series" Episode 1Matt Risinger · 50k+ views

What are SIPs Overview (Structural Insulated Panel Association) · Cost of Constructing a Home in 2024 (NAHB Eye On Housing)

These are the two pieces of a building most worth prefabricating without going all the way to volumetric modules. A multi-trade rack is a section of corridor ceiling built on a bench in a shop: hanger steel, ductwork, sprinkler main, domestic water, medical gas, conduit and cable tray assembled as one unit, commonly around 6 meters long, then trucked in and lifted into place complete. A bathroom pod is a finished bathroom, floor to ceiling, built and water-tested in a factory and set into the structure before the surrounding walls close; monolithic glass-reinforced polyester pods weigh under a ton, and steel-framed pods with tiled floors run roughly 1.5 to 3 tons. The mechanism in both cases is bench work replacing overhead work. In a shop the assembly sits at waist height with materials staged beside it and one trade at a time working on it; on site the same pipe goes up from a lift, above head height, in a corridor being shared with three other trades. Both depend entirely on a coordinated model, because the rack is fabricated to the dimensions in the model and there is no room to improvise. Mechanical, electrical and plumbing rough-ins were 19.2 percent of the construction cost of a US single-family home in 2024, and the share is higher still in hospitals and laboratories.

Multi-trade prefabrication has been reported to raise productivity by roughly 20 percent, and it moves the most dangerous hours in the mechanical trades, the overhead and ladder work, onto a bench. Pods add a quality argument the racks do not have: a pod is pressure- and flood-tested in the factory, so the most common source of hidden water damage is checked before it is buried in the building. The honest weakness is that the field install can eat the whole saving. In a Korean pilot on corridor ceilings, hoisting the racks into place with a chain block and a scissor lift added labor equal to 19.6 percent of the conventional method's entire labor input for the same services; a purpose-built stacker lift on the third pilot cut the on-site labor to 47 percent of the first. Prefabrication also demands the model be finished and the design frozen months earlier, and a change order after fabrication is rework in a shop that may be hundreds of miles away. More than half of contractors surveyed still describe their prefabrication as inefficient, which is a fair reflection of how much of the benefit depends on execution rather than on the idea.

Use racks where the same corridor section repeats: hospitals, laboratories, data centers, hotels and apartment corridors. Use pods where the same bathroom repeats more than about a hundred times, and confirm the lift path and the floor-to-floor tolerance can take them before anyone orders. If the model is not fully coordinated and signed off before fabrication starts, do not prefabricate at all, because you will pay for the same pipe twice. Buy or rent the right lifting rig before the first rack arrives, since the pilot data says that is where the saving is won or lost. If the job is one-off, small, or has a design that will still be moving during construction, install on site and spend the effort on sequencing instead.

Mechanical, electrical and plumbing rough-ins 19.2% of US single-family construction cost, higher in hospitals and laboratories · multi-trade racks commonly assembled in 6-meter sections carrying four or more trades · multi-trade prefabrication reported to raise productivity roughly 20% · Korean pilot: on-site rack installation with a chain block and scissor lift added labor equal to 19.6% of the conventional method's total; a purpose-built lift cut on-site labor to 47% of that first pilot · glass-reinforced polyester pods under 1 ton, steel-framed pods roughly 1.5–3 tons · more than half of contractors surveyed call their prefabrication inefficient

Multi-trade corridor racks at the University of Colorado Hospital expansion, fabricated by U.S. Engineering; MacDonald-Miller's multi-trade racks on Seattle commercial work; bathroom pods from SurePods and Eggrock in US hotel, student housing and healthcare projects; Singapore's Building and Construction Authority productivity program, which pushed prefabricated bathroom units into mainstream practice there well ahead of the US market.

The mechanical contractor pays for the shop, the jigs, the racking and the trucks, and captures the margin only if the shop stays busy, which is the same utilization problem a modular factory has at roughly a tenth of the scale. Shop hours are cheaper than field hours and produce more per hour, so the gross saving comes from both sides at once, but it is realized only if the backlog is steady enough to keep the benches loaded between jobs. The party that captures the schedule benefit is the general contractor or the developer, and the party that has to invest is the subcontractor, which is the standard reason this spreads slowly: under low-bid design-bid-build the sub has no way to recover the investment, and under design-build or integrated project delivery it does, which is where nearly all of the successful examples sit. Pods usually cost the same or slightly more than a site-built bathroom in first cost, so the case for them is schedule and defect rate rather than price. A pod supplier also takes the plumbing subcontractor's most profitable repeating work off the table, and that subcontractor prices the rest of the job accordingly, which is worth modeling before assuming the saving lands in the budget.

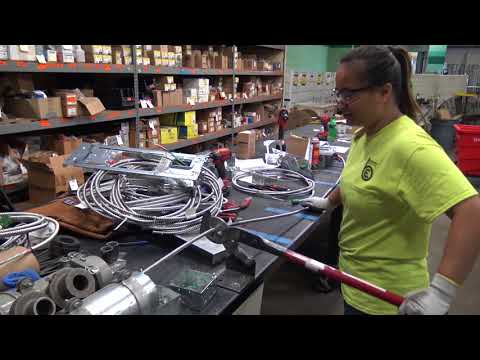

6 minMulti-trade prefabrication at the University of Colorado Hospital ExpansionU.S. Engineering · 10k+ views

4 minPrefabrication & Modularization: Installing Bathroom PODS - The Weitz CompanyThe Weitz Company · 10k+ views

Prefabrication and Modular Construction 2020 SmartMarket Report (Mechanical Contractors Association of America) · Comparative Analysis of Multi-Trade Prefabrication Construction Methods (Journal of Asian Architecture and Building Engineering)

A volumetric plant is a factory with a factory's cost structure, and that structure, not the buildings, is what has decided the outcome for most modular companies. Building one costs roughly $50 million for a smaller facility and up to $100 million for a large one, and that money goes in before a single module is sold. A line of 20 to 24 stations running machine-assisted manual assembly turns out two to three modules a day, and a semiautomated line three to five, so over a 250-day working year the full-rate output is roughly 500 to 750 modules, or 750 to 1,250 with automation (the day rates come from a 2024 survey of seven US multifamily manufacturers; the annual figures are that arithmetic). Overhead by itself, meaning rent, insurance and utilities, can run to $1 million a month, with $30,000 to $40,000 of it in electricity. Payroll sits on top of that and is only nominally variable: a plant completing three modules a day employs roughly 225 line workers plus another 100 in supervision, engineering, design and sales, and a crew laid off in a downturn does not come back trained. A module sells for $100 to $180 per square foot, materials are 55 to 60 percent of the sale price and direct labor 15 to 20 percent, which leaves roughly a fifth of revenue to cover the fixed cost and produce a profit.

A full plant is the cheapest way to build repetitive housing, and it is one of the few places in construction where a learning curve accumulates, because the same box is built on the same jig by the same crew hundreds of times. The difficulty is the size of the contribution per module set against the fixed cost. A 1,150-square-foot module at $130 per square foot sells for about $150,000, and roughly a fifth of that, about $30,000, is left after materials and direct labor; covering $12 million of annual overhead therefore takes about 400 modules a year, which is exactly the break-even one large manufacturer gave Berkeley researchers, and which is four to five 100-unit buildings a year just to keep the doors open. Against a full-rate 500 to 750 modules, 400 is 55 to 80 percent utilization before any profit at all (that division is derived here; the 400-module figure is the manufacturer's own). Reported margins run from the single digits to the low teens, so a fifth off the volume takes the whole year's profit with it. And the demand that fills the line is multifamily starts within 250 to 400 miles, which is a local, cyclical number no manufacturer controls, so the revenue swings while the fixed cost does not.

Judge a modular manufacturer on committed backlog in modules, not on pipeline in dollars: ask how many modules sit under a signed contract with a funded project behind them, and compare that with 400 a year. If the answer is under a year of break-even volume, the plant is being funded by its investors rather than its customers, which is a question about runway rather than a judgment about the buildings. If you are a developer, prefer a plant whose line is already full, because a manufacturer with an empty line will take your job at a price that does not cover its overhead and then fail partway through it, which is the worst outcome available to you. If you are considering building a plant, count the multifamily starts inside a 250-mile circle in a bad year rather than an average one, and size the line to that number. If the volume is not there, buy from an existing plant or use panelized systems instead, which need a fraction of the fixed cost and survive a downturn.

Plant capital roughly $50M for a smaller facility, up to $100M for a large one · 2–3 modules/day machine-assisted, 3–5 semiautomated, so 500–1,250 a year at full rate · overhead up to $1M/month, $30–40k of it electricity · module $100–180/sq ft, materials 55–60%, direct labor 15–20% · break-even about 400 modules a year, four to five 100-unit buildings · 55–80% utilization to break even, derived · practical demand radius 250–400 miles

Katerra raised roughly $2 billion, owned its design studios, factories and supply chain, and filed for bankruptcy in 2021 with its plants running well below capacity; Legal & General closed its modular housing business in 2023 after cumulative losses in the hundreds of millions of pounds, and ilke Homes went into administration the same year, four years after Homes England put £30 million into its Knaresborough factory on a plan to reach 2,000 homes in 2020 and 5,000 a year within five years. Some states have started to fund the gap directly: Colorado awarded $38 million to modular manufacturers and factory teams in 2024 as loans at 1.5 to 1.75 percent.

Nearly all of the cost of running a modular plant is fixed within any one year, so this is a utilization business: the price per module barely moves, and the gap between a good year and insolvency is the number of days the line runs. That is the reverse of a site builder's cost structure, where crews are hired per project and released at the end, and it is why the ordinary construction cycle is survivable on site and fatal in a factory. Cash timing makes it worse. The manufacturer orders materials four to six weeks ahead of production and can start a project's modules six months before the first delivery, while a construction lender advances against work in place on the site it holds as collateral, so a half-built module is the manufacturer's own inventory rather than anyone's security. HUD's research roadmap on offsite construction states the problem plainly: the finance cycle of housing development and a factory's need to keep its line flowing are not aligned. The gap gets filled by developer deposits (5 percent at letter of intent, 25 percent for materials) or by the manufacturer's balance sheet, which means a thinly capitalized manufacturer cannot serve a developer with a slow lender, however good the project is. The developer captures the schedule saving and the manufacturer carries the fixed cost, and no standard contract moves that risk from one to the other.

10 minThe Rise and Fall of Katerra | WeWork 2.0Belinda Carr · 50k+ views

15 minWhy It's So Hard to Mass-Produce HousingAbout Here · 500k+ views

Understanding the Challenges of Financing Modular Construction: A Case Study for Prospective Multifamily Units (National Renewable Energy Laboratory) · Disruptive Development: Modular Manufacturing in Multifamily Housing (Terner Center for Housing Innovation)

Everything a modular factory builds has to fit on a truck and go up in one window, and those two facts set the design. Federal law fixes 102 inches, 8 feet 6 inches, as the width a state must allow on the National Network, so any module wider than that needs an overwidth permit from every state on the route. There is no federal height limit; states set their own, and 13 feet 6 inches including the trailer deck is the common ceiling, which leaves a finished ceiling of about 9 feet inside the module, or 9 feet 6 inches with a tray ceiling. Practical length runs 60 to 65 feet. Inside that envelope the cost steps with width: modules under 12 feet wide mostly travel with light restrictions, 12 to 15 feet picks up escorts and route conditions, and 15 to 16 feet is almost universally declared a wide load needing police escorts and often overnight travel. Transportation and placement together run $5,000 to $10,000 per module. On site the modules are craned onto the podium and stacked, bolted through the floor and ceiling joists with the marriage walls strapped together, and then buttoned up, which takes one to two months because a module arrives 70 to 80 percent complete.

The set itself is fast: a crane places four to six modules a day on a low-rise job and 10 to 12 on a well-organized mid-rise, so the structure of a 160-module building goes up in roughly two to five weeks. Wider modules help on both counts, since a 16-foot box carries more finished floor area per truckload and takes one crane pick instead of two, and one manufacturer put the trade at $2,000 to move a 14-foot module against $3,500 for a 16-foot one. The weakness is that all of it happens in a single scheduled window. The crane is mobilized, the street closure is permitted, the escorts are booked and the trucks arrive on a timetable, so a delay burns a crane day at $5,000 to $15,000 whether or not anything is set. Weather is the other exposure, because the interiors are finished before they arrive: once modules are stacked, water gets in at the joints and travels down through the connection points, which has caused serious delays on more than one Bay Area project. The site also has to hold the boxes, since a general contractor typically wants a week of modules staged and 50 modules take roughly 1.3 acres, so an infill site usually needs a marshaling yard within 5 to 10 miles.

Run the route survey before you fix the unit plan, because the narrowest bridge, the tightest turn and the strictest state on the route set the module width, and the module width sets the room width. If the design needs an open span past about 11 feet, expect either added structure in the bearing wall or two modules joined on site. If the site cannot stage a week of modules, price a marshaling yard within 5 to 10 miles before you price the crane, since crane idle time is the expensive failure here. If the set window falls in the wet season, buy the temporary roof: an EPDM membrane over the shrink wrap costs $500 to $600 a module, which is cheap against water damage that surfaces in the finishes a year later. And if the haul runs much past 250 to 400 miles, get a delivered-and-set price in writing before committing to that factory, because escorts, overnight travel and multi-state permits all scale with distance and width at once.

Federal width 102 in (8 ft 6 in) on the National Network, permits above it · height commonly 13 ft 6 in including trailer, giving about a 9 ft finished ceiling · practical length 60–65 ft · escorts usual above 12 ft wide and near-universal at 15–16 ft · transport and placement $5,000–10,000 per module · crane day $5,000–15,000, 4–12 modules set per day · 50 staged modules ≈ 1.3 acres

The Domain in San Jose, where an LR1400 crawler crane handled 70,000-pound modules and reached 320 feet in each direction; a San Francisco Bay Area project that paid $2,500 a module to truck them in from a plant in Sacramento, in a state where anything over 16 feet wide adds roughly $3,000 a trip in police escorts; Epoch Homes in Pembroke, New Hampshire, which keeps more than 5 acres of wrapped modules in outdoor storage so the line does not stop when a customer's site is not ready.

Transport and placement at $5,000 to $10,000 a module is $800,000 to $1.6 million on a 160-module building, roughly 2 to 4 percent of a $45 million project (that percentage is derived from those two figures). That is small against the 5 to 10 percent modular saves overall, but it grows with distance while the saving does not, which is why manufacturers quote 250 to 400 miles as the furthest it is worth shipping: doubling the freight bill on a long haul adds about 3 points of project cost and takes most of the advantage with it. On the site the crane is the pacing item, so the set is planned around modules per crane day, and reducing the number of picks is usually worth paying for, whether by wider modules, a staging yard, or a lift plan that reaches the far corner without repositioning. The set crew is small, usually eight to ten people between the crane operator, oiler, signal person, riggers and the carpenters landing and bolting, and every other trade on the job is waiting on them while general conditions run per month. Who pays for the freight depends on the contract: most manufacturers now quote delivered and set, which puts the route risk on the party best placed to plan it, while a developer buying at the factory gate usually meets the permit and escort cost later. The route survey and the lift plan are the least expensive items in the whole sequence, and what they prevent is a crane and a set crew standing idle at $5,000 to $15,000 a day.

5 minTwo Story Modular Home Crane SetSunrise Housing Inc · 50k+ views

2 minPrefab Apartment Buildings Stack Together Like LegosKPIX | CBS NEWS BAY AREA · 50k+ views

Federal Size Regulations for Commercial Motor Vehicles (Federal Highway Administration) · Piecing together modular: understanding the benefits and limitations of modular construction methods for multifamily development (MIT)

A nozzle on a gantry or a boom extrudes a stiff cement mortar in beads a couple of inches wide and stacks them layer on layer, tracing the wall plan from a 3D model. Most systems print two parallel shells and leave the cavity between them for insulation, with solid cores every few feet that take rebar and grout so the wall carries load. The mix has to hold its shape the instant it leaves the nozzle and still bond to the layer underneath, which is why it is a proprietary printable mortar rather than ready-mix concrete. ICON's Titan is a tracked four-boom arm that prints to 27 feet, runs a maximum extrusion rate of 3 cubic yards an hour, sets up in two to three hours and takes two operators; COBOD's BOD2 is the gantry version, sold in more than 35 countries with a crew of four. The printed result is walls. Foundations, floors, roof, windows, doors, plumbing, wiring, ductwork and every finish are built the way they always were, by the same trades.

Curves and non-rectangular plans cost nothing extra, since the machine follows whatever path the model describes, and the finished wall is concrete on both faces, so it needs no sheathing, siding or drywall on those surfaces and comes with inherent fire and wind resistance. The weakness is scope. The printer does one trade, and the wall material is expensive: ICON prices its FormCrete at $620 per cubic yard and says a 2,500 square foot home takes about 70 cubic yards, so roughly $43,000 of material goes into walls that a framing crew would have built out of lumber for less. Code approval took years and is system-specific, with ICON's wall assembly carrying an ICC-ES evaluation report rather than a general code path, so a builder cannot simply print a wall and expect an inspector to pass it. Appraisers and insurers also have thin comparable data, which shows up as slower financing rather than as a technical problem.

If you are building fifty or more near-identical single-story units on flat lots inside a short haul of a material supplier, a printer is worth pricing seriously. If you are building one house, rent the service instead of buying a machine, and expect the novelty to cost you rather than save you. Avoid it where the plan has a second story, a complicated roof, or many openings, because the printer stops at the top of the wall and the trades you did not automate set the schedule anyway. If your actual goal is a cheaper house, look at land, permitting and finishes first, since those are much larger shares of the price than the walls. The usual alternative is wood or light-gauge steel framing, or CMU where you want the mass.

Titan printer and pump priced at $899K · FormCrete at $620/cubic yard, about 70 cubic yards for a 2,500 sq ft home · maximum extrusion rate 3 cubic yards/hour, 27 ft print height, 2 operators, 2–3 hour setup · construction costs are 64.4% of the average US new-home sales price, with framing 16.6% and exterior finishes 13.4% of construction cost · exterior walls plus their cladding work out to roughly 13% of construction cost and 8% of sales price, derived here rather than published.

ICON's Wolf Ranch in Georgetown, Texas, about 100 printed homes built with Lennar to a Bjarke Ingels Group design, plus House Zero in Austin and homes at Community First! Village; COBOD BOD2 printers operating in more than 35 countries; Alquist 3D's printed commercial and residential work in Virginia and Colorado; SQ4D's printed house on Long Island.

Start with where the money in a house actually goes. NAHB's 2024 survey puts construction cost at 64.4% of the average sales price, and inside construction cost the stages run interior finishes 24.1%, mechanical and electrical rough-ins 19.2%, framing 16.6%, exterior finishes 13.4%, foundations 10.5%, site work 7.6% and final steps 6.5%. A printer touches exterior wall framing, which is roughly half of the framing line once you take out floors, roof trusses and interior partitions, plus exterior wall cladding, which is maybe a third of exterior finishes once you take out roofing, windows and doors. That is about 13% of construction cost and 8% of the sales price; the split of those two lines is my arithmetic, not a published figure. Taking that scope to zero would cut 8% off the house, and nobody has taken it to zero. ICON prices its wall system at $20 per square foot of floor area and calls that more than 40% below the national average, which on a 2,500 square foot home is $50,000, of which about $43,000 is material, leaving roughly $6,600 for machine time, labor and overhead. That last number only works at high utilization, and the party that has to hit it is the builder who spent $899K on the printer, while the buyer sees a sales price that barely moves. That gap between who pays and who benefits is the reason printed housing has stayed at demonstration volumes rather than a technical limit.

6 minHow Concrete Homes Are Built With A 3D Printer | Insider ArtInsider Art · 5m+ views

16 minWhy 3D Printing Buildings Leads to ProblemsStewart Hicks · 1m+ views

Cost of Constructing a Home in 2024 (NAHB Eye On Housing) · Additive Construction – The Path to Standardization II: Workshop Report (NIST)

A masonry robot picks a unit, applies mortar or adhesive, and places it on a course to a position taken from a wall model. Two designs have been built at scale. Construction Robotics' SAM ran an arm along a track mounted on the scaffold and laid brick on long straight runs while a mason worked alongside it striking joints; the company now sells the MULE lift assist instead and no longer leads with the bricklayer. FBR's Hadrian X puts a 32 meter telescopic boom on a truck, with dynamic stabilization that corrects for boom sway and wind so it can place outdoors, and lays blocks up to 600 by 400 by 300 mm and 45 kg at a maximum of 360 blocks an hour with a two-person crew. The boom reaches three stories from the roadside, so the truck never enters the site. Hadrian works in light rain, in gusts up to 60 km/h, and between 0 and 45 degrees C, and it lays FBR's own block and adhesive rather than ordinary brick and mortar.

The machines are genuinely fast on the part of the wall they are built for: 360 blocks an hour is many times what a mason places, especially with large units, and the placement is more repeatable than hand work. The problem is what is left over. Corners, openings, lintels, bond beams, flashing, cleaning and joint finishing stay with masons, so on a wall with a lot of windows the robot takes maybe half the laying hours and on a plain warehouse wall considerably more. Hadrian's speed also depends on its own block and adhesive system, so a buyer takes on a captive consumable and a wall assembly that local codes and designers have to accept. The trade itself is not growing: BLS counts about 294,300 US masonry workers in 2024 with a projected 2% increase over ten years, as tilt-up, precast and steel stud with thin veneer keep taking share from structural masonry.

Consider a masonry robot only if you are a large masonry contractor with a steady backlog of long, plain block walls inside a short trucking radius. If your work is residential veneer, restoration, or anything with many openings and returns, the machine will spend its time waiting for masons and you should not buy it. If the problem you are solving is crew injuries and lifting rather than speed, buy a lift assist, which costs a fraction as much and needs no change to the wall design. Where the wall design is genuinely free, compare against precast or tilt-up panels first, since those move the same work into a factory without asking the site to accept a proprietary block. Treat the labor saving as the whole business case, and do the payback arithmetic before the demonstration video.

Hadrian X base price A$7.8M · maximum lay rate 360 blocks/hour, blocks to 600 × 400 × 300 mm and 45 kg · 32 m boom, three stories from the roadside, 2-person crew · operates in light rain, gusts to 60 km/h, 0–45 °C · US masonry workers median pay $56,600/year in 2024, 294,300 jobs, 2% projected growth to 2034 · about ten masons displaced full time to justify the machine in five years, derived here rather than published.

FBR's Hadrian X, built and operated in Western Australia and offered at a listed base price; Construction Robotics' SAM100, deployed on US commercial jobs before the company shifted to the MULE lift assist; Monumental's mobile bricklaying robots in Amsterdam, working with standard brick and mortar rather than a proprietary unit.

The arithmetic is the reason this category has not moved. A US mason's median pay was $56,600 in 2024, and a contractor's fully burdened cost is usually 1.5 to 2 times base pay once payroll taxes, workers' compensation, benefits and supervision are counted, so call it $85,000 to $115,000 a year. Hadrian X lists at A$7.8M, roughly US$5M. To recover that in five years on labor alone you have to remove about $1M of mason wages every year, which is nine or ten people working full time on suitable walls; that step is my arithmetic, not a published payback. A masonry contractor big enough to have ten masons continuously on plain block walls inside one trucking radius is rare, and there is no revenue while it is parked between jobs. The saving also lands on the subcontractor who bought the robot, while the general contractor and the owner mostly see the same bid price, so nobody upstream is funding the purchase. That arithmetic is why lift assists have found buyers and the bricklayers have not: they cost tens of thousands rather than millions and cut injury claims without changing the wall.

5 minThis Bricklaying Robot Can Build Walls Faster Than Humans (HBO)VICE News · 1m+ views

9 minMeet the Robot Bricklayer Fixing Europe's Housing Shortage | MonumentalBased in Europe · 10k+ views

Masonry Workers (BLS Occupational Outlook Handbook) · Bricklaying Robot Lifting and Levelling System (Communications - Scientific Letters of the University of Zilina)

Reinforcing steel arrives as loose bar, gets laid out in a grid, and every intersection is tied with wire so the mat holds position while concrete is placed. On a bridge deck that is tens of thousands of identical stoop-and-twist motions on a flat, regular surface, which is about the easiest geometry in construction to automate. TyBot, from Advanced Construction Robotics, is a gantry that rides the screed rails already set for the deck, self-navigates without a model or pre-mapping, and ties at an active rate above 1,200 ties an hour, roughly 9,600 in an eight-hour shift, for up to 10 hours between refuelings. It spans 10 to 117 feet, handles intersections up to #8 by #9 bar, and ties epoxy-coated, galvanized, stainless and fiberglass bar as well as black. Its companion IronBot lifts and places transverse and longitudinal bar at about 5,000 pounds an hour, under a supervisor who separates bar from the bundle and sets the spacing.

The machines are fast, they work at night and in rain, and the tie quality is more consistent than hand work: a Stanford case study of TyBot on bridge projects found bars not tied correctly the first time fell from about 5% to 2.5–3%, and material waste from 2% to zero. Setup is short, 30 minutes to four hours on the first day, and a supervisor is trained in about six days. The limitation is geometry. TyBot needs a horizontal grid and a deck of at least 900 square meters, so it does bridge decks and large slabs and nothing else; walls, columns, footings, pile caps and congested cages stay entirely manual. Perimeter bar, obstructions and anything the gantry cannot reach also stay manual, so the crew shrinks rather than disappears.

Use it on bridge decks and large flat slabs where the mat is regular, the deck is big enough to amortize mobilization, and the pour is on the critical path. If the deck is small, oddly shaped, or heavily congested with post-tensioning and blockouts, hand tying will be faster and you should skip it. Rent it rather than buy it, which is how it is sold anyway, because a machine that works a few weeks per project sits idle with no revenue the rest of the year and the vendor is better placed to keep it busy. If your problem is placing bar rather than tying it, look at prefabricated cages and carpet reinforcement first, since those move the work into a shop and need no robot on site. Check availability early: the service is offered in a limited set of states, so it is a scheduling constraint as much as a purchase decision.

TyBot active rate above 1,200 ties/hour, about 9,600 ties per 8-hour shift · 10 hours run time between refuelings, working span 10–117 ft, bar to #8 × #9 · IronBot places about 5,000 lb/hour of bar · setup 30 minutes to 4 hours on day one, supervisor trained in about 6 days, minimum deck about 900 m² · rework fell from about 5% to 2.5–3% and waste from 2% to 0% in a Stanford case study, which also found 29% cost savings at a $3,600 weekly service fee against a $100/hour labor rate · 17,400 US reinforcing iron and rebar workers, mean pay $60,290/year in May 2023.

TyBot and IronBot from Advanced Construction Robotics, offered as a service and as a per-pound rebar installation subcontract across about eleven US states; Implenia's SH4 data center project in Switzerland, 18,000 cubic meters of reinforced slab, and Traylor Brothers' twin-span bridge at Slidell, Louisiana, where six spans took six to eight workers six weeks, both documented in the Stanford construction robotics case studies.

This is the site robot with the cleanest business case, because the party that pays is the party that benefits. The deck pour is usually on the critical path of a bridge job, delay carries liquidated damages, and the general contractor or rebar subcontractor who pays the weekly service fee keeps the schedule saving directly. The Stanford study priced one deployment at $3,600 a week against a traditional labor rate of $100 an hour and found a 29% cost reduction on that scope. The addressable market is small in absolute terms: BLS counted 17,400 reinforcing iron and rebar workers nationally in May 2023 at a mean of $60,290 a year, and only the flat-deck share of their hours is reachable, which puts the whole US wage pool this can touch in the low hundreds of millions of dollars a year on my arithmetic. That is why the machines are rented rather than sold. Utilization is the whole game, the vendor can spread one unit across many short projects, and a contractor who bought one outright would carry it idle for most of the year.

3 minTyBot: This Robot Autonomously Ties As Much Rebar As a Crew of WorkersEquipmentWorld · 5k+ views

2 minTyBot - Autonomous Rebar Tying Robot | World of Concrete 2020Construction Junkie · 10k+ views

Reinforcing Iron and Rebar Workers (BLS Occupational Employment and Wage Statistics) · Safety, quality, schedule, and cost impacts of ten construction robots (Construction Robotics)

Before anything gets built on a floor, someone has to transfer the drawings onto the slab: wall lines, door openings, control lines, sleeve and hanger locations. Traditionally two people do it with a tape, a chalk line and a robotic total station, reading dimensions off 2D sheets, and each trade repeats the exercise for its own work. A layout robot drives the slab instead and prints the lines directly from the coordinated model. Dusty Robotics' FieldPrinter covers 10,000 to 15,000 square feet a day with one operator, prints at 600 DPI with accuracy quoted to 1/16 inch, and gets as close as 1 3/4 inches to an existing obstacle, so it can print text and part numbers alongside the lines. The outdoor version of the same idea is a marking rover: Civ Robotics' CivDot marks civil and solar layout points to about 8 to 30 mm, at 1,000 to 5,000 points a day against the 200 to 450 a conventional survey crew places.

The gain is partly speed and mostly error removal, because hand transcription is where layout mistakes enter and a wall in the wrong place is not discovered until the drywall, ductwork or ceiling grid does not fit. In the Stanford case study of CivDot, accuracy improved from a traditional 50 mm to 15 mm with 1.5 mm repeatability and rework fell from about 5% to 3%, and a 600-point layout that took two workers roughly 57 hours took 5.5 hours with the robot. The catch is that the robot prints whatever the model says, so a project without a coordinated model gets no benefit and a project with a wrong model gets the error printed faster and checked less. Indoors the machine needs a clean, swept, reasonably level slab, and it marks only the floor, so overhead work still needs a total station. The printed lines also disappear under the first layer of framing, which limits the value to trades that follow immediately.

Use it on any project that already carries a coordinated model and has repetitive floor plates: data centers, hospitals, offices, multifamily. If your project is still working from 2D drawings, fix that first, because the robot is only as good as the model and the modeling effort is the real cost. Buy it as a subscription or a service rather than as equipment, since the vendors price it that way and a single project usually pays it back. Avoid it on small or heavily obstructed floors where mobilizing the machine costs more than the two-person crew it replaces, and keep a robotic total station for overhead and structural layout regardless. Outdoors, a marking rover is worth it on solar farms and roadway jobs where the point count runs into the thousands and the pattern is regular.

10,000–15,000 sq ft/day of interior layout with one operator · accuracy quoted to 1/16 inch at 600 DPI, printing to within 1 3/4 inches of an obstacle · CivDot marks 1,000–5,000 points/day against 200–450 for a survey crew, at 8–30 mm · Stanford case: 50 mm traditional accuracy to 15 mm, rework 5% to 3%, a 600-point layout from about 57 worker-hours to 5.5, 84% lower layout cost · CivDot service priced at $4,500/month plus $300/month maintenance and $2,000 one-time training · US surveying and mapping technicians median pay $51,940/year in 2024.

Dusty Robotics' FieldPrinter, printing multi-trade layout from Revit and AutoCAD models on commercial and data center floors; HP's SitePrint rover, rented for the same job; Civ Robotics' CivDot, used for solar farm and infrastructure staking with more than 10 million points marked; robotic total stations from Trimble, Leica and Topcon, which are the incumbent this is measured against.

This is the least glamorous category on the sheet and the best business in it. A layout crew is two people, a US surveying and mapping technician's median pay was $51,940 in 2024, and a loaded field rate is usually 1.5 to 2 times base, so the crew costs roughly $800 to $1,200 a day; a service subscription in the low thousands per month is paid back inside a project rather than over a decade. The Stanford case priced CivDot at $4,500 a month plus $300 a month of maintenance and a one-time $2,000 training fee, and put the cost reduction at 84% against traditional layout on that job. More of the value is in rework avoided than in layout hours saved, since a layout error is cheap to make and expensive to find, and it is found by a different trade weeks later. The buyer and the beneficiary are also the same party: the general contractor or the framing subcontractor pays the subscription and keeps both the hours and the rework. Nothing about the design, the materials, the code path or the lender's underwriting has to change, which is why this spread while the printing and bricklaying machines did not.

2 minFieldPrinter - How it WorksDusty Robotics · 50k+ views

2 minConstruction Layout with the Trimble Robotic Total StationTrimble MEP · 100k+ views

Surveying and Mapping Technicians (BLS Occupational Outlook Handbook) · Safety, quality, schedule, and cost impacts of ten construction robots (Construction Robotics)

Earthmoving machines have been partly automatic for two decades. A 3D machine control system takes the design surface out of the civil model, locates the blade or bucket with GNSS and inertial sensors, and drives the hydraulics to hold the cutting edge on grade while the operator handles travel and material. FHWA credits the combination of 3D models and GPS machine control with productivity gains up to 50% on some operations, survey cost reductions up to 75%, and fuel and emissions cuts up to 40% from less idling and rework, largely because the machine reaches grade on the first pass instead of cutting, checking with a grade crew, and cutting again. Full autonomy is the next increment: the same sensing plus route planning, obstacle detection and a remote start, so a supervisor watches from a tablet rather than sitting in the cab. Retrofit kits from vendors like SafeAI add drive-by-wire, sensors and computing to machines of any brand, and mining fleets already run haul trucks this way on closed sites with fixed routes.

This is the one category on the sheet with real commercial traction, and the reason is that grading is repetitive, already model-driven, already under closed-loop hydraulic control, and measured against a number. The quality metric is elevation against the design surface, so the machine can check its own work continuously, which no printed wall or laid block can do. The weakness is that construction autonomy is still supervised and often slower than a good operator: in a Stanford case study of an autonomous Caterpillar 246D skid steer hauling 700 cubic meters over a 172 meter run on a Lima high-rise, the machine was deliberately held to 11 km/h against the 20 km/h a human operator would use, one supervisor was assigned per machine, and that supervisor took about three weeks of training. Open construction sites also carry other trades, deliveries and the public, which is exactly what a closed mine site does not, so the fully driverless fleets are in mining rather than on building jobs.

Fit 3D machine control to every dozer, grader and excavator on any job with a modeled design surface and more than a few thousand cubic yards of dirt; against FHWA's figures of up to 50% more productivity and 75% lower survey cost, this decision is no longer close. Add autonomy where the task is long, repetitive and on a route you can fence: haul roads, mass excavation, stockpile work, solar site grading. If the site is congested, the surface changes constantly, or the work is small and fiddly, keep an operator in the cab, because supervision plus a speed derate will cost you more than it saves. If your problem is a shortage of skilled operators rather than hours, look at machine control first, since it lets a less experienced operator hit grade. The usual alternative is a good operator with stakes and a grade checker, which still works and is what most of the industry does.

3D models plus GPS machine control raise productivity up to 50% on some operations · survey costs down up to 75%, fuel and emissions down up to 40% · grade reached on the first pass rather than cut-check-cut · autonomous skid steer case: 700 m³ hauled 172 m, robot run at 11 km/h against an operator's 20 km/h, one supervisor per machine, 3 weeks of operator training · 539,500 US construction equipment operators in 2024 at a median $58,320/year.

Trimble Earthworks, Topcon 3D-MC and Leica MC1 grade control on dozers, graders and excavators; FHWA's Every Day Counts push on 3D engineered models, which put machine control into routine state DOT practice; SafeAI's retrofit autonomy on Caterpillar machines, including the 246D skid steer studied on Produktiva's Alta project in Lima; Caterpillar and Komatsu autonomous haulage fleets on mine sites.

Earthwork is bid against a design surface, usually by the cubic yard or as a lump sum, and every yard of overcut, every yard of import to fix an overcut, and every hour of rework comes straight out of the contractor's margin. That is why this technology spread without anyone else's permission: the contractor buys the kit, keeps the entire saving, and needs no approval from an architect, an inspector, a lender or an appraiser. A 3D machine control system typically costs tens of thousands of dollars per machine against a dozer worth several hundred thousand, so it is a small fraction of the asset it improves, and it also removes most of a grade checking crew. Full autonomy has a harder case on building sites, because a supervisor per machine and a safety speed derate cancel much of the labor saving, and the honest current value is data and consistency rather than throughput. It works today in mining because one owner controls the whole site, the haul routes are fixed, the fleet is homogeneous, and operator wages in remote pits run far above the $58,320 median that the 539,500 US construction equipment operators earned in 2024.

11 minBASICS OF GPS - CAT GRADE CONTROL SYSTEM // How to Use CAT Grade Control DozerDiesel and Iron · 50k+ views

3 minMachine Control Comparison: Trimble Earthworks vs Topcon 3D-MC vs Leica MC14K Equipment · 100k+ views

EDC-2: 3D Engineered Models for Construction (Federal Highway Administration) · AES: Autonomous Excavator System for Real-World and Hazardous Environments (arXiv)

A small drone flies a programmed grid over the site and takes overlapping photographs; structure-from-motion software turns them into a point cloud and an orthomosaic, tied to real coordinates by ground control points on the ground or a survey-grade GNSS receiver on the aircraft. Out of that come surfaces, cut and fill volumes, stockpile volumes and a dated image of the whole job. Accuracy is good enough to pay on: FHWA reports UAS-derived volumes varying 1–2% against conventional methods, and one stockpile comparison against terrestrial LiDAR found an average vertical difference of 2 mm with a 31 mm standard deviation. LiDAR payloads split into survey grade at 5–10 mm and mapping grade at 1–3 cm. Indoors the same idea runs on a 360-degree camera clipped to a hard hat: someone walks the floor, software pins each frame to the floor plan, and the project gets a searchable dated record of every room. Nearly all state DOTs now use small UAS on construction work.

Speed is the obvious gain. Traditional ground survey takes days on site and weeks to process and deliver, and a drone flight over the same ground takes an hour. The limits are optical: photogrammetry measures only what the camera can see, so vegetation, standing water, and anything under a roof or a deck comes back wrong or missing, and accuracy depends heavily on control. FHWA suggests five or more well-distributed ground control points and notes that acquiring them can run 10–50% of total project cost when it is required, which is the argument for RTK-capable aircraft that reduce the number needed. Flights need an FAA Part 107 certificated remote pilot and airspace authorization near airports. The hardest part is not technical: the value comes from capturing on the same day every week, and that discipline is what most projects drop by month four.

Fly the site before you bid it, so your earthwork quantities come from measured topography rather than the designer's assumption, and fly it weekly through the dirt phase. Use 360-degree walkthroughs on any interior fit-out where work gets covered, because the cheapest time to record a wall cavity is the day before it is closed. If you are buying this for management insight, be skeptical, since the superintendent usually already knows the job is behind; buy it because you will want the record when a pay application is questioned or a delay claim is filed. Do not buy an analytics platform before you have a reliable capture habit, and do not expect photogrammetry to give you anything under a deck or through a canopy. Where the job is small and mostly indoors, a phone camera and a filing convention will do.

UAS-derived volumes vary 1–2% against conventional methods · stockpile volume within 2 mm mean vertical difference of terrestrial LiDAR, 31 mm standard deviation · survey-grade LiDAR 5–10 mm, mapping-grade 1–3 cm · five or more ground control points recommended, and acquiring them can be 10–50% of total project cost · traditional ground survey takes days on site plus weeks to process, against about an hour of flight · retainage of typically 5–10% withheld until the work is certified complete.

DroneDeploy and Propeller Aero for site photogrammetry and earthwork quantities; OpenSpace and Buildots for 360-degree interior capture pinned to the floor plan; FHWA's tech brief series on small UAS for construction quantity estimation, written because nearly every state DOT is already doing this; Utah DOT's use of UAS surfaces for construction cross-sections and quantity calculation.

Progress tracking is mostly bought to move money, not to manage work. Contractors get paid monthly against a schedule of values, an owner's representative and often a lender's inspector certify percent complete before a draw is released, and retainage of typically 5–10% is held back until the end. A disagreement about percent complete stalls a draw for weeks while the contractor keeps paying crews, so the ability to show a dated, measured record of what exists is worth more than any insight the software offers. On unit-price infrastructure work this is literal: FHWA states that earthwork quantity estimates are used for project payments, and UAS is used at closeout to verify quantities for final payment. Delay and disruption claims turn on what was built on what date, and dated georeferenced imagery is contemporaneous evidence that costs almost nothing next to a claim. The economics are the easiest on this sheet. An enterprise drone with RTK and a photogrammetry subscription runs a few thousand to low tens of thousands of dollars a year, a 360-degree camera costs a few hundred, and the draw it protects is hundreds of thousands to millions of dollars a month. Unusually for construction, the general contractor who pays for it is also the party who gets paid faster, and the owner and the lender want the same record, so nobody in the chain has a reason to resist it.

20 minDrone Mapping for Construction: Complete GuideThe Drone Life · 100k+ views

6 minHow OpenSpace Automates Jobsite Documentation in 360°OpenSpace · 100k+ views

Use of Small Unmanned Aircraft Systems for Construction Quantity Estimation (Federal Highway Administration) · Certificated Remote Pilots including Commercial Operators (Federal Aviation Administration)

A curtain wall is a non-load-bearing exterior enclosure hung off the edge of each floor slab. It carries its own weight and the wind load and nothing else, transferring both back into the structure through anchors bolted to embeds at the slab edge. The frame is aluminum extrusion with a thermal break, and the infill is insulating glass or an opaque spandrel panel. There are two ways to deliver it. Stick-built means the extrusions and glass arrive loose and get assembled piece by piece on site from a swing stage; unitized means the panel is built in a factory, usually one floor tall and one module wide, roughly 5 ft by 12 ft and 500 to 1,500 lb, then shipped on a rack, hoisted, and hung on the anchors. Weathertightness comes from interlocking split mullions and pressure-equalized drainage at the joints rather than from a face seal, and every system is proved before production against ASTM E283 for air, E331 for water and E330 for structural load, plus AAMA 501.4 for seismic drift.

The strength of unitized construction is that the glazing and gasketing happen on a bench under cover, where the joint that used to leak is now a factory-set gasket instead of a bead of sealant run by hand from a swing stage in the weather. Installation is fast for the same reason: a crew hangs roughly 20 to 40 units a day, which on a tower is about a floor a day, and no exterior scaffolding is needed because the panels are fed out from inside the slab. The cost is lead time. Design, extrusion dies, a performance mock-up program and the first production run typically take 6 to 12 months from award to the first panel on the wall, so a late design change is expensive in a way a stick system is not. Unitized also uses more aluminum, because each panel carries a full perimeter frame and every joint therefore has two mullions instead of one, which is why below roughly six stories stick-built is usually cheaper. The remaining weakness is thermal: aluminum conducts, and even a polyamide thermal break leaves the anchors and the slab edge as bridges.

Specify unitized on anything above roughly six stories, and on any building where the same panel repeats hundreds of times. Use stick-built for low-rise work, small facade areas, and geometry too irregular to standardize, since there the tooling and mock-up cost has too little area to spread across. If the schedule is driven by getting the building enclosed so the interior trades can start, unitized is usually worth the premium on its own. Do not specify it if the facade design will not be frozen 9 to 12 months before installation starts, because the whole saving depends on the panel being repeatable. In residential towers the usual cheaper alternative is window wall, where each unit sits on the slab below instead of hanging off it: it costs less, performs worse at the slab edge, and is harder to replace later.

Unitized panels typically one floor tall and about 5 ft by 12 ft, 500–1,500 lb each · installation roughly 20–40 units per crew per day, about a floor a day on a tower · 6–12 months from award to first panel · stick-built usually cheaper below about six stories · tested to ASTM E283, E331 and E330 plus AAMA 501.4 · facade commonly 10–20% of a commercial building's construction cost.

Permasteelisa and its Josef Gartner unit, Enclos, and Harmon on the contracting side; Schüco, Kawneer and YKK AP on the system side; One World Trade Center and The Shard as unitized towers where enclosure was on the critical path.

The facade is one of the largest single subcontracts on a commercial building, commonly 10–20% of construction cost and higher on a glassy tower, and it splits roughly into aluminum extrusion and insulating glass on the material side, factory assembly labor, freight, and site hoisting. Unitized construction moves hours from a glazier working off a swing stage to a worker at a bench, which is where the labor saving comes from; the developer captures it as schedule, because enclosure gates every interior trade and every week saved is a week earlier to revenue. The curtain wall contractor carries the awkward part of the deal: delegated design liability, the extrusion tooling, and a working-capital position in aluminum and glass bought months before anyone pays for the building. This is the clearest case on this sheet of off-site manufacturing that worked, and it is worth being specific about why. The unit is a component with two interfaces, an anchor to the slab and a gasket to its neighbor, so it ships on an ordinary flatbed and needs no change to how the building is designed, financed, inspected or contracted; the plant serves many projects at once instead of depending on one; and it is bought through the subcontractor structure the industry already had. Volumetric modular gets none of that, which is the difference. The one failure mode curtain wall shares with modular is a plant with no backlog, and facade fabricators have had lean years for exactly that reason.

5 minStick Curtain Wall vs Unitized Curtain WallEngineering Motive · 50k+ views

4 minHarmon Curtain Wall InstallationHarmon Inc · 100k+ views

Facades and Building Envelope Systems: Design & Materials (SteelConstruction.info) · Full-scale performance testing and evaluation of unitized curtain walls (Journal of Facade Design and Engineering)

These are two different jobs that get bundled into one scope. Insulation slows heat conducted through an assembly and is measured as R-value per inch: fiberglass batt is about R-3.1 to R-3.4, blown cellulose R-3.2 to R-3.8, mineral wool about R-4, open-cell spray foam about R-3.7, closed-cell foam R-6 to R-6.5, and polyisocyanurate board R-5.6 to R-6. Air sealing stops air moving through the assembly, which insulation does almost nothing about, and it needs a continuous plane — taped sheathing, a fluid-applied membrane, or the drywall itself — that survives every pipe, wire and duct that punches through it. Airtightness is measured with a blower door: a fan in a door frame holds the building at 50 pascals and the airflow needed to do that is reported as CFM50 or as air changes per hour, ACH50. Framing shorts the insulation, so the whole-wall number is always worse than the batt label: a 2x6 wall with R-21 cavity insulation performs at roughly R-15 to R-17 once studs, plates and headers are counted, and an R-19 batt between steel studs performs at around R-7. That gap is the entire argument for continuous exterior insulation.

Air sealing is the cheapest energy work in a building because the leaks are concentrated: attic penetrations, top plates, rim joists and duct chases account for most of the flow, and a blower door plus a few hours of foam and tape finds them. Insulation has diminishing returns because heat flow goes as 1/R, so going from R-10 to R-20 saves as much as going from R-20 to infinity, which is why the first few inches matter and the last few rarely pay. In retrofit the weakness is disruption rather than cost: sealing a finished house means getting into attics and crawlspaces, and insulating existing walls means drilling or removing finishes. A tighter building also needs mechanical ventilation, and below roughly 3 ACH50 an HRV or ERV stops being optional. The failure mode to watch is moisture, since exterior insulation that is too thin, or a vapor retarder on the wrong side, can put the dew point inside the sheathing and rot it.

Do the envelope before the equipment, every time. Load you remove is capacity you never buy, and on an electrification project it is often the difference between needing an electrical service upgrade and not. On an existing house, air seal and top up the attic first: that is usually most of the achievable saving for a small share of the cost, and you can measure it the same day with a blower door. On new construction treat the code number as a floor rather than a target, since getting to 1.5–2.0 ACH50 costs very little more than 3.0 when the air barrier is drawn on the plans and one person is made responsible for it. Chase Passive House levels only if you are also buying the triple glazing and the ERV that go with them, because below about 1 ACH50 the cost per unit of tightness rises steeply. On commercial work, specify a whole-building air leakage test with a numeric target and a re-test, or you will get a visual inspection and a leaky building.

Fiberglass batt R-3.1–3.4 per inch, closed-cell spray foam R-6–6.5 · 2021 IECC caps residential leakage at 3.0 ACH50 in climate zones 3–8 and 5.0 in zones 1–2 · Passive House target 0.6 ACH50 · a blower door test runs roughly $300–600 standalone · R-19 batt between steel studs performs at about R-7 whole-wall · a common commercial air barrier target is 0.25 cfm/ft² at 75 Pa, which only about 6% of buildings NIST tested would have met · NIST modeled 3–36% annual heating and cooling cost savings from meeting it.

The 2021 IECC residential air leakage limits of 3.0 ACH50 in climate zones 3–8 and 5.0 in zones 1–2, which made a blower door test the compliance path rather than a visual inspection; the Passive House Institute's 0.6 ACH50 limit; the 0.25 cfm/ft² at 75 Pa whole-building air barrier requirement the US Army Corps of Engineers adopted for its buildings, which is the target NIST evaluated.

Envelope work is almost always the cheapest energy saving available in a building, and the reason is that the materials are commodities and the labor is unskilled relative to what mechanical work costs. NIST modeled an effective commercial air barrier requirement and found 3% to 36% annual heating and cooling cost savings depending on climate, with the small end in cooling-dominated Phoenix and Miami and the large end in heating climates, against an air barrier material cost of a few cents per square foot of wall. The catch is that only about 6% of the buildings in NIST's own test dataset would have met the target, so the saving is real and mostly unclaimed. In new construction the incremental cost of a tight envelope is small in materials and almost entirely a management cost: someone has to police every trade that penetrates the barrier, and no product fixes that. Measurement is cheap enough that it should never be the reason to skip a target, since a blower door test runs roughly $300–600 as a standalone service in most US markets and less when it is bundled into a HERS rating the builder is already paying for. The split that stalls this work is rental housing, where the landlord buys the insulation and the tenant's utility bill falls, so the party paying gets nothing back and the rental stock stays systematically under-insulated. Where the same person pays the bill and owns the building, envelope work needs no subsidy to make sense; where they are different people, it usually does not happen without one.

3 minUnderstanding Insulation and R-Value | Ask This Old HouseThis Old House · 100k+ views

7 minUnderstanding Building Air Tightness | Part 1Efficiency Matrix · 50k+ views

14 minIs your 70’s house equally leaky? Blower door tested my rental house!Matt Risinger · 50k+ views

BSD-104: Understanding Air Barriers (Building Science Corporation) · Investigation of the Impact of Commercial Building Envelope Airtightness on HVAC Energy Use (NIST)

A heat pump is an air conditioner that runs in both directions: a compressor circulates refrigerant around a loop and a reversing valve decides which coil evaporates and which one condenses. Efficiency is stated as coefficient of performance, the heat delivered divided by the electricity consumed, and a modern air-source unit does COP 3 to 4 with outdoor air at 47 °F. COP falls as it gets colder, because the compressor has to lift heat across a bigger temperature difference and the refrigerant entering it is less dense, so it drops toward 2 by the time outdoor air is near 17 °F and capacity drops with it, at exactly the hours the building needs the most heat. Cold-climate units fight that with variable-speed inverter compressors and vapor injection; the NEEP cold-climate specification asks for a COP of at least 1.75 at 5 °F, and good units hold most of their rated capacity down there. Below the balance point the shortfall is made up by electric resistance strips at COP 1.0, and every hour spent on resistance heat pulls the seasonal average down hard. Ground-source systems avoid the whole problem by exchanging heat with soil that stays near 45–55 °F year-round, holding COP 3.5 to 5, and pay for it in drilling.

At COP 3 you buy one unit of electricity and get three units of heat, which beats any combustion appliance on delivered energy and beats a gas furnace on carbon almost anywhere the grid is not coal-heavy. One machine also covers heating and cooling, so a replacement that adds air conditioning costs little more than the air conditioner alone. The weaknesses are all downstream of falling capacity. A unit sized on the cooling load will not carry the heating load at design temperature, and the strip heat that covers the gap is the reason customers end up with a January bill that convinces them heat pumps do not work. The second weakness is electrical: a heat pump plus backup strips can add 40 to 60 A to a house with a 100 A service, and the panel, not the equipment, is what decides whether the job is affordable. The third is refrigerant. R-410A has a global warming potential of 2,088 and is being displaced under the AIM Act by R-454B and R-32 at roughly 466 and 675, which are A2L mildly flammable and carry charge limits and installation rules the trade is still learning.

If an air conditioner is being replaced anywhere in the country, buy a heat pump instead: the incremental cost over a straight AC swap is small and the heating comes free. If the heating design temperature is above about 20 °F, an ordinary unit is fine and the cold-climate premium is wasted. If it is below about 5 °F, specify a cold-climate unit, size it against the heating load rather than the cooling load, and check the electrical service before signing anything. Insulate and air seal first, because every kW of load removed shrinks the equipment and can be the difference between needing a service upgrade and not. If the service upgrade comes back at $5,000 or more, look at a dual-fuel setup that keeps the existing furnace as the backup instead of strips, which removes the electrical problem entirely and costs almost nothing. Reserve ground-source for owners with land, a long horizon, and a heating-dominated climate.

COP roughly 3–4 at 47 °F, falling toward 2 as it gets colder · NEEP cold-climate specification requires COP of at least 1.75 at 5 °F · electric resistance backup COP 1.0 · ground-source COP 3.5–5 against 45–55 °F soil · ducted replacement roughly $8,000–18,000 installed, ductless mini-split $4,000–8,000 · a 100 A to 200 A service upgrade roughly $2,000–5,000, more when the utility drop or transformer changes · R-410A GWP 2,088 against R-454B at about 466.

Mitsubishi Hyper-Heat, Daikin and Fujitsu cold-climate lines; the DOE Residential Cold Climate Heat Pump Challenge, which took prototypes from Lennox, Carrier, Trane and others through cold-chamber and field testing; Maine, which hit its 100,000-heat-pump target in 2023, two years early, and then raised it.

The equipment is a commodity and the money is in the installation. A ducted replacement runs roughly $8,000 to $18,000 installed and a ductless mini-split $4,000 to $8,000 for one or two zones, but the item that decides the project is the electrical work, and it is the one nobody quotes at the start. A panel or service upgrade is roughly $2,000 to $5,000, and considerably more when the utility has to replace the service drop or the transformer serving the house. In multifamily buildings the building service and the riser are the binding constraint, so the first unit to convert can be asked to pay for capacity that every later unit uses, which is a split incentive with no obvious owner and a real reason conversions stall. Running cost turns on the ratio of electricity to gas price, and the arithmetic is worth doing rather than guessing: a therm is 29.3 kWh, a 95% furnace delivers about 27.8 kWh of heat from it, and a COP-3 heat pump delivers the same 27.8 kWh from 9.3 kWh of electricity, so at $1.50/therm the heat pump is cheaper to run below about $0.16/kWh. That is derived here, not a published figure, and it moves with both prices. The homeowner captures the bill saving and the carbon; the utility inherits a winter peak it may not have planned for, which is why some of the strongest programs pay for controls and staged backup rather than for the equipment.

15 minMajor Advances with Heat Pumps in the Extreme ColdUndecided with Matt Ferrell · 500k+ views

4 minAn introduction to cold climate heat pumpsNaturalResourcesCa · 10k+ views

ccASHP Specification & Product List (Northeast Energy Efficiency Partnerships) · Minimizing Auxiliary Heat Use for Cold Climate Operation of Air Source Heat Pumps: Preprint (National Renewable Energy Laboratory)

Electrical prefabrication means building parts of the installation on a bench instead of on a ladder. In practice that is branch-circuit whips cut and terminated to length, device boxes and conduit mounted on wall panels before the wall closes, light fixture assemblies wired and lamped, multi-trade overhead racks that carry conduit alongside pipe and duct, and complete electrical rooms delivered as skids. Modular wiring is the productized version: factory-made cable assemblies with polarized locking connectors on both ends, so a lighting branch circuit is plugged together rather than pulled and terminated. These are covered by Article 604 of the NEC as manufactured wiring systems and listed under UL 183, and the code allows them in accessible locations such as above a lay-in ceiling. All of it depends on a coordinated model, because you cannot cut a whip to length until the ceiling grid, the ductwork and the sprinkler mains are fixed. Assemblies then move to the floor as unit-of-work kits, one cart holding everything for one hotel room or one patient room.

Bench work is simply faster than overhead work: materials at waist height, jigs, repeated motions, no ladder, no reaching, no weather, and quality checked once on a run instead of a thousand times in a ceiling. Contractors that measure it properly typically report double-digit percentage reductions in field labor hours on the prefabricated scope, which is worth stating carefully because the honest number depends entirely on what the baseline was. Prefabrication also compresses schedule by taking work off the critical path, which is a separate benefit from the labor saving and often the one that actually sells it. The first weakness is that direct material cost goes up, because a connectorized assembly costs more than raw cable and a bag of connectors, so the trade is dollars for hours and it only pays where field labor is expensive. The second is that it needs a frozen design: a late change to ceiling heights turns a rack of cut-to-length whips into scrap, and a Finnish case study of MEP prefabrication decisions found late contractor involvement and higher direct cost were the two reasons projects chose not to do it. The third is that shop labor is usually paid the same rate as field labor under the same agreement, so the gain is productivity rather than wage arbitrage, and any business case built on cheap shop labor is wrong. The fourth is logistics: everything gets built, stored, loaded, delivered and carried again, so a site with no lay-down space or hoist window can hand the whole saving back.

Use it wherever the same room repeats dozens of times over: hotels, dorms, student housing, hospital patient rooms, apartments, data center whitespace. Prioritize scope that is overhead and repetitive, since that is where the productivity gap between a bench and a ladder is widest. Do not prefabricate a one-off commercial fit-out where every room differs, and do not prefabricate anything whose design will still be moving during the fabrication window. If you are a contractor standing up a shop, start with whips and fixture assemblies, which need a bay and a bench, before racks, which need rigging, trucking and a delivery sequence agreed with the general contractor. The alternative that captures a surprising share of the same gain for no setup cost is disciplined material staging and kitting in the field, so measure against that rather than against unmanaged site work.

Modular wiring is covered by NEC Article 604 and listed under UL 183 · allowed in accessible locations such as above a lay-in ceiling · contractors that measure it typically report double-digit percentage reductions in field labor hours on the prefabricated scope · direct material cost rises, so the trade is dollars for hours · shop and field labor usually carry the same rate, so the gain is productivity rather than a cheaper worker · a contractor's prefab shop is a leased bay and benches, against $20–50M for a volumetric modular factory.

Modular wiring systems from Wieland, Acuity's RELOC line and Eaton; multi-trade corridor racks assembled in shops for hospital projects; prefabricated electrical rooms and power skids delivered to data centers, including DPR Construction's modular electrical rooms.

This is the rare construction innovation where the party that pays is the party that benefits, and that single fact explains why it spread without any of the drama around volumetric modular. The electrical subcontractor sets up the shop, and the labor hours saved land inside a fixed-price bid, so the sub keeps the difference. Nobody has to persuade an owner, rewrite a contract, or wait for a code change. Capital is small enough that the decision sits with the subcontractor alone: a leased bay, benches, saws, carts and a rack of jigs, against the $20–50M a volumetric modular factory needs before it ships anything. The shop still has the utilization problem every construction factory has, since it is a fixed cost that needs a backlog, but it is two orders of magnitude smaller and a bad quarter therefore does not end the company. The pricing consequence is worth being clear about: the modular wiring manufacturer sells a higher-priced product, the contractor keeps the labor saving, and the owner usually sees schedule rather than a lower price, because the sub bid the work at whatever the market would bear. If an owner wants the saving instead, it has to be bought explicitly, through early contractor involvement and an open-book target price rather than through a low bid.

2 minPrefabrication & Modularization: Electrical SystemsThe Weitz Company · 10k+ views

4 minInstallation Savings with RELOC Modular Wiring – A Contractor’s PerspectiveAcuity · 1k+ views

Is Prefabrication Making You Money? (EC&M) · Why do some projects prefabricate MEP while others do not? (Aalto University)

Interior fit-out is partitions, drywall hanging and finishing, ceilings, doors, flooring, painting and casework, commonly 15–25% of a commercial building's construction cost and most of the schedule after the building is enclosed. It is the least automated trade group on a job site, and the machines that exist do one narrow slice each: applying and sanding joint compound, spraying paint on large flat walls, and, in demonstrations only, lifting and fixing gypsum board. The hardware is consistent — a mobile base with a lift column carrying a six- or seven-axis arm, a lidar or structured-light scanner that maps the surface, and an end effector that trowels, sprays or sands under force control. The hard problems are localizing against a blank wall that gives a scanner nothing to lock onto, holding contact force on a surface that is not flat, and everything within a few inches of another material. Finish quality is graded against the Gypsum Association's GA-214 levels 0 through 5, and Level 5 is judged by a person looking at the wall in raking light, so the machine cannot close the loop on its own acceptance test.

On a large, flat, unobstructed wall these robots work, and the gain that shows up first is not cost. Sanding joint compound generates a lot of respirable dust and is done overhead off a ladder or stilts, so handing the field of the wall to a machine takes a genuine exposure and ergonomics problem off a person. The weakness is coverage: a 2025 University of Sherbrooke prototype presented at ISARC does the first pass of compound sanding on vertical walls and needs two or three passes to cover most seams, with the fine detail still done by hand with a sanding block. Every corner, edge, outlet, ceiling transition and door surround stays manual, and on a typical floor plate that is a large share of the linear footage, so the hours saved are far smaller than the wall area suggests. The other weakness is duty cycle. The machine needs a clear, powered, swept floor, each reposition costs minutes of setup and re-localization, and it can only work during that trade's window, which is a few weeks per floor.

Pilot a finishing robot where the floor plates are big and repetitive and the walls are tall and mostly unbroken: data centers, warehouses, hospitals, airport terminals, big-box retail. Skip it on residential and small-room commercial work, where the wall area per setup is small and the corner fraction is high, so the robot spends most of its time moving. If the objective is cost per square foot, expect roughly a wash today and plan the pilot as a measurement exercise rather than a saving. If the objective is silica and gypsum dust exposure, retaining finishers who are tired of overhead work, or getting a short-handed crew through more area, the case is much better and is the one most current deployments actually rest on. The real alternative is not a better robot but moving the work off site, since prefabricated wall panels, bathroom pods and pre-finished ceilings put the same surfaces on a horizontal bench with fixed tooling. If you do want on-site automation, start with the tasks that are already single-purpose and repetitive, such as layout marking, rather than with finishing.

Interior partitions, ceilings and finishes commonly 15–25% of a commercial building's construction cost · GA-214 defines six levels of finish, 0 through 5 · a 2025 ISARC sanding prototype does the first pass only, two or three passes per seam · TAMIR sprayed paint at 0.14 min/m² of operator plus 0.52 min/m² of laborer against 6 min/m² by hand, in the laboratory · TAMIR covered about 5 m² of wall and 4 m² of ceiling per workstation · a US drywall finisher costs roughly $40–70/hour fully burdened · a single-task robot works only during that trade's window, a few weeks per floor.

Canvas, whose drywall finishing robots have been run by union finishers on Bay Area projects; Okibo's plastering and painting robot; AIST's HRP-5P humanoid, which demonstrated fixing a sheet of gypsum board in 2018; Technion's TAMIR interior finishing robot, evaluated on full-scale experiments and reported at ISARC in 1992 by Rosenfeld, Warszawski and Zajicek.

Interior trades are the largest labor pool on a building and have the worst measured productivity, which is why this category keeps getting funded, and the arithmetic is why it keeps not working. A US drywall finisher costs roughly $40–70 per hour fully burdened, so a machine has to displace two or three of them full time to pay back over a couple of years, and it does not: a human still walks behind it doing corners and details, and it sits idle between trade windows. Per-unit capital is modest, since the base is a cart and the arm is a commodity collaborative robot, so the constraint is utilization rather than capital, the same constraint that decides every other automation entry on this sheet. The business models that hold up are labor-inclusive, where the vendor sells finished square footage with its own trained operators and carries the utilization risk while the contractor buys a known unit rate. That matters because the drywall subcontractor is the party who would capture a labor saving inside its own bid, which is the right incentive, but the saving is not yet large enough to fund the machine, so most deployments are still paid for by venture capital or by an owner who wants to be the first to try it. The 1992 Technion experiments are the clearest warning here. Under laboratory conditions TAMIR sprayed paint using 0.14 minutes per square meter of operator time plus 0.52 minutes of a laborer, against 6 minutes per square meter by hand, which is a nine-fold labor advantage; it also had to be led by hand between workstations that each covered about 5 m² of wall and 4 m² of ceiling. Nobody paints buildings this way 35 years later, so the missing cost was in the parts of the job the experiment excluded, and that is still where it is.

3 minSide by Side Comparison: Canvas vs. Traditional Drywall FinishingCanvas · 5k+ views

10 minRobots Are Taking Over Drywallers Jobs? Not Joking guysThat Kilted Guy DIY Home Improvement · 10k+ views

GA-214-2022 Quick Reference Guide Levels of Finish (Gypsum Association) · Drywall finishing with collaborative robot arm in off-site construction (International Association for Automation and Robotics in Construction)

Portland cement clinker is made by heating limestone and clay to about 1,450 °C in a rotary kiln. Most of the CO2 comes out of the chemistry rather than the fuel: calcining calcium carbonate to lime releases roughly 525 kg of CO2 per tonne of clinker, and the fuel burned to reach 1,450 °C adds most of the rest, so a tonne of clinker carries about 0.85–0.9 tonnes of CO2. Finished cement is clinker ground with gypsum, and the clinker factor is the clinker fraction of that cement. Lowering the clinker factor is what this entry is about: ground granulated blast furnace slag, coal fly ash, calcined clay and ground limestone get interground at the cement plant or batched separately at the ready-mix plant, and the concrete still sets. Slag and fly ash work because they react with the calcium hydroxide that cement hydration produces, a slower reaction that leaves a denser, less permeable paste. Limestone is mostly a filler that gives hydration products somewhere to nucleate, which is why its useful limit sits around 15%. The Global Cement and Concrete Association puts the world average clinker factor at 0.63 today and projects 0.58 by 2030.

This is the cheapest carbon reduction available in construction and it needs nothing new, because the plants, the standards and the ready-mix fleet all exist already. ASTM C595 has covered blended cements for decades: Type IL allows 5–15% limestone, Type IP covers pozzolan blends, and Type IS goes up to 95% slag. Slag and fly ash also make better concrete, with lower permeability and better resistance to sulfate attack and alkali-silica reaction, which is why highway agencies specified them long before carbon was the reason. The weakness on a job site is early strength: a 50% slag mix can take roughly twice as long to reach the strength that lets a contractor strip formwork, and below about 10 °C the pozzolanic reaction nearly stops. The weakness that matters strategically is supply. Fly ash comes from coal plants and slag comes from blast furnaces, both of which are closing, and US coal combustion product output fell from 66.7 million tons in 2023 to 63.6 million tons in 2024 while coal supplied 16% of US electricity. Harvesting ash back out of old disposal ponds has held the volume going into concrete up for now, at 14.6 million tons in 2024, but it is a stock being drawn down rather than a flow.

Specify ASTM C595 Type IL as your default cement everywhere unless something in the project forbids it, because it costs the same, behaves almost identically to Type I/II, and takes roughly 10% off the cement's CO2 for no effort. If the schedule depends on stripping formwork in three days, hold fly ash near 15–20% and do not go past it. If the element is a mat foundation, a retaining wall or anything else where heat of hydration is the problem, go to 50–70% slag, since the slower heat release is a benefit there rather than a cost. If you are pouring in winter, drop the SCM level or plan on heated enclosures, because the reaction that gives you the durability also stops when it is cold. Write the specification in performance terms, with strength at 56 or 90 days rather than 28 and no prescriptive cap on SCM content, or the spec will block the mix that would have worked. If your market is short of fly ash and slag, which is increasingly common, calcined clay is the substitute that is not tied to a shrinking supply.

Roughly 0.85–0.9 t CO2 per tonne of clinker, of which about 525 kg is calcination · world average clinker factor 0.63 today, 0.58 projected for 2030 · US 2025 output 84 million tonnes of cement from 69 million tonnes of clinker, a clinker factor near 0.82 · ASTM C595 Type IL allows 5–15% limestone, Type IS up to 95% slag · US coal combustion products fell from 66.7 to 63.6 million tons between 2023 and 2024 · 14.6 million tons of fly ash went into concrete in 2024 · US cement averaged $160 per tonne at the mill in 2025

ASTM C595 Type IL portland-limestone cement, now the default product across most of the US market and accepted by nearly every state DOT; Holcim's ECOPlanet range and the high-slag mixes long used on marine and highway work; CRH's $2.1 billion acquisition of Eco Material Technologies in 2025, which was largely a bet on harvested ash supply; the LC3 project, which standardized a blend of about 50% clinker, 30% calcined clay and 15% limestone.

US cement averaged $160 per tonne at the mill in 2025, and the substitution economics fall out of that number. Limestone costs a small fraction of clinker and needs no kiln, so a plant switching to Type IL burns less fuel, emits less CO2, and gets more finished cement out of the same kiln, and the cement producer keeps that saving because Type IL sells at the Type I/II price. Fly ash and slag are bought by the ready-mix producer instead. Class F fly ash typically delivers for roughly half to two-thirds of cement's price per tonne, so a 20–25% substitution takes a few dollars per cubic yard out of a mix, while slag cement often costs as much as cement or more, which means a high-slag mix is specified for durability and carbon rather than to save money. The awkward part is who pays for the slower strength gain: the general contractor absorbs it through longer formwork cycles and a slower floor cycle on a tower, and the developer collects the benefit as a lower embodied-carbon number in the certification package. That split is why high-SCM mixes spread fastest on infrastructure, where the owner writes the specification and also carries the schedule, and slowest on speculative commercial work, where those are two different companies with two different contracts.

13 minConcrete Clips: Supplementary Cementitious MaterialsFederal Highway Administration USDOTFHWA · 10k+ views

10 minSupplementary Cementitious Materials OverviewETHZ - Physical Chemistry of Building Materials · 1k+ views

C595/C595M Standard Specification for Blended Hydraulic Cements (ASTM International) · The GCCA 2050 Cement and Concrete Industry Roadmap for Net Zero Concrete (Global Cement and Concrete Association)

Clinker substitution dilutes ordinary Portland clinker with materials that already exist. These routes change what the binder is, and they fall into four families. Modified clinkers such as belite ye'elimite-ferrite fire at roughly 1,250 °C from a raw meal with less limestone in it, cutting CO2 by 20% or more per tonne of clinker. Carbonatable calcium silicate clinkers harden by reacting with CO2 instead of water and lower process emissions by around 43%. Alkali-activated binders and geopolymers use no clinker at all, activating slag or fly ash with sodium silicate or sodium hydroxide, and can come in 80–90% below Portland cement on embodied carbon. The newest family changes the feedstock: Brimstone calcines calcium silicate rock rather than limestone, so there is no carbonate to decompose, and Sublime Systems runs an ambient-temperature electrochemical cell that pulls reactive lime out of non-carbonate minerals with no kiln at all, which puts the footprint on the electricity supply rather than on the chemistry. Against 0.85–0.9 tonnes of CO2 per tonne of conventional clinker, the credible claims across these routes land somewhere between 0.1 and 0.5 tonnes.

The reason to care is that these routes go after the calcination CO2 itself, which blending can only dilute, so the ceiling is far higher than the 0.52 clinker factor the industry roadmap projects for 2050. The problem is that each one needs a plant, and a first plant is small: Sublime's first full-scale facility is 30,000 tonnes a year against 84 million tonnes of US cement production in 2025. Three specific failure modes have already shown up. Novel binders usually fail prescriptive cement standards, so they go in under the ASTM C1157 performance specification and then have to be argued past each building official individually. The durability record is a few years against a 50–100 year design life, and chloride and sulfate behavior is where a cheap binder becomes an expensive one. And cost has killed this category before: belite ye'elimite-ferrite clinker has been funded for well over a decade and never left development, because the alumina-rich feedstock it takes costs more than limestone, and Novacem folded before proving out magnesium-based cement at all.

If you are a developer with a carbon target and money to spend, buy a novel cement through an offtake and treat it as a demonstration rather than as a supply strategy, because the volumes are not there. If the element is precast and made under one roof, such as pavers, masonry units or facade panels, a novel binder is much lower risk, since the producer controls curing and a bad batch gets rejected in the yard instead of poured into a building. If the work is structural, code-driven and cost-sensitive, use clinker substitution instead and revisit this in five years. Whatever you specify, write the cement requirement to ASTM C1157 performance criteria rather than to prescriptive composition limits, because a prescriptive spec excludes anything its committee did not anticipate, and that is the single most common reason a novel binder cannot be used on a project that wanted it. Ask for durability data in your own exposure class rather than compressive strength, which almost every candidate passes.

Roughly 0.85–0.9 t CO2 per tonne of conventional clinker against 0.1–0.5 t for these routes · belite ye'elimite-ferrite fires near 1,250 °C for 20%+ less CO2 per tonne of clinker · carbonatable calcium silicate clinker cuts process emissions about 43% · alkali-activated binders 80–90% below Portland cement · Sublime Systems' first full-scale plant is 30,000 t/y in 2027, against 84 million tonnes of US cement production · GCCA projects alternatives to Portland clinker at 1% of cement in 2030 and 5% in 2050, worth 0.5% of the sector's CO2 reduction · sector venture funding grew from $19 million in 2017–18 to $66 million in 2021–22 across 59 active startups

Sublime Systems, whose electrochemical route is anchored by a long-term Microsoft purchase agreement and a 30,000 t/y first plant scheduled for 2027; Fortera, running a 15,000 t/y carbonate mineralization plant in California with ASTM C1157-certified ReAct and ReCarb products and a memorandum of understanding with Graymont; Brimstone, working from calcium silicate rock with an Amazon agreement behind it; Terra CO2, which raised a $124.5 million Series B in 2025; Solidia's CO2-cured calcium silicate concrete; Aether, the belite ye'elimite-ferrite clinker developed by LafargeHolcim that never reached commercial scale; Novacem, which folded.

The capital does not work at commodity cement prices, and that is the whole story. Sublime Systems raised a $200 million Series C in 2025 for a first plant of 30,000 tonnes a year, which at the $160-per-tonne US mill price is under $5 million a year of product at commodity value. That comparison is derived here rather than published, but it explains the structure of every deal in the sector: the early plants are underwritten by corporate buyers paying for an environmental attribute rather than for delivered cement, which is what the Microsoft, Amazon and CRH Ventures commitments are. Venture money went from $19 million in 2017–18 to $66 million in 2021–22 and has since flattened, with the startup count slipping from 66 to 59, so this is now a consolidation phase rather than a formation phase. The exits so far have gone to incumbents rather than to new entrants, most visibly CRH's $2.1 billion purchase of Eco Material Technologies. The honest benchmark is the industry's own roadmap, which puts alternatives to Portland clinker at 5% of cement in 2050 and credits them with 0.5% of the sector's emissions reduction. If you are underwriting one of these companies, the question is whether it can get to a plant that sells cement profitably at something near commodity price, because the attribute buyers are financing first plants, not tenth ones.

5 minDecarbonizing Cement | Leah Ellis | TEDxBostonTEDx Talks · 1k+ views

State of Innovation 2025: Progress in Accelerating Next-Generation Cement and Concrete Technologies (National Laboratory of the Rockies) · Making Concrete Change: Innovation in Low-carbon Cement and Concrete (Chatham House)

Three different things get sold under this heading, and they behave nothing alike. The first is CO2 injection into fresh ready-mix: liquid CO2 is dosed into the hopper or the central mixer, where it reacts with calcium ions from the cement to form nano-scale calcium carbonate that seeds hydration, and the producer trades the resulting strength gain for a small cut in cement content. The dose is well under 1% of the cement weight, so the CO2 actually locked into the concrete is a few kilograms per cubic meter, and most of the reported reduction comes from the cement taken out rather than from the gas put in. The second is CO2 curing of precast, where units sit in a CO2 chamber instead of a steam room; uptake there is much larger, and it suits binders that harden by carbonation rather than hydration, such as calcium silicate clinkers and steel slag. The third is recycled aggregate, meaning crushed old concrete substituted for virgin stone, sometimes carbonated first to densify the mortar still clinging to it. At a global scale the numbers are not trivial: concrete carbonating in service has taken up an estimated 0.5–0.9 gigatonnes of CO2 since 2015, against a theoretical capacity around 16 gigatonnes.

Ready-mix CO2 injection is the easiest of the three to buy, because it is invisible from the specification side: the producer keeps the mix design and the strength requirement, the truck arrives the same, and placing and finishing do not change. The weakness is the same chemistry that makes it work. Carbonation consumes the calcium hydroxide that keeps the pore solution alkaline, and that alkalinity is what passivates reinforcing steel. Measured corrosion rates of steel in carbonated blended cements run 5 to 30 times higher than in uncarbonated ones depending on exposure and binder, so the routes that store the most CO2 are exactly the ones you cannot put around rebar in a wet or chloride environment. Recycled aggregate has its own limits: the old mortar makes the particle porous, so it absorbs 3–8% water against under 1% for natural stone, full coarse replacement typically costs 10–25% of compressive strength, and recycled concrete powder at a 30% dose has been measured to take up to half the slump out of a mix. And the accounting stays small across all three, because the cement is close to 90% of concrete's footprint and none of these touch much of it.

If a ready-mix producer in your market already runs CO2 injection, take it, because it costs you nothing, needs no change to your specification, and leaves mix-design responsibility where it belongs. Do not write it into the specification as a requirement, since in most markets that names one supplier and shows up in the bid. For pavers, masonry units and non-structural precast, CO2 curing is available now and is the lowest-risk place to use it, because the producer controls the chamber and a bad batch gets rejected in the yard. Allow recycled aggregate without limit in fill, base course and lean concrete, cap it at the 20–30% coarse replacement that most codes and state DOTs accept for structural mixes, exclude the fines, and adjust mix water for the higher absorption. Do not put a carbonated binder in reinforced concrete in a chloride or wet-dry exposure class unless you have corrosion data on that specific binder in that exposure. If your actual goal is embodied carbon, spend the specification effort on the cement instead, because that is where nearly all of it is.

CO2 injection dose well under 1% of cement weight, storing a few kilograms of CO2 per cubic meter · concrete carbonation has taken up an estimated 0.5–0.9 Gt of CO2 since 2015 against roughly 16 Gt of theoretical capacity · steel corrosion rates 5 to 30 times higher in carbonated blended cements · recycled aggregate absorbs 3–8% water against under 1% for natural stone · 10–25% strength loss at full coarse replacement, 20–30% the usual code cap · recycled concrete powder at 30% dose can cost up to half the slump · cement is close to 90% of concrete's carbon footprint

CarbonCure's ready-mix, precast and masonry systems, retrofitted into existing batch plants as a valve box and a control box tied into the plant's batching software; Solidia's CO2-cured calcium silicate concrete, developed with LafargeHolcim; state DOT specifications that accept recycled concrete aggregate in unbound base across most of the US, reviewed nationally by FHWA; ASTM C1157, the performance specification that lets a carbonatable binder be specified at all.

The unit economics of ready-mix injection are thin but they land on the right party, which is why it spread without a mandate. The equipment retrofits into an existing plant in a single visit, and the producer pays a recurring fee plus the cost of the CO2. What the producer gets back is the cement it no longer buys: a typical structural mix carries roughly 250–350 kg of cement per cubic meter, US cement averaged $160 per tonne at the mill in 2025, so a 5% cut is about 13–18 kg, worth roughly $2–3 per cubic meter against a concrete price on the order of $130–180. That arithmetic is derived here rather than published, and it works out to a one or two percent margin improvement, which is meaningful to a commodity producer and nowhere near enough to support a price premium. The second revenue line is carbon-removal credits, bought by companies with net-zero targets rather than by the building owner, and that is where the technology provider takes its share. Recycled aggregate is a different business entirely: the money there is avoided landfill tipping and avoided haulage, so it is a disposal-cost business with a small environmental benefit attached. The rare and useful feature of this whole group is that the party paying is also the party benefiting, which is the opposite of most construction innovations and explains why a building owner usually gets it for free.

2 minCarbonCure's Concrete Technology: How it WorksCarbonCure Technologies · 10k+ views

4 minStartups capture CO2 and store it in concreteReuters · 5k+ views

Recycled Concrete Aggregate Federal Highway Administration National Review (Federal Highway Administration) · Cement and concrete as carbon sinks: Transforming a climate challenge into a carbon storage opportunity (Carbon Capture Science & Technology)

Low-carbon steel in a building is a procurement decision, not a different material. In almost every case it means steel melted in an electric arc furnace from scrap rather than made from iron ore in a blast furnace and basic oxygen furnace: same ASTM grade, same yield strength, same mill test certificate, same connection details. The gap between the two routes is large, with the IEA putting scrap-based electric furnace steel at roughly 0.3 tonnes of CO2 per tonne of crude steel including grid power against about 2.2 tonnes for the integrated route. The complication in North America is that hot-rolled structural sections are already essentially all electric-furnace product, so specifying low-carbon structural steel here usually changes nothing physical. What it changes is paperwork: the supplier provides an environmental product declaration, a third-party-verified cradle-to-gate global warming potential figure per tonne, written to a product category rule. Buy Clean California puts numbers on that, capping hot-rolled sections at 1,010 kg CO2e per tonne, hollow structural sections at 1,710, plate at 1,490 and reinforcing bar at 755. The one route that is a genuinely different material is hydrogen-based direct reduced iron, which replaces coke with hydrogen in ironmaking, and it is not yet supplying buildings at any meaningful volume.

The appeal is that nothing about the design changes, so this is the cheapest embodied-carbon measure available on a steel frame: one line in the specification, no new detail, no code variance, no schedule risk. The honest weakness is that in a market already running on scrap the reduction is measured against a global average you were never going to buy, so the saving is largely in the reporting. Verification is the second problem, and buyers should be clear-eyed about it. An environmental product declaration describes a product category from a mill, usually an industry-wide or facility-average figure, and nothing on a mill test certificate links the specific heat in your beam to the specific declaration, while the fabricator buys from whatever a service center has in stock. A specifier can verify that a compliant EPD exists and essentially nothing beyond that. The third weakness is where the carbon actually hides: hollow structural sections and plate carry limits 50–70% above hot-rolled sections, because they start from coil and plate whose supply is partly integrated and then get formed, so a design heavy in HSS and plate has a worse number than the frame material alone suggests.

If you are specifying a steel frame in North America, ask for EPDs and set a GWP limit at or near the Buy Clean California figures, because it costs nothing and most domestic mills already comply. Do not budget any real reduction for it, and do not claim one against your own baseline unless you know that baseline was integrated-mill steel. If you want a reduction you can defend, cut tonnage instead: shallower spans, optimized member sizes and fewer transfer conditions give a saving that is arithmetic rather than a supply-chain claim, and 10% less steel is 10% less carbon with certainty. If the project is in a market where sections still come from integrated mills, which covers much of Asia and parts of Europe, specifying electric-furnace supply is a genuine material change and worth the procurement effort. If you are chasing very low numbers, redesign the HSS and plate content before arguing about the wide-flange sections. And treat any green-steel offtake as a corporate procurement commitment rather than a project specification, because the volumes will not be there when your fabricator needs to buy.

Scrap electric-furnace steel roughly 0.3 t CO2 per tonne of crude steel including grid power against about 2.2 t for the integrated route · Buy Clean California limits 1,010 kg CO2e/t for hot-rolled structural sections, 1,710 for hollow structural sections, 1,490 for plate, 755 for reinforcing bar · the rebar limit fell from 890 kg CO2e/t in 2022 to 755 in 2025 · hydrogen direct-reduced iron carries a premium on the order of 20–40% over conventional steel · a steel frame package is roughly 10–15% of a commercial building's hard cost, of which the mill material is around half

Nucor, Steel Dynamics and Commercial Metals, whose electric arc furnaces supply nearly all US hot-rolled structural sections and reinforcing bar; the Buy Clean California Act, which since 2022 has capped GWP on structural steel, rebar, flat glass and insulation in state public works; the Designated Steel Construction Products product category rule that steel EPDs are written to; Stegra's hydrogen-based plant at Boden in Sweden and the HYBRIT venture between SSAB, LKAB and Vattenfall, which are the projects that would make the material genuinely different.

Nobody in the chain pays a premium for domestic electric-furnace steel, which is why this measure has spread so quickly and why it accomplishes so little. The mill sells a commodity, the service center and the fabricator buy on price and availability, and the developer collects a lower embodied-carbon number for free. Producing an EPD costs a mill a life-cycle assessment and third-party verification, on the order of tens of thousands of dollars per product line and amortized over millions of tonnes, so it is effectively zero per tonne and adds cost to a project only when it eliminates a bidder. Hydrogen direct-reduced iron is the case where money changes hands, at a premium of roughly 20–40% over conventional steel. Working that through a building: if the steel package is 10–15% of hard cost and the mill material is about half of it, a 30% premium lands at roughly 1.5–2% of construction cost, an arithmetic chain done here rather than taken from a published figure. That is affordable for an owner with a corporate target and invisible to one without, and since the buyer cannot verify much past the EPD, the willingness to pay it rests on the certification value rather than on anything the building does differently.

5 minWhat is an EPD? (Environmental Product Declaration in Detail)Institut Bauen und Umwelt e.V. · 10k+ views

6 minWhat is embodied carbon in buildings?Builders for Climate Action · 50k+ views

Buy Clean California Act (California Department of General Services) · Iron and Steel Technology Roadmap (International Energy Agency)

This group covers two things: insulation grown from plants and insulation made from a waste stream. Cellulose is the volume leader and the oldest, roughly 80–85% post-consumer paper ground into fiber and treated with borate for fire and pest resistance, covered as loose fill by ASTM C739 and delivering about R-3.6 to R-3.8 per inch. It goes in blown loose over an attic floor or dense-packed into a closed cavity at around 3.5 lb/ft³, which is the density at which it stops settling. Wood fiber insulation defibrates wood chips and forms them into rigid board at about R-3.6 to R-3.9 per inch, used as exterior continuous insulation where a builder would otherwise install XPS or polyiso, and hemp batts land in the same range. Against the alternatives, fiberglass batt gives roughly R-3.1 to R-3.4 per inch, mineral wool board R-4.0 to R-4.3, XPS about R-5, and polyiso R-5.6 to R-6, so the bio-based products sit mid-pack and take more thickness for the same resistance. The carbon argument is that a plant-derived board carries biogenic carbon stored in the wall while a foam board carries manufacturing energy plus a blowing agent.

Manufacturing energy is genuinely low, because grinding paper or defibrating wood chips involves no furnace and no chemical synthesis, and cellulose in particular uses a feedstock that would otherwise be disposed of. The second real advantage is hygric: cellulose and wood fiber absorb and release water vapor without losing much thermal resistance, so a wall built with them tolerates a small leak that would rot behind a foam layer trapping the same water. Three weaknesses matter. R per inch is the obvious one, since matching 4 inches of polyiso takes about 7 inches of wood fiber, and on an exterior wall that means longer fasteners, deeper window bucks and a real detailing cost. The carbon claim is weaker than the marketing suggests: Buy Clean California's GWP limits explicitly exclude biogenic carbon, so the credit these products lead with is not counted by the one US procurement rule that regulates insulation carbon at all, and the storage lasts only as long as the building. And the baseline moved underneath the comparison, because the AIM Act phase-down pushed US XPS from high-GWP HFC blowing agents to HFO, cutting that product's cradle-to-gate figure by a large multiple, which makes any comparison written before roughly 2021 badly out of date.

If the space is a vented attic, blow cellulose. It is close to the cheapest option per unit of R installed, it fills around wiring and framing far better than batts, and the recycled content is real rather than nominal. If the space is a closed wall cavity, specify dense-pack at about 3.5 lb/ft³ and make the installer verify density, because loose-blown cellulose in a wall will settle and leave an uninsulated strip at the top plate. If you are adding exterior continuous insulation to an assembly that has to dry outward, wood fiber board is the right choice and you should budget the extra thickness into the window and cladding details from the start. If the insulation touches soil or sits below grade, use foam, since nothing in this group belongs in wet ground. And if your project is under an embodied-carbon limit, read whether that limit counts biogenic carbon before you pay a premium for a product whose advantage depends on it.

Cellulose roughly 80–85% post-consumer paper, R-3.6 to R-3.8 per inch, dense-packed at about 3.5 lb/ft³ · wood fiber board R-3.6 to R-3.9 per inch · fiberglass batt R-3.1 to R-3.4, mineral wool board R-4.0 to R-4.3, XPS about R-5, polyiso R-5.6 to R-6 · matching 4 inches of polyiso takes about 7 inches of wood fiber · Buy Clean California caps light-density mineral wool board at 2.68 kg CO2e per m² at RSI 1 and heavy-density at 6.82, down from 3.33 and 8.16 in 2022 · those limits exclude biogenic carbon

Greenfiber and Applegate cellulose, both made regionally from recovered paper; TimberHP in Madison, Maine, the first US wood fiber insulation plant, alongside the European incumbents Gutex and Steico; Hempitecture's HempWool batts, made in Idaho; Bonded Logic's UltraTouch recycled denim batts; Buy Clean California, whose insulation scope was broadened from mineral wool board to insulation generally by SB 1207 in 2024, with new subcategories still being defined.

Cellulose is cheap for a structural reason: the feedstock is a waste paper stream, the processing is mechanical grinding plus a borate blend, and the product is bulky enough that it cannot travel far, so plants are small and regional and the capital to enter is low. Installed cost per unit of R is close between blown cellulose and blown fiberglass, and both usually beat batts on a whole-assembly basis once the labor to cut batts around wiring and blocking is counted. The premium products are a different business. Wood fiber board typically costs more than mineral wool board at the same R, which itself costs more than foam, and the extra thickness adds fastener, trim and window-detailing cost on top of the material, so the assembly premium is larger than the price sheet suggests. Who pays and who benefits splits the market cleanly. On speculative housing the builder buys the insulation and the eventual owner pays the energy bill, which is exactly why that segment sits at code minimum and always has. On owner-occupied, institutional and public work the same party carries both, and that is where the bio-based products actually sell. Policy is the other demand driver, since procurement rules with GWP limits create a buyer who is required to care, and the current expansion of Buy Clean California's insulation categories will decide how much of this market that reaches.

13 minCellulose vs Fiberglass Insulation - Another PerspectiveHouseKnowHow · 10k+ views

17 minHAVE YOU HEARD ABOUT WOOD FIBER INSULATION ?Steven Baczek Architect · 1k+ views

C739 Standard Specification for Cellulosic Fiber Loose-Fill Thermal Insulation (ASTM International) · 2023 CLF North American Material Baselines Report (Carbon Leadership Forum)

Building information modeling means a 3D model in which every element carries data: a wall knows its type, fire rating and layer build-up, and a duct knows its size and which system it belongs to. Each discipline authors its own model in Revit, ArchiCAD, Tekla or a Bentley product, and those models are federated into one coordination model where geometry gets checked against geometry. Two standards carry most of the practical weight. IFC (ISO 16739) is the vendor-neutral exchange format, and the ISO 19650 series defines how information is named, exchanged and approved between parties. The AIA and BIMForum Level of Development scale, LOD 100 through 500, states how far a given element can be relied on: a duct at LOD 200 is a placeholder, and the same duct at LOD 400 is a fabrication instruction. Modeling hours scale with that number, so most of the argument on a project is about which systems have to reach LOD 350 or 400 and who pays for the extra detail.

The one well-evidenced benefit is clash detection. Running a federated model through Navisworks or Solibri finds hard conflicts between structure, ductwork, pipe, conduit and sprinkler before anyone installs them, and on a dense mechanical floor that is hundreds to thousands of conflicts. A conflict found in the model costs a coordinator an hour of work; the same conflict found in the field costs a crew a day, plus the rework and the trades queued behind it. The weakness is that a federated model is only as reliable as its worst discipline, so combining three models at LOD 200 with one at LOD 400 produces a clash report that is mostly noise, and teams then stop reading it. NIST's 2004 study put the cost of inadequate interoperability in the US capital facilities industry at $15.8 billion a year in 2002, and two-thirds of that fell on owners and operators during operation rather than on the people producing the data. That split explains the adoption pattern: coordination is well adopted because the contractor benefits directly, and asset handover data is thin because the contractor does not.

Use BIM coordination on anything with dense services: hospitals, labs, data centers, and any building with a mechanical penthouse. If the project is a repetitive warehouse or a simple frame with little above the ceiling, coordination modeling usually costs more than the clashes it finds, and 2D overlay is enough. If you are the owner and you want a usable asset model at handover, write the information requirements into the contract at the start and pay for them as a separate line; asking for it at closeout gets you a file nobody maintains. If you are a subcontractor who fabricates from the model, model your own work to LOD 400 whether or not the contract requires it, because the spool sheets and cut lists come out of it. Do not read a national mandate as evidence that the model is being used: the UK required fully collaborative 3D BIM on centrally procured government work from 2016, and on most jobs the day-to-day use is still clash detection and drawing production.

LOD 100 to 500 sets how far an element can be relied on · $15.8 billion a year in US interoperability cost in 2002 · two-thirds of it borne by owners and operators · UK required fully collaborative 3D BIM on central government projects from 2016 · IFC is ISO 16739, information management is ISO 19650 · plan errors and omissions ran 0.9% of award value on design-bid-build highway projects against 0.5% on best-value design-build

Autodesk Revit, Graphisoft ArchiCAD, Trimble Tekla Structures and Bentley OpenBuildings as authoring tools, with Navisworks and Solibri for clash detection; the UK Government Construction Strategy of 2011, which set the 2016 requirement; Singapore's BCA electronic submission requirement; buildingSMART's IFC schema, ISO 19650 and COBie handover spreadsheets.

The money goes to labor, not to software. A seat of Autodesk's AEC Collection runs a few thousand dollars a year, while a full-time VDC coordinator in the US costs roughly $120,000 to $180,000 fully loaded, and a large project carries several of them. Most of the detailed modeling is done by trade subcontractors, because sheet metal, pipe and sprinkler shops fabricate directly from their own models, so those firms capture the saving in shop hours and field labor. The designer pays to model in more detail and sees none of that saving, which is why design fees and model detail get negotiated separately from the coordination scope. Owners pay twice: once for the coordination that reduces their change orders, and once for a handover model that in most portfolios is never opened again, because facilities teams run a maintenance management system and a building automation system rather than a geometry model. FHWA's study of 291 US highway projects found change orders for plan errors and omissions at 0.9% of award value under design-bid-build against 0.5% under best-value design-build, which is roughly the size of the prize from better coordinated documents. On a $100 million job that is real money, and it is also small enough that a team under fee pressure cuts the modeling scope first.

3 minWhat Is BIM (Building Information Modeling)?Autodesk Building Solutions · 1m+ views

11 minClash detection tutorial with Navisworks Manage 2023 in 10mnHow To BIM · 50k+ views

Cost Analysis of Inadequate Interoperability in the U.S. Capital Facilities Industry (NIST) · Government Construction Strategy (Cabinet Office)

Reality capture means measuring what is physically there and turning it into a point cloud. A tripod-mounted terrestrial laser scanner sweeps a rotating mirror through the space and records range and angle for roughly one to two million points a second, holding a few millimeters of range noise at 10 m on a survey-grade instrument. Multiple setups get registered together using targets or cloud-to-cloud matching, and registration adds its own error, so a whole-building cloud is usually good to about a centimeter rather than to the instrument's published spec. Faster alternatives trade accuracy for coverage: a SLAM-based mobile mapper walked through a building holds roughly 1 to 3 cm, and drone or handheld photogrammetry is cheaper still but needs surface texture and ground control to be trustworthy. A digital twin is meant to be the next step, a model kept coupled to the physical asset by repeated capture or live sensor data, which is what distinguishes it from an as-built model that was correct once.

The scan itself is cheap, and the comparison against the design model is where the value is. Registering the cloud to the model and coloring the result by deviation catches the slab poured 30 mm high or the embed set 50 mm off while the fix is still a grinder and an afternoon, instead of after the curtain wall brackets have been fabricated to the wrong dimension. Scanning is also the only practical way to document existing conditions for a retrofit, where record drawings are usually wrong or missing. Two weaknesses limit it: a scanner sees only what is in line of sight, so anything above a hard ceiling or inside a wall has to be captured before it is closed up, and the office work dominates the cost, running roughly three to ten hours of registration, cleanup and modeling for every hour in the field. Digital twins have a worse problem. Most of what is delivered under that name in construction is a static handover model with no feedback loop, and the National Academies' framing is explicit that a twin needs a two-way flow of data between model and asset, which almost no delivered building has.

Scan before you demolish anything and before you close a ceiling, because those are the two moments where the data cannot be recovered later. If you are doing a retrofit or a fit-out in an existing building, scan first: the record drawings are usually wrong, and one missed beam soffit can cost more than the whole survey. If the job is new construction on a clear site, scan progressively at structural milestones and compare against the model, rather than once at the end when nothing can be changed. If a vendor offers you a digital twin, ask what data flows back into it after handover and who is paid to keep it current; with no answer to that, you are buying an as-built model and should price it as one. Use SLAM mobile mapping when you need to cover a lot of floor area quickly and centimeter accuracy is enough, and a tripod scanner when you are checking tolerances.

Roughly 1 to 2 million points per second on a terrestrial scanner · a few millimeters of range noise at 10 m survey-grade · about 1 cm on a registered whole-building cloud · 1 to 3 cm for SLAM mobile mapping · scanner capital roughly $20,000 to $60,000 · office processing runs about 3 to 10 hours per field hour · £7bn a year claimed from better UK infrastructure data sharing, about 25% of total spend

Leica RTC360 and BLK360, Faro Focus and Trimble X7 as terrestrial scanners; NavVis VLX and Leica BLK2GO for SLAM mobile mapping; Autodesk ReCap, Faro Scene and Leica Cyclone for registration and deviation analysis; the ASTM E57 committee's test methods for medium-range 3D imaging systems; the Gemini Principles published by the Centre for Digital Built Britain in 2018.

A survey-grade terrestrial scanner costs roughly $20,000 to $60,000 depending on range and accuracy, and that capital amortizes over a few hundred scan days, so it is not the constraining cost. Service providers price by area or by day, and a two-person crew covering a floor plate in a day is a small line item against any structural trade. Processing labor is the real cost, at roughly three to ten hours of office work per field hour, which is why the useful question is what decision the scan will change rather than how much area it covers. The contractor who scans to check its own work captures that value directly, in avoided rework and in fabrication dimensions taken from the building instead of the drawings, and that is where reality capture has actually taken hold. Owners who pay for a handover twin capture nothing unless the facilities organization is staffed and paid to use it, which is the same split that leaves BIM handover data unread. The Centre for Digital Built Britain put the prize from better data sharing across UK infrastructure at £7bn a year, about 25% of total spend, but that number describes an ecosystem of connected asset data rather than anything a single project can bank.

3 minLaser Scanning Adoption in ConstructionBluebeam · 10k+ views

7 minWhat is a Digital Twin?IBM Technology · 100k+ views

Performance Evaluation of Terrestrial Laser Scanners – A Review (NIST) · The Gemini Principles (Centre for Digital Built Britain)

Computational design means building the geometry with a script instead of by hand, so that changing a parameter regenerates the result. In practice that is Grasshopper running on Rhino or Dynamo running on Revit, and it is ordinary work on any project with repetitive or curved geometry. Generative design is the step beyond it: state an objective and a set of constraints, then let a solver search the option space. Two families do almost all the useful work. Topology optimization treats the structure as a continuum and iteratively removes material from lightly stressed regions, usually with the SIMP method, minimizing deflection for a fixed fraction of the original mass. Combinatorial search runs an evolutionary or physics-inspired algorithm over discrete options such as room layouts, unit mixes, column grids or crane and laydown positions, scoring each against travel distance, daylight, cost or area efficiency. Solve times run from minutes on a laptop to a few hours on a cloud job, which is cheap next to the engineering time to set the problem up.

It works when the objective is a single measurable number and the output is a buildable quantity. Topology optimization on one loaded component typically removes 20% to 50% of its mass at equal stiffness, and layout search on a site or a floor plate produces real reductions in travel distance and wasted area. The savings show up in material quantity, which is why the honest applications are structural: member sizing, slab thickness and reinforcement, truss geometry and connection nodes. Three things limit it. An optimized shape usually has to be redrawn as something a fabricator can actually cut and weld, and that fabrication premium eats the material saving unless the part repeats many times. The objective function is the hard part, and a solver pointed at a number nobody agreed on produces confident nonsense. And most of what is marketed as generative design in architecture is massing studies and facade patterns, which produces images that no downstream fabrication or estimating process consumes.

Optimize anything that repeats: a floor plate poured 40 times, a panel type made 2,000 times, a node used at every truss joint. If the element is a one-off, the engineering hours to set up and check the optimization usually cost more than the material it saves, so size it conventionally. If you are chasing embodied carbon, start with the floor slabs, since they are usually the largest single share of a concrete frame's structural emissions, often around half. Use parametric modeling routinely for repetitive or curved geometry, because the payoff there is documentation time rather than optimization. If the thing you want cannot be written as a number a solver can compare, do not use generative search for it; you will get a gallery of options and no basis for picking one.

20% to 50% of mass removed on a single optimized component at equal stiffness · floor slabs often around half of a concrete frame's structural embodied carbon · roughly 10,000 unique milled acoustic panels on the Elbphilharmonie · solve times from minutes to a few hours · Rhino perpetual license around $1,000 with Grasshopper included, Dynamo free with Revit · computational designer roughly $100,000 to $160,000 fully loaded

Grasshopper on Rhino and Dynamo on Revit as the standard scripting environments, with generative design tools inside Revit and Fusion; the 88-line MATLAB SIMP code from the Technical University of Denmark, which is how most engineers first meet topology optimization; the Elbphilharmonie in Hamburg, whose roughly 10,000 unique acoustic panels were milled from a parametric model; the MX3D 3D-printed stainless steel footbridge in Amsterdam, whose form was developed in a parametric model and checked by structural analysis before printing.

Software is almost free next to labor. A Rhino license is around $1,000 perpetual with Grasshopper included and Dynamo ships with Revit, while a computational designer costs roughly $100,000 to $160,000 fully loaded, plus the engineer of record's time to check and document whatever the solver produced. The saving lands in material quantity, so who keeps it depends entirely on the contract: under a lump-sum contract the builder keeps it, and under a guaranteed maximum price or cost-plus the owner does. The structural problem is on the design side. Architects and engineers are commonly paid a percentage of construction cost, so cutting 15% of the steel tonnage cuts the fee that paid for the analysis, and nothing in a standard agreement pays the designer for a saving the builder banks. That is the clearest reason optimization stays a specialist service bought project by project rather than a default step, and it is fixed only where the delivery model shares savings across parties.

7 minComputational Design vs. Generative Design vs. Parametric ModelingChaos Veras · 50k+ views

2 minWhat is Topology Optimization?Altair · 100k+ views

Efficient topology optimization in MATLAB using 88 lines of code (Technical University of Denmark) · Automated architectural space layout planning using a physics-inspired generative design framework (arXiv)

An estimate starts with a quantity takeoff, prices each quantity with labor, material, equipment and subcontract rates, and then loads the total with general conditions, overhead and fee. Unit rates come from a firm's own historical cost data or from a published database such as RSMeans, adjusted by a city cost index. Estimates are classified by how complete the design is, and the accuracy range moves with it: a concept estimate carries a band on the order of minus 50% to plus 100%, and a bid-stage estimate on the order of minus 5% to plus 15%. The schedule is a critical path network: activities with durations and logic, a forward and backward pass producing early and late dates, and the longest path through the network, the one with no float, setting the completion date. Cost control then runs monthly, with the contractor billing against a schedule of values, the owner's representative certifying percent complete, and retainage of typically 5% to 10% withheld until the work is accepted.

The methods are mature and the arithmetic is rarely where projects go wrong. The failure is systematic. Flyvbjerg's data on transport infrastructure put average cost forecast inaccuracy at 44.7% for rail, 33.8% for bridges and tunnels and 20.4% for roads, and across the 70 years for which data exist that accuracy has not improved. The mechanism is selection rather than incompetence: optimism bias makes the internal build-up low, strategic misrepresentation makes the presented number lower still, and the projects that get funded are disproportionately the ones with the lowest numbers. Demand forecasts are worse than cost forecasts, with rail passenger forecasts averaging 51.4% below outturn and 84% of rail projects wrong by more than 20% in one direction or the other. The schedule carries a parallel problem, because it is a contract document as much as a plan: the baseline is submitted and accepted, updates drive progress payments, and delay claims are argued against it, so activity logic often gets written to protect a claim position rather than to describe how the work will be built.

Use a bottom-up estimate to set the contract price and a reference class forecast to set the budget you commit to. Reference class forecasting ignores the project's own build-up and applies the distribution of outcomes from comparable completed projects, which is why the UK Department for Transport adopted optimism bias uplifts in 2004: 32% on a road scheme and 57% on a metro rail scheme at 80% confidence. If the work is genuinely novel and no reference class exists, say so and widen the contingency instead of pretending the build-up is precise. If you are the owner, hold contingency at your level and release it against defined triggers, because contingency buried in a contractor's price is defended rather than spent. On schedule, insist that the baseline reflects the intended means and methods, and re-baseline formally when the plan changes, since an accepted baseline nobody follows is the most expensive document on the job.

Cost forecast inaccuracy averaging 44.7% for rail, 33.8% for bridges and tunnels, 20.4% for roads · no improvement across 70 years of data · UK optimism bias uplifts of 32% on roads and 57% on metro rail at 80% confidence · rail passenger forecasts averaging 51.4% below outturn · concept estimates roughly minus 50% to plus 100%, bid estimates roughly minus 5% to plus 15% · retainage typically 5% to 10%

RSMeans data from Gordian for unit rates and city cost indexes; Oracle Primavera P6, Asta Powerproject and Microsoft Project for critical path scheduling; AACE International's recommended practices for estimate classification and forensic schedule analysis; the GAO Cost Estimating and Assessment Guide, which US federal programs are assessed against; HM Treasury's Green Book optimism bias guidance, applied by the UK Department for Transport from 2004.

A general contractor's estimating department is a cost of sale. Hard-bid hit rates often run one in five to one in ten, so every winning bid carries the cost of the losing ones, which is one reason competitively bid fee lands in the low single digits as a percentage of cost. The larger number is contingency: 5% to 10% on a $100 million project is $5 million to $10 million, and who holds it changes behavior, since an owner's contingency tends to get spent on scope while a contractor's contingency inside a guaranteed maximum price gets defended when unspent amounts are shared or returned. Scheduling itself is cheap, with P6 seats at a few thousand dollars a year and a project scheduler at roughly $130,000 to $180,000 fully loaded. The tail is not cheap. A delay dispute on a large job turns into forensic schedule analysis and expert testimony, and the legal cost alone reaches seven figures before anyone argues about the work. Reference class forecasting costs almost nothing to apply and is applied rarely, because the party preparing the business case is usually the party that wants the project approved.

7 minHow To Estimate Jobs For Contractors | Estimating 101SoCal Contracting Academy · 50k+ views

5 minWhat is the Critical Path Method (CPM)?Online PM Courses - Mike Clayton · 100k+ views

Cost Estimating and Assessment Guide: Best Practices for Developing and Managing Program Costs (U.S. GAO) · From Nobel Prize to Project Management: Getting Risks Right (Project Management Journal, via arXiv)

Design-bid-build is the traditional model: the owner holds separate contracts with a designer and a builder, takes the drawings to 100%, then bids the construction, usually to the lowest responsive bidder because public procurement statutes require it (FHWA found 80% of design-bid-build contracts in its study procured by low bid). Design-build puts design and construction under one contract, awarded on price alone or on best value, with the builder selected early; FHWA found the design under 30% complete at request for proposals on more than three quarters of the design-build projects that reported it. Construction manager at risk, called CM/GC in highway work, brings the builder on during design on qualifications or best value for preconstruction advice, then converts that into a construction contract, most often a guaranteed maximum price. Integrated project delivery replaces the separate contracts with one multi-party agreement in which owner, designer and builder share a profit pool against a target cost and waive most claims against each other. Progressive design-build selects the design-builder on qualifications first and develops the price open-book in stages, with an agreed off-ramp if the two sides cannot settle on a number. Payment structure follows the model: FHWA found 93% of design-bid-build contracts on unit prices, 85% to 91% of design-build on lump sum, and 56% of CM/GC on a guaranteed maximum price.

The clearest evidence that the contract shapes the incentive to innovate sits in FHWA's dataset of 291 completed highway projects. Contractor-proposed alternative technical concepts appeared on 40 of 74 best-value design-build projects and on 2 of 123 design-bid-build projects. Low-bid design-bid-build gives a bidder no channel to propose a better method and no share of the savings if one is accepted, so bidders price the drawings as issued and look for margin in change orders instead. On cost the alternatives do not clearly win: award-to-final cost growth was 4.1% for design-bid-build, 4.0% for best-value design-build, 2.8% for low-bid design-build and 0.9% for CM/GC, and FHWA found no statistically significant difference among them at 95% confidence. On schedule the difference is large and repeatable, with mean project duration 48% shorter for CM/GC and 15% shorter for best-value design-build; among projects between $10 million and $50 million, design-bid-build averaged 2,130 days against 662 for CM/GC. What the owner gives up is price competition against a complete design, and the replacement is client capability: writing performance requirements and judging qualifications is skilled work, and an owner without that skill usually gets a worse deal from design-build than from a hard bid.

If the scope is fully definable, the design is conventional and the bidder pool is deep, low-bid design-bid-build is still the cheapest way to buy the work, and its weaknesses do not bite. If schedule is the binding constraint, use CM at risk or best-value design-build, since the duration evidence is strong and consistent while the cost evidence is not. If the project depends on a method the designer cannot specify without the builder (volumetric modules, mass timber, an unusual concrete mix, any long-lead fabrication package), get the builder on contract before the design is fixed, which means CM at risk, progressive design-build or integrated project delivery. If you are a one-time owner, avoid IPD: the multi-party agreement, the target-cost exercise and the facilitation cost real money and pay back across a program rather than a single project. If you are a public owner, check your enabling statute before planning around any of this, because design-build and CM/GC authority varies by state and by agency and is what actually determines your options.

Design-build projected at 44% of spending in FMI's assessed segments by 2021 · alternative technical concepts on 40 of 74 best-value design-build projects against 2 of 123 design-bid-build · award-to-final cost growth 4.1% design-bid-build against 0.9% CM/GC · projects of $10m to $50m averaged 2,130 days design-bid-build against 662 days CM/GC · 80% of design-bid-build procured by low bid · 35 state DOTs using design-build and 17 using CM/GC by the end of 2014

FHWA's national study of 291 completed highway projects, which reported 35 state DOTs using design-build and 17 using CM/GC by the end of 2014; AIA's C191 multi-party agreement and ConsensusDocs 300 as the standard IPD contracts; Sutter Health's IPD program in California, the most-cited repeat-owner example; progressive design-build in US water and wastewater work, where the Water Design-Build Council publishes owner guidance; FMI's market study for the Design-Build Institute of America.

FMI's study for DBIA projected design-build at 44% of construction spending in the segments it assessed by 2021, and those segments were worth $2.7 trillion of the $5.4 trillion in total US construction put in place over 2018 to 2021. Under low-bid design-bid-build a contractor's margin comes from bidding tight and recovering through changes, and the change order data shows it: plan errors and omissions ran 0.9% of award value on design-bid-build against 0.1% to 0.6% on the alternatives, and unforeseen conditions 2.4% against 1.5% to 1.8%. Under a guaranteed maximum price, savings below the GMP are usually split on a negotiated share, which creates a bounded incentive to find them and an equally real incentive to set the GMP high in the first place. Integrated project delivery is the only common structure in which a saving found by the builder raises the designer's profit, because every party draws from one pool measured against one target cost. That is also why it stays rare: standing up a multi-party agreement costs legal and facilitation fees a one-time owner will not spend, so IPD concentrates among repeat owners such as large health systems and universities. The consequence runs through the rest of this sheet. Anything that has to be chosen before the drawings are finished, including volumetric modular, mass timber, low-carbon mixes with slower strength gain, and site robots that need a model to work from, is structurally excluded by low-bid design-bid-build, because the party who would propose it is not under contract until the design is complete and the price is already fixed.

5 minChoosing a Construction Project Delivery MethodNabholz Corporation · 50k+ views

7 minIntegrated Project Delivery (IPD) overviewM Moser Associates · 10k+ views

Alternative Contracting Method Performance in U.S. Highway Construction (Federal Highway Administration) · Design-Build Utilization Combined Market Study (FMI for the Design-Build Institute of America)

US construction employs about 8.3 million people on payrolls and about 12.1 million by the household survey, and the gap is self-employment and one-person firms that never appear on anyone's payroll. Those payroll workers spread across roughly 938,000 private establishments averaging nine employees each, so the typical employer is a small subcontractor rather than a firm large enough to fund training or research. A general contractor assembles a chain of specialty subcontractors and hires each one job by job, which means almost nobody in the chain keeps the same crew working continuously. Measured against that structure, labor productivity has gone backwards: BEA data put construction value added per worker roughly 40% below its 1970 level by 2020, while whole-economy labor productivity rose 290% between 1950 and 2020 and manufacturing's rose more than nine-fold. The median construction worker is 42.2 years old against 42.1 for all US workers, so the "aging trades" framing is weaker than it sounds; the demographic signal that does hold up is entry, with 10.4% of construction workers under 25 against 12.2% of the workforce overall.

The subcontracting model is very good at one thing, which is absorbing demand swings at almost no fixed cost. Payroll construction employment fell from 7.73 million in April 2006 to 5.43 million in January 2011, a 30% cut that a chain of small subcontractors survives by releasing crews and that a vertically integrated builder does not survive at all. The cost of that flexibility is that nobody in the chain owns the productivity problem: a sub who trains an apprentice or buys a robot captures the return only while that worker or that job lasts, and at the next competitive bid the saving goes to the owner. The productivity statistic itself is contested and the objection is real, because deflating construction output is genuinely hard and quality change is poorly captured. Average completed single-family floor area rose from 1,660 ft² in 1973 to 2,480 ft² in 2020, and code-driven insulation, seismic bracing and electrical work went up with it, none of which a price index handles cleanly. Goolsbee and Syverson tested the objection by counting physical units instead of deflated dollars and found single-family output per employee still fell, from 2.63 to 2.35 units per worker across the post-1990 series; correcting for floor area is the most generous adjustment available and it turns the trend positive at 0.5% a year against 2.0% for the economy as a whole.

Treat local trade capacity as an input to method selection rather than something to sort out after design. If a specific trade is thin in your market, the reliable fix is moving that scope into a factory or a prefabrication shop, because a factory can train and keep workers that a job-by-job subcontractor cannot. If the trades are available and the schedule is not binding, conventional site work is usually still cheaper, since off-site production carries plant overhead the site does not. Do not read a rising wage as a shortage on its own: construction average hourly earnings were $40.44 in December 2025 against $37.02 across all private industry, and the two grew at roughly the same rate from 2019, which is not what bidding labor away from other sectors looks like. Check the job openings rate instead, which is published monthly and moves fast; construction ran 5.6% at its 2022 peak and 2.3–3.6% through 2025, below the 4.0–4.3% all-industry rate. And when you compare productivity claims, check what is being measured, because BLS publishes construction productivity for only four six-digit industries covering about 12.5% of sector employment, and those measures exclude subcontractor hours entirely.

8.3 million payroll workers, 12.1 million by household survey · about 938,000 establishments averaging nine employees · median age 42.2 against 42.1 for all workers · value added per worker roughly 40% below its 1970 level · single-family output 2.63 to 2.35 units per employee post-1990 · floor-area-adjusted growth 0.5%/yr against 2.0% economy-wide · average hourly earnings $40.44 against $37.02 all private

The US Department of Labor's Registered Apprenticeship system and the joint labor-management training trusts run by the building trades unions, which spread training cost across every signatory contractor rather than leaving it to whoever hires the apprentice; NCCER craft credentials and the Associated Builders and Contractors training network on the open-shop side; BLS labor productivity series for single-family, multifamily, industrial building, and highway and bridge construction, published since 2022.

Payroll wages in construction were $659 billion in 2024 against roughly $2.17 trillion of construction put in place, so wages on the books run near 30% of project value; the real labor share is higher, because that figure excludes self-employed earnings, benefits, and the labor embedded in materials (derived here, not published). Average annual pay is $81,054, and construction workers unionize at 11.1% against 5.9% across private industry, which concentrates the trained workforce in a minority of the market. Training is the clearest case on this sheet of the party that pays being a different party from the one that benefits. An open-shop contractor who trains an apprentice loses them to a competitor who trained nobody, so training stays underprovided unless a trust fund or a public program charges everyone for it. The same asymmetry runs through productivity. A subcontractor on a lump-sum bid keeps a productivity gain until the next bid round, after which competitors price it away and the owner keeps it, so the payback period a sub can underwrite is one or two jobs rather than the several years that plant or software needs. That is why almost every durable improvement in construction labor cost has come from moving work somewhere the same crew does it repeatedly, and why efforts aimed at making a one-off site crew faster have mostly not stuck.

14 minTHE TRADES ARE DYING...But The World Still Needs To Be Built! CAN WE FIX THE SKILLED LABOR SHORTAGE?The Honest Carpenter · 500k+ views

13 minWhat’s causing the skilled labor shortage?Breakthrough Academy · 100k+ views

Construction Labor Productivity (U.S. Bureau of Labor Statistics) · The Strange and Awful Path of Productivity in the U.S. Construction Sector (National Bureau of Economic Research)

Construction killed 1,034 workers in the United States in 2024, more than any other private industry, at a rate of 9.2 deaths per 100,000 full-time equivalent workers against 3.3 across all workers and 2.4 in manufacturing. The causes are concentrated: falls, slips and trips accounted for 389 of those deaths, transportation incidents 244, exposure to harmful substances 187, and contact with objects and equipment 161. Specialty trade contractors, the smallest firms in the chain, absorbed 606 of the 1,034. The nonfatal picture looks nothing like the fatal one, and this surprises people: construction's total recordable case rate was 2.2 cases per 100 FTE workers in 2024, slightly below the 2.3 private-industry average, so the industry is roughly ordinary for minor injuries and about three times as lethal. Fall protection under 29 CFR 1926.501 is OSHA's most frequently cited standard, and four more construction rules sit in the top ten: ladders, fall protection training, scaffolding, and eye and face protection. Wearables are the newer layer on top of all this, covering proximity alerts near equipment, fall and man-down detection, heat-strain monitors, location tags in hard hats and vests, and passive back-support exoskeletons.

The interventions with the strongest evidence are physical and cheap: guardrails and hole covers, personal fall arrest anchored before anyone goes up, and scaffold and ladder discipline. They work because they change the hazard rather than the worker's attention, which is the only thing that holds up on a site where the crew changes weekly. Wearables mostly do the opposite, since they detect or warn rather than remove, and the published evidence for them is much thinner than the sales material. A controlled study of two commercial passive back-support exoskeletons during simulated floor tiling found neither reduced trunk muscle demand, and one of them raised trunk extensor muscle activity by 13–44% against wearing no device at all. Nothing in the category has published field evidence of lower recordable injury rates at scale, and continuous location tracking carries a cost of its own, because workers who read it as surveillance stop wearing the tag. Enforcement is not what closes the gap either: OSHA and its state partners field roughly 1,850 inspectors for the entire US workforce, about one compliance officer per 70,000 workers, and ran 34,696 federal inspections in FY2024.

Spend on the fall hazard first and spend nearly all of it there, because falls are 38% of construction deaths and the 6-foot trigger in the OSHA construction standard covers most of the exposure. If your work is repetitive overhead or stooped, look at an arm-support exoskeleton before a back-support one, and pilot it on your own crews and your own tasks rather than trusting a lab result, since the tiling study shows a device can help in one posture and hurt in another. If you are buying wearables, buy the ones that produce a record you will act on, such as equipment proximity logs that let you rearrange traffic on the site, and skip the ones that only alarm. Treat heat-strain monitoring as the exception with the clearest case, because heat exposure is predictable, the physiological signal is real, and the intervention is a break rather than a purchase. If a vendor's business case rests on an insurance premium credit rather than on measured injury reduction, price it as an insurance product and ask what happens to the saving when the carrier revises its schedule.

1,034 construction deaths in 2024, 9.2 per 100,000 FTE against 3.3 all workers · falls, slips and trips 389 of 1,034, about 38% · specialty trade contractors 606 of 1,034 · recordable case rate 2.2 per 100 FTE against 2.3 private industry · one OSHA compliance officer per 70,000 workers · exoskeleton study raised trunk extensor activity 13–44%

OSHA's fall protection standard 29 CFR 1926.501 and the National Campaign to Prevent Falls in Construction run with NIOSH and CPWR; HeroWear Apex and Laevo Flex passive back-support exoskeletons, both tested in the CPWR-funded floor-tiling study; equipment proximity-warning tags used on large civil and industrial sites; workers' compensation experience modification rates, which most owners use as a bid prequalification gate.

Safety is paid for through workers' compensation, and the experience modification rate is the mechanism that makes it matter: a contractor's claim history multiplies their premium, and most large owners will not let a contractor above about 1.0 bid at all. That gate is why safety spending survives budget cuts when almost nothing else does, and it also explains why the money flows toward anything that produces documentation. A fall-arrest harness, lanyard and the training around it typically costs a few hundred dollars per worker per year, which is small against a comp premium that in high-hazard trades like roofing and steel erection often runs well above 10% of payroll. Wearables typically run a few hundred dollars per worker plus a per-seat subscription, and the return has to come from claim frequency, which is exactly the number nobody has published for them. The party paying is usually the subcontractor, whose margin is thin and whose crew turns over, while the benefit of a lower injury rate lands partly on the general contractor and the owner as schedule certainty, so adoption is faster where an owner writes the requirement into the contract than where a sub is left to choose.

6 minThe Basics of Fall Protection in 6 MinutesThe Lifting & Rigging Channel® · 100k+ views

3 minUsing exoskeletons to lighten the load for construction workersVirginia Tech · 10k+ views

Construction Industry (Occupational Safety and Health Administration) · Passive Back-Support Exoskeletons Have Limited Benefits During Floor Tiling (CPWR)

Nearly every US jurisdiction adopts a version of the International Building Code or the International Residential Code, amends it locally, and then enforces it through plan review, permit issuance, and field inspections at fixed hold points. Most of that code is prescriptive: it says what to build rather than what the building has to achieve, so a wall assembly, a stair width, or a fire-resistance rating is described in the text and anything matching the text is approved without argument. Cycle times are not consistent anywhere and the variation between jurisdictions is larger than the variation between projects. A study of 2,474 San Francisco housing developments from 2009 to 2017 found permitting for projects adding ten or more units ran from under one year to fourteen years, with mid-size projects taking about as long as large ones. The cost side is measurable: NAHB's 2026 survey puts regulation at $131,734, or 26.4%, of the final price of a new single-family home built for sale, split into $46,795 incurred during lot development and $84,939 during construction. Notably, the largest single line item is over $40,000 from building-code changes over the past ten years, while the pure cost of delay during the construction phase is under $2,000.

A prescriptive code is fast and cheap for anything it already covers, because the building official does not have to evaluate a design, only compare it to a table. It is also the reason a method the code did not anticipate has no route to approval except the alternative-means-and-methods provision, which asks the applicant to prove equivalence to a local official who carries the liability if it fails. That path works and it does not scale: tall mass timber buildings in the US were built one at a time through alternative-means approvals until the 2021 IBC added three new construction types, allowing up to 18 stories in Type IV-A, 12 in Type IV-B, and nine in Type IV-C, against a previous limit of six stories or 85 feet for wood structures. Exit stairs are the same pattern still unresolved. Most US codes require two stairs in apartment buildings of four stories or more, which forces a double-loaded corridor and rules out the small-lot, cross-ventilated floor plans common in Europe and Asia; Seattle, Honolulu, and New York already allow single-stair "point access block" buildings up to six stories with extra fire and life safety requirements. Performance-based design solves the general problem by stating the objective and letting an engineer demonstrate it, but it costs modeling, peer review, and time, so it is worth doing on a large or unusual building and rarely on a small one.

Check the local amendments before you check the model code, because a jurisdiction's amendments are where the surprises live and they are what your consultant will not have memorized. If your method is unusual, budget for the alternative-means path from the start: figure a specific building official, a fire marshal, test data or a listing, and several months, and do not treat approval on one project as precedent for the next. If you are building off site, work through a state industrialized-building program with third-party plant inspection rather than asking the local inspector to visit a factory two states away, since that approval is what makes the module legal on arrival. If schedule risk is what you are managing, remember that the permit calendar and the design change that triggers a re-review cost far more than the review itself, so freeze the drawings before you submit. And if you are betting on a code reform, wait for adoption in the specific jurisdictions you build in rather than for publication of the model code, because the gap between the two commonly runs several years.

Permitting ran under one year to fourteen years across 2,474 San Francisco developments · regulation is $131,734 or 26.4% of a new single-family home's price · $46,795 in lot development, $84,939 during construction · over $40,000 of it from ten years of code changes, under $2,000 from construction-phase delay · 2021 IBC mass timber limits 18 stories Type IV-A, 12 Type IV-B, nine Type IV-C, against six stories before · two stairs required at four stories in most US codes, six stories allowed in Seattle, Honolulu and New York

The 2021 International Building Code Types IV-A, IV-B and IV-C for tall mass timber; alternative means and methods approvals, which is how US mass timber projects were permitted before those types existed; ICC/MBI 1200-2021 and 1205-2021, the off-site construction standards covering fabrication and factory inspection; HUD's manufactured housing standards at 24 CFR Part 3280, a federal construction code that preempts local codes outright; state industrialized-building programs that certify modules through accredited third-party agencies.

Permit fees themselves are usually a fraction of a percent of project cost. The expensive part is the calendar, because land, financing, insurance and design fees accrue whether or not anyone is working, and that carrying cost falls on the developer and gets priced into land offers, so a slow jurisdiction gets less housing at higher prices rather than the same housing later. Note that the under-$2,000 delay figure above covers only the construction phase of a single-family home, after the permit is in hand, so it is not a measure of what entitlement delay costs. Code changes are a different bill entirely, at more than $40,000 per new single-family home over ten years, and those costs are largely passed to the buyer. Third-party and factory inspection is the one place where a rule change directly enables a business model, because a modular factory cannot run a line while waiting for a municipal inspector, and a state program that accepts an accredited agency's plant inspection converts that from a scheduling problem into a fixed overhead. Reform campaigns are cheap in absolute terms and slow to pay: single-stair legalization costs a few staff-years of advocacy per state and then several more years for local adoption, and the developer who eventually benefits paid none of it, which is why this work is funded by nonprofits and state legislators rather than by builders.

12 minWhy North America Can't Build Nice Apartments (because of one rule)About Here · 1m+ views

7 minThe CA Building Permit Process & Requirements --- Part 1 of 2Building CodeBuddyOnline · 50k+ views

Point Access Block Building Design: Options for Building More Single-Stair Apartment Buildings in North America (HUD Office of Policy Development and Research) · Home Building Regulatory Cost Burdens Increased 40% from 2021 to 2026 (NAHB Eye On Housing)

Lean construction treats a building site as a production system and tries to make the flow of work predictable rather than making any single crew faster. The Last Planner System is the core method: the trades pull-plan a phase backwards from a milestone, a six-week lookahead removes constraints such as missing material or unreleased drawings, foremen commit to a weekly work plan, and the team measures percent plan complete and asks why each missed commitment failed. The baseline that method is fighting is low; the Lean Construction Institute puts completion of the week's planned work at 54% on average. Takt planning is the other half, dividing a floor or a building into zones of roughly equal work content and moving each trade through the zones on a fixed beat, commonly three to five days per zone, so a delay shows up immediately as a train that cannot move. Site logistics is the physical version of the same problem, since on a dense site the tower crane, the hoist, the laydown area and the delivery window are the scarce resources, and scheduling them is most of scheduling the job. What all of this targets is time rather than material: work-sampling studies of industrial construction put direct work at roughly 30–50% of paid craft hours, with the rest going to travel, waiting for access, material handling, rework and waiting for instruction.

The appeal is that none of it requires capital. A general contractor can start the Last Planner System with a facilitator, a wall of sticky notes and a standing weekly meeting, and the measured effect shows up as fewer trade collisions and less standing around. The weakness is that it depends entirely on people keeping commitments they were not contractually required to make, so it decays the moment a project gets behind and the schedule reverts to being pushed from the office. Takt planning has a sharper failure mode: it needs zones with roughly equal work content, and a trade whose scope does not fit the takt either blocks the train or forces buffer zones that give back the gain. Both methods also measure themselves with numbers that are easy to game, since percent plan complete rises if foremen simply promise less, which is why the "why" analysis on missed commitments matters more than the percentage.

Use the Last Planner System on any project with more than a handful of trades working in the same space at the same time, which in practice means most commercial, multifamily and industrial work. Use takt planning where the work genuinely repeats, such as hotel floors, apartment stacks, hospital patient rooms and data hall fit-outs, and skip it on a one-off building with irregular floor plates, because forcing equal zones onto unequal work creates the buffers you were trying to remove. If your problem is the site rather than the plan, fix logistics first: measure crane and hoist hours, put deliveries on booked windows, and stop storing material where the next trade has to move it. If you are the owner, write the requirement into the contract and pay for the planning time, because a subcontractor asked to send a foreman to weekly planning meetings on a lump-sum job is being asked to fund someone else's schedule. And if you cannot get the trades to commit honestly, do not bother, since the method has no value as paperwork.

54% of the week's planned work completed on average · direct work roughly 30–50% of paid craft hours · takt zones commonly three to five days per beat · six-week lookahead is the standard constraint-removal window · no capital cost beyond facilitation and meeting time

The Last Planner System, developed by Glenn Ballard and Greg Howell and maintained by the Lean Construction Institute; takt planning on repetitive hotel and hospital floors; Advanced Work Packaging and WorkFace Planning, the industrial-plant equivalent studied through work sampling on large EPC projects; booked delivery windows and crane-hour scheduling on constrained urban sites.

Lean construction is nearly free in capital terms and expensive in attention. The direct cost is a facilitator plus a few hours a week from every trade foreman, which on a mid-size commercial job runs to a fraction of a percent of project value, and the benefit shows up as schedule, which is worth real money to whoever is carrying the financing. That is exactly where the incentive breaks. The owner and the general contractor capture most of a shorter schedule through lower carrying cost and earlier revenue, while the subcontractor supplies the planning hours and, on a lump-sum contract, gains only from demobilizing sooner. Where the delivery model shares savings, such as integrated project delivery or a design-build contract with a shared contingency, the method sticks and the numbers improve year over year; where the job was low-bid, it usually lasts until the first bad month. The other honest caveat is measurement, because almost every published result compares a project running the method against a different project that did not, so selection effects are hard to rule out and the reported gains should be read as a range rather than a coefficient.

3 minThe Last Planner System®Lean Construction Institute · 10k+ views

19 minHow To Do Takt PlanningJason Schroeder · 10k+ views

Last Planner System® (Lean Construction Institute) · Examining the impact of Advanced Work Packaging and WorkFace planning on direct work rates of on-site construction workers: a comparative analysis (Frontiers in Built Environment)

Deep retrofit means cutting an existing building's energy use by a large fraction in one intervention rather than through incremental measures, usually by adding continuous insulation and air sealing to the envelope, replacing windows, and swapping combustion heating for heat pumps. Adaptive reuse means keeping the structure and changing what the building is for, most visibly office to residential. The carbon argument for both is that the structure and the foundations already exist and their emissions were spent decades ago, so a reuse project starts with the largest single piece of a new building's embodied carbon already paid. Buildings account for at least 39% of energy-related global carbon emissions, and at least a quarter of that is embodied carbon in materials rather than operating energy. The most careful comparison available, a life-cycle study of six building types across four US climate zones over a 75-year horizon, found reuse saved between 4% and 46% of environmental impact against new construction of the same size and energy performance, and that it takes 10 to 80 years for a new building 30% more efficient than an average existing one to work off the emissions of its own construction. The delivery technology that makes deep retrofit fast is prefabrication: insulated wall panels lifted onto existing cladding and prefabricated mechanical pods, which move the work into a shop and cut the time occupants are disrupted.

The structural saving is real and it is the whole case, because a frame and foundation that are already standing cost nothing further in emissions and usually nothing further in money. The offsetting weakness is that the saving disappears when a conversion needs a lot of new material: in that same study, the warehouse-to-multifamily conversion was the one typology that came out worse than new construction, by 1% to 6% on ecosystem quality and human health, because of how much new material the conversion consumed. The commercial obstacle is uncertainty rather than cost. A new building is priced from drawings that describe everything, while a retrofit is priced from drawings that describe what somebody believes is behind the wall, and the difference shows up as change orders after demolition starts. Hazardous materials make that worse and are close to universal in older stock; the federal ban on lead-based paint came in 1978, and roughly three-quarters of US homes built before then still contain some. Office-to-residential conversion adds a geometry problem that no amount of money fixes, since a deep floor plate leaves interior area that cannot be a bedroom under light and air requirements, and running new plumbing risers through a structure designed without them is expensive.

Reuse the structure whenever the frame is sound, the floor-to-floor height works, and the change of use does not require gutting it, because that is where the carbon and cost case is strongest. If you are converting offices, screen on geometry before you screen on price: floor plate depth, window operability, core position and column spacing decide feasibility, and a building that fails those does not become viable at a lower purchase price. Budget a real investigation phase, with destructive testing, hazmat survey and as-built survey, and treat that spend as buying down contingency rather than as overhead. If the building is occupied, prefabricated envelope panels are worth their premium because they compress the disruption, and if it is empty they usually are not. And if a project requires so much new structure, new facade and new services that little but the frame survives, run the numbers against demolition and new construction honestly, because that is the case where reuse loses.

Reuse saved 4–46% of environmental impact against equivalent new construction · 10 to 80 years for a 30%-more-efficient new building to pay back its construction emissions · warehouse-to-multifamily conversion came out 1–6% worse than new construction · buildings are at least 39% of energy-related global emissions, at least a quarter of it embodied · roughly three-quarters of US homes built before 1978 still contain some lead-based paint

The Preservation Green Lab's 75-year life-cycle comparison of six building typologies across Portland, Phoenix, Chicago and Atlanta; Energiesprong, the Dutch net-zero refurbishment model paid from the energy and maintenance budget; the DOE Advanced Building Construction Initiative, including the Syracuse University retrofit using insulated exterior wall panels and a prefabricated mechanical pod, and Fraunhofer USA's insulated panel block system installed over existing cladding; EPA's Renovation, Repair and Painting rule, which governs any work on a pre-1978 building with lead-based paint.

The money in a retrofit is spent on labor and disruption rather than on structure, which inverts the cost breakdown of a new build and makes the estimate far less reliable. Envelope work on an occupied building costs more per square foot than the same work on an empty one, because access, protection and phasing are all priced in, and that is the gap prefabricated panels are aimed at. The split incentive is the oldest problem in the category: a landlord pays for insulation and heat pumps while the tenant's utility bill falls, so nothing gets done unless the lease passes the saving through or a program does. Energiesprong's answer is worth understanding as a financing structure rather than a technology, since it funds a net-zero refurbishment out of the energy bill the resident already pays plus the maintenance budget the landlord already spends, which converts a capital request into a redirected operating cost. Office-to-residential conversion is priced as a distressed-asset play, which means it works when the building trades far below replacement cost and stops working the moment office values recover, so the pipeline is cyclical rather than structural. And the carbon benefit accrues to nobody's balance sheet unless a jurisdiction prices it, which is why embodied-carbon limits in code do more for reuse than any subsidy for it.

12 minHow Empty Offices Become Apartments In The U.S.CNBC · 1m+ views

14 minRetrofitting to Passive House standardsJust Have a Think · 100k+ views

The Greenest Building: Quantifying the Environmental Value of Building Reuse (Preservation Green Lab, National Trust for Historic Preservation) · Advanced Building Construction Initiative (U.S. Department of Energy)
